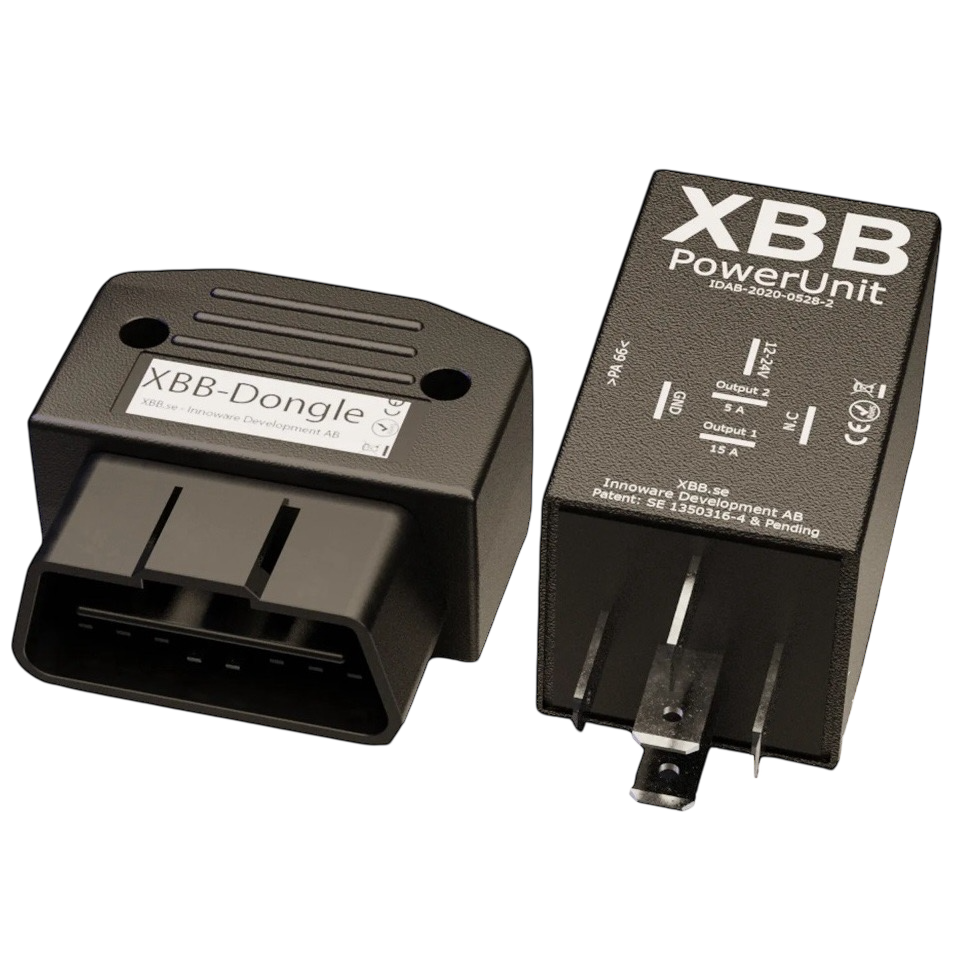

XBB Dongle & XBB PowerUnit – smart control of auxiliary lights
XBB Dongle & XBB PowerUnit is a smart and wireless control system that makes it easy to install auxiliary lights, LED light bars and other vehicle lighting on modern vehicles. The system retrieves information from the vehicle via the diagnostic port (OBD2) and sends control signals wirelessly to the XBB PowerUnit.
This means you do not need to search for a high beam signal or interfere with the vehicle’s original wiring – a major advantage on modern vehicles with CAN-bus systems and advanced headlight technology.
How does it work?
XBB Dongle connects directly to the vehicle’s OBD2/diagnostic port and reads information made available by the vehicle through the diagnostic system. In the
XBB Configurator app, you select a so-called recipe adapted to the vehicle model and equipment.
When, for example, the high beam, reverse light or ignition is activated, the XBB Dongle detects this and sends the signal wirelessly via Bluetooth to the
XBB PowerUnit.
The XBB PowerUnit is usually installed in the engine bay and acts as the system’s power and control unit. Auxiliary lights, an LED light bar or other equipment are connected to it. In the app, you decide which signal should control each output.
Example: High beam is activated → XBB Dongle detects the signal → the signal is sent wirelessly to the XBB PowerUnit → the LED light bar turns on.
No separate control wire therefore needs to be routed between the passenger compartment and the engine bay.
Technical specifications & Features
XBB Dongle
* Connects to the vehicle’s OBD2/diagnostic port
* Reads vehicle information via the diagnostic system
* Wireless communication via Bluetooth 5
* Configured using XBB Configurator for Android and iOS
* Supports multiple vehicle signals depending on vehicle model and selected recipe
* Up to 4 XBB PowerUnits can be connected to one XBB Dongle
* Built-in accelerometer
XBB PowerUnit
* Rated voltage: 12/24 V
* Operating voltage: 9–36 V
* 2 individually programmable outputs
* Output 1: max. 15 A
* Output 2: max. 5 A
* Bluetooth communication
* Current monitoring
* Temperature range: −40 °C to +85 °C
* IP rating: IP53
* Can be used for auxiliary lights, LED light bars, reverse lights and other vehicle lighting
The available signals vary depending on the vehicle model and the XBB recipe being used.
Benefits of the system
* No control signal needs to be taken from the vehicle’s original wiring
* No wiring required from the OBD2 port to the engine bay
* Perfect for modern vehicles with CAN-bus systems and advanced LED headlights
* Quick and easy installation
* Configuration directly from your phone
* Two individually programmable outputs
* Can handle multiple vehicle functions
* Up to four XBB PowerUnits can be used with the same XBB Dongle
* The system can easily be reconfigured if you modify or expand your lighting installation
* Reduces the need to interfere with the vehicle’s electrical system
See compatible car models here
What's in the box
1 x XBB Dongle
1 x XBB PowerUnit
Installation manual
Wiring Guide
