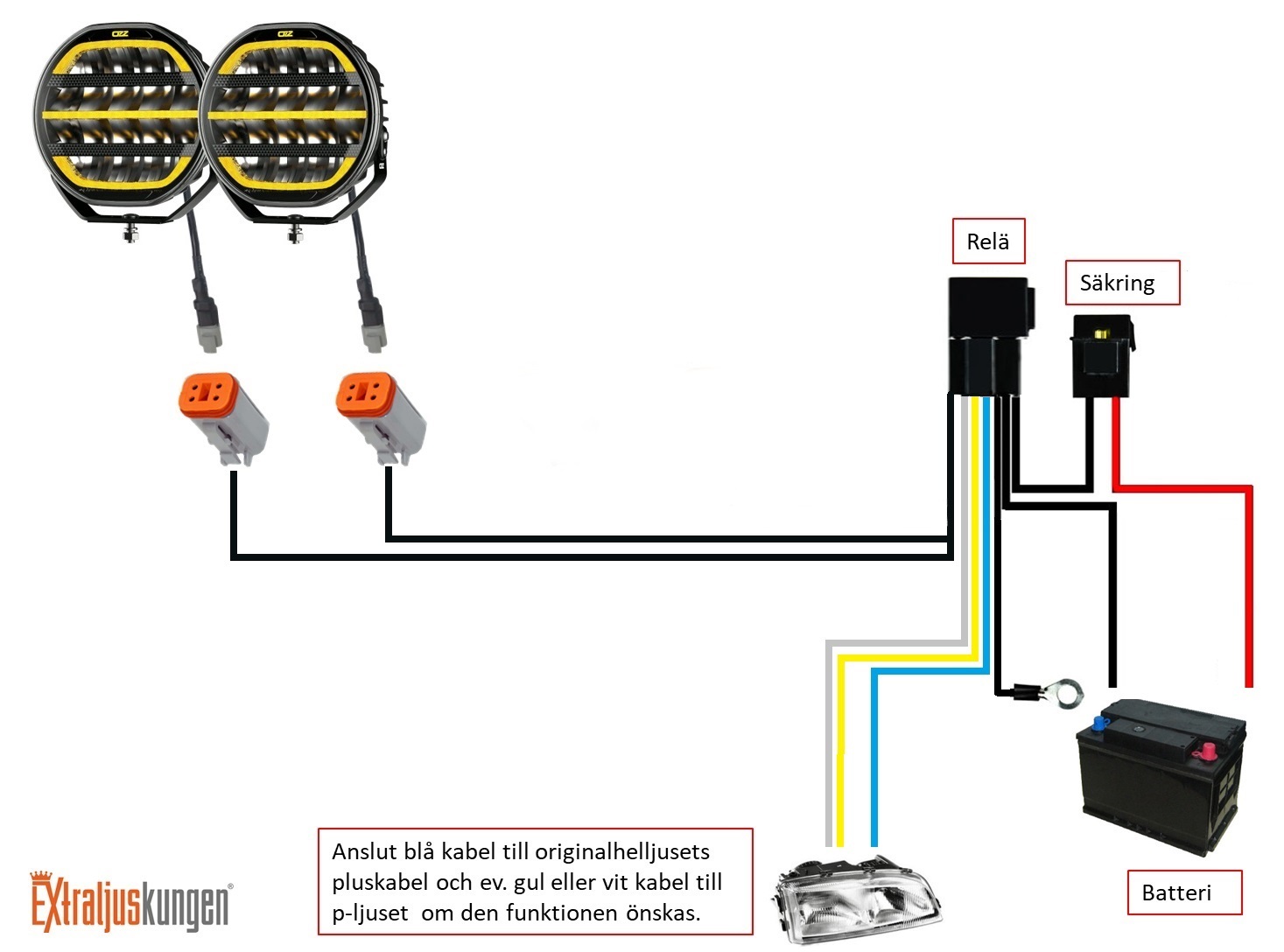

Relay harness for easy installation of 2 LED Driving Lights with DT-4 connector.
Complete kit with an 80A relay, mounted DT-4 connectors and fuse.
Two cables for connecting parking lights, white and yellow, are included in the wiring harness.
Fits all vehicles with 12V.
Suitable for the following lights:
OZZ
BriodLights Ice-X
TECH SPECS
1 pc Black ground cable (-) 1 meter 5.26mm²
1 pc Red power cable (+) 1 meter with 60A fuse holder 5.26mm²
1 pc Blue control power cable 1 meter 0.82mm²
1 pc Black ground cable (-) with 4 x 2.08mm² 0.5 meter with ring cable lug.
2 pcs 4-pin DT connectors 2 meters
2 pcs White position light cable 0.52mm² 1 meter.
2 pcs Yellow position light cable 0.52mm² 1 meter.
1 pc 80A relay, 12 V
1 pc 60A fuse
Max power 2x160 W
(All length measurements are from relay)
