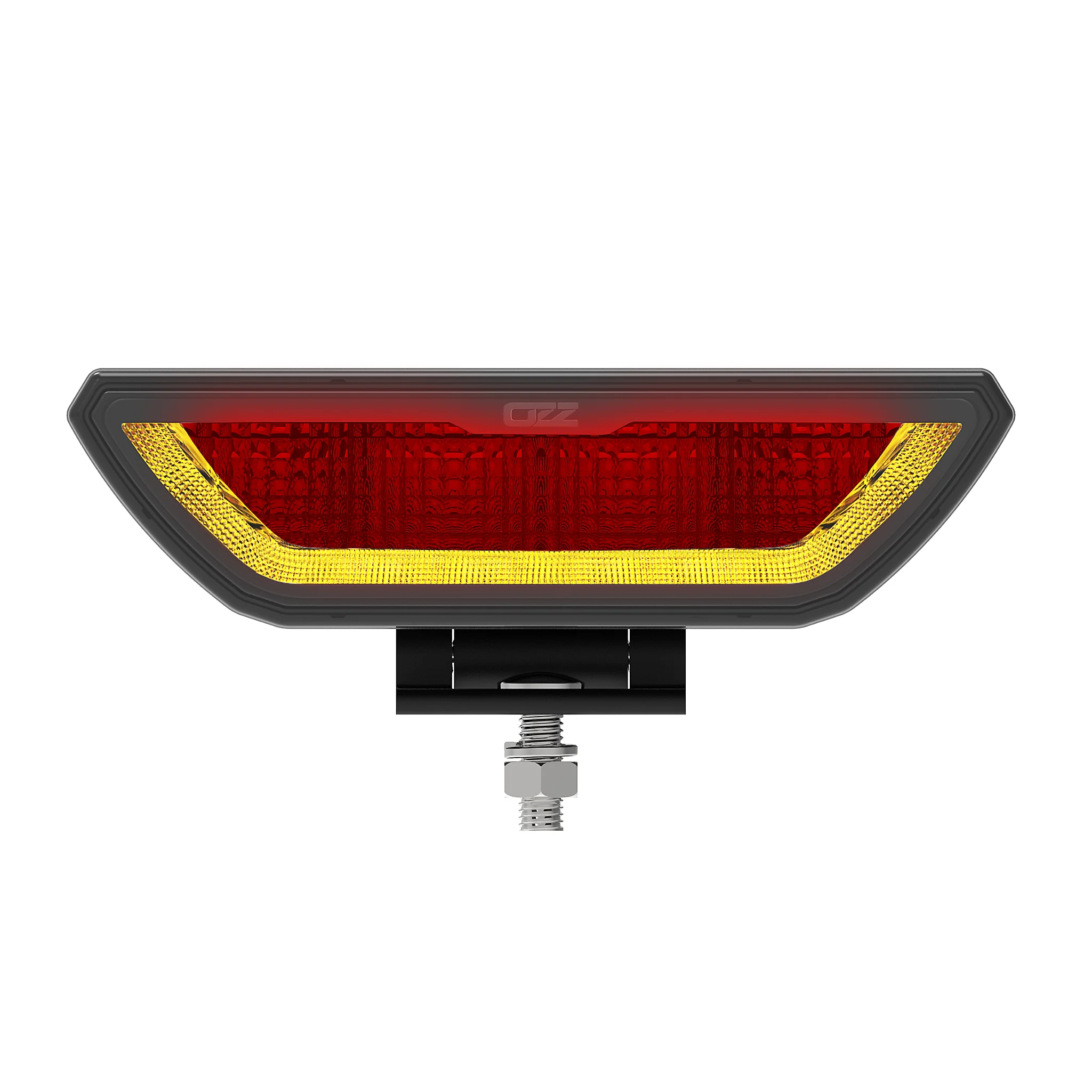

OZZ WR2 65 Red position light, work light and warning light

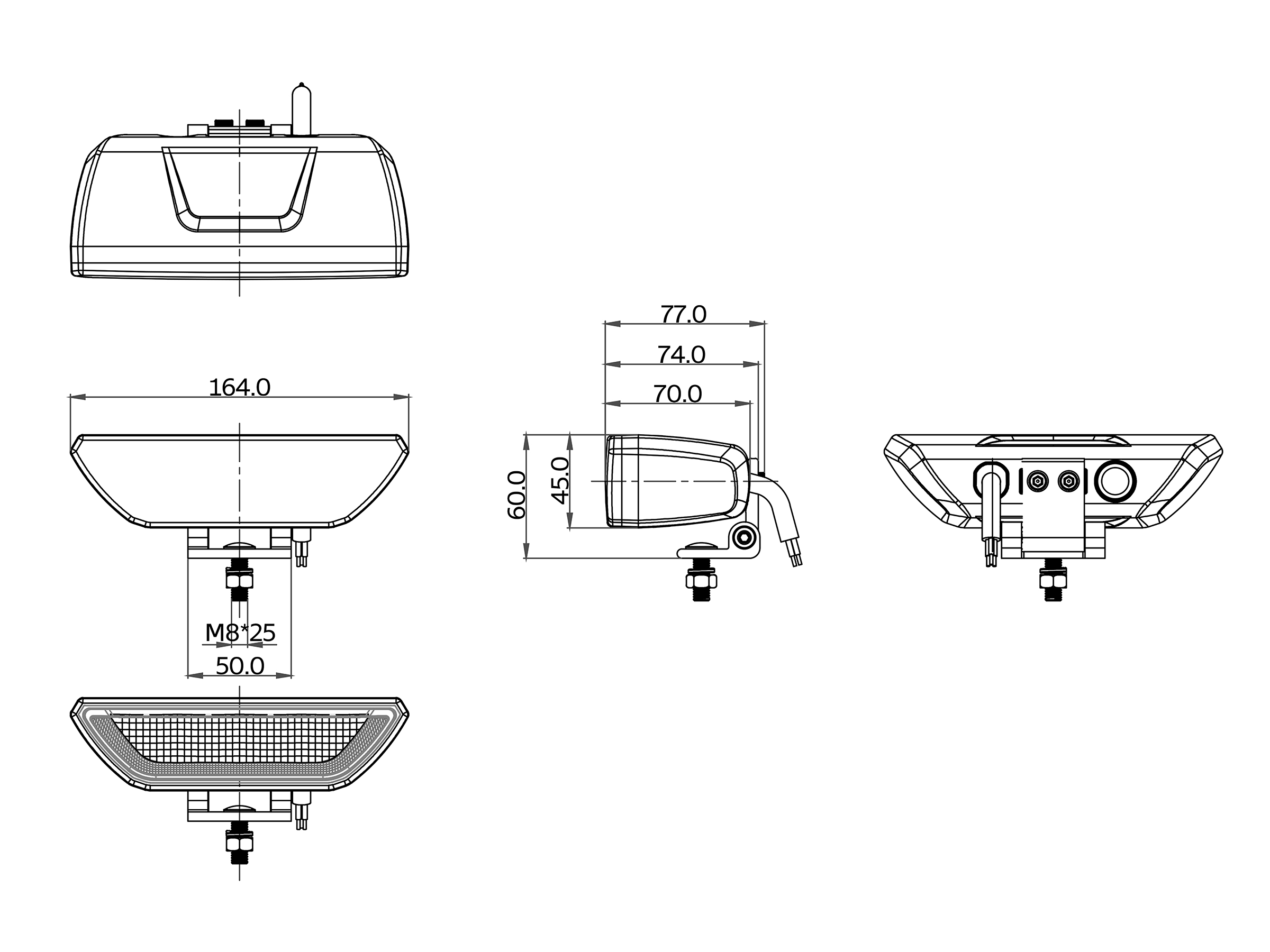

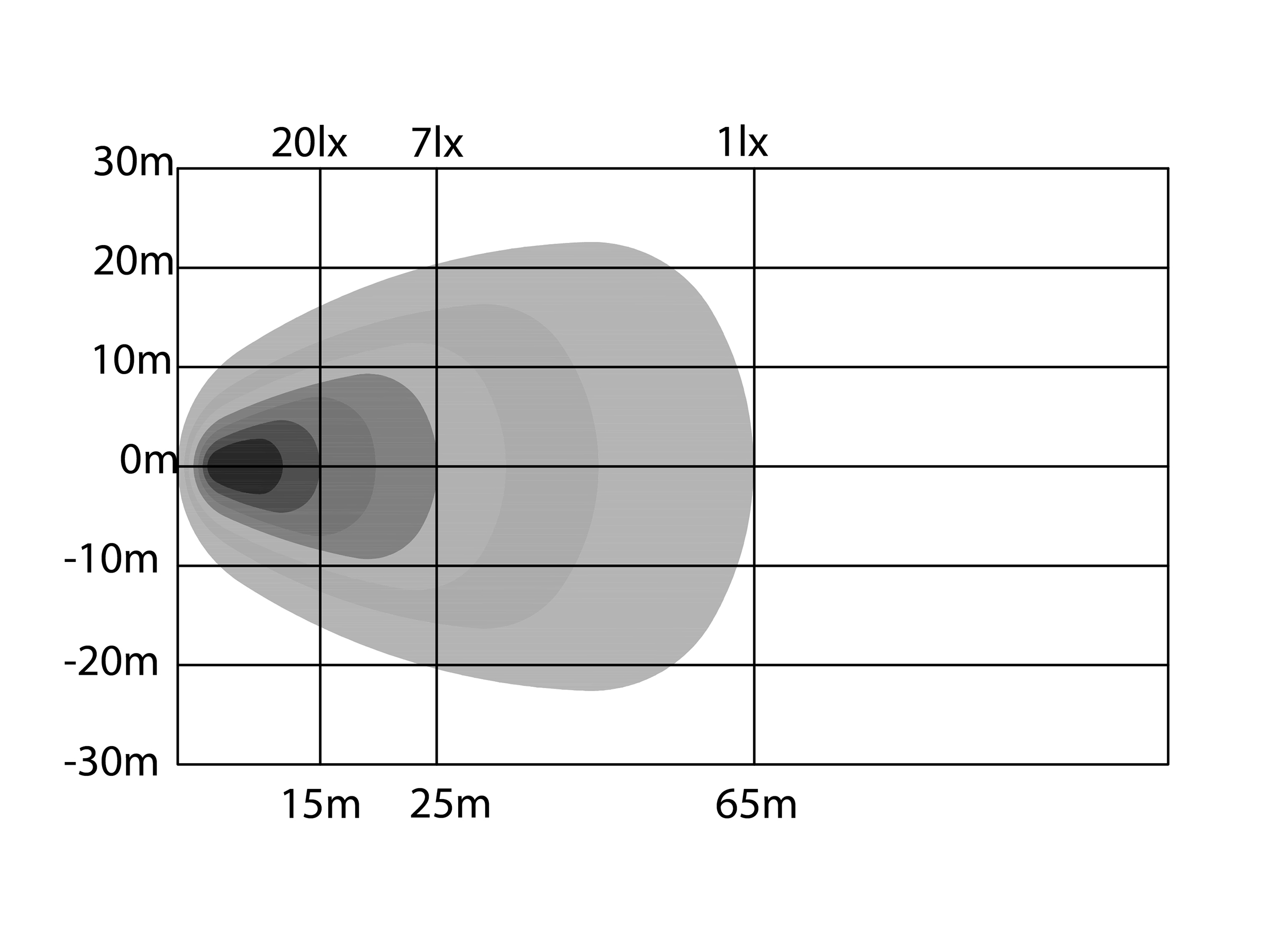

The OZZ WR2 65 is designed to deliver outstanding visibility and improved safety. It is equipped with a powerful flood light pattern with an impressive 2180 actual lumens and a range of 1 lux at 65 meters, ensuring safer use in demanding conditions. A red rear position light adds an eye-catching visual element, while the integrated E-approved warning light provides an invaluable safety feature to alert nearby traffic in low visibility environments. With a robust aluminum chassis and a durable polycarbonate lens, the lightbar is designed to perform reliably in all weather conditions. The IP68/69K rated protection ensures resistance to both dust and water. With a three-year warranty, the OZZ WR2 65 combines high-quality construction with advanced functionality, making it an excellent choice for private individuals as well as professional drivers and off-road enthusiasts. Specification Lamp type: LED Diodes (pcs): 22 Lm theoretical (lumen): 3600 Lm measured (lumen): 2180 Number of flash patterns (pcs): Double Volt (V): 10-32 Watt (W): 40 Power at 12V (A): 3 Power at 24V (A): 1.5 Power at 12V (W): 36 Power at 24V (W): 36 Color temp. (K): 5000 1 Lux at (m): 65 WxHxD (mm): 164x45x70 Connection: DT 4-Pin Other classifications: R10 - ECE R65 Class 2, ECE R23, ECE R148 IP: 68/69K Lamp housing: Aluminum Lens: PC Temp.range: -40°C to +60°C Beam pattern: Wide Color: White/red/orange EMC: R10 Cable (m): 1 Before installation 1. Check local laws and regulations for auxiliary lights in the areas where the vehicle will be used. Ensure that the installation meets the requirements. 2. Read all installation instructions. 3. Check that the dimensions and weight of the lights and unit are suitable for your vehicle, see figure 1. 4. Slight condensation inside may occur, this will ventilate away after 2-4 hours of use. 5. Working voltage: 10-32 V DC. Installation 1. Drill 1 or 3 holes with 11 mm drill, tighten lock nut. 2.Use braces if needed for stabilization. Connections and functions 1. Cable connections: Black: Earth, - Red: Forward working light (E-marked), + Yellow: R65 function, + White: Warning pattern switching and synchronization, - Blue: Red position light, + 2. Cable set: 40A relay, 30A fuse.
