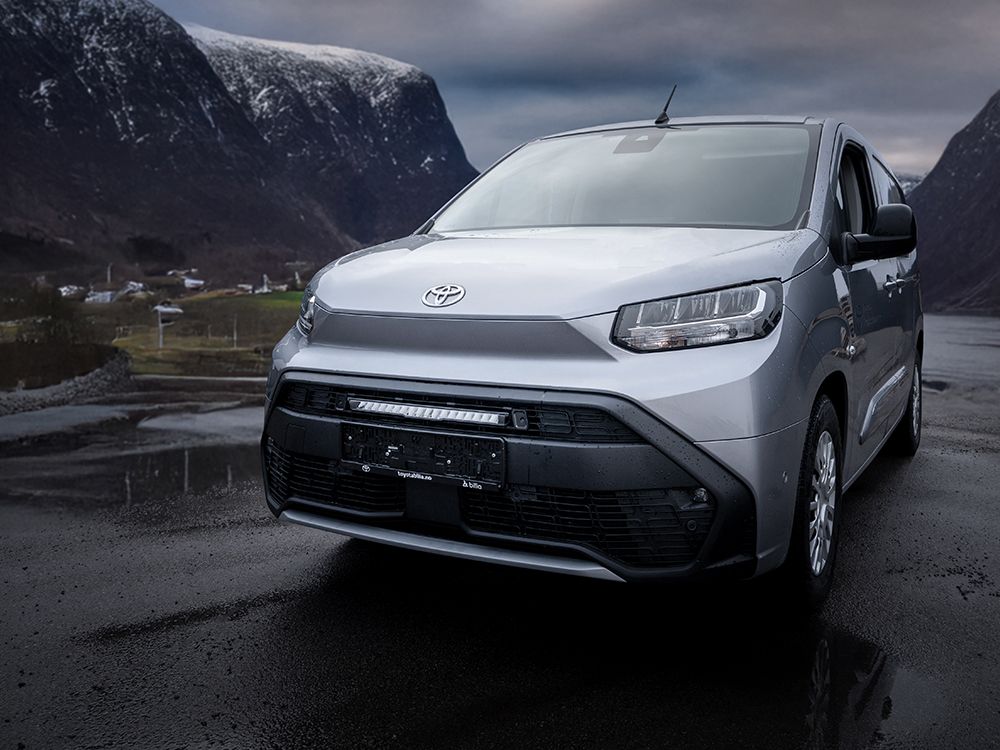

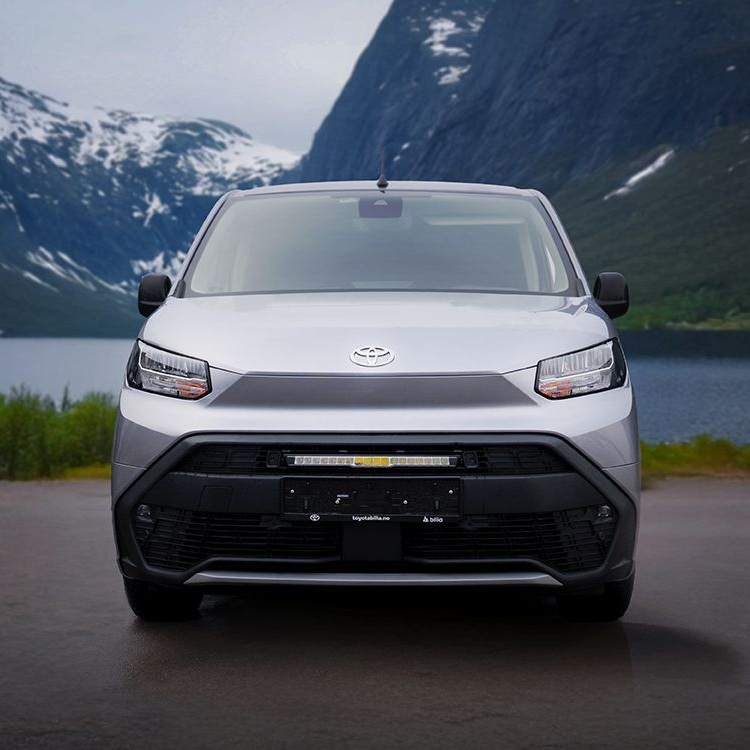

Toyota Proace City 2023+ Grille Kit - Linear 18 Elite+

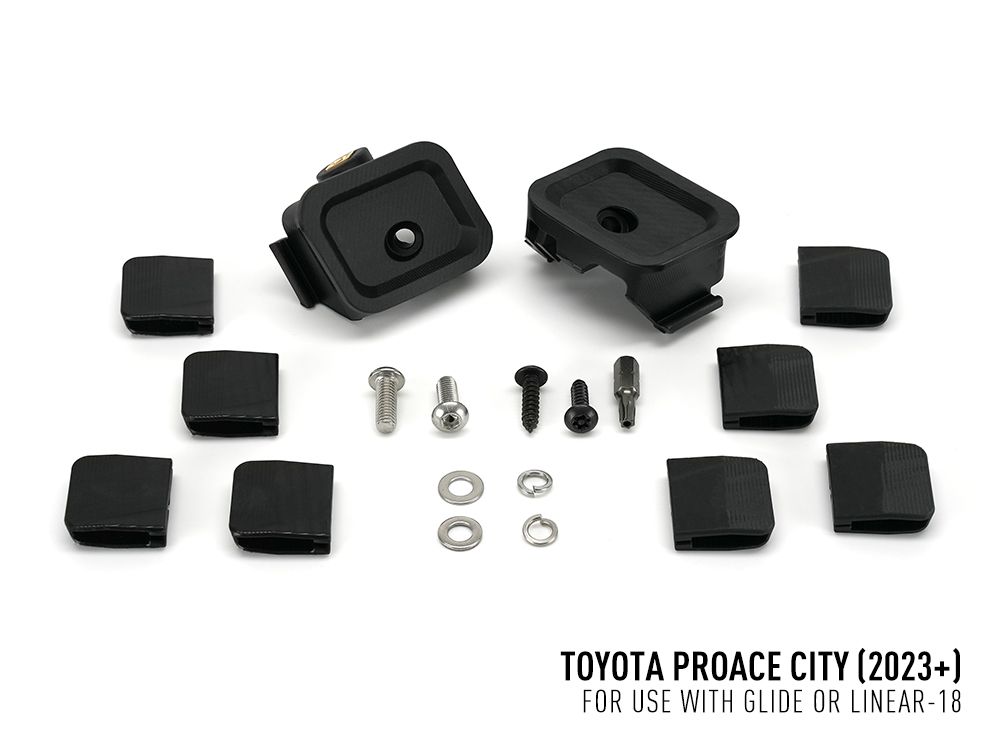

For an OEM-quality LED lightbar installation, the **Lazer Grille Integration Kits** feature custom-designed brackets that make it quick and easy to mount Lazer’s high-performance LED lightbars directly into the vehicle’s grille. The brackets are engineered to match the vehicle’s original styling, providing an integrated installation that is robust, secure, and equipped with additional anti-theft protection. Each **Lazer Grille Integration Kit** includes a high-performance LED lightbar, complete with wiring harness and precision-engineered brackets that fit perfectly within the vehicle’s original grille. For added durability and stability, self-tapping (plastic) screws are included to ensure a firm and secure installation. The brackets are made from a durable composite material with high strength and UV resistance, designed to withstand harsh weather conditions and chemicals – ensuring long-lasting reliability and performance. The kit also comes with precise cutting templates that simplify installation and guarantee a perfect fit every time – with no need to remove the grille or bumper.

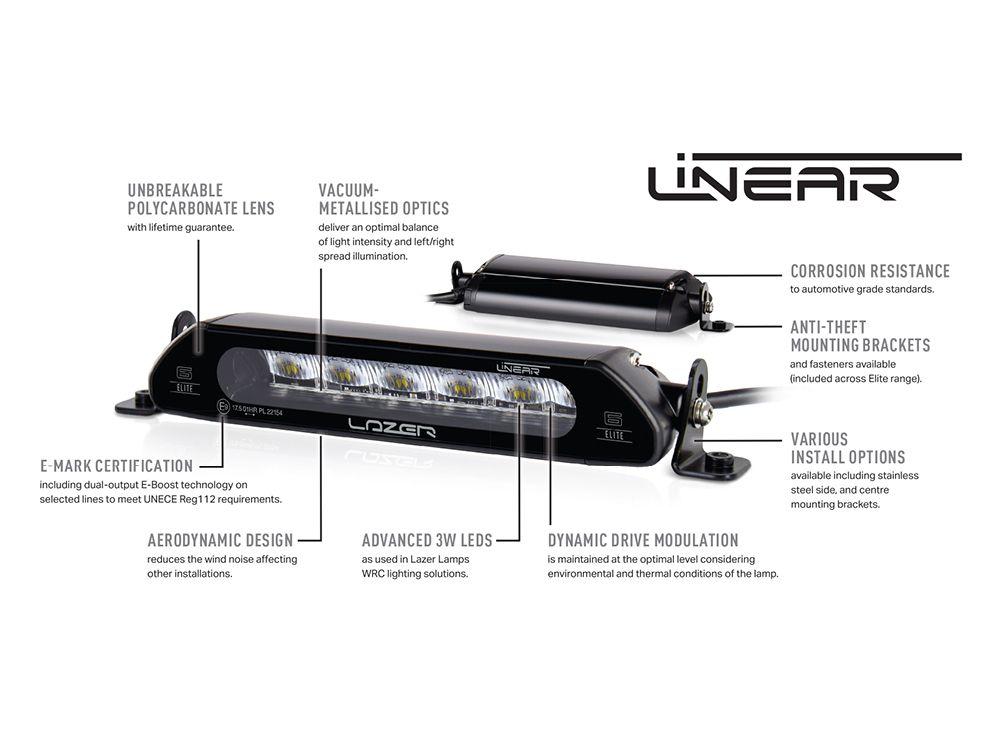

Specifications – Linear-18 Elite+ (White/Yellow/Combo)

Specification	White LEDs (E-Boost / E-Mark Mode)	Yellow LEDs (Fog / Dust / Snow Mode)	White & Yellow LEDs (Combo Mode)
Based on:	1× Linear-18 Elite+ LED lamp
Voltage Range (DC)	10–32 V	10–32 V	10–32 V
LED Life	50,000 hours	50,000 hours	50,000 hours
Weight	1,090 g	1,090 g	1,090 g
HIGH BEAM FUNCTION
Total Luminous Flux	14,850 / 4,455 lm	6,150 lm	21,000 lm
Total Driver’s FOV Flux †	10,573 / 3,172 lm	3,737 lm	14,284 lm
Colour Temperature	5,000 K	PC Yellow	N/A
Number of High-Performance LEDs	36	18	36 White / 18 Yellow
Power Consumption	134 W / 39 W	56 W	190 W
Current Draw	9.9 A / 2.7 A	4.1 A	14.1 A
Peak Current Draw	13.3 A / 3.8 A	6.1 A	19 A
CERTIFICATION
High Beam	ECE R149	N/A
ECE Reference	27.5
DIMENSIONS
Width	532 mm	532 mm	532 mm
Depth	62 mm	62 mm	62 mm
Height	40 mm	40 mm	40 mm

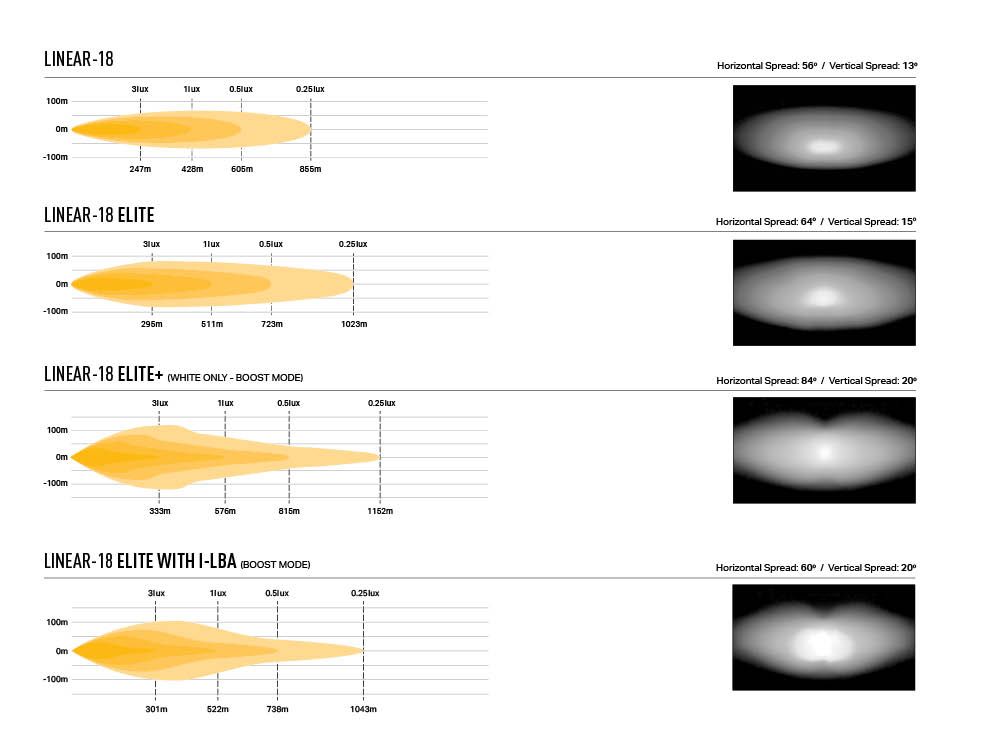

PHOTOMETRIC DATA
Horizontal Beam Angle	84°	84°	84°
0.25 lux line	1,152 m / 694 m	472 m	1,217 m
0.5 lux line	815 m / 491 m	334 m	860 m
1 lux line	576 m / 347 m	236 m	608 m
3 lux line	333 m / 200 m	136 m	351 m

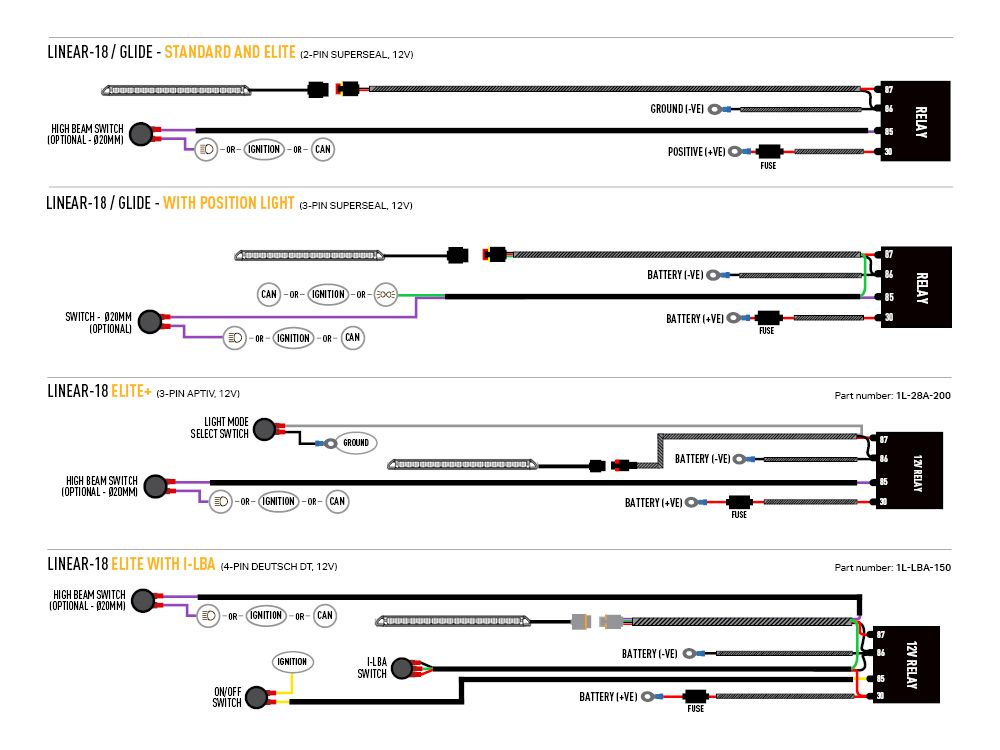

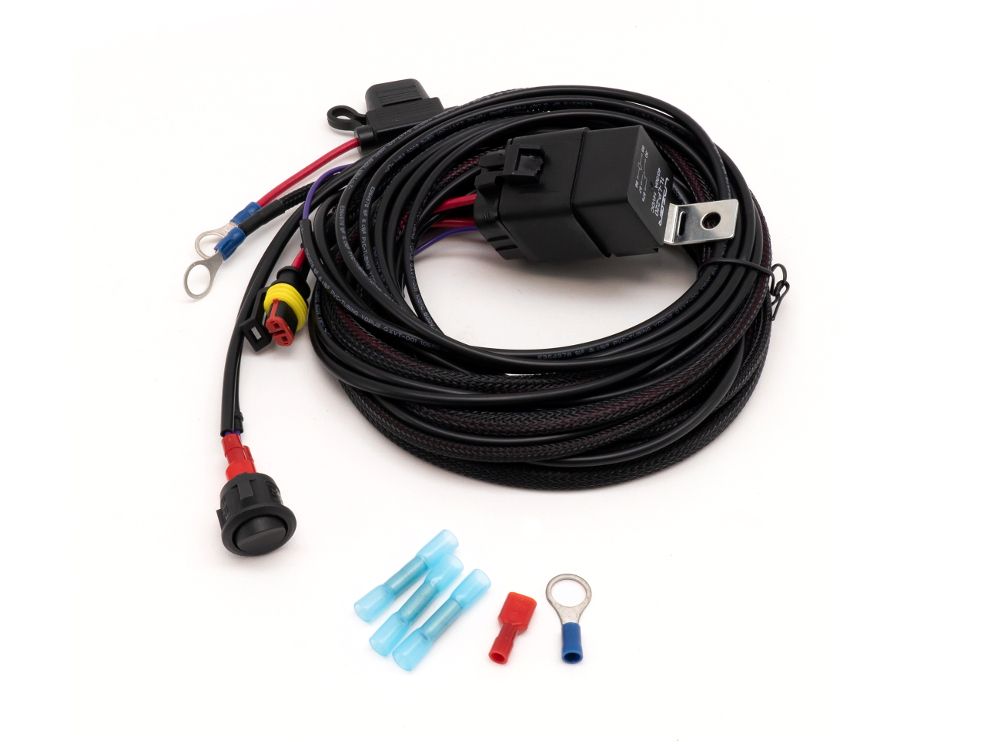

Included 1× Grille Mounting Kit 1× LED Lightbar 1× Relay Wiring Harness Installation Instructions
