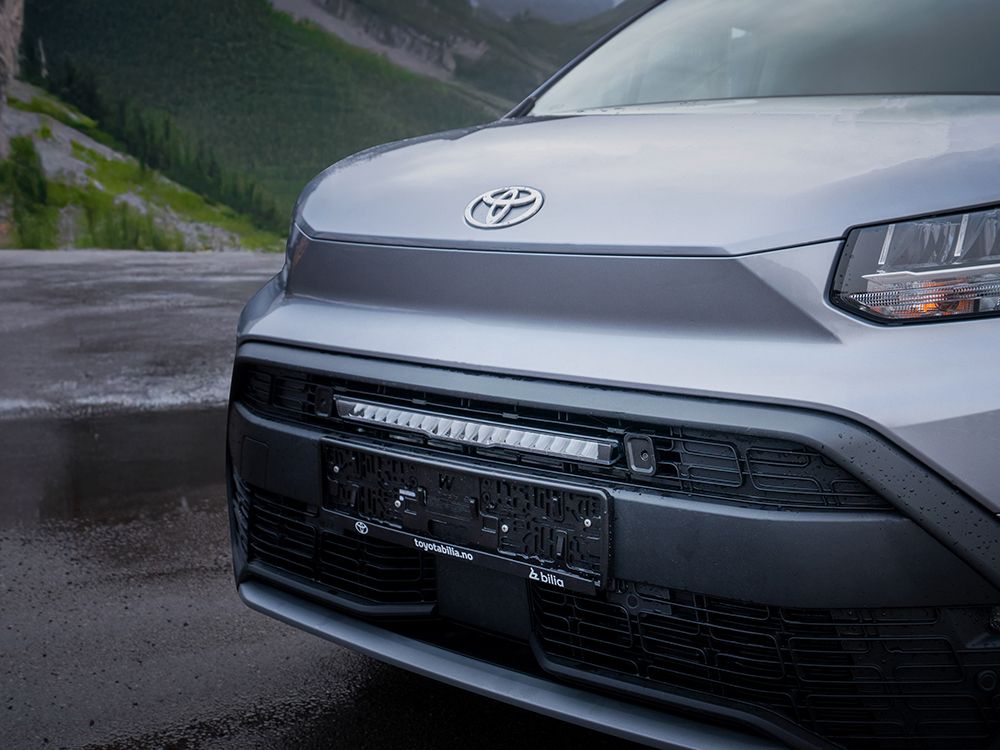

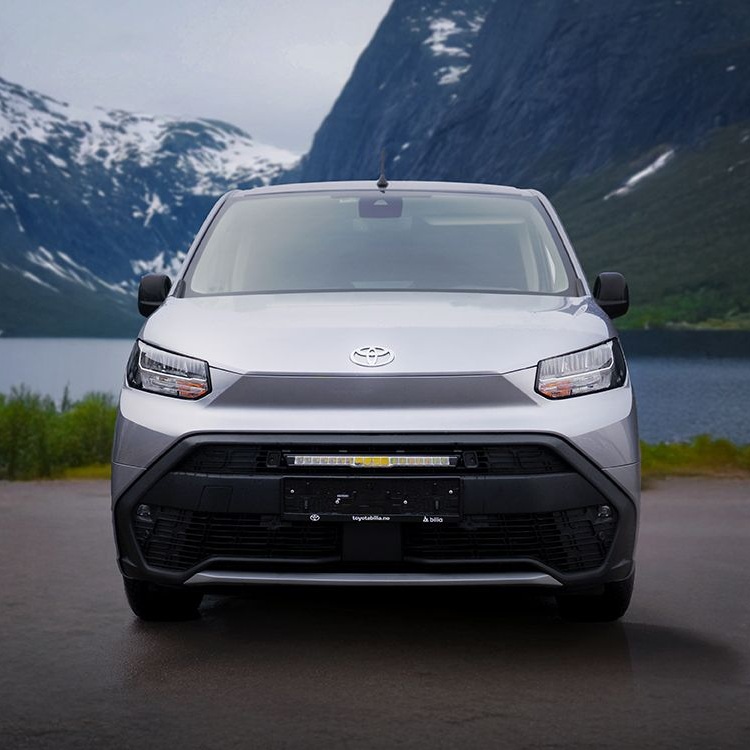

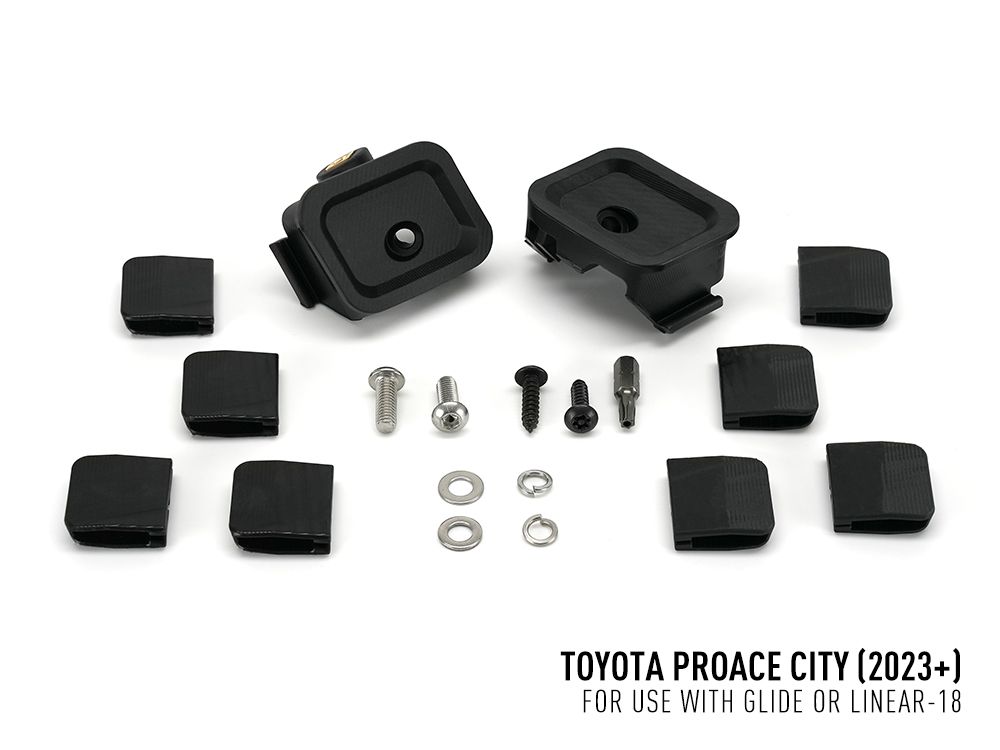

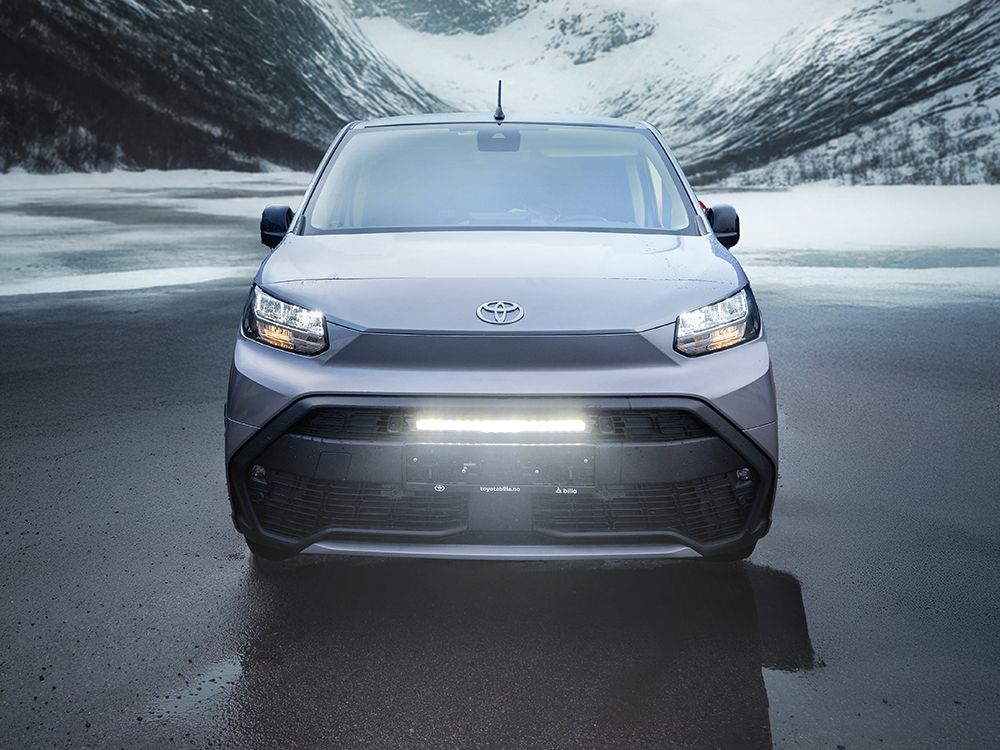

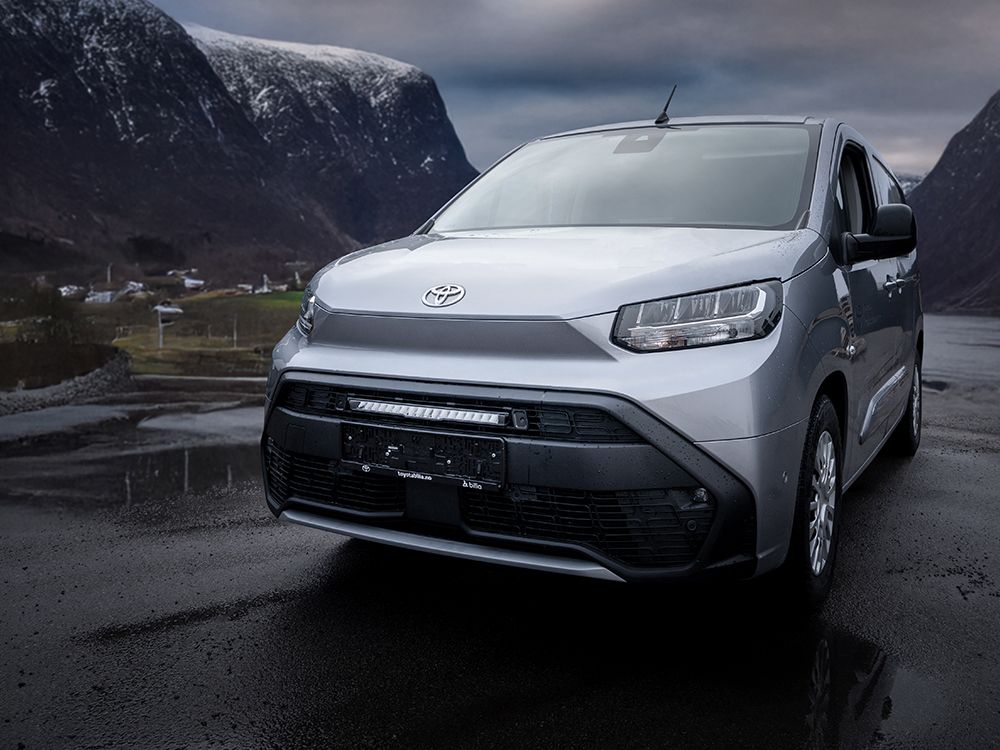

Toyota Proace City 2023+ Grille Kit - Glide

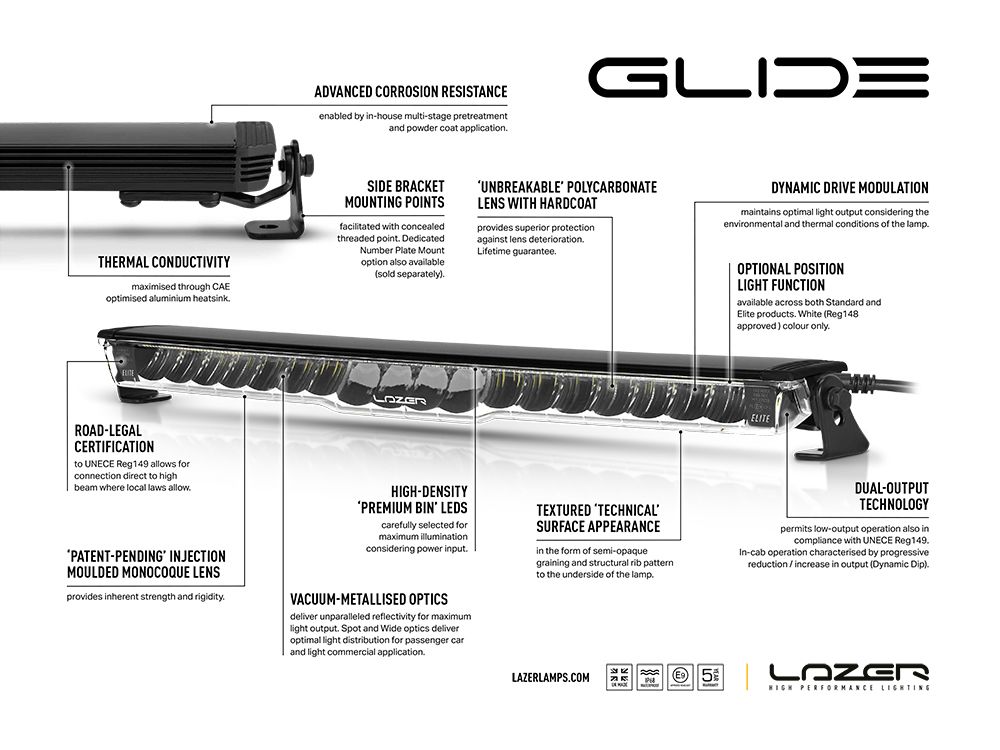

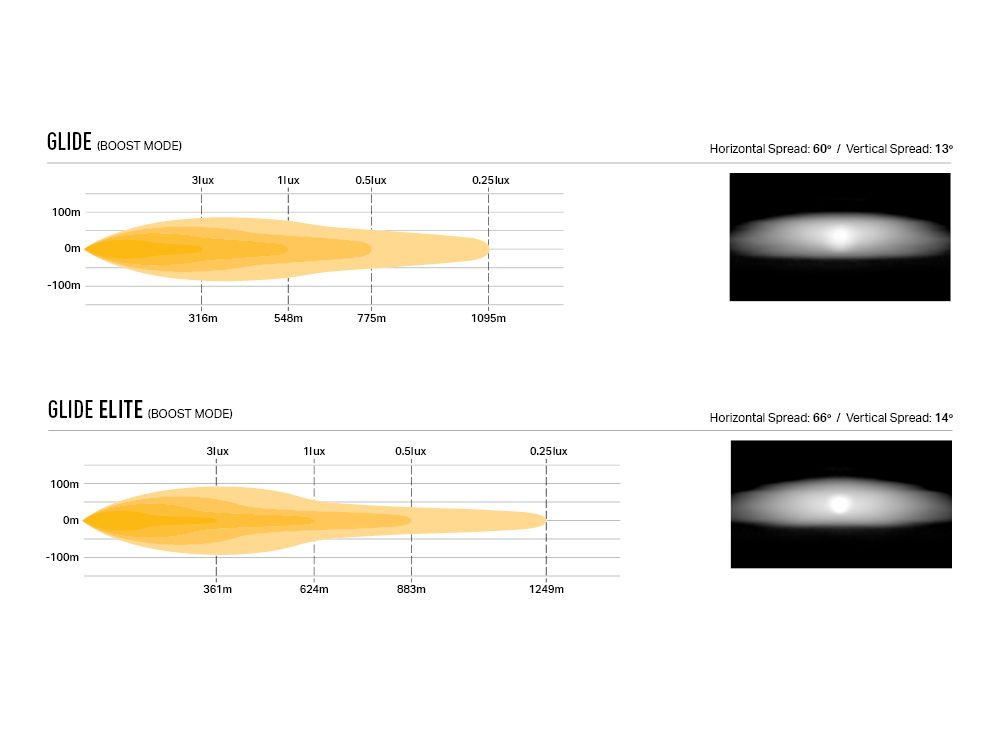

Introducing Glide, the world’s first formed LED light bar. Featuring a monocoque lens construction that combines low weight with high strength and exceptional durability, Glide is a range of 20” curved LED light bars that truly impress — especially considering their ultra low-profile design. The balance between powerful lighting performance and OEM-style aesthetics, perfectly matching the front contours of a wide range of vehicle types and models, makes Glide an outstanding choice — particularly for passenger cars and light commercial vehicles. The standard Glide models offer incredible value in terms of design, performance, and build quality. At their core are 18 premium-grade LEDs working in harmony with a vacuum-metallised optical system to deliver 11,500 raw lumens, providing excellent distance illumination (1 lux @ 548 m) and a 60° horizontal beam spread. Each Glide lamp features a built-in Dynamic Dip Mode, providing a smooth transition between high and low output modes. The low-output mode allows for driving in compliance with UNECE Regulation 149 (Double E-Mark) where required by local laws, while also reducing glare from highly reflective surfaces such as road signs. The Dynamic Dip function is easily activated by quickly switching the light off and on again after it has been on for more than 2 seconds. Every light bar comes supplied with a side mounting kit, while additional mounting options are available to customise your setup – choose between a number plate mount or an anti-theft side mounting kit for extra security. For underside number plate installations, the side mounting kit should be used in combination with our universal number plate bracket (sold separately). The Glide series of low-profile, formed LED light bars – like all Lazer products – are designed and manufactured to the highest standards, packed with advanced technology and innovative features to maximise performance and longevity. With Glide, you can expect premium design, superior illumination, and peace of mind with a 5-year warranty. Technical Specifications Voltage Range (DC): 10–32 V LED Lifespan: 50,000 hours Weight: 0.68 kg HIGH BEAM FUNCTION Total Luminous Flux: 11,500 lm (Boost) / 4,025 lm (E-Mark) Total Driver’s FOV Flux †: 6,958 lm / 2,435 lm Colour Temperature: 5,000 K Power Consumption: 120 W / 42 W Peak Current Draw: 9.6 A / 2.6 A Current Draw (at 14.4 V): 8.3 A / 2.3 A Connector: 2-Pin Superseal (+25 cm cable) DIMENSIONS Width: 517 mm Depth: 71 mm Height: 39 mm CERTIFICATION IP Rating #: IP68 High Beam (E9 approval): ECE R149 (Double E-Mark) – Ref: 2× 12.5 (Low Output mode only) EMC Certification: ECE R10 Salt Spray Test: ISO 9227 Dump Load Protection: ISO 7637-2 PHOTOMETRIC DATA Horizontal / Vertical Beam Angle: 60° / 13° 0.25 lx Line: 1,095 m / 648 m 0.5 lx Line: 775 m / 458 m 1 lx Line: 548 m / 324 m 3 lx Line: 316 m / 187 m Included 1× Grille Mounting Kit 1× LED Lightbar 1× Relay Wiring Harness Installation Instructions
