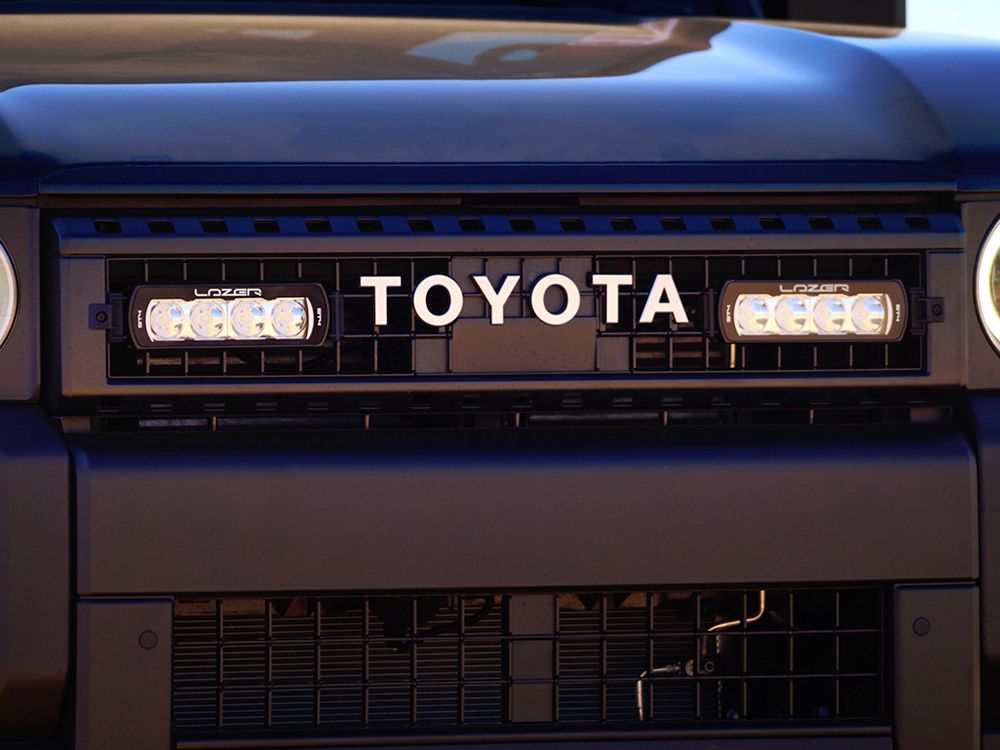

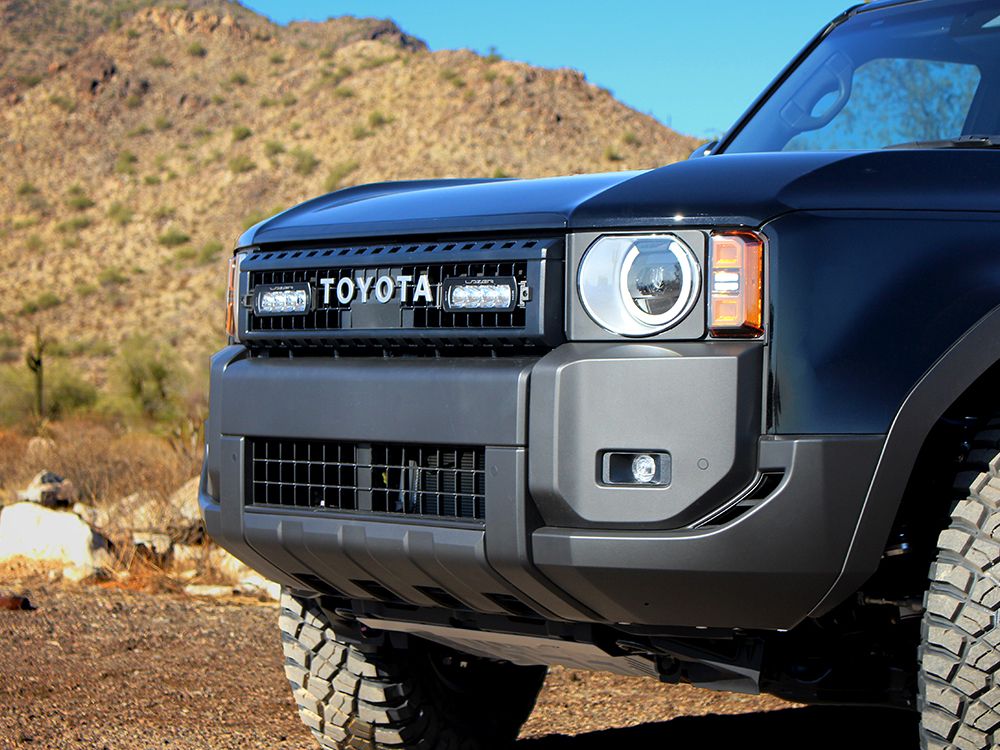

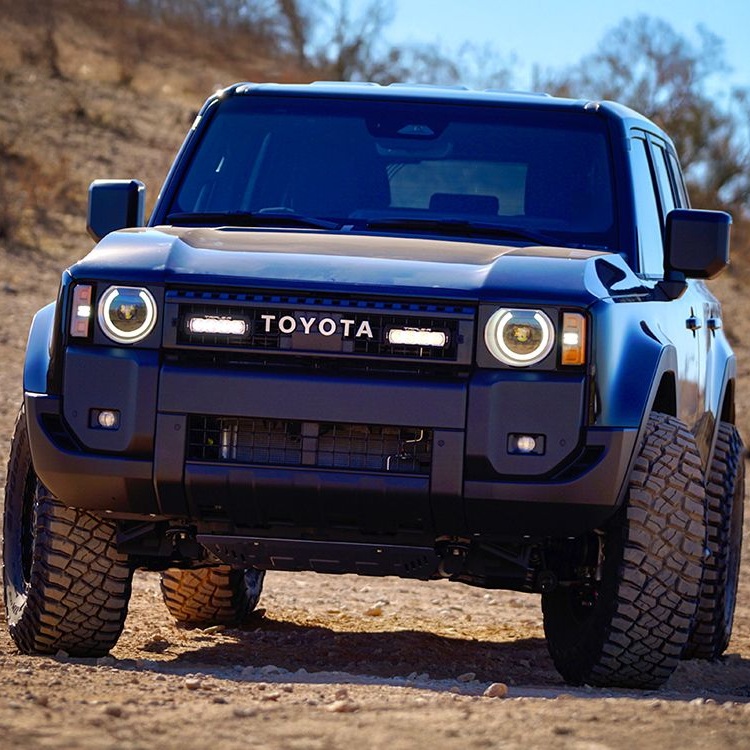

For an OE-quality auxiliary high beam installation, the Lazer Grille Kit includes custom-fit mounting brackets that allow quick and easy installation of Lazer High Performance LED driving lights into the front grille of the most popular passenger cars, pickup trucks, and light commercial vehicles. The kits are designed to blend seamlessly with the vehicle's original styling, while the installation remains both robust and secure – with added protection against theft.

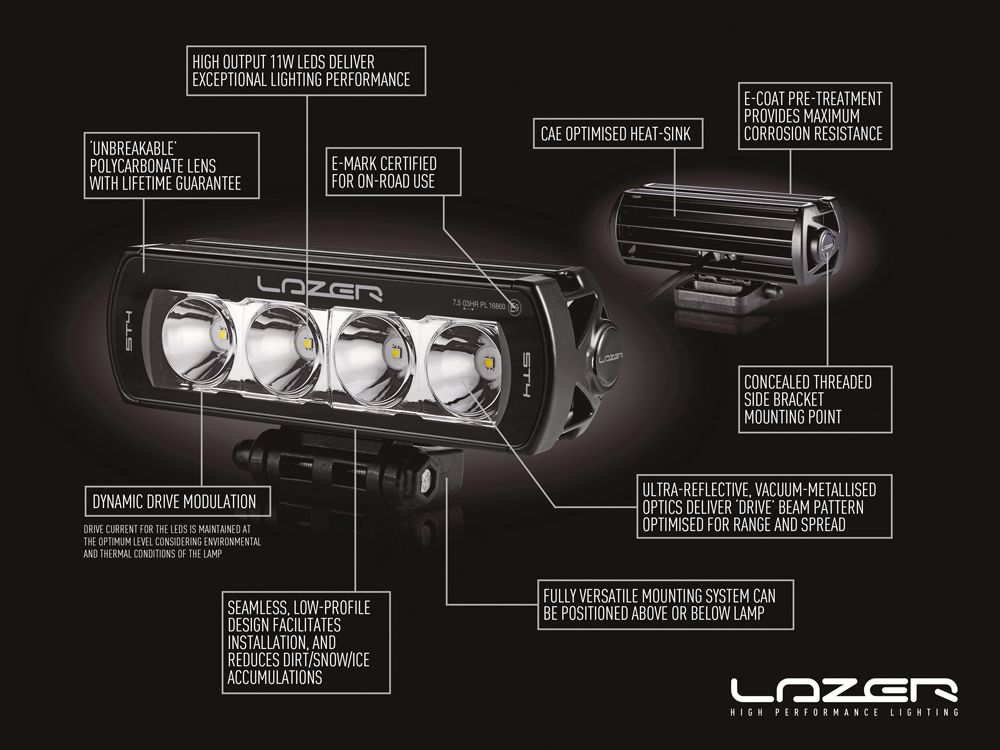

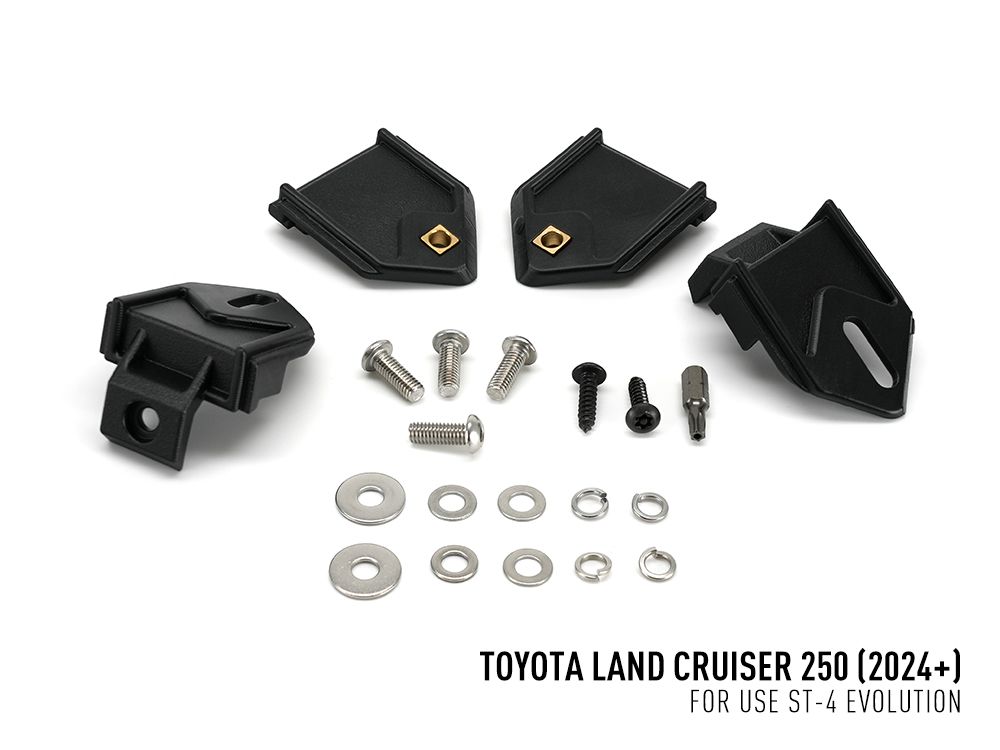

This Lazer Grille Kit includes a pair of ST4 Evolution lamps and wiring, along with 4 brackets that are precision-engineered to fit perfectly with the vehicle’s standard grille, with extra strength and security provided by the included anti-theft self-tapping (plastic) screws. The brackets are made from high-strength composite material, known for being extremely durable and UV-stable. They are fully weather and chemical resistant to ensure the installation stays in great condition year after year.
Cutting templates are also included with the mounting brackets, designed to simplify installation and ensure a perfect fit every time – without needing to remove the grille or bumper parts.
In some vehicles where Xenon or LED headlights are standard, a direct 12V high beam signal may be missing. In these cases, a CAN interface is required. For best results, we recommend using the XBB Dongle & PowerUnit, Art. No: 121180.
Technical Specifications
| Specification | Value |
|---|
| Number of Lamps | 2x ST4 EVOLUTION |
| Voltage Range (DC) | 10–32V |
| LED Lifespan | 50,000 hours |
| Weight | 1.34 kg |
High Beam Function
| Specification | Value |
|---|
| Total Luminous Flux | 8,272 lumens |
| Total Driver Field of View Flux† | 4,980 lumens |
| Colour Temperature | 5000K |
| Power Consumption | 94 watts |
| Peak Current Draw | 11 amps |
| Current Draw (at 14.4V) | 6.6 amps |
| Connector | 2-Pin Superseal (+25 cm cable) |
Certification
| Specification | Value |
|---|
| IP Rating | IP68 |
| High Beam (E9 approval) | ECE R149 – Ref: 2x 10 |
| EMC Certification | ECE R10 |
| Salt Spray Test | ISO 9227 |
| Surge Protection | ISO 7637-2 |

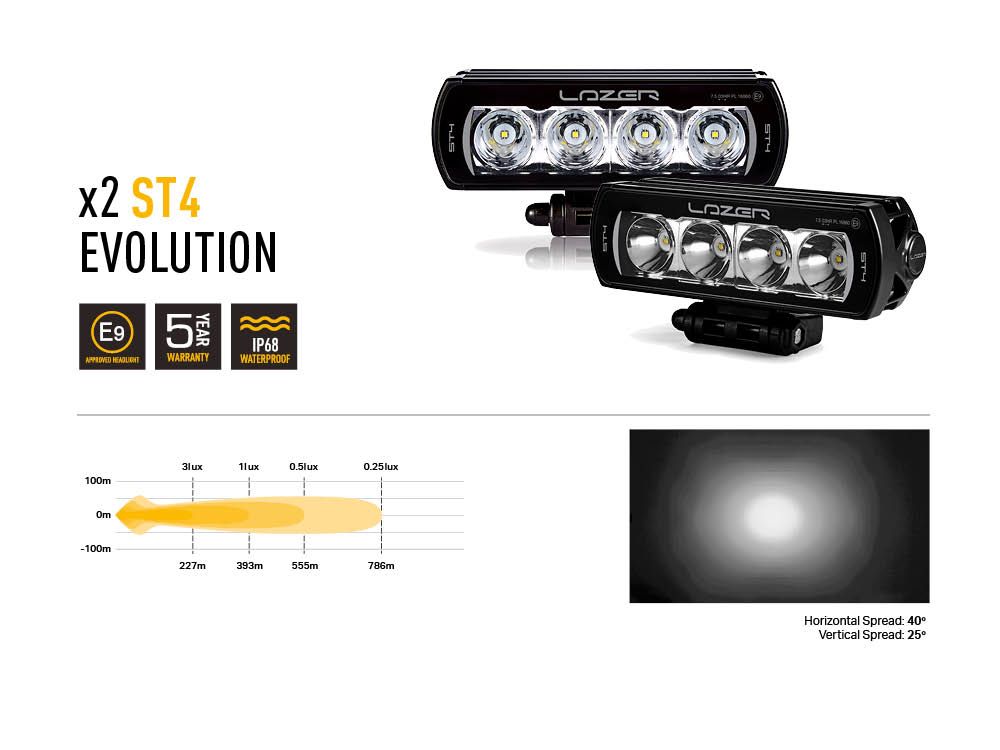

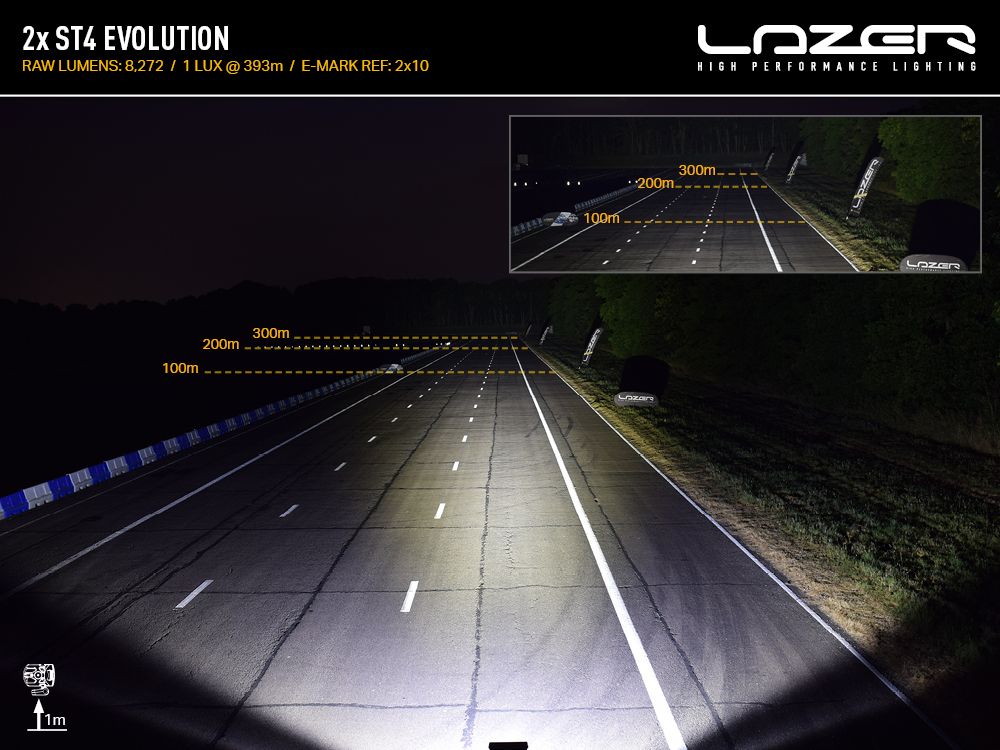

Photometric Data
| Specification | Value |
|---|
| Horizontal / Vertical Beam Angle | 40° / 25° |
| 0.25 lx Line | 786 m |
| 0.5 lx Line | 555 m |
| 1 lx Line | 393 m |
| 3 lx Line | 227 m |
What's Included
2x ST4 Evolution LED Lamps
1x Grille Mounting Kit (includes cutting templates)

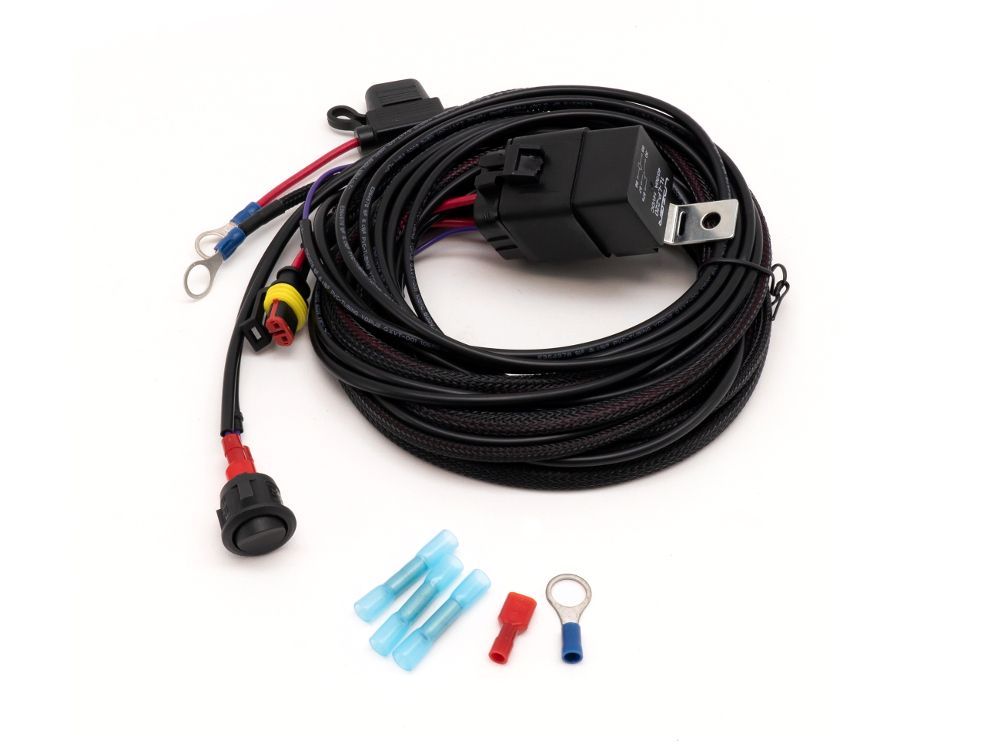

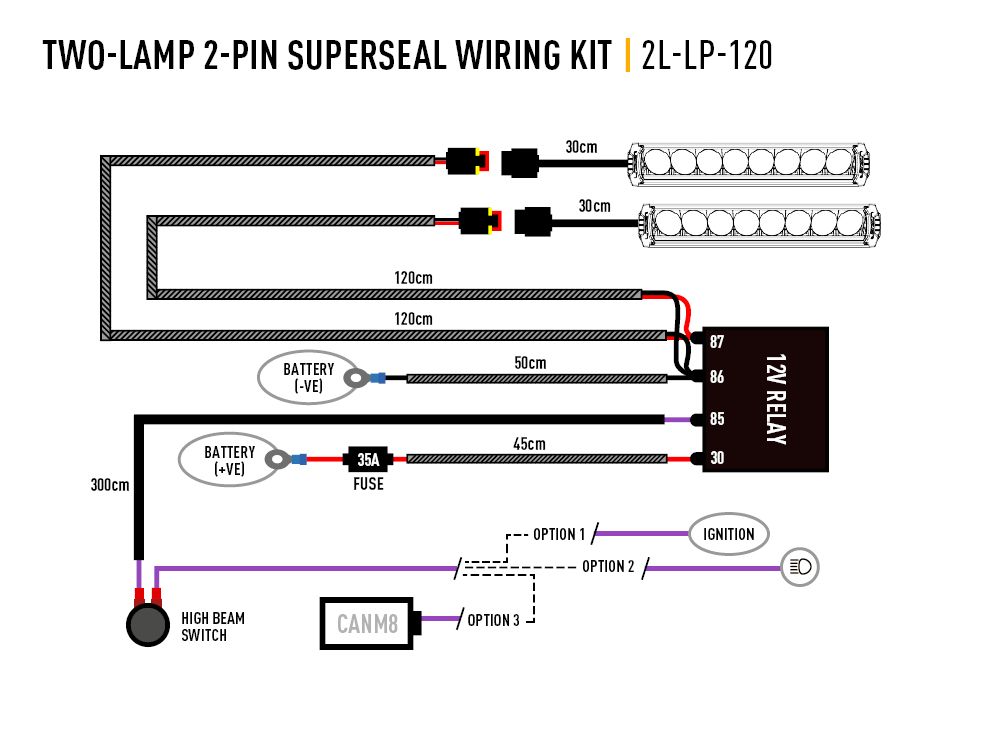

1x Two-Lamp Relay Wiring Kit
1x Installation Instructions
