Land Rover Defender 2020+ Grille Kit - Linear 18

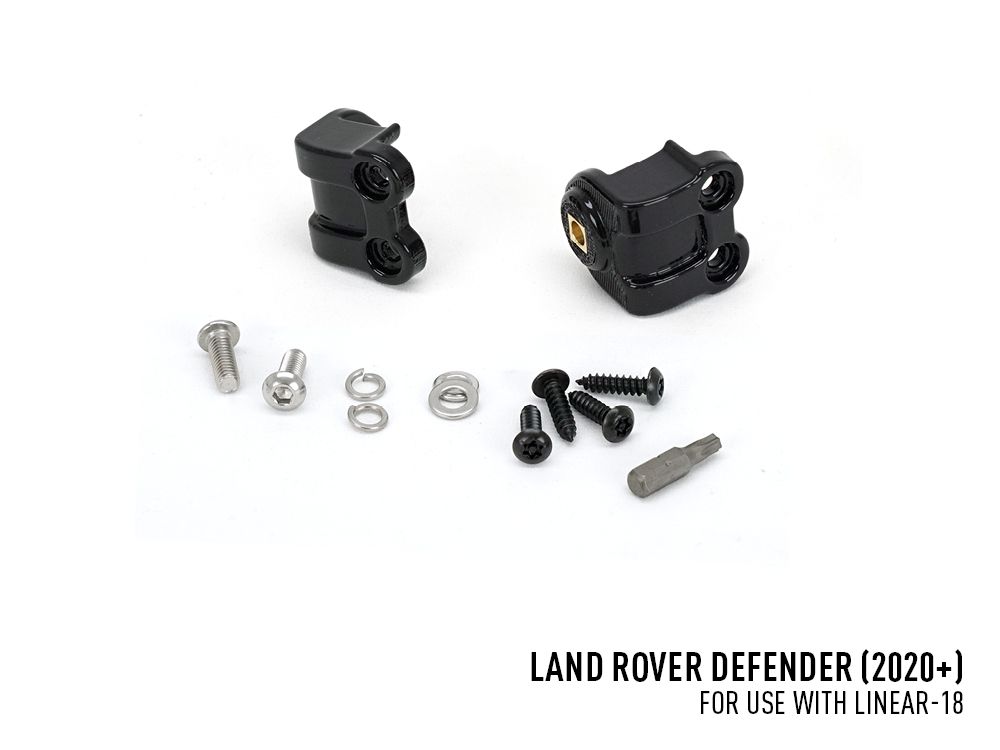

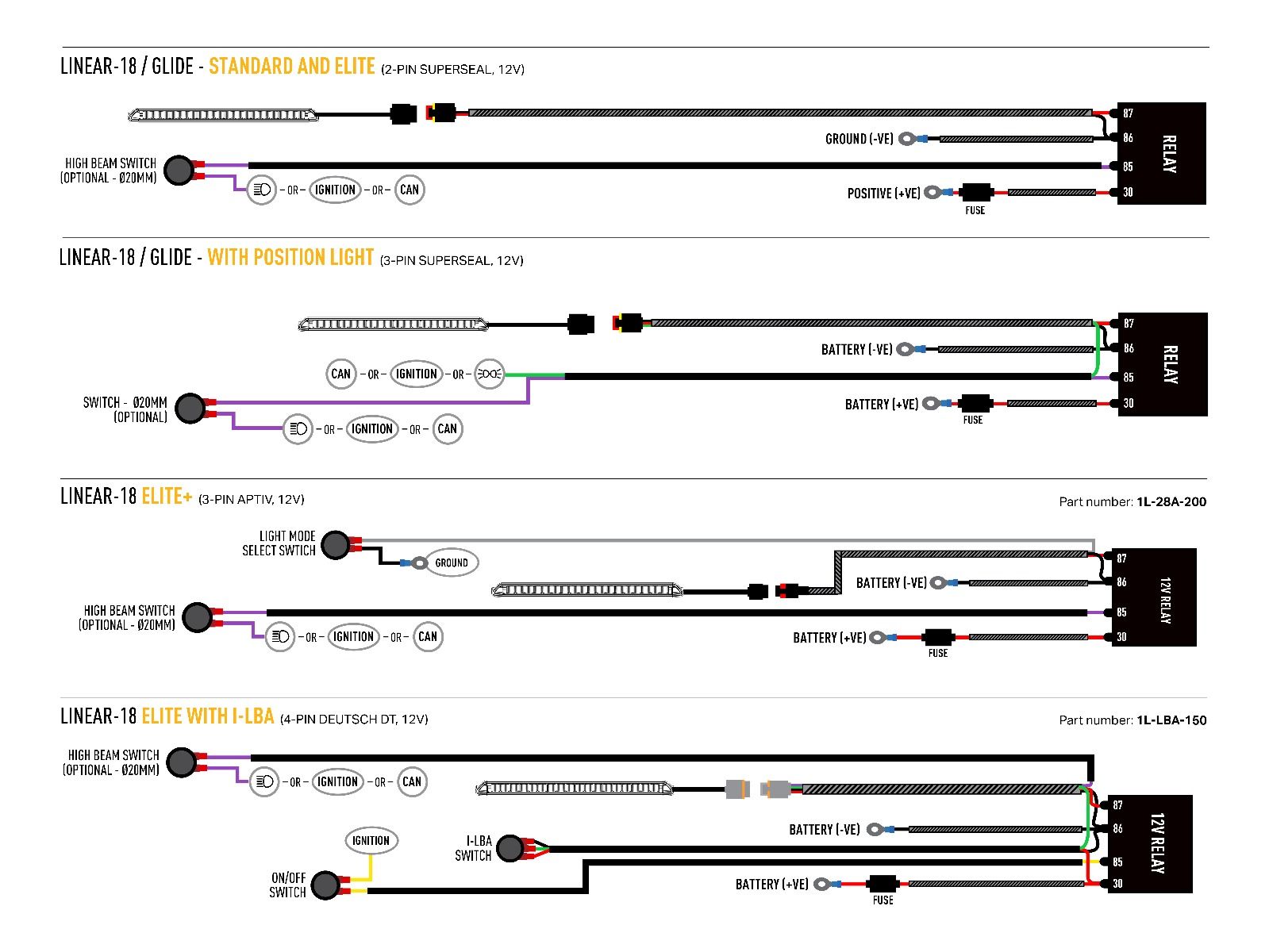

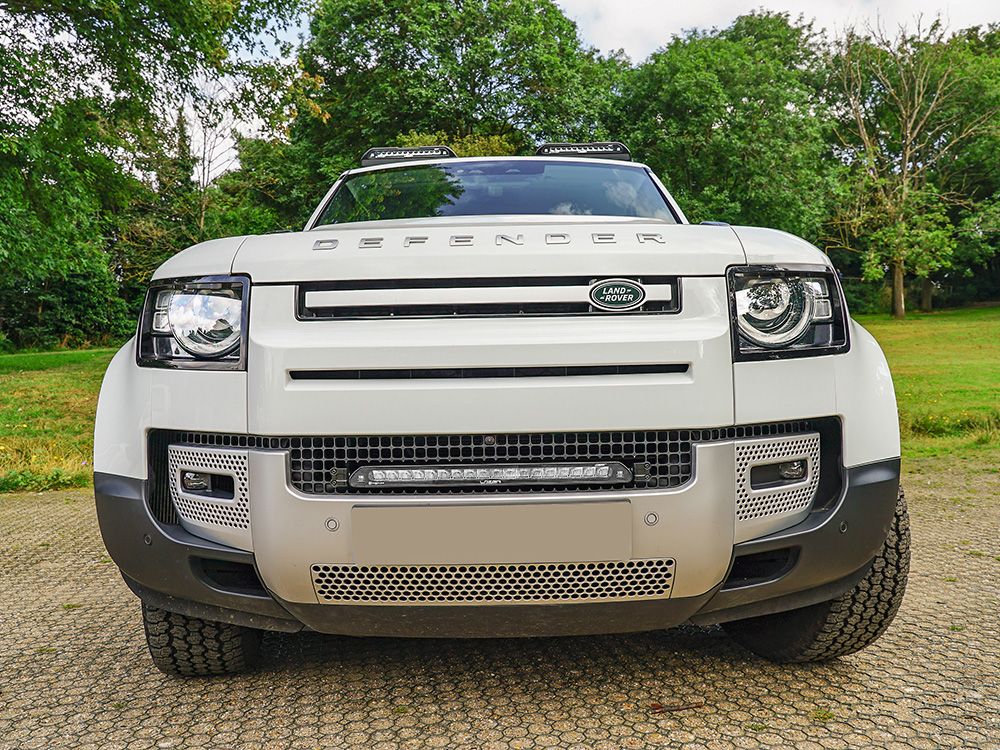

For an OEM-style LED lightbar installation, the Lazer Grille Kit offers custom-fit brackets that allow for quick and seamless mounting of an LED lightbar directly into the vehicle’s front grille. The kits are designed to blend in with the vehicle’s existing design, providing a robust and secure solution with added anti-theft protection. Each kit includes a high-performance LED lightbar, a complete wiring kit, and precision-engineered brackets that fit the vehicle’s standard grille. To enhance durability, self-tapping plastic screws are also included for additional support. The brackets are made from a durable composite material known for its high strength and UV resistance, making them weather- and chemical-resistant for long-lasting performance. The kits come with clear cutting guides to simplify installation and ensure a perfect fit — without the need to remove the grille or bumper. In some vehicles equipped with Xenon or LED headlights as standard, there may be no direct 12V high beam signal. In these cases, installation of a CAN interface is required. For optimal results, we recommend using the XBB Dongle & PowerUnit, Art. No.: 121180. Product Features Custom vehicle brackets for seamless integration Tailored fit Kit includes brackets and wiring Cutting guides included Brackets made from high-strength, UV-resistant composite material Fully road-legal 5-year warranty Made in Britain

Technical Specification	Value

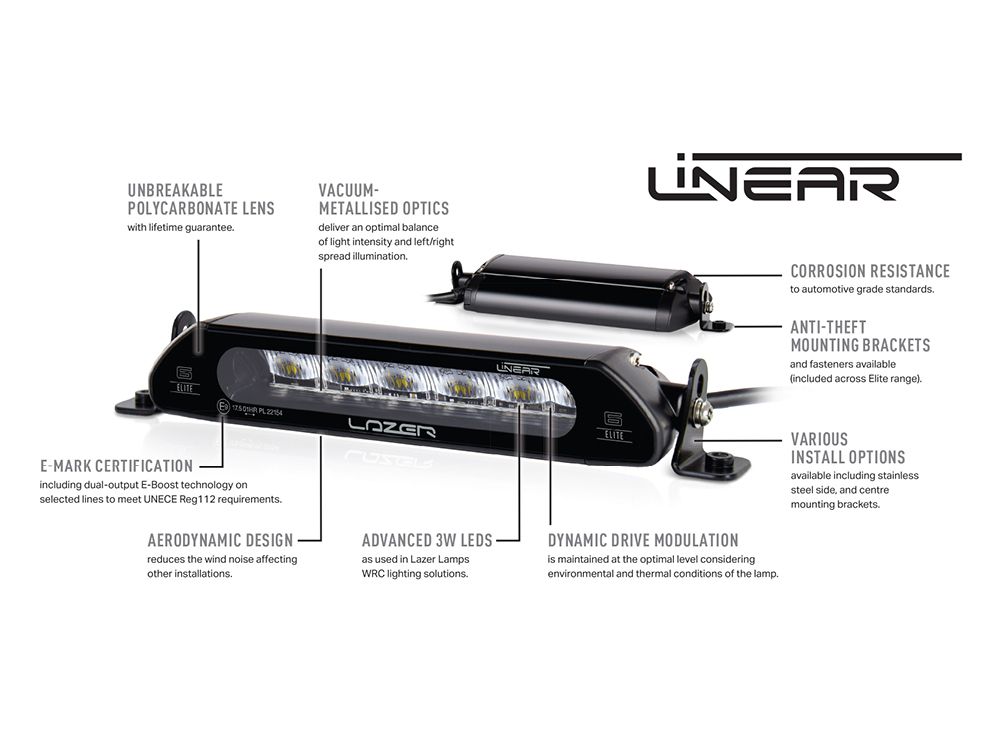

Based on	1x Linear-18 LED Lamp
Voltage Range (DC)	10–32V
LED Life	50,000 hours
Weight	1090 gr
HIGH BEAM FUNCTION
Total Luminous Flux	6750 Lm
Total Driver 'FOV' Flux †	4806 Lm
Colour Temperature	5000K
Number of High Output LEDs	18
Power Consumption	63 Watts
Current Draw (at 14.4V)	4.4 Amps
CERTIFICATION
High Beam	ECE R112
ECE Reference	30
DIMENSIONS
Width	532 mm
Depth	62 mm
Height	40 mm

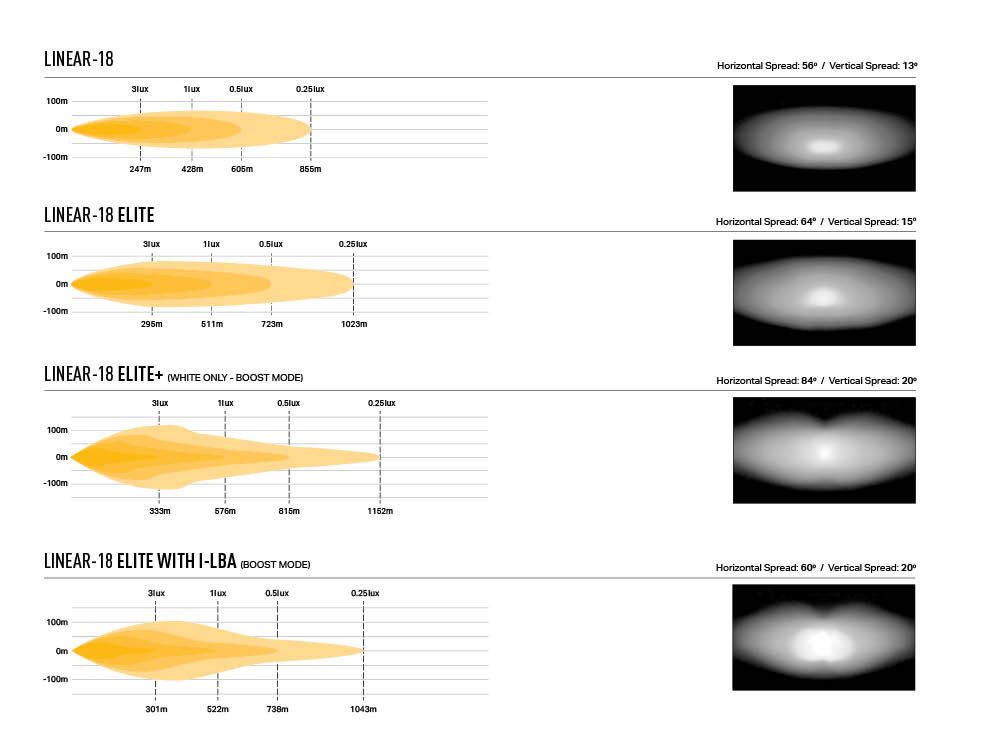

PHOTOMETRIC DATA
Horizontal Beam Angle	56°
0.25 lx Line	855 metres
0.5 lx Line	605 metres
1 lx Line	428 metres
3 lx Line	247 metres

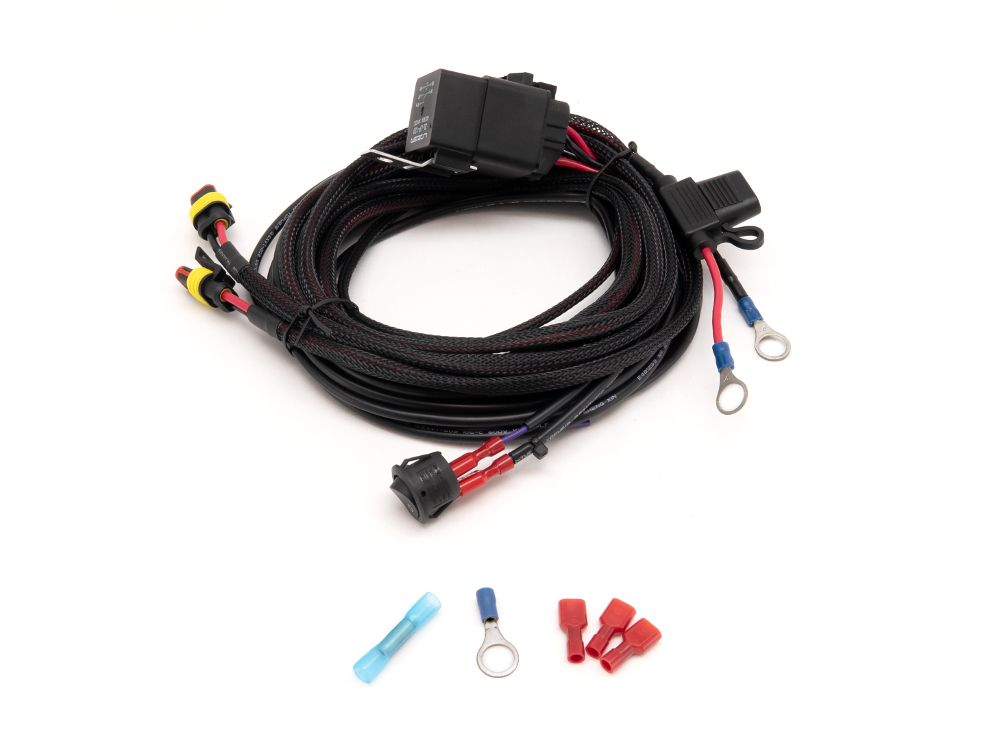

What's included 1x Grille Mounting Kit (Includes cutting guides) 1x Linear-18 LED Lightbar 1x One-Lamp Wiring Kit Installation Instructions
