VEHICLE SPECIFICFordFord Transit CustomFord Transit Custom 2024+ Grille Kit - Glide
Ford Transit Custom 2024+ Grille Kit - Glide
Ford Transit Custom 2024+ Grille Kit - Glide
Ford Transit Custom 2024+ Grille Kit - Glide - 2
Ford Transit Custom 2024+ Grille Kit - Glide - 3

Ford Transit Custom 2024+ Grille Kit - Glide

€578
Read more...

Delivery: ⚠️ Order item, delivery time: 1-2 weeks.

  • Your expert in vehicle lighting
  • Secure card payment
  • We have been online since 2006
  • BRANDLazer Lamps
  • CAR MAKEFord
  • CAR MODELTransit Transit Custom
  • CATEGORYVehicle Specific Grille Kit
  • MODELGlide

Description

Article no.: 931263

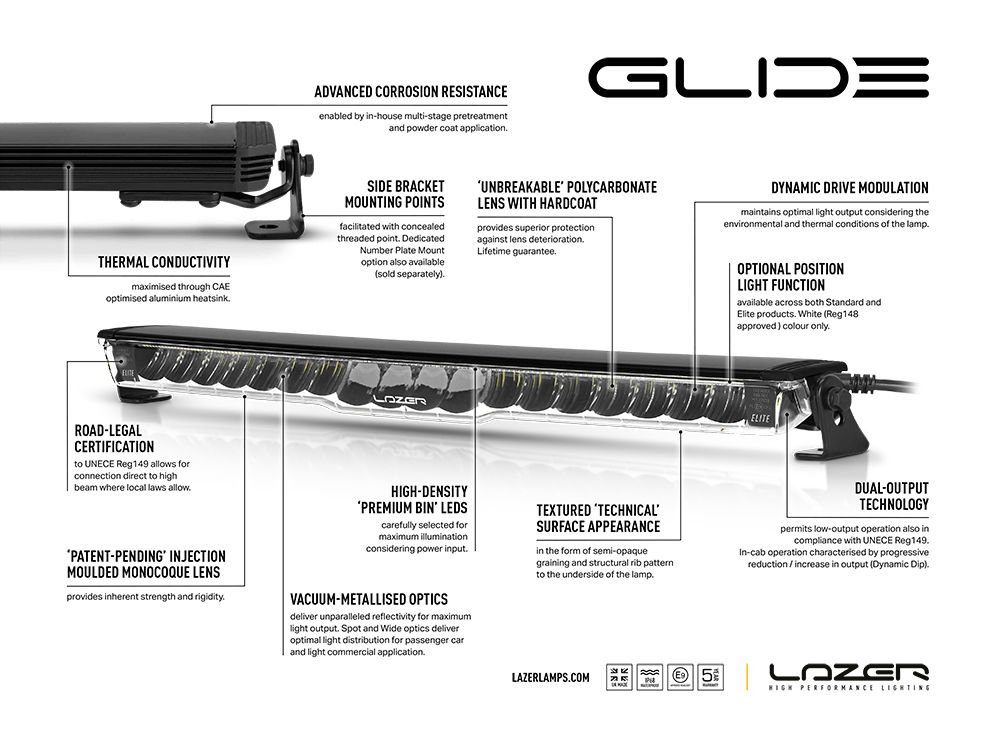

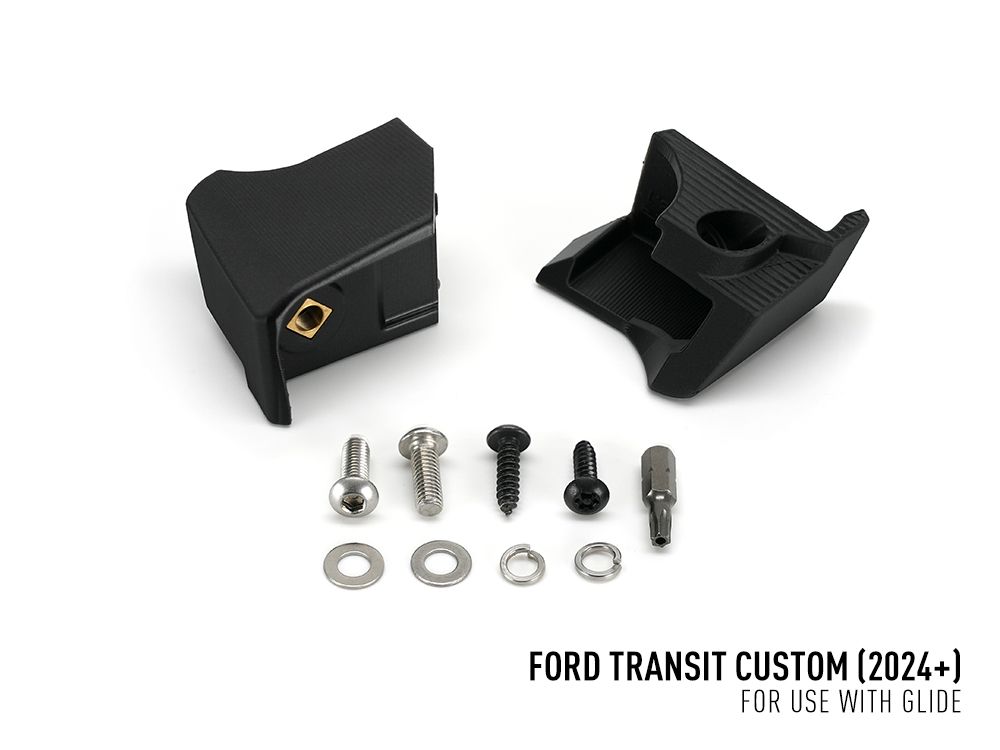

For an OE-quality auxiliary light installation, the Lazer Grille Integration Kits include custom-designed mounting brackets that enable quick and seamless installation of Lazer High Performance LED bars into the front grille of popular passenger cars, pickups, and light commercial vehicles. Designed to complement each vehicle’s original styling, the installation provides a robust and secure result – with added anti-theft protection as standard. This grille kit offers your choice of LED bar from the Glide series, Standard or Elite – with or without Position Light (PL), along with a wiring kit and precision-engineered brackets that fit perfectly within the vehicle’s standard grille. For added durability and reinforcement, self-tapping plastic screws are included for extra secure mounting. The brackets are made from a durable composite material known for its exceptional strength and UV resistance, and are engineered to withstand harsh weather conditions and chemicals – ensuring long-term performance. Additionally, precise cutting guides are included to simplify installation and ensure a perfect fit every time – without the need to remove the grille or bumper components. In some vehicles where Xenon or LED headlights are standard, a direct 12V high beam signal may be missing. In such cases, installation of a CAN interface is required. For best results, we recommend using the XBB Dongle & PowerUnit, Art. No: 121180. Product Features - Vehicle-specific brackets for seamless OEM-style grille integration - Custom fit for the selected vehicle model - Compatible with Glide LED bars - Kit also includes bespoke mounting brackets and one-lamp wiring kit - Cutting guides included - Brackets made from UV-stable, high-strength composite material - Fully road legal - 5-year warranty - Made in Britain
Technical Specifications GLIDE (BOOST) GLIDE ELITE (BOOST)
Voltage Range (DC)10–32V10–32V
LED Life50,000 hrs50,000 hrs
Weight0.68 kg0.68 kg
HIGH BEAM FUNCTION
Total Luminous Flux11,500 lm12,800 lm
Total Driver 'FOV' Flux †6,958 lm8,012 lm
Colour Temperature5000K5000K
Power Consumption120 W130 W
Current Draw (at 14.4V)8.3 A9.2 A
Connector 2-Pin / 3-Pin Superseal
(+25 cm cable)		 2-Pin / 3-Pin Superseal
(+25 cm cable)
CERTIFICATION
IP RatingIP68IP68
High Beam (E9 Approval)ECE R149 (Ref: 12.5*)ECE R149 (Ref: 12.5*)
EMC CertificationECE R10ECE R10
Salt Spray TestISO 9227ISO 9227
Dump Load ProtectionISO 7637-2ISO 7637-2

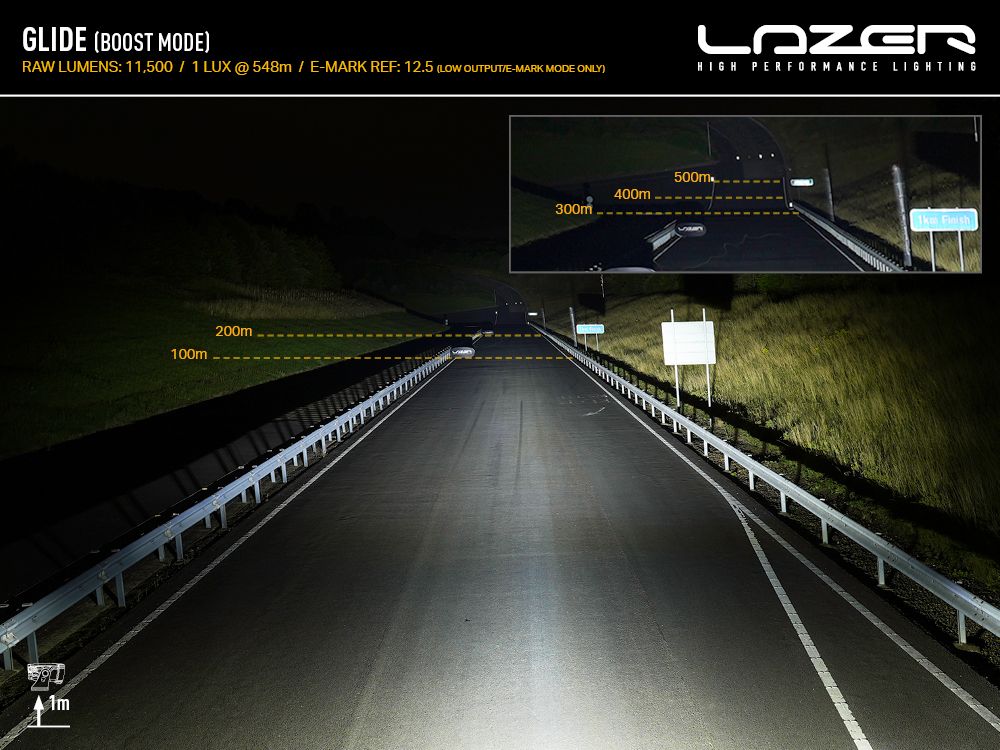

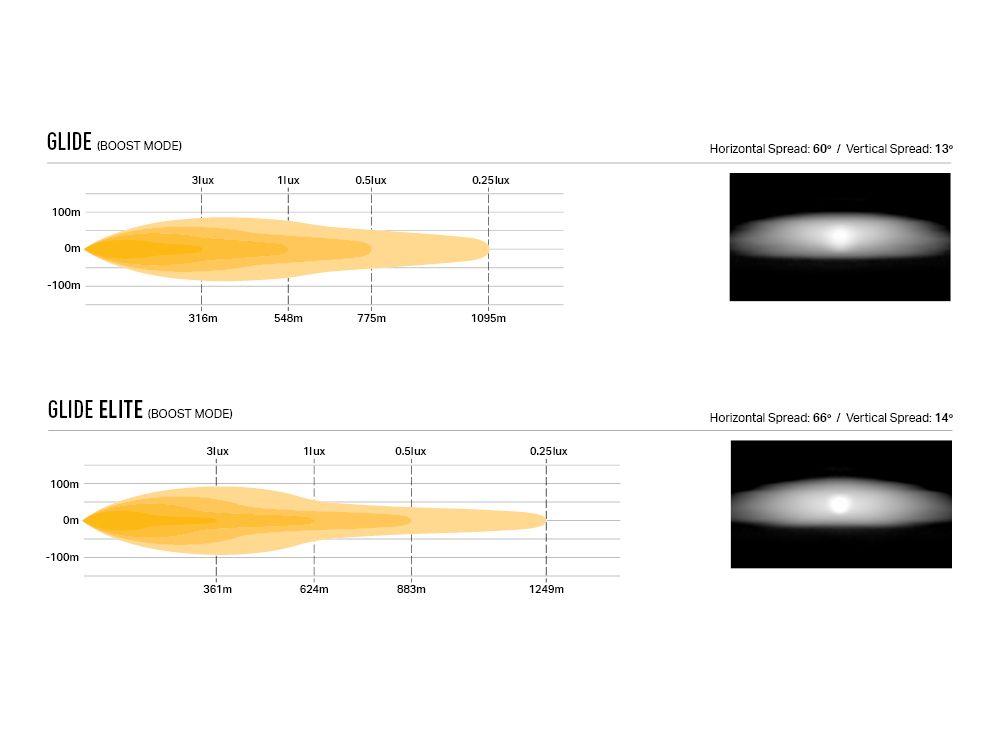

PHOTOMETRIC DATA
Horizontal / Vertical Beam Angle60° / 13°66° / 14°
0.25 lux line1095 m1249 m
0.5 lux line775 m883 m
1 lux line548 m624 m
3 lux line316 m361 m

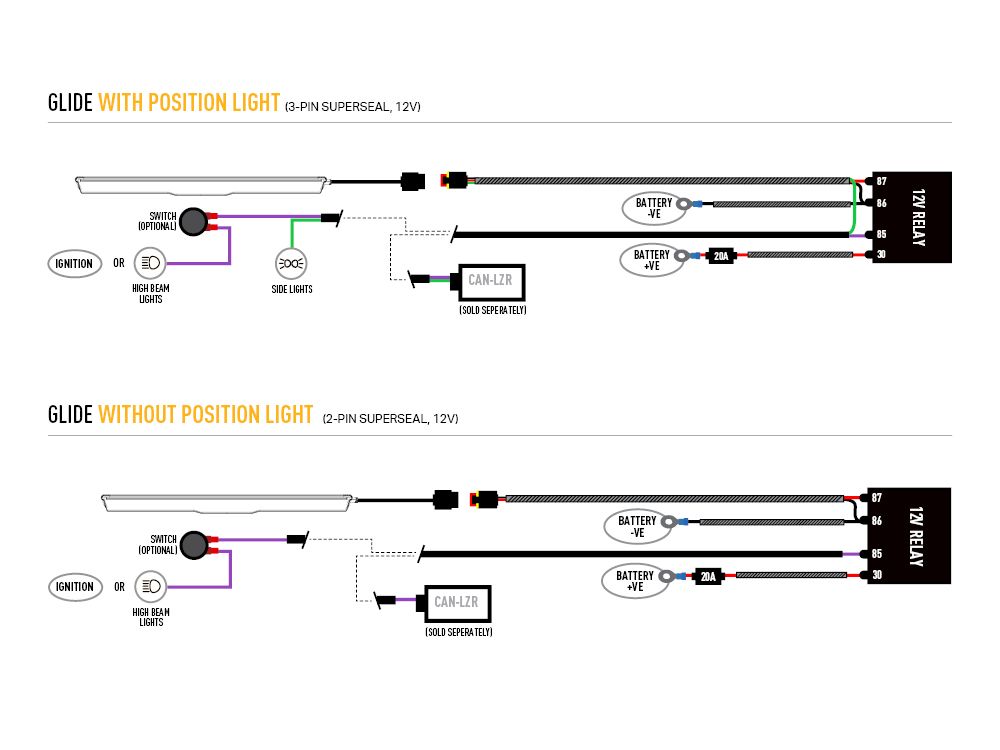

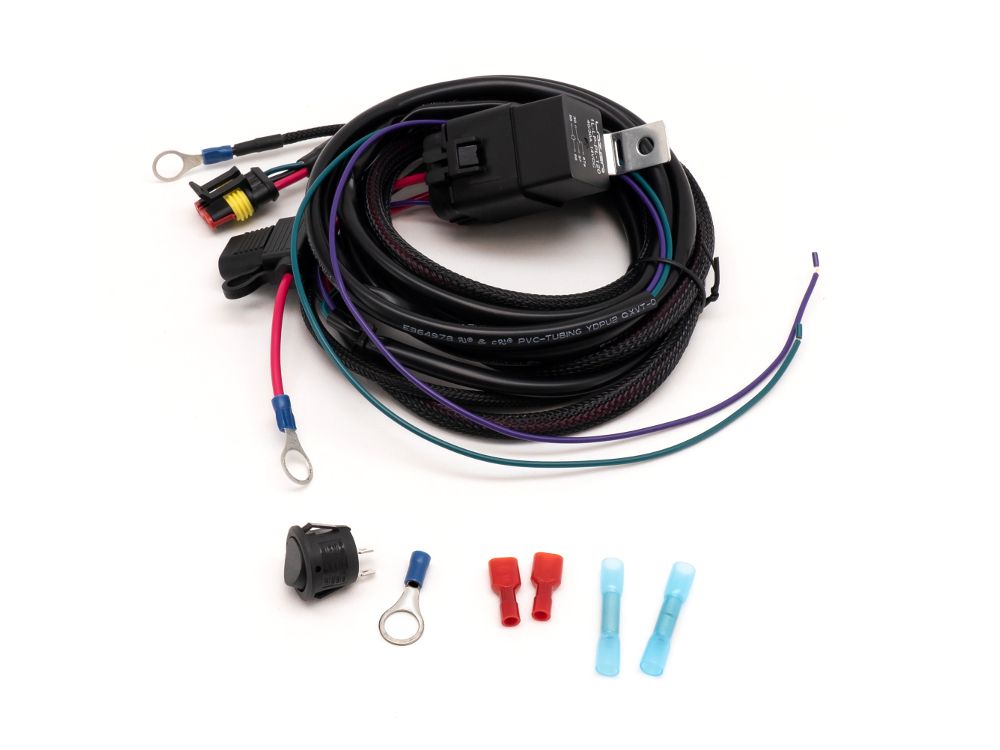

What's Included - 1 x Grille Mounting Kit (includes cutting guides) - 1 x Glide LED bar - 1 x One-Lamp Wiring Kit - Installation Instructions
