VEHICLE SPECIFICFord Ranger Raptor 19-22 Grille Kit | STEDI ST1K 21,5 E-Mark LED Light Bar

Ford Ranger Raptor 19-22 Grille Kit | STEDI ST1K 21,5 E-Mark LED Light Bar

€389

Delivery: ✅In stock, delivery time: 2-7 days

Quantity

Your expert in vehicle lighting
Secure card payment
We have been online since 2006

BRANDStedi
CAR MAKEFord
CAR MODELRanger Raptor
CATEGORYVehicle Specific Grille Kit
MODELST1K

Description

Article no.: 151511

Ford Ranger Raptor 19-22 Grille Kit | STEDI ST1K 21,5

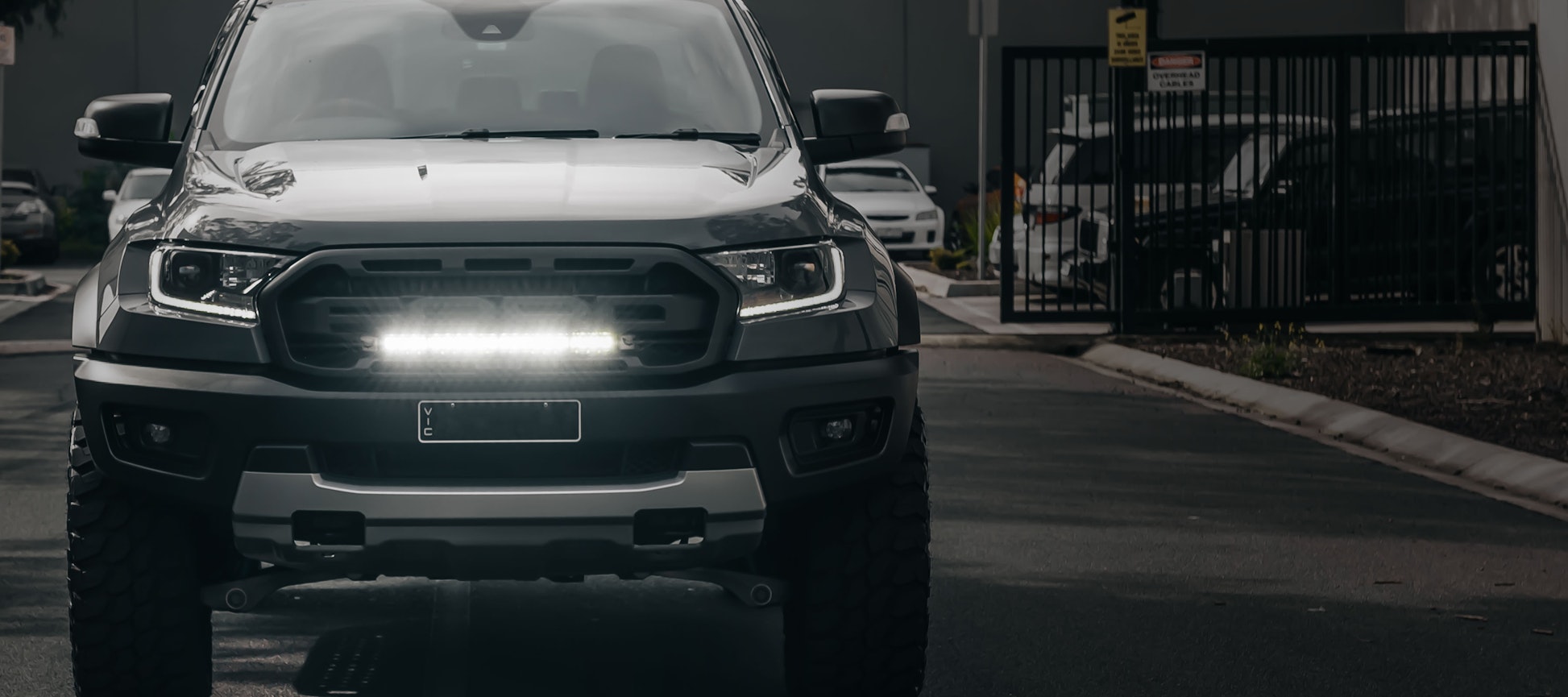

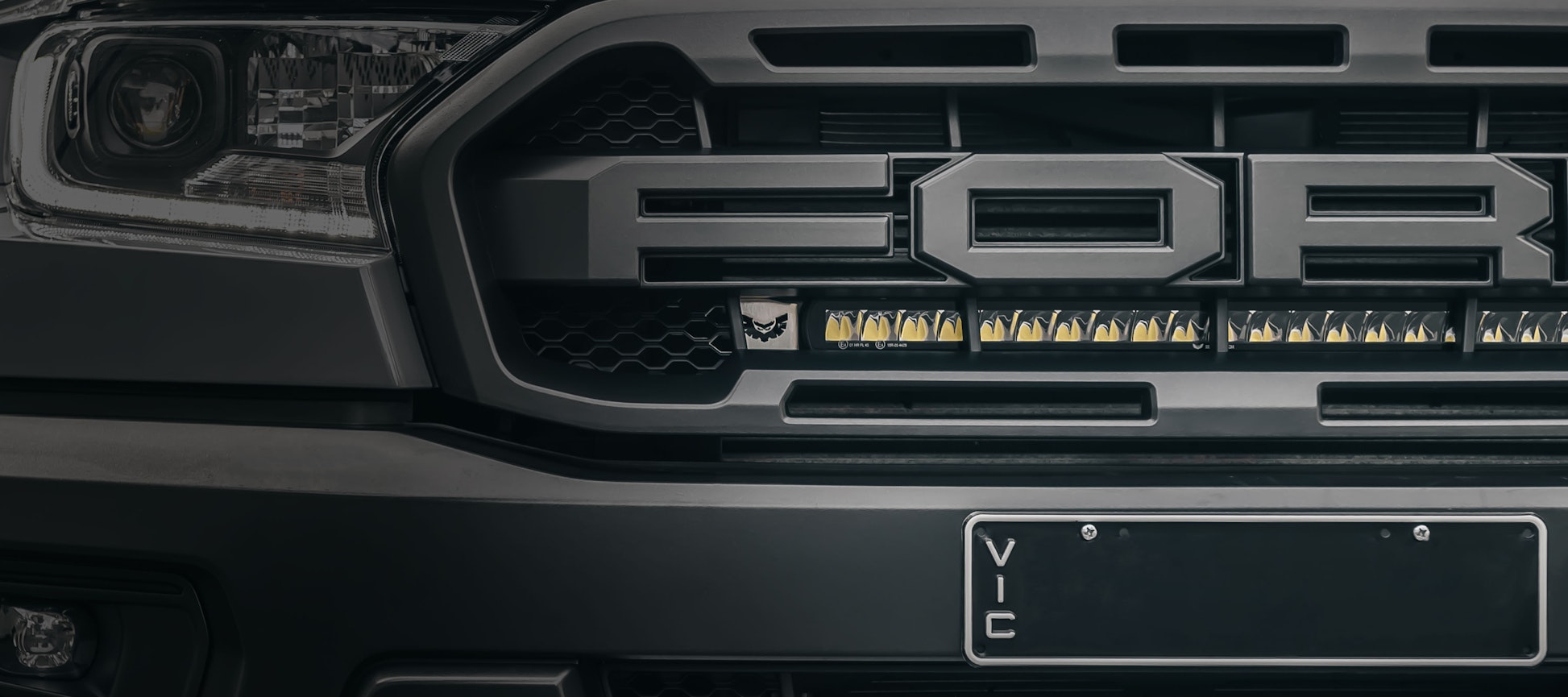

FORD RAPTOR INNER GRILL KIT. You have purchased your Raptor, now it's time to make it uniquely yours. Our new Ford Ranger Raptor inner grill kit has been meticulously designed and developed to mount our ST1K light bars in behind the inner grill.

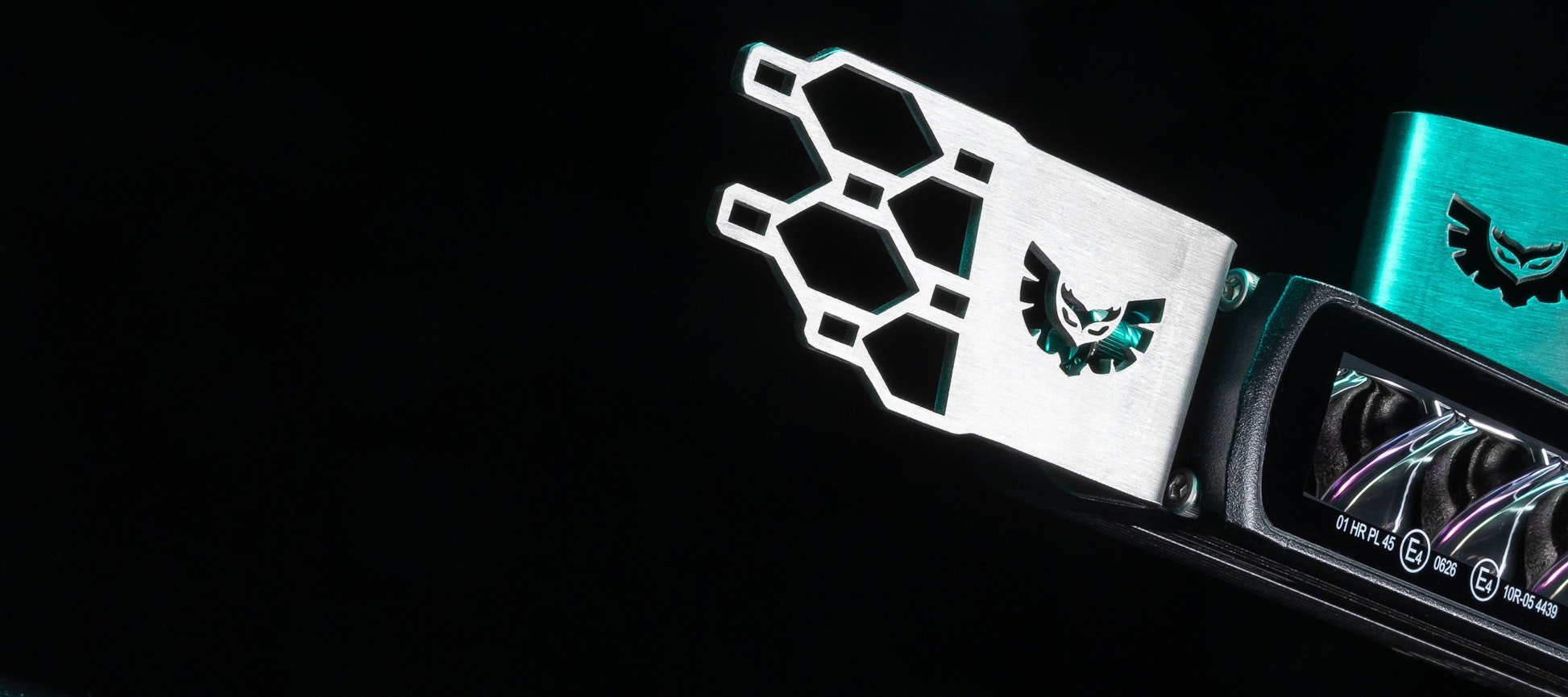

EFFORTLESS INSTALLATION. Unparalleled attention to details and the very best materials come together to achieve a visually striking yet stealth design which embodies STEDI's signature throughout. Included is a pair of laser cut 304 series stainless steel brackets, designed to be fastened to existing provisions found in behind the inner Raptor grill using the supplied self-tapping screws. The result is a covert, robust and secure DIY install.

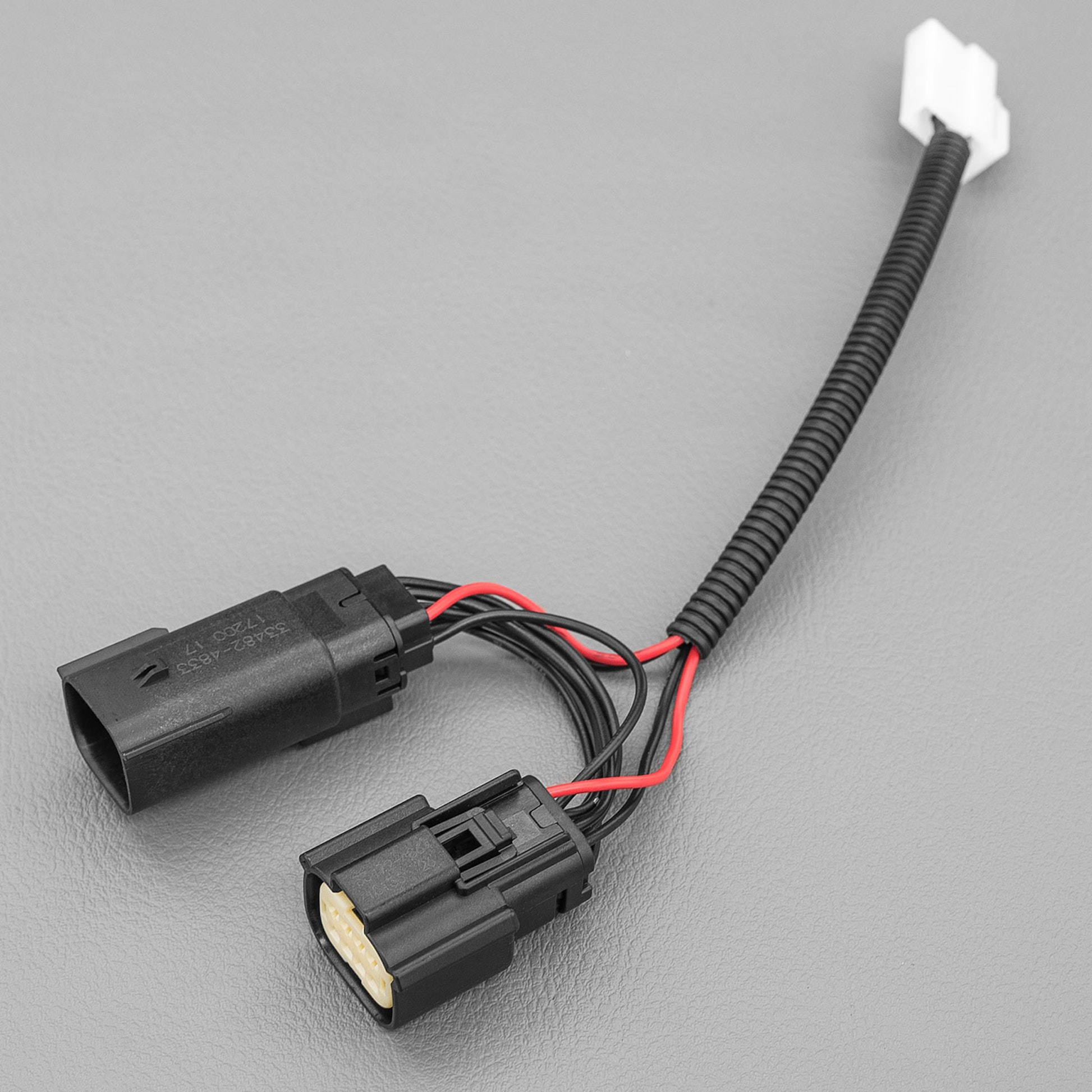

WORLD OF RAPTOR ACCESSORIES. Our highest priority when designing vehicle-specific accessories is to achieve fit and finish at original equipment levels or higher. We offer a world of Ranger Raptor optional accessories to install our accessories in a non-intrusive plug and play. Check out our Ranger Raptor switch panel, and our Ford piggy-back adaptor.

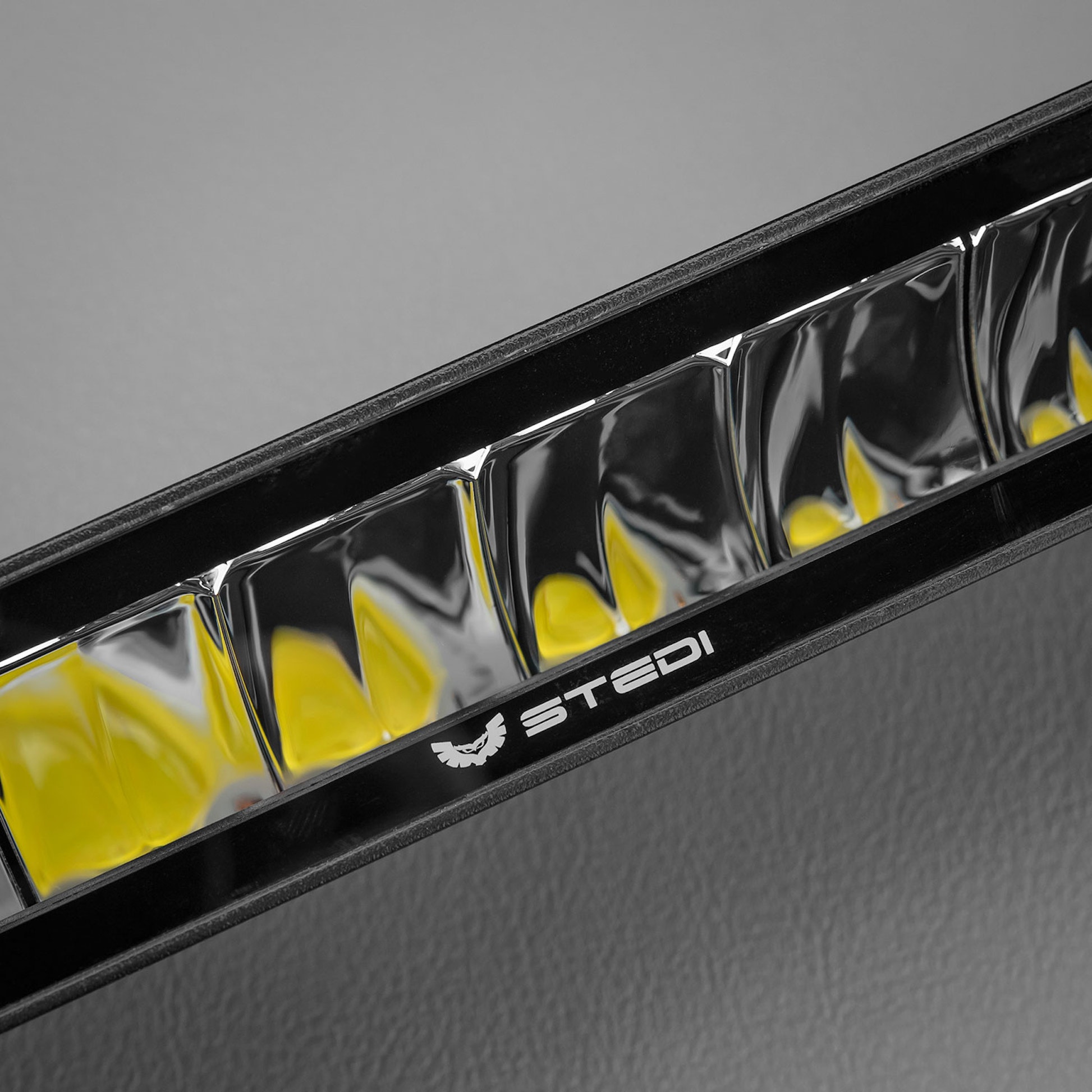

THE NITTY GRITTY. Designed to fit Ford Ranger Raptor (2019-2022) ST1K 21.5 INCH E-MARK LED LIGHT BAR 20 x 5W OSRAM LEDs RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment IP68 - Submersible to 3m Environmentally sealed Deutsch DT-2 connectors Innovative hooded optics Driving Beam E mark compliant beam. Heavy Duty Adjustable Bottom Mounts & Side bracket included. Reverse Polarity Protected Circuit (RPPC) Electronic Thermal Management Built-in Voltage Surge Protection INCLUDES: Our high current Easy-Fit Plug & Play Wiring Harness. (Switch, Fuse, Relay HB3 and H4 high-beam piggy back adaptors) FORD RANGER RAPTOR INNER GRILL LIGHT MOUNT Manufactured with 3mm Stainless Steel, and designed to be fastened to pre-existing holes which are already present on the inner side of the front grille. This is a completely non-intrusive install meaning that no new holes need to be made, nor do sections of the front bumper need any cutting or modifying. The end result is a very robust, stealth installation. Stainless Steel Designed to minimize disruption of air-flow No need to remove front bumper Bolts to pre-existing holes No drilling required, bolt and nut kit included

Installation guide

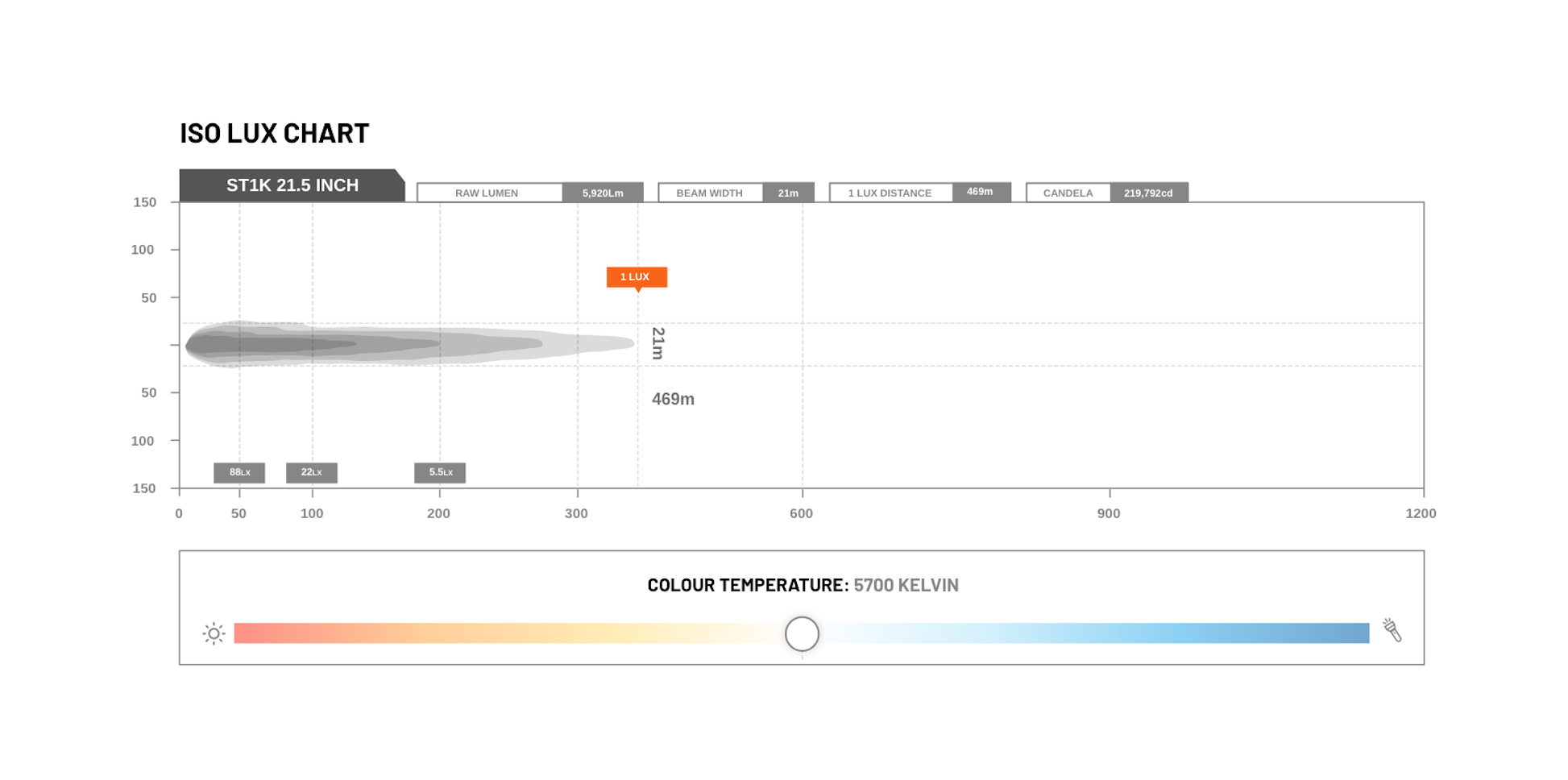

TECH SPECS LED MANUFACTURER OSRAM LED COUNT 20 VOLTAGE 9V - 32V CURRENT DRAW (AMPERES) 8.0a @13.6v LENS MATERIAL Optical Grade, Makrolon RAW LUMENS 5,920Lm PEAK INTENSITY (CANDELA) 219,792cd HOUSING MATERIAL A360.0 Cast face plate, extruded Aluminum heat sink LUMEN MAINTENANCE 50,000 (LM80) INGRESS PROTECTION IP68 OPERATING TEMP -40°C~+150°C WEIGHT 1.290kg

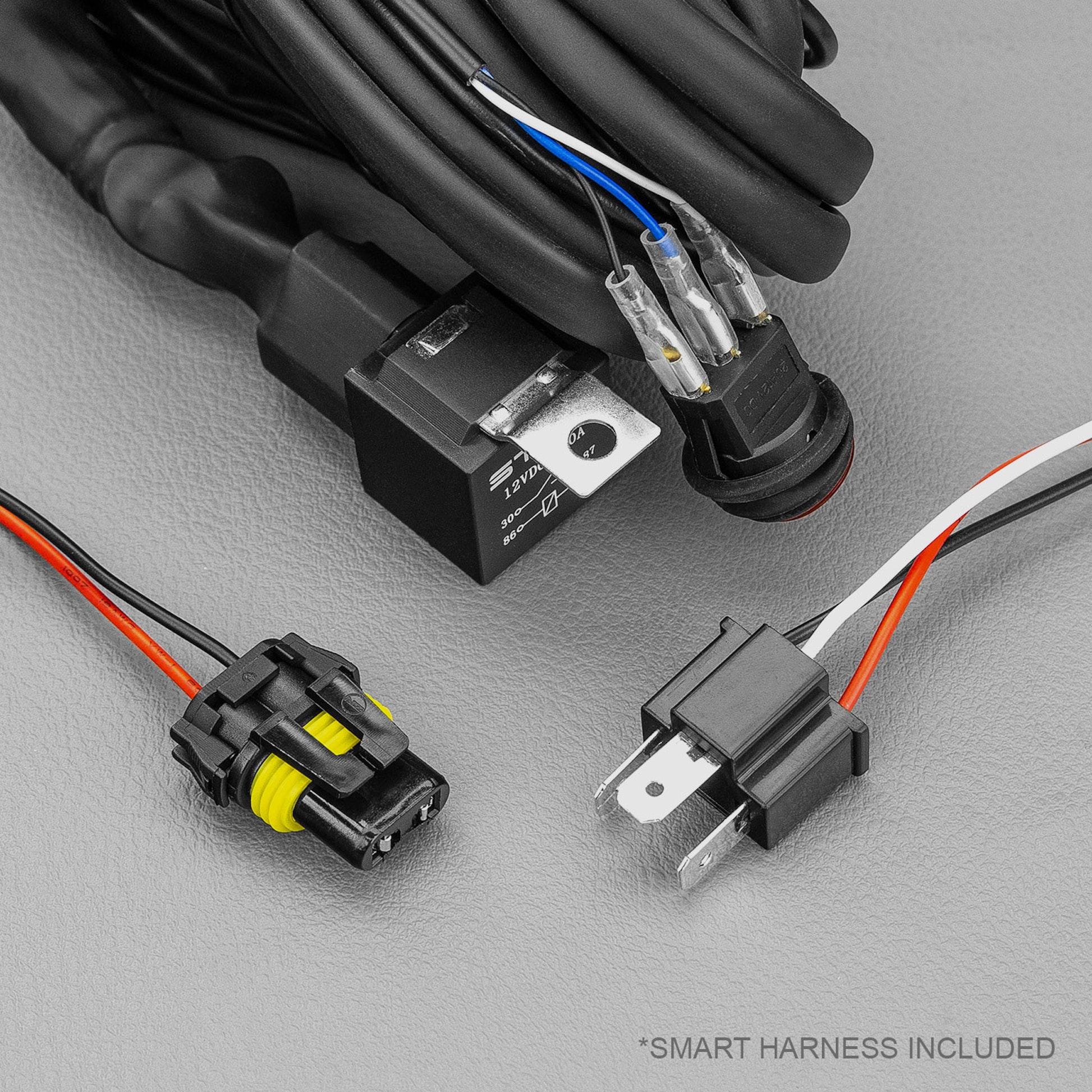

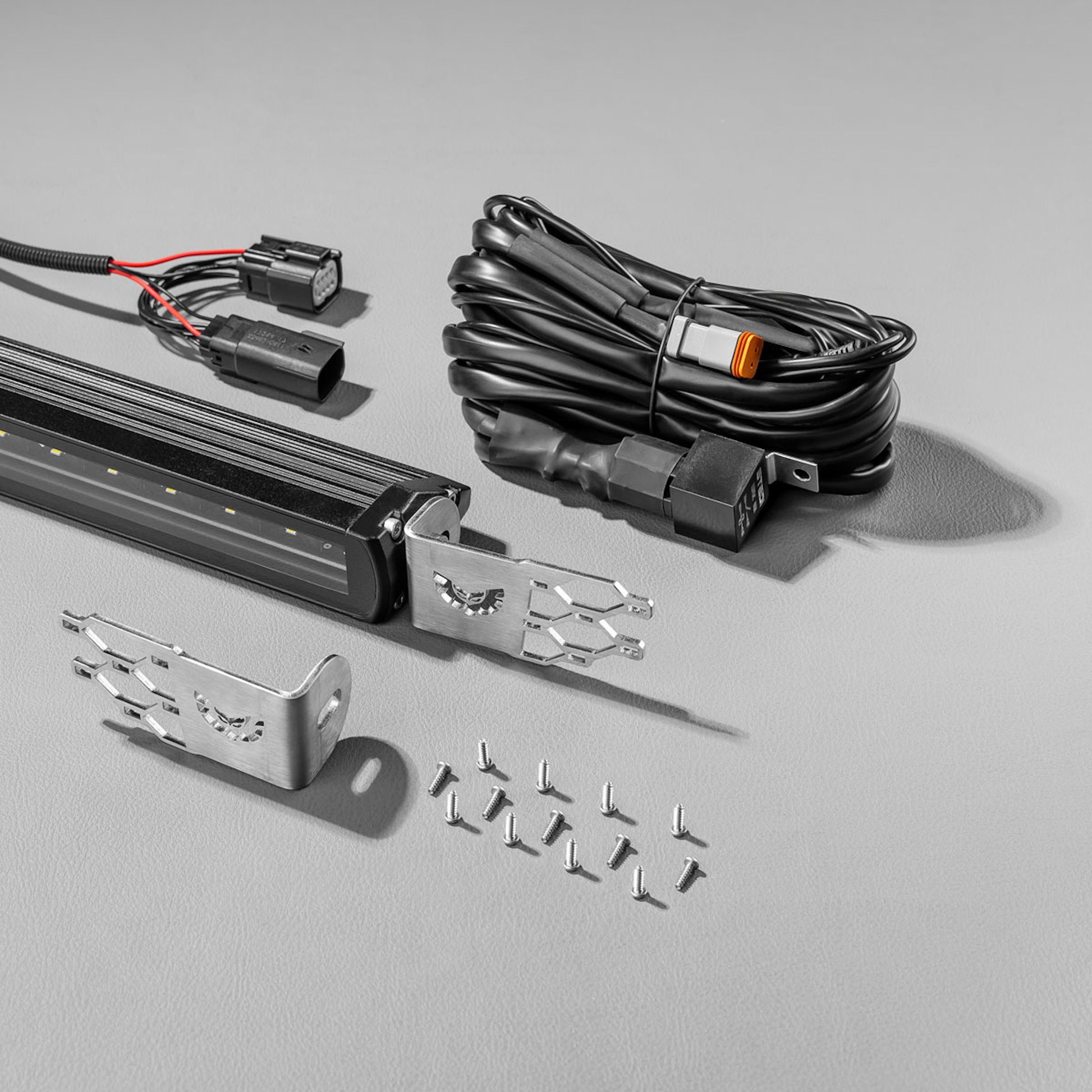

WHAT'S INCLUDED ST1K 21.5inch LED LIGHT BAR Ford Ranger Raptor 2019-2022 Inner Grill Mounting Brackets 12V Quick Fit to High Beam Wiring, Relay, Wiring Kit, and round universal On/Off Switch Ford Ranger High beam Adapter Wiring Instructions Mounting Hardware
