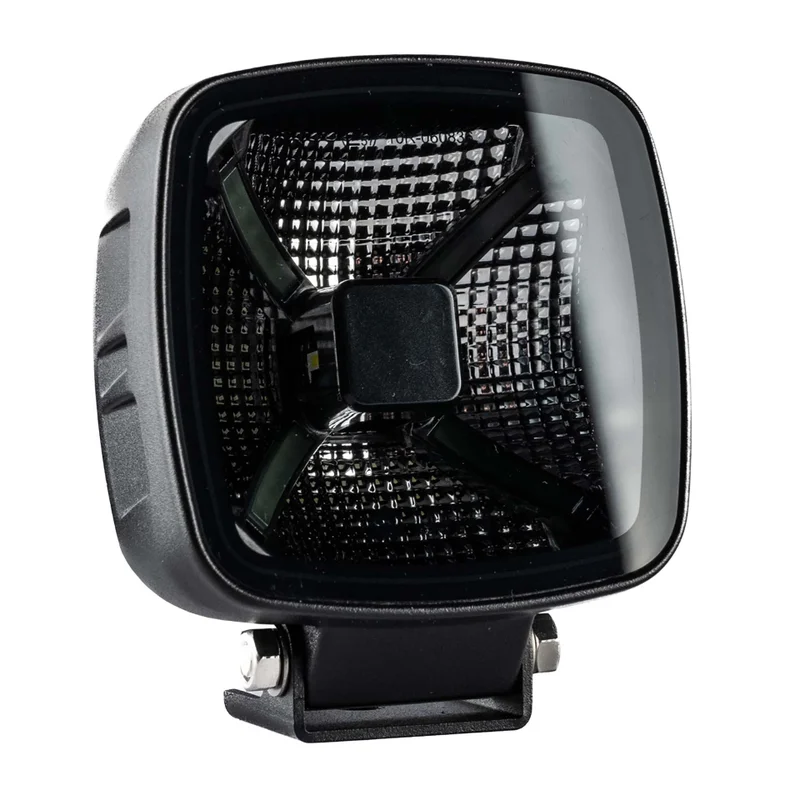

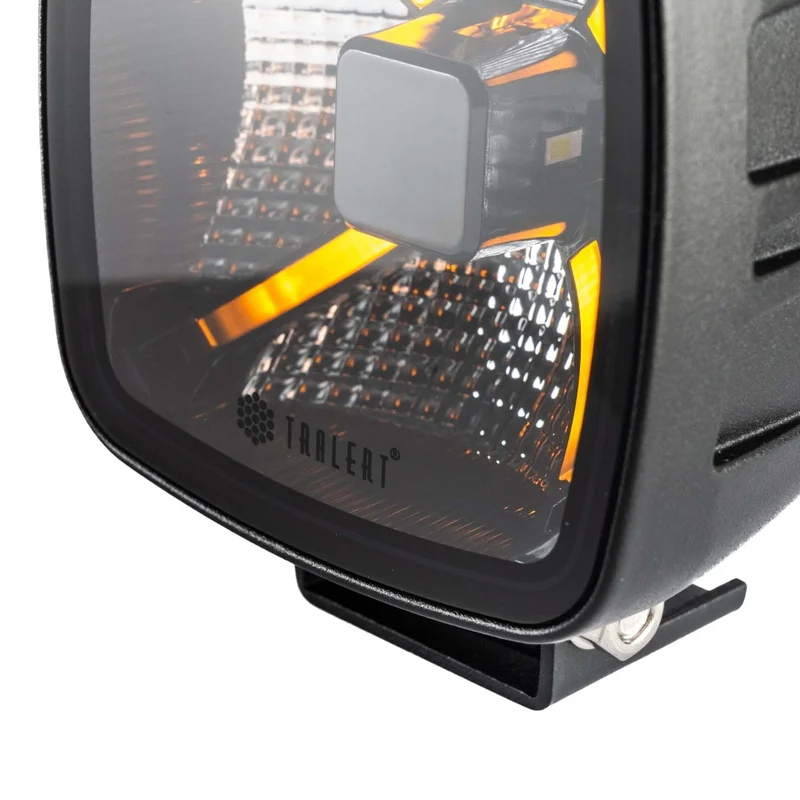

The TRALERT Onix serie LED work lights is designed for work environments where reliable and versatile lighting is required. This work light offers wide light distribution with integrated position lights in red, white and amber. Its light image as a flood beam with position lights makes this light suitable for a variety of applications on vehicles, machines and implements in various sectors. The housing is made of aluminium and fitted with an impact-resistant polycarbonate lens, which increases its resistance to external influences. Protection is confirmed by the IP68 classification. In addition, the work light complies with CE and ECE-R10 guidelines. The working voltage is between 9 and 30 V, with peak voltage resistance up to 36 V. The light output is 5,948 lm. The work light has a 400 cm long cable with open wire end and is suitable for surface mounting. Plus points of this series: - Special RFT lens technology - Optimum light distribution for an ideally illuminated work field - Full certification - New top model with 3-colour position lights
General
Voltage: 9-30V (peak voltage resistant to 36V)
Certification: CE, ECE-R10
Warranties: 3 years
Brand: TRALERT®
Suitable for: 4×4, Semi-Trailers, Commercial vehicles, Excavator, Tractor, Semi-trailers, Trucks
Dimensions

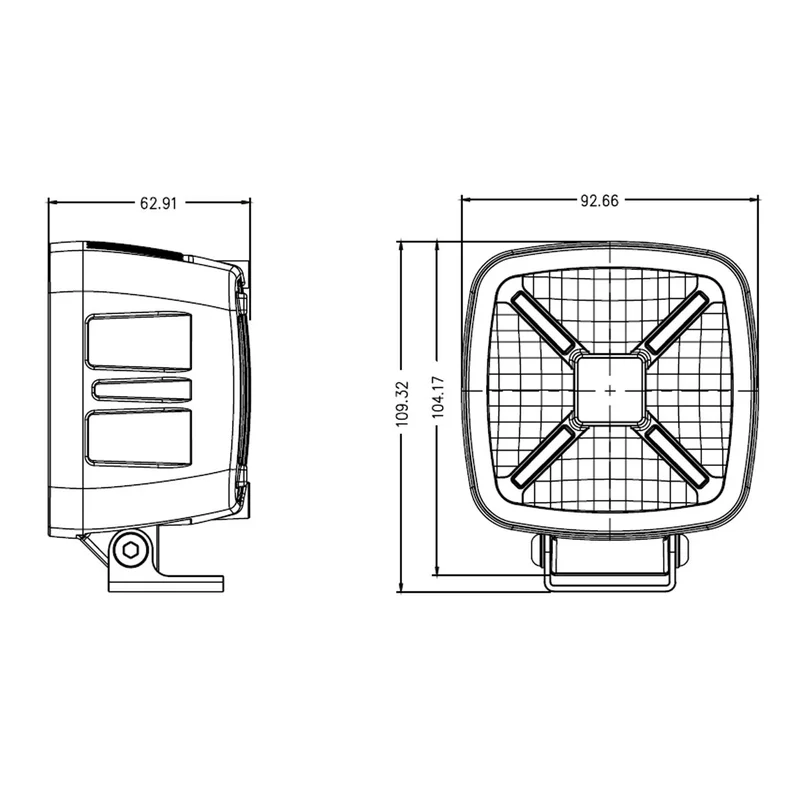

Dimensions: 92.6 x 92.6 x 62.9 mm
Shape: Square
Light image

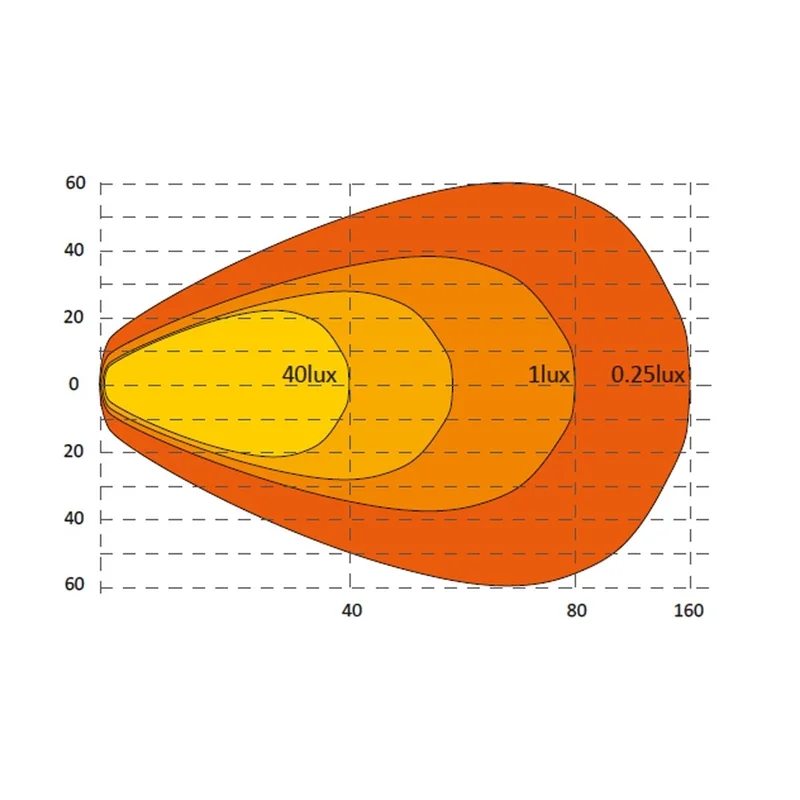

Light image: Flood beam, Position lights

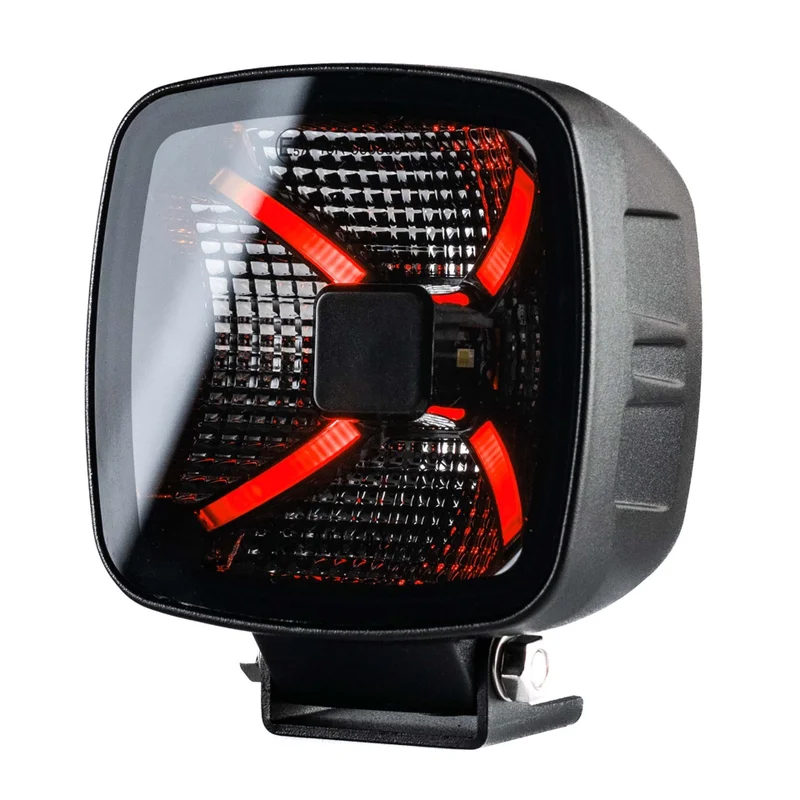

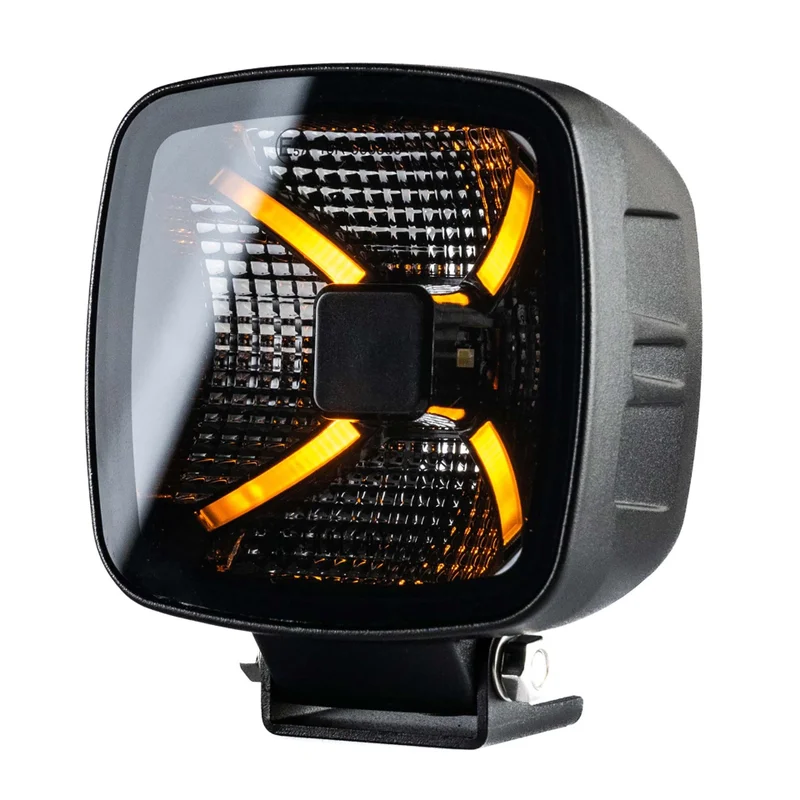

Light colour: Red, white, amber
Lumen: 5948 lumens
Number of LEDs: 4x 15W LEDs
Materials

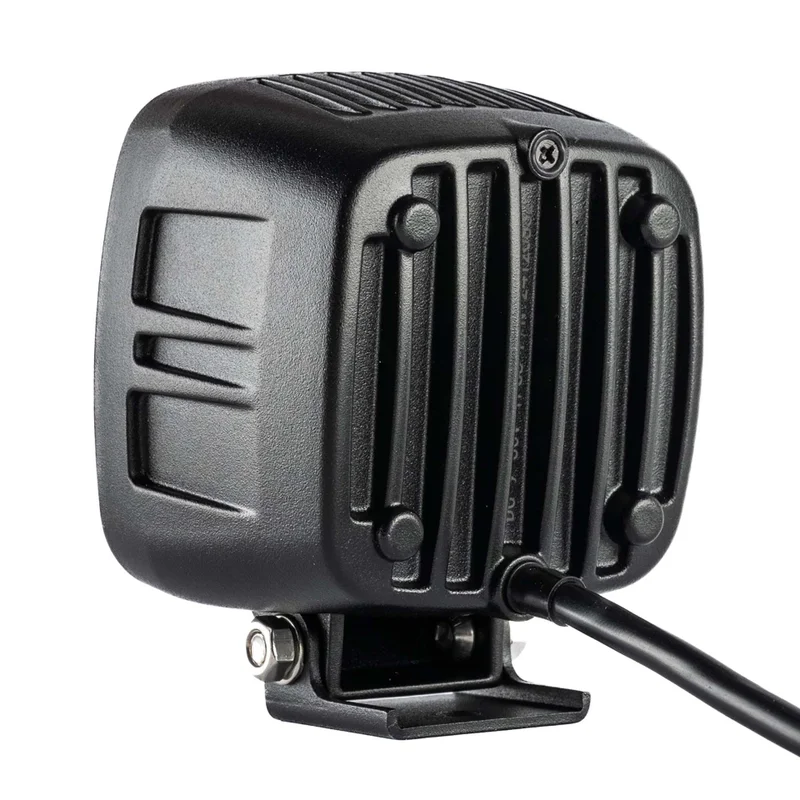

Housing material: Aluminium
Housing colour: Black
Lens material: Polycarbonate
Lens colour: Transparent
Technical
Connectors: Open wire end

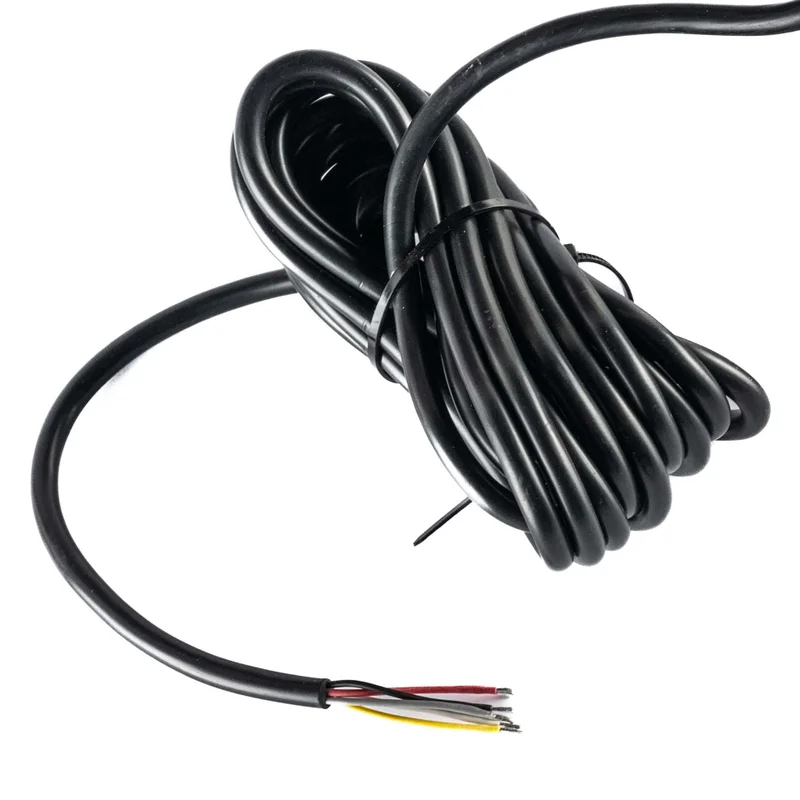

Cable length: 400 cm cable
Wattage: 60 Watt
Lumen: 5948 lumens
Protection class: IP68
Power consumption: 12V: 3.33A / 24V: 1.71A
Mounting: Surface mounting
