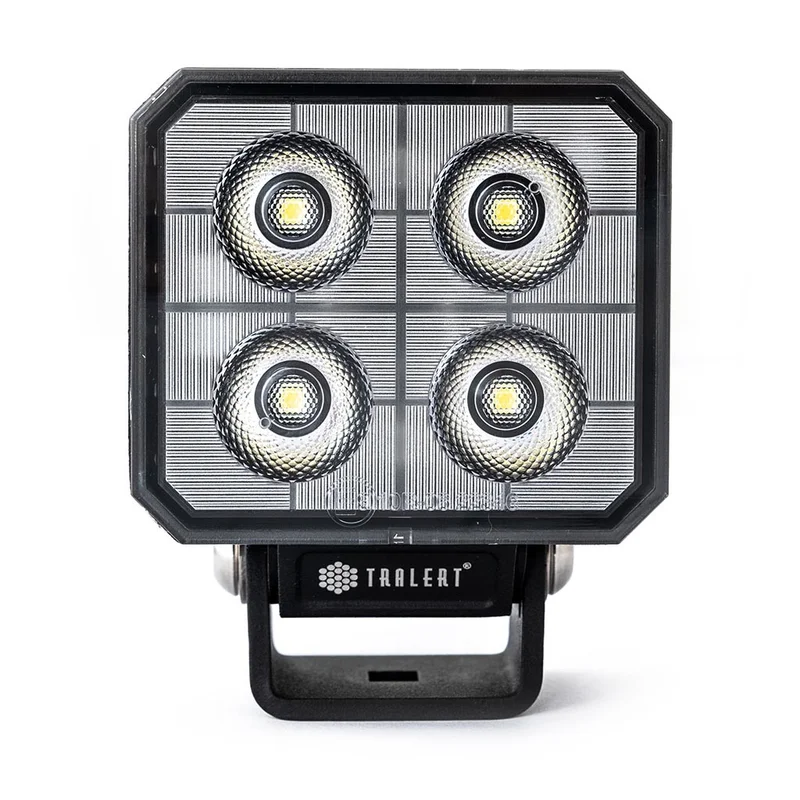

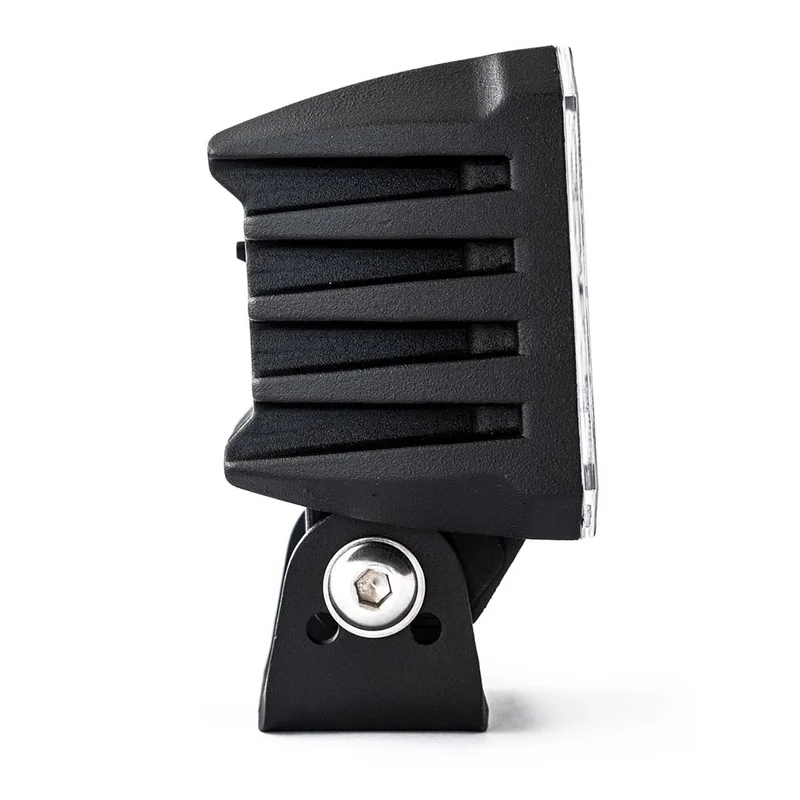

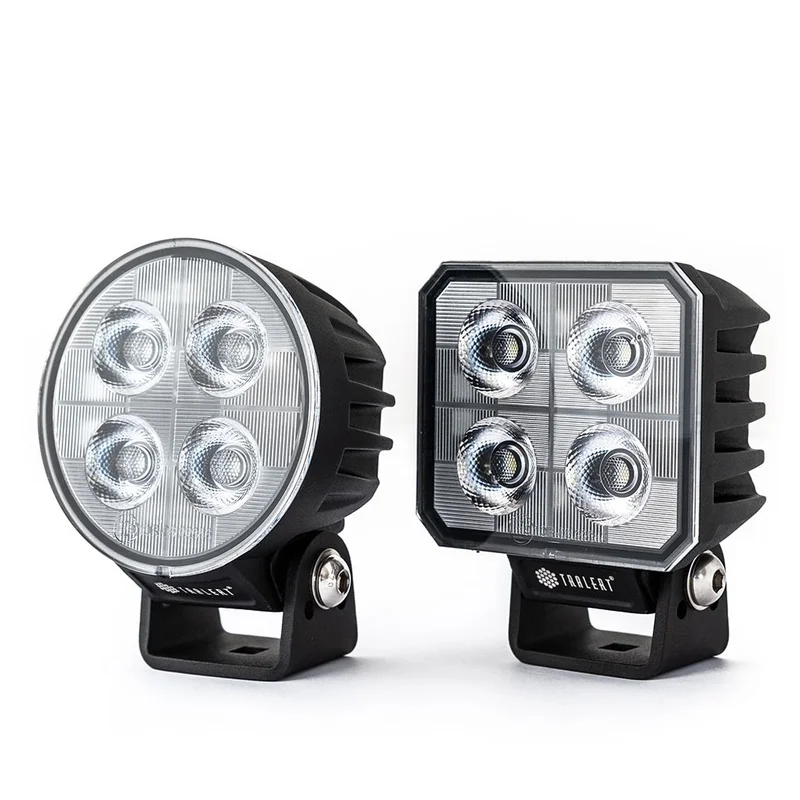

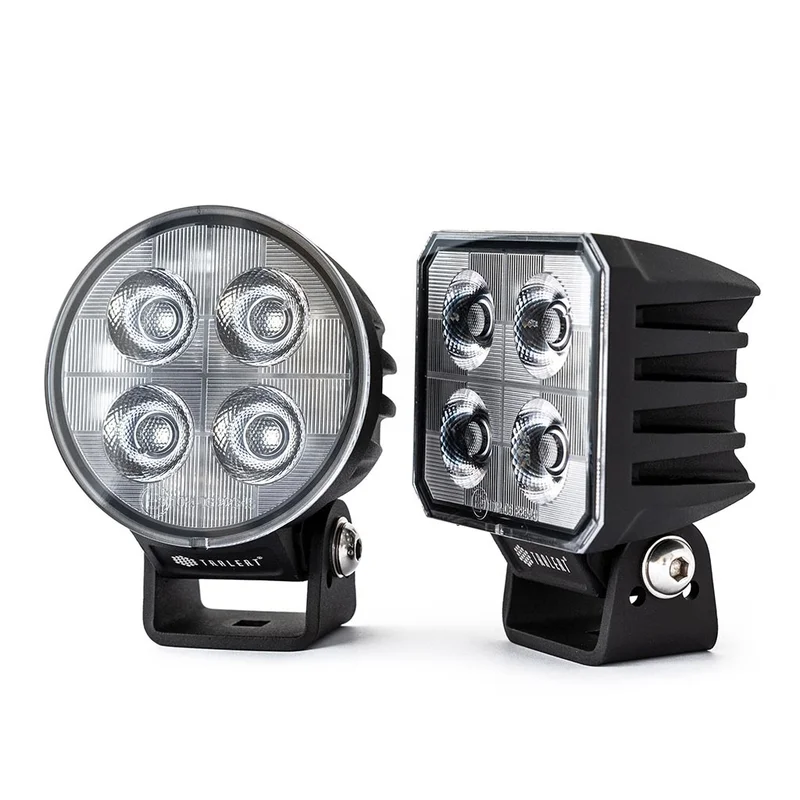

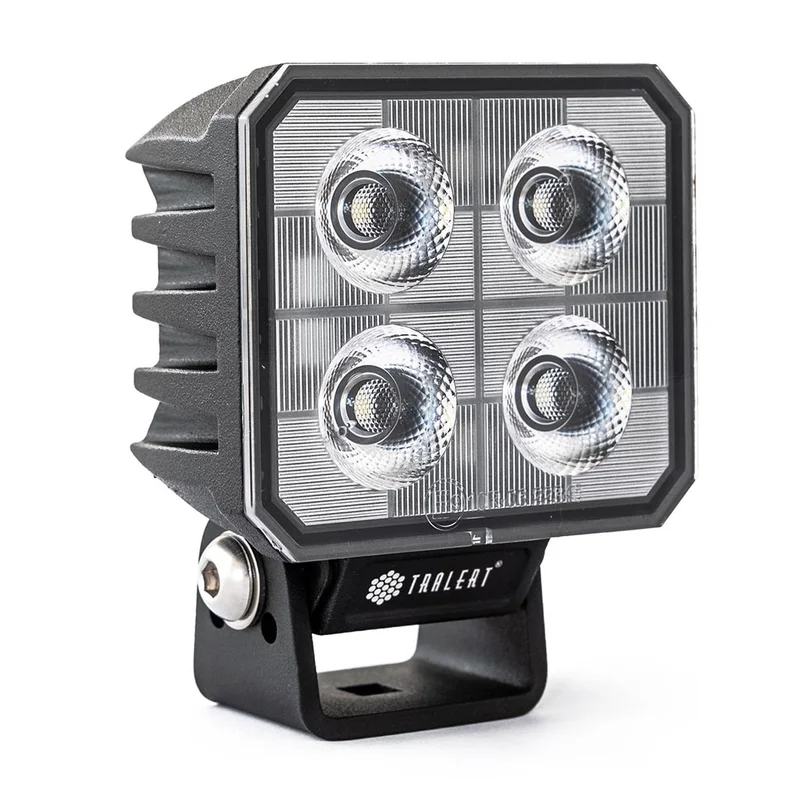

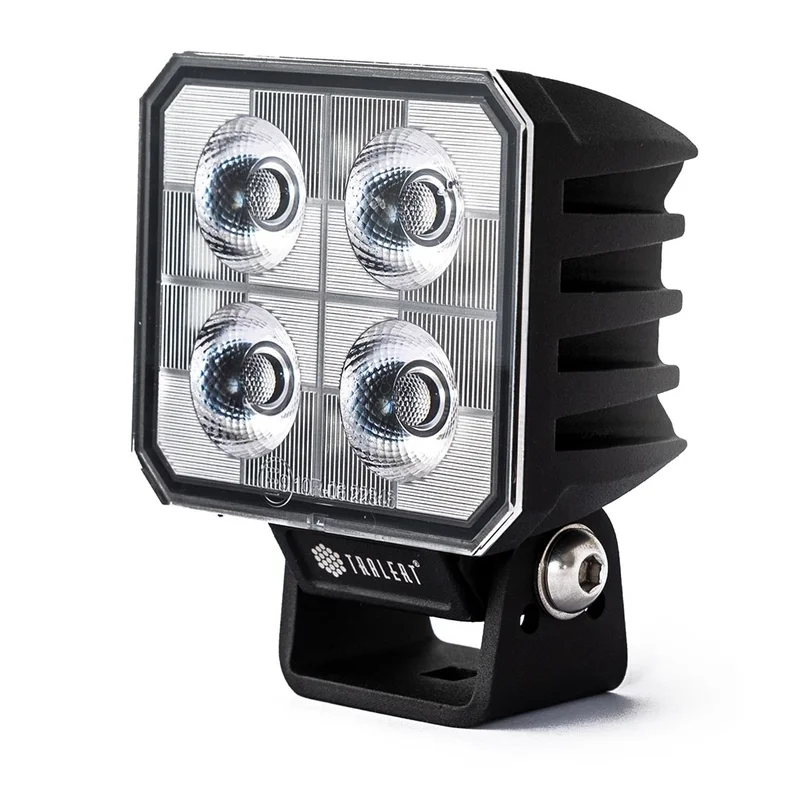

This LED work light from TRALERT s Edge series is designed for applications where compact mounting and a wide light image are required. With an input voltage range of 9-36V, this model is suitable for a variety of vehicles in agriculture, transport, or industrial sectors. The work light delivers a light output of 3,800 lm and features an aluminium housing with polycarbonate lens, suitable for intensive use. Thanks to its IP69K protection rating, the work light can withstand high pressure and temperature during cleaning. The built-in Deutsch connector makes electrical connection reliable and easy. This LED work light meets CE, ECE R10, and CISPR25 Class 5 requirements for electromagnetic compatibility, among others. Plus points of this series: Extremely compact and flexibly mountable. Powerful wide beam 5600 lumens. Built-in DT-connector or cable with Deutsch-connector connector. Two different mounting angles: 35° and 48°.
General
Voltage: 9-36v
Certification: CE, CISPR25 Class 5, ECE-R10
Warranties: 2 years
Brand: TRALETRT®
Suitable for: 4×4, Semi-Trailers, Commercial vehicles, Excavator, Tractor, Semi-trailers, Trucks
Dimensions

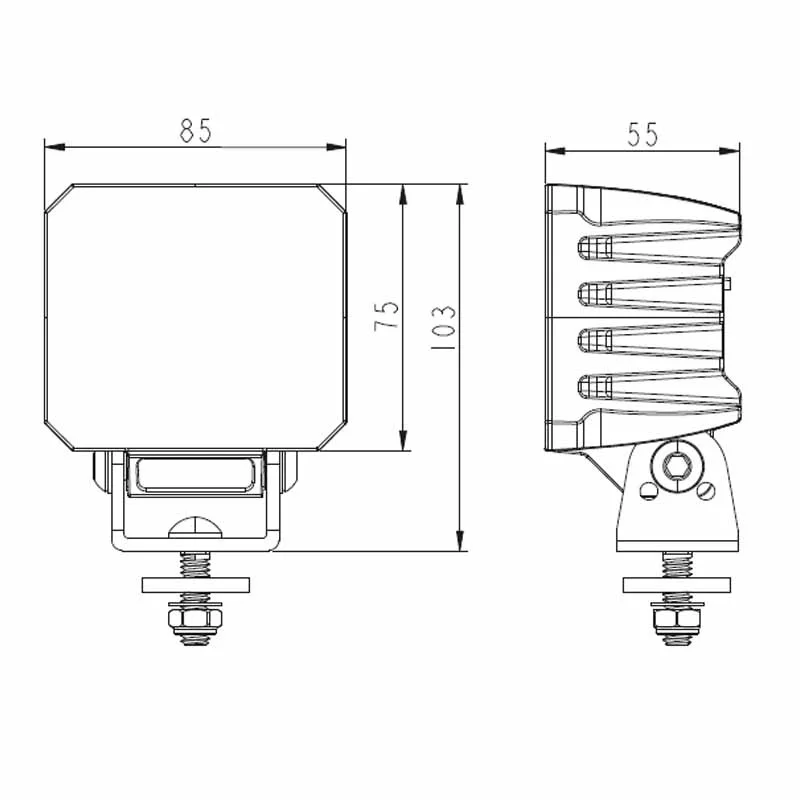

Dimensions: 85 x 75 x 55mm
Shape: Square
Light image
Light image: Flood beam
Lumen: 3800 lumens

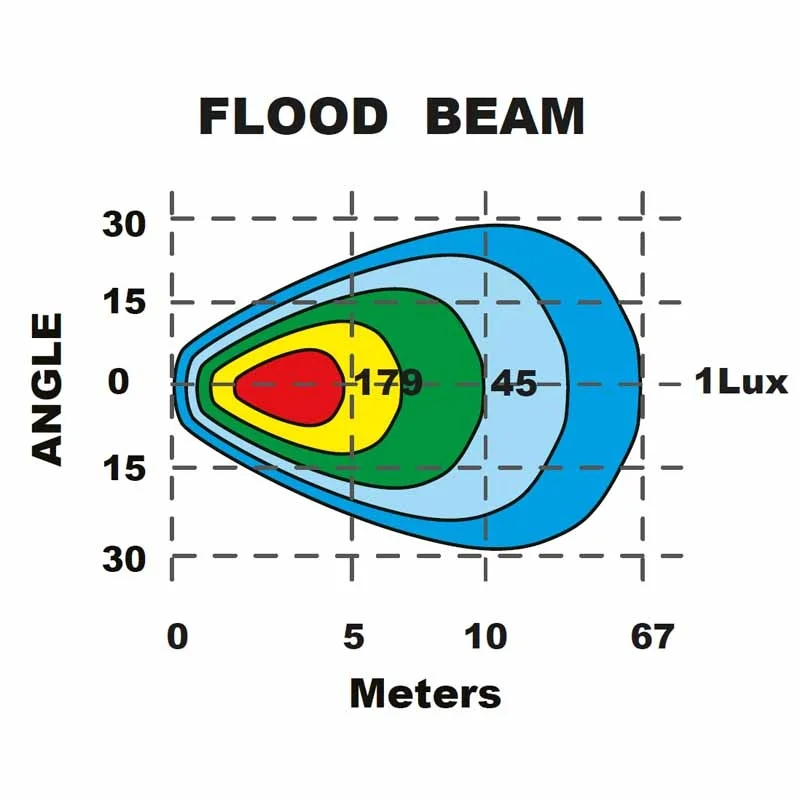

Light range: 45 lux @ 10m / 1 lux @ 67m
Number of LEDs: 4 x 10w LP LEDs
Materials
Housing material: Aluminium
Housing colour: Black
Lens material: Polycarbonate
Lens colour: Transparent
Technical

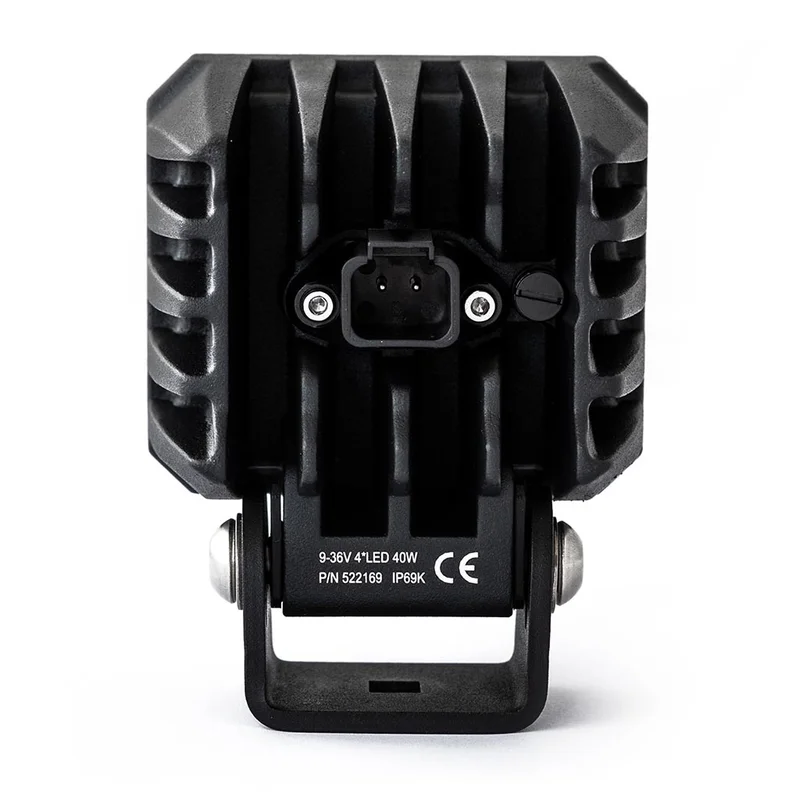

Connectors: Built-in Deutsch connector
Cable length: N/A
Wattage: 40 Watt
Lumen: 3800 lumens
Protection class: IP69K

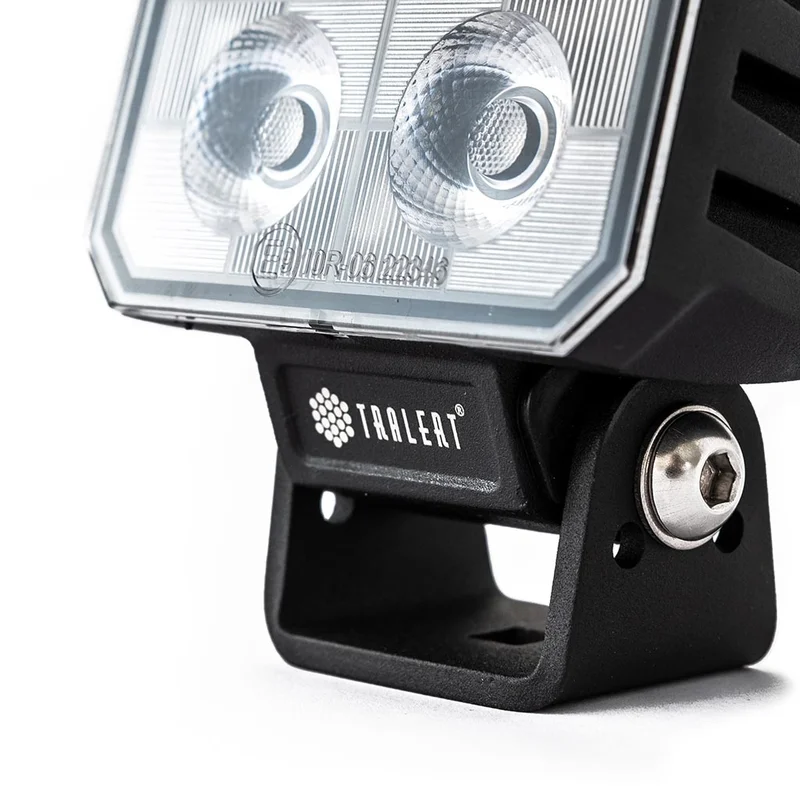

Mounting: Surface mounting
