The TRALERT Onix series offers powerful LED work lights for use in environments with high demands on durability and light output. This LED work light has a wide-beam light image and delivers 4,680 lm at an operating voltage of 9-36 V. Thanks to its surface-mounted design and compact dimensions of 81 x 75 x 65 mm, this work light is suitable for a variety of vehicle installations, including on agriculture, construction, and transport equipment. The housing is made of aluminium and features a polycarbonate lens. With an IP69K rating, this LED work light is resistant to high-pressure water and dust, adding to its reliability in harsh conditions. The light is further equipped with a 2-PIN Deutsch connector and comes with 50 cm cable. Certification according to CE and ECE R10 is applicable. Plus points of this series: - Special RFT lens technology - Optimum light distribution for an ideally illuminated work field - Full certification - New top model with 3-colour position lights
General
Voltage: 9-36V
Certification: CE, ECE-R10
Warranties: 2 years
Brand: TRALERT®
Suitable for: 4×4, Semi-Trailers, Commercial vehicles, Excavator, Tractor, Semi-trailers, Trucks
Dimensions

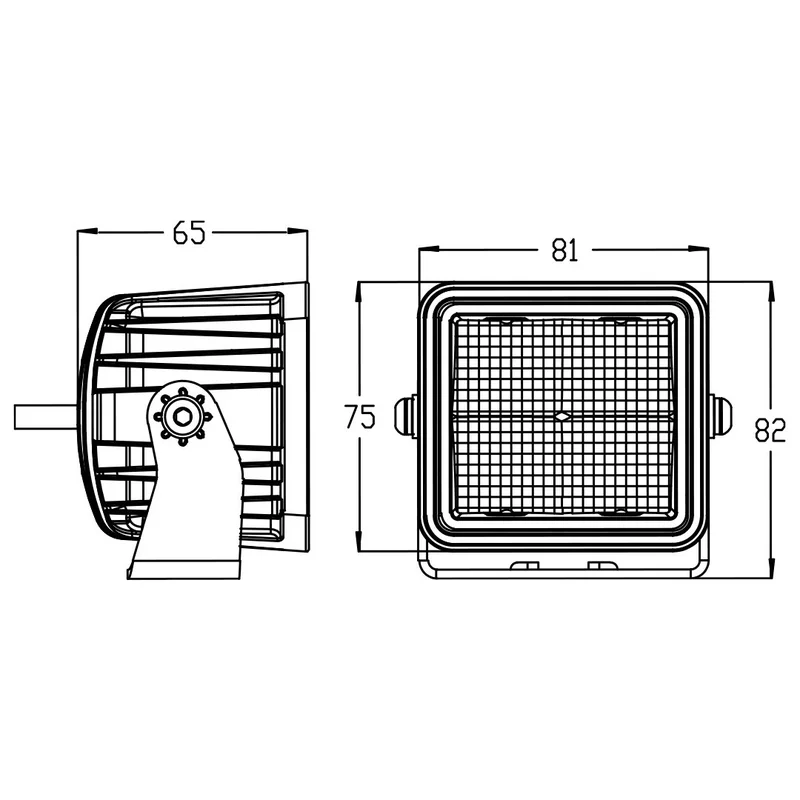

Dimensions: 81 x 75 x 65mm
Shape: Square
Light image
Light image: Flood beam
Lumen: 4680 lumens

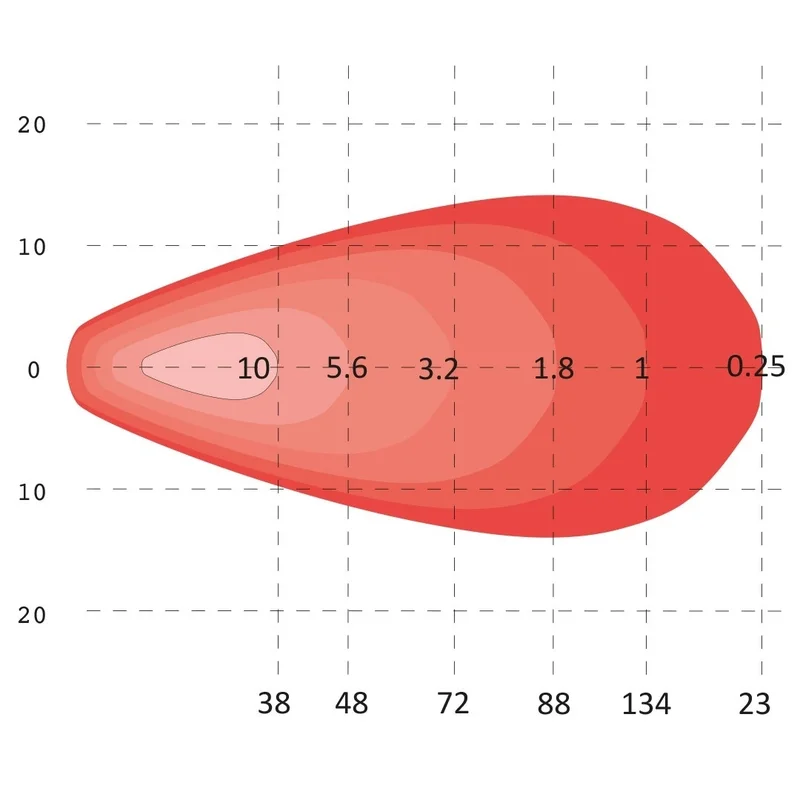

Light range: 10Lux @ 38m / 1Lux @ 134m
Number of LEDs: 4x 10W P9 Osram LEDs
Materials
Housing material: Aluminium
Housing colour: Black
Lens material: Polycarbonate
Lens colour: Transparent
Technical
Connectors: 2-PIN Deutsch connector
Cable length: 50cm cable
Wattage: 40 Watt
Lumen: 4680 lumens
Protection class: IP69K
Power consumption: 12V: 3.25A / 24V: 1.78A
Mounting bracket: Incl. mounting bracket
Mounting: Surface mounting
