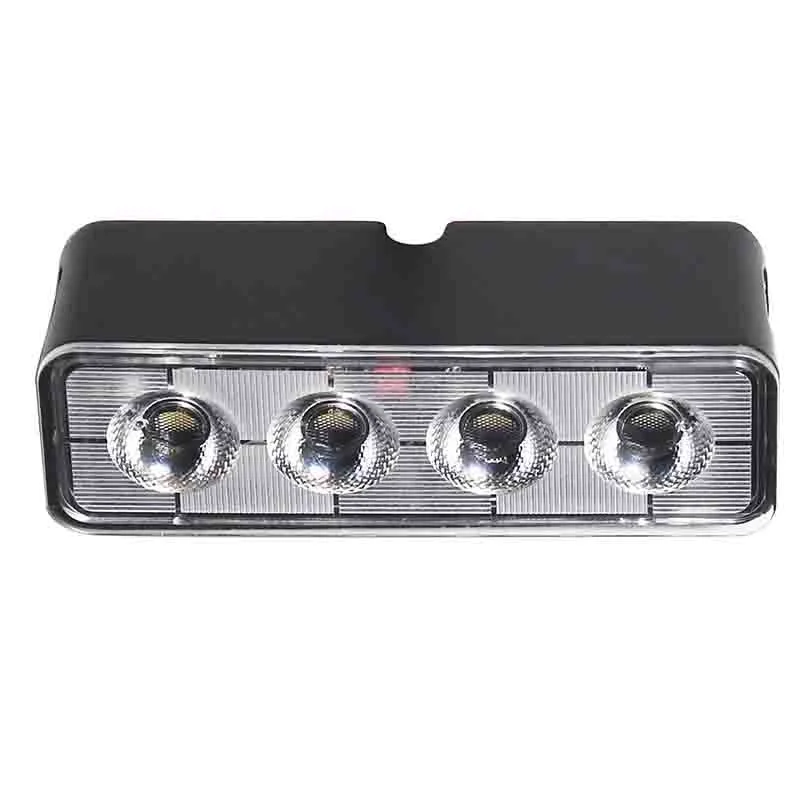

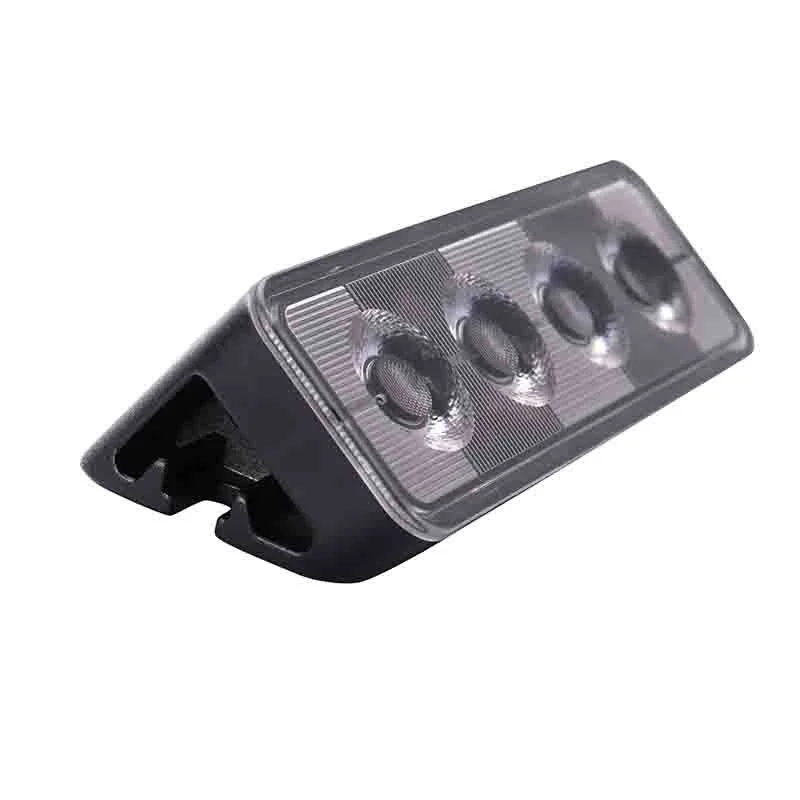

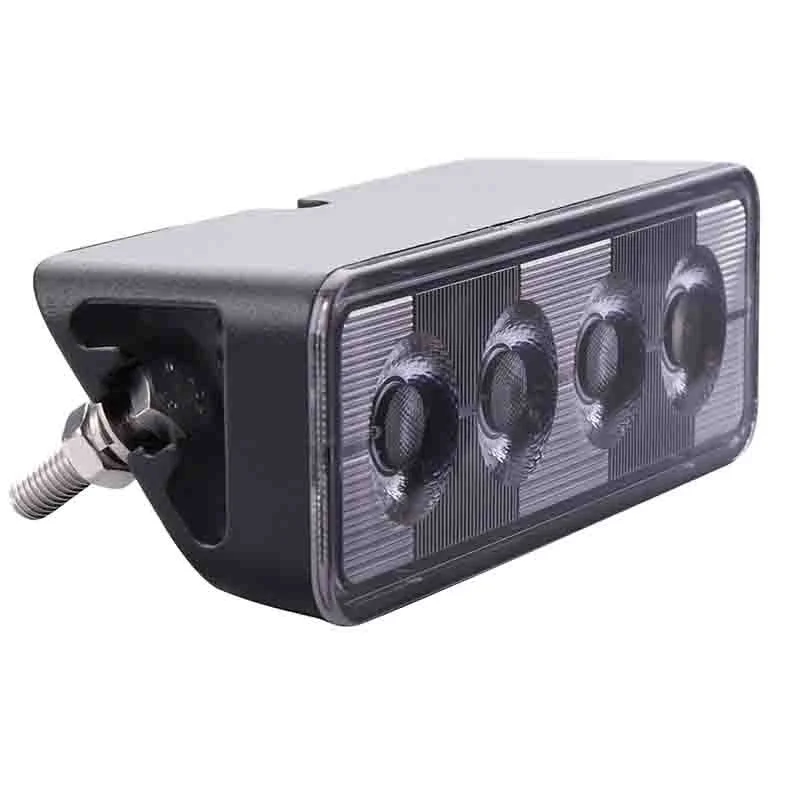

The TRALERT WR-2428.1 from the Edge series is a compact LED work light designed for use in a variety of work environments. This LED work light delivers a light output of 2,801 lm at an energy consumption of 25 W and operates within a voltage range of 9-36 V. The light image is suitable as a flood beam and can also serve as a reversing light, depending on the mounting position. The housing is made of aluminium, with an impact-resistant polycarbonate lens. Thanks to its protection rating IP69K, this LED work light is resistant to dust, mud and high-pressure cleaning. The light is certified to CE, ECE-R10, ECE-R23 and CISPR25 Class 1 standards, making it compatible with most commercial vehicle electrical systems. Connection is via a built-in 2-PIN Deutsch connector or a 200 cm cable with integrated Deutsch connector. Plus points of this series: Extremely compact and flexibly mountable, powerful wide beam, 5600 lumens, built-in DT connector or cable with Deutsch connector, two different mounting angles 35° and 48°. See this lighting in action on the Volvo FH Aero.
General
Voltage: 9-36V
Certification: CE, CISPR25 Class 1, ECE-R10, ECE-R23
Warranties: 2 years
Brand: TRALERT®
Suitable for: 4×4, Semi-Trailers, Commercial vehicles, Excavator, Tractor, Semi-trailers, Trucks
Dimensions

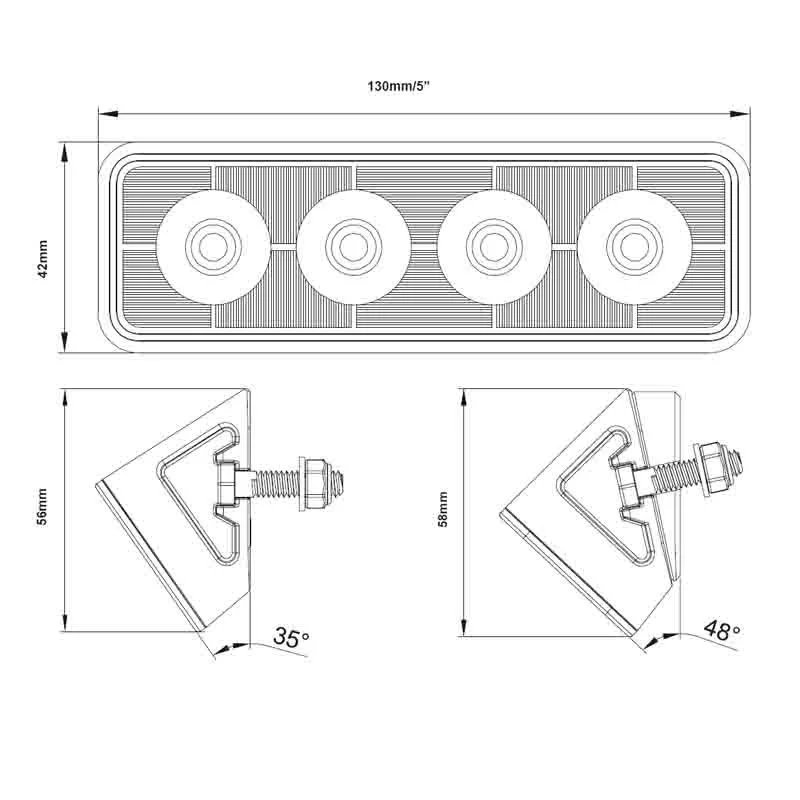

Dimensions: 131 x 42 x 56 mm
Shape: Strip
Light image
Light image: Reversing lights, Flood beam
Lumen: 2801 lumens

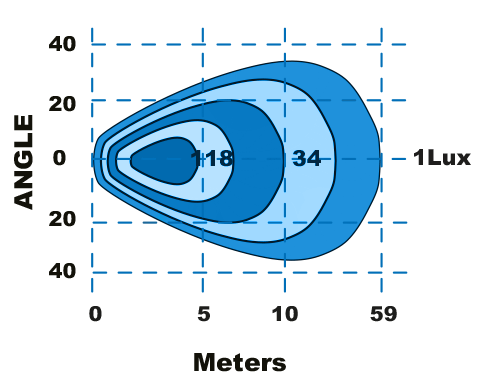

Light range: 34 lux @ 10m / 1 lux @ 59m

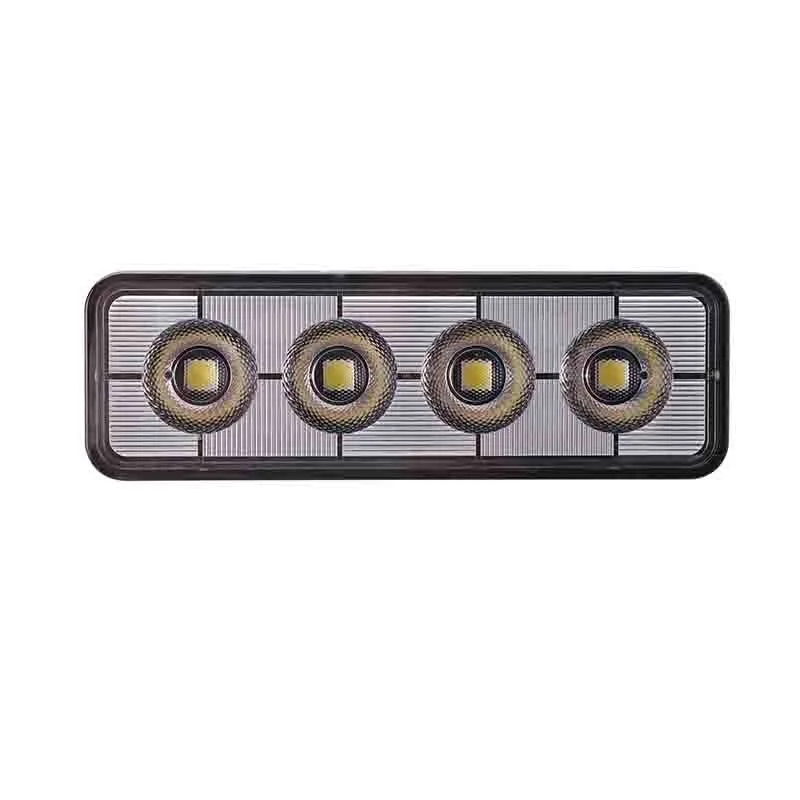

Number of LEDs: 4 x 6W LumiLEDs
Materials
Housing material: Aluminium
Housing colour: Black
Lens material: Polycarbonate
Lens colour: Transparent
Technical
Connectors: 2-PIN Deutsch connector
Cable length: 200 cm cable
Wattage: 24 Watt
Lumen: 2801 lumens
Protection class: IP69K
Mounting: Surface mounting
