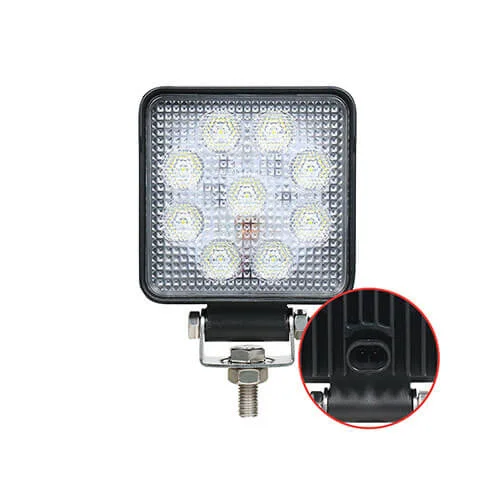

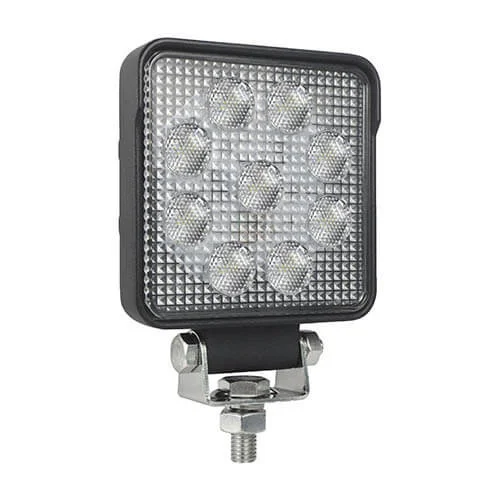

The LED work light of the 10015-serie from LED Autolamps is designed for applications where reliable lighting under harsh conditions is required. With its light image as a flood beam and integrated reverse light function, this work light is suitable for a variety of vehicle applications, such as in agriculture, transport and industry. The robust aluminium housing combined with an impact-resistant polycarbonate lens provides protection against external influences. With a light output of 1,710 lm and a voltage range of 12-24 V, this work light delivers consistent performance. The surface mount and built-in SuperSeal connector ensure easy installation. Certified to CE, ECE-R10 and ECE-R23, this LED work light is IP69K rated for maximum protection against high-pressure dust and water. Plus points of this series: - High-pressure resistant - Known dimensions - Also available with handle - Also with AMP connector.
General
Voltage: 12-24v
Certification: CE, ECE-R10, ECE-R23
Warranties: 2 years
Brand: LED Autolamps
Dimensions
Dimensions: 100 x 100 x 40mm
Shape: Square
Light image
Light image: Reversing lights, Flood beam
Lumen: 1710 lumens
Light range: 40 lux @ 10m / 0.25 lux @ 126m
Number of LEDs: 9 x 1.5W OSRAM LEDs
Materials
Housing material: Aluminium
Housing colour: Black
Lens material: Polycarbonate
Lens colour: Transparent
Technical
Connectors: Built-in SuperSeal connector
Cable length: N/A
Wattage: 13.5 Watt
Lumen: 1710 lumens
Protection class: IP69K
Mounting: Surface mounting
