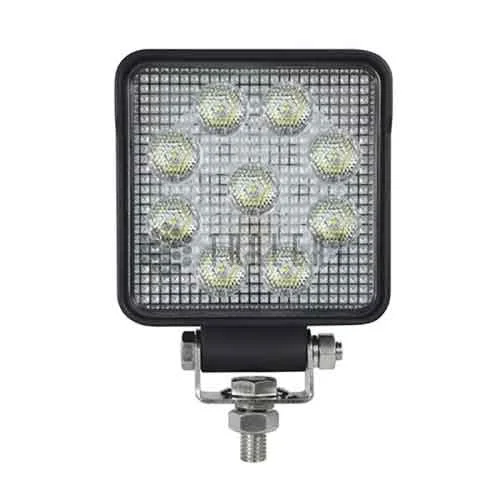

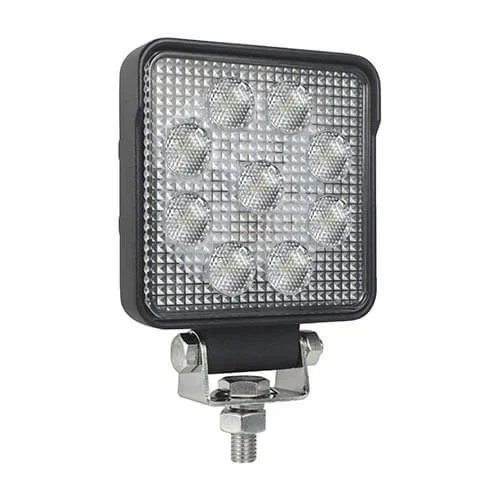

The 10015-serie series LED work light from LED Autolamps has been developed for applications where compact size and high resistance to external influences are essential. Thanks to its wide light image, this work light also functions as a reverse light, enhancing its usability when manoeuvring in dark or confined spaces. This surface-mounted luminaire operates on 12-24 V and delivers 1,710 lm at a power consumption of 25 W. The aluminium housing and impact-resistant polycarbonate lens are designed for demanding conditions. Protection to IP69K standards guarantees water- and dust-proofing, even when cleaned under high pressure. The light is CE-certified and complies with ECE-R10 and ECE-R23. Plus points of this series: - High-pressure resistant - Known dimensions - Also available with handle - Also with AMP connector.
General
Voltage: 12-24v
Certification: CE, ECE-R10, ECE-R23
Warranties: 2 years
Brand: LED Autolamps
Dimensions
Dimensions: 100 x 100 x 40mm
Shape: Square
Light image
Light image: Reversing lights, Flood beam
Lumen: 1710 lumens
Light range: 40 lux@10m / 0.25 lux@126m
Number of LEDs: 9 x 1.5W OSRAM LEDs
Materials
Housing material: Aluminium
Housing colour: Black
Lens material: Polycarbonate
Lens colour: Transparent
Technical
Connectors: Open wire end
Cable length: 40cm cable
Wattage: 13.5 Watt
Lumen: 1710 lumens
Protection class: IP69K
Mounting: Surface mounting
