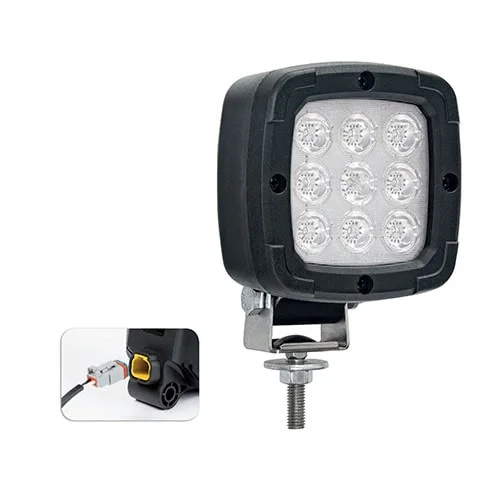

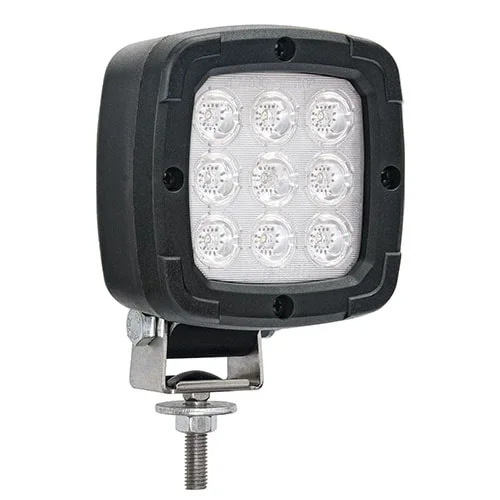

The Fristom W-3617 serie LED work lights is designed for use in demanding environments and applications where durability and visibility are essential. This model offers a light output of 1,700 lm within the voltage range of 9-36 V and uses a wide-beam light image. The nylon alloy housing (PA06-GF30) and polycarbonate lens provide impact resistance and protection in harsh conditions. Thanks to the built-in Deutsch connector, reliable connection is guaranteed. Construction to IP68 standard provides protection against dust and immersion in water. The LED work light is CE, ECE-R10 and ADR guidelines certified, making it suitable for use on public roads where ADR approval is required. Plus points of this series: - Extended series, with cable, with magnetic base, with built-in DT-connector - Black edge can be replaced by the WAC-36 rings in white, yellow, red, grey & green - Equipped with ADR approval mark.
General
Voltage: 9-36v
Certification: ADR, CE, ECE-R10
Warranties: 2 years
Brand: Fristom
Suitable for: 4×4, Semi-Trailers, Commercial vehicles, Excavator, Tractor, Semi-trailers, Trucks
Dimensions

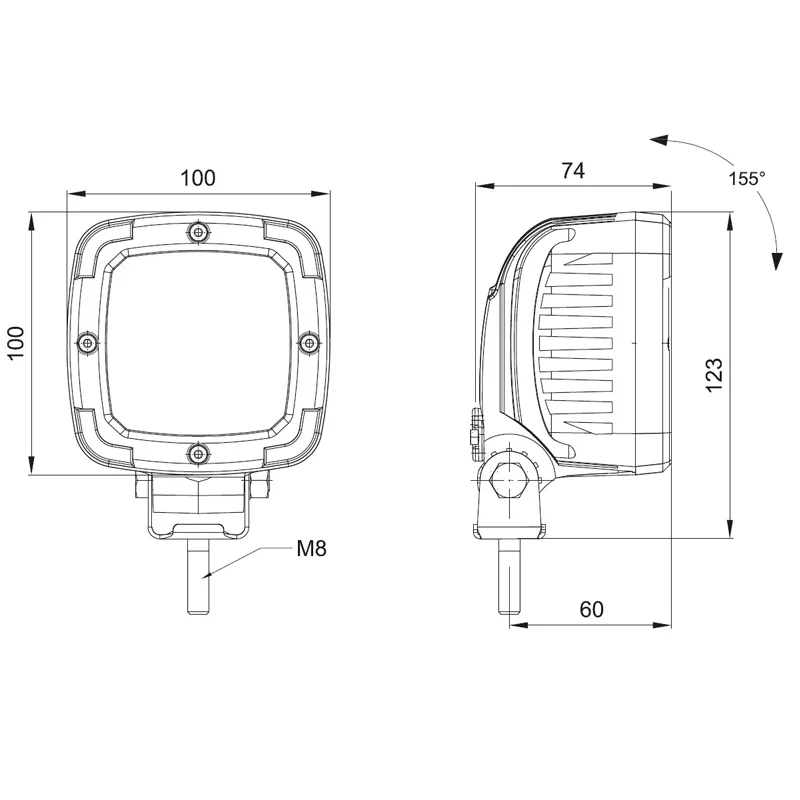

Dimensions: 100 x 100 x 74mm
Shape: Square
Light image
Light image: Flood beam
Lumen: 1700 lumens
Light range: 14.5 lux @ 10m
Number of LEDs: 9 x 1.5 Watt Osram LEDs
Materials
Housing material: Nylon alloy (PA06-GF30)
Housing colour: Black
Lens material: Polycarbonate
Lens colour: Transparent
Technical

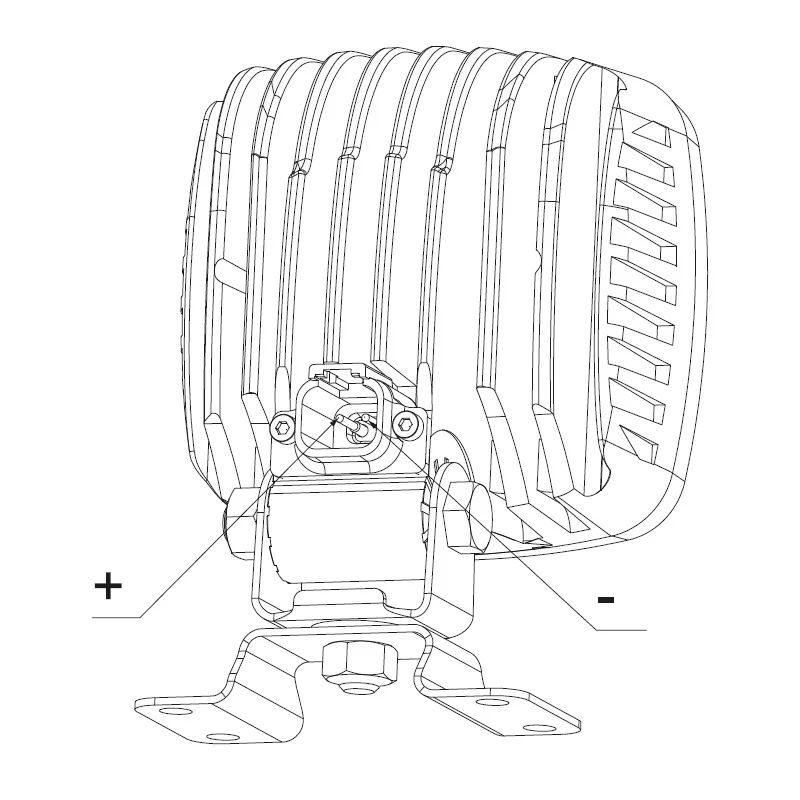

Connectors: Built-in Deutsch connector
Cable length: N/A
Wattage: 13.5 Watt
Lumen: 1700 lumens
Protection class: IP68
Mounting: Surface mounting
