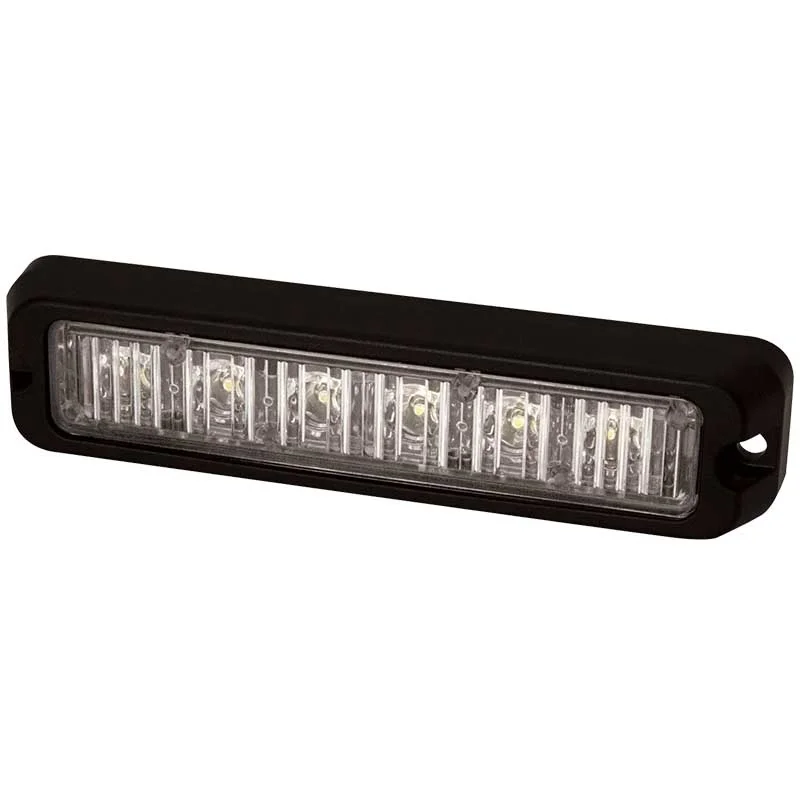

ECCO ESG's ED3706 Ecco serie LED warning lights are suitable for use on 12-24V systems and applicable to a variety of commercial vehicles where visibility and safety are important. The compact dimensions of 132x32x21mm combined with the ultra-thin housing make this model suitable for mounting in confined spaces. The warning light features a polycarbonate lens and aluminium housing, which contributes to its durability and impact resistance. Thanks to its IP67 classification, this surface mounting LED warning light is completely dust-proof and protected against immersion. CE, ECE-R10 and ECE-R65 certifications confirm its suitability for professional use. Connection is via a 20cm cable with open wire end, and multiple mounting options increase mounting flexibility. Plus points of this series: Ultra-thin and powerful, 4 mounting options, compact but extremely bright, can flash simultaneously or alternatingly.
General
Voltage: 12-24v
Pattern type: Flashing, Cruise mode
Certification: CE, ECE-R10, ECE-R65
Warranties: 3 years
Brand: ECCO ESG

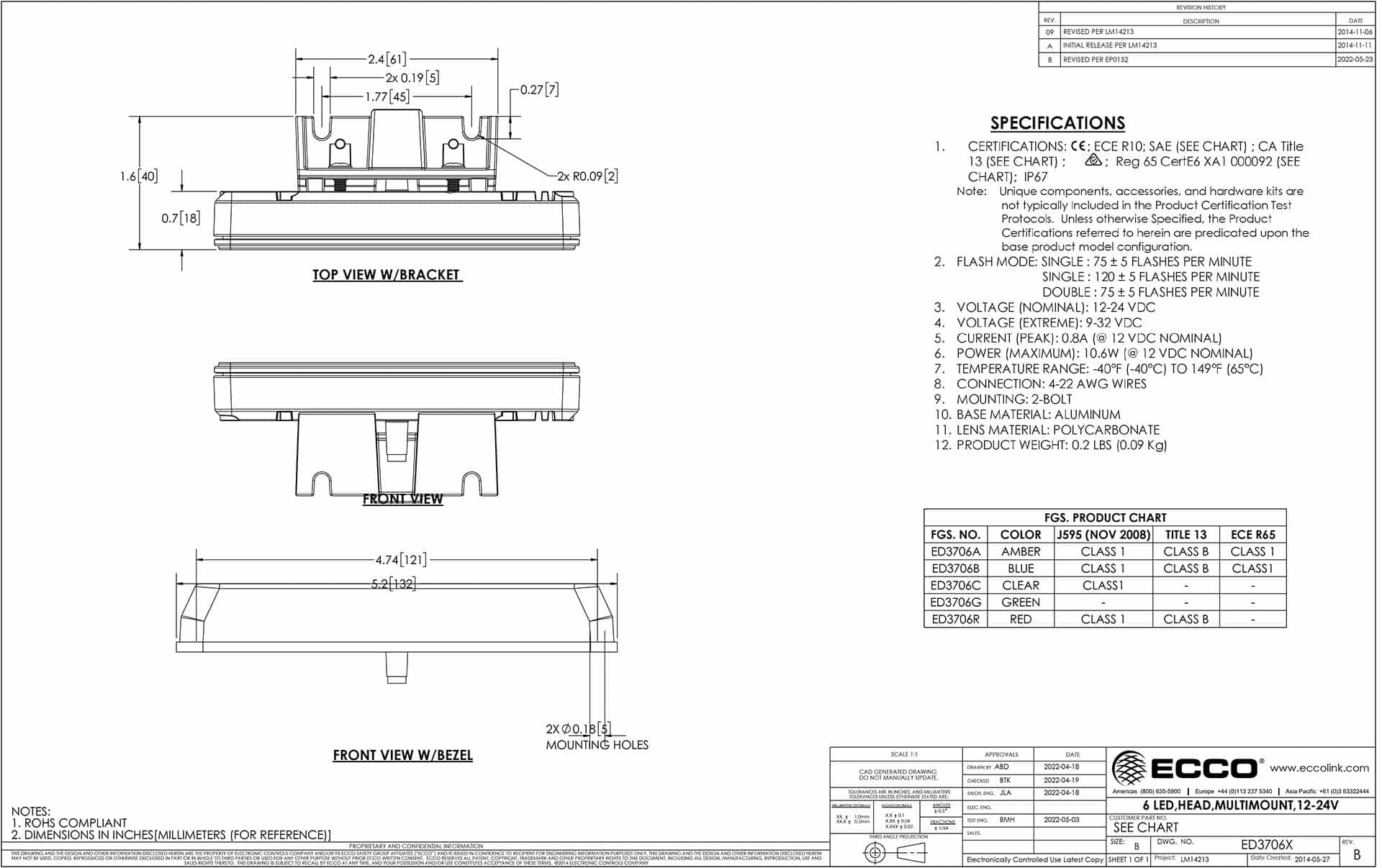

Dimensions
Dimensions: 132 x 32 x 21mm
Shape: Rectangular
Centre distance: 121mm
Light image
Warning light colour: Amber, white
Warning light function: Cruise mode, Flashing
Flash patterns: 13
Pattern type: Flashing, Cruise mode
Number of LEDs: 6
Materials
Housing material: Aluminium
Housing colour: Black
Lens material: Polycarbonate
Lens colour: Transparent
Technical
Connectors: Open wire end
Cable length: 20cm cable
Protection class: IP67
Mounting bracket: Optional
Mounting: Surface mounting
