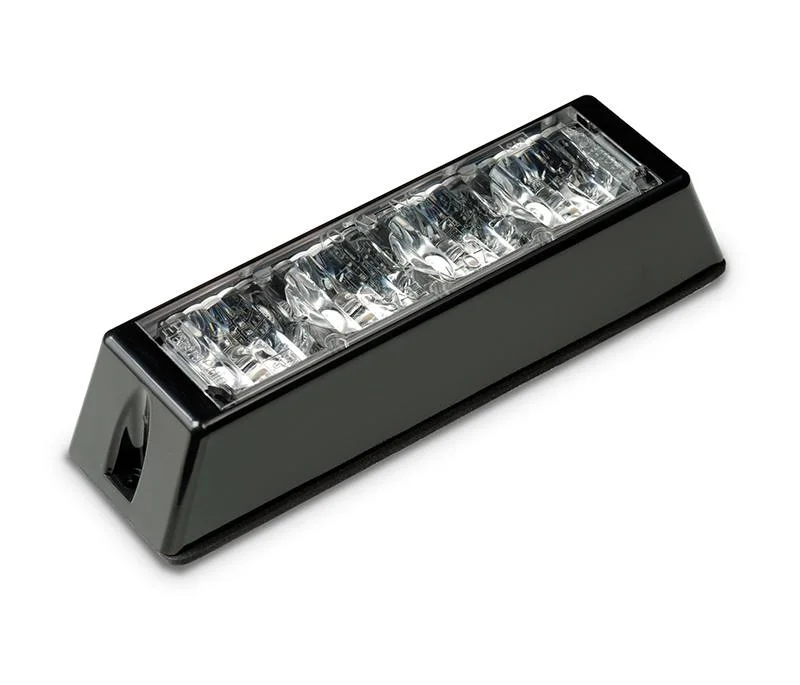

The Electra Quip LED 4 DVB from the Q-LED series is a compact LED warning light suitable for vehicles with an on-board system of 12-24V. This LED warning light is designed for surface mounting and comes with a 20 cm cable and open wire end, which simplifies installation in various vehicle installations. With dimensions of 139 x 37 x 28 mm and an aluminium housing with polycarbonate lens, this model offers robust build quality. The LED warning light is dust- and waterproof to IP67 and complies with ECE-R10 and CE approvals, ensuring electromagnetic compatibility. The design is thus suitable for both indoor and outdoor mounting on commercial and industrial vehicles. Plus points of this series: - Robust and fully certified LED warning lights - Wide range of patterns to choose from
General
Voltage: 12-24v
Pattern type: Flashing
Certification: CE, ECE-R10
Warranties: 5 years
Brand: ElectraQuip
Suitable for: Helpdesk
Dimensions
Dimensions: 139 x 37 x 28mm
Shape: Rectangular
Centre distance: 130mm
Light image
Warning light colour: Blue
Warning light function: Flashing
Flash patterns: 25
Pattern type: Flashing
Number of LEDs: 4
Materials
Housing material: Aluminium
Housing colour: Black
Lens material: Polycarbonate
Lens colour: Transparent
Technical
Connectors: Open wire end
Cable length: 20cm cable
Protection class: IP67
Mounting: Surface mounting
