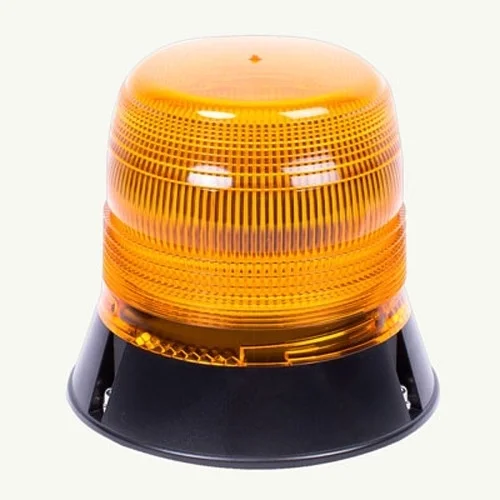

LED warning light amber | 12-24V | 3-bolt 400 series | R65
€243
- Your expert in vehicle lighting
- Secure card payment
- We have been online since 2006
- BRANDECCO
- CATEGORYWarning light Rotating Beacon
Description
Article no.: 761395
ø153 x 143mm
Cable length 35cm cable
Connector Without connector
Color codes RED - POSITIVE (+) BLACK - NEGATIVE (-) YELLOW - SYNC
Heart to Heart size ø130mm
Cutout size
Height incl. base
IP rate Water & dust tight
Voltage 12/24v
Power consumption
Wattage
Guarantee 3 years
Certification CE, ECE-R10 / R65
Rotating No
Flash patterns 15
Synchronization option
Light color Amber
Mounting 3-Bolt Assembly
Number of LED modules
Control panel
Traffic Advisor function
Searchlights
Working lights
Back light integrated
Material housing Polycarbonate
Casing color Black
Lens material Polycarbonate
Lens color Amber
Opaque centerpiece
Lit centerpiece
Specifications
EAN code: 5033818261016

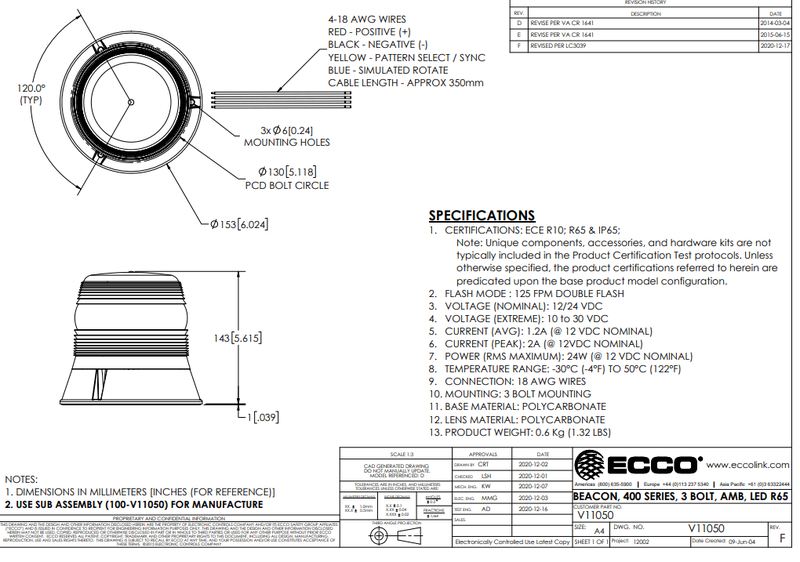

Dimensions
- Measurement: ø153 x 143mm
- Bolt distance: ø130mm
European type approval
- Certification: ECE-R10, ECE-R65
Technical properties
- Housing material: Polycarbonate
- Cable length: 35cm
- Connector: Open threaded rod
- Housing color: Black
- Lens material: Polycarbonate
- Lens color: Amber
- Class of protection: IP65
- Voltage: 12-24V
Light functions
- Flash patterns: 15
- Light color: Amber
General characteristics
- Assembly: 3-Bolt Assembly
- Brand: ECCO ESG
- Warranty: 3 years
- Series: 400 R65 Ecco Series
