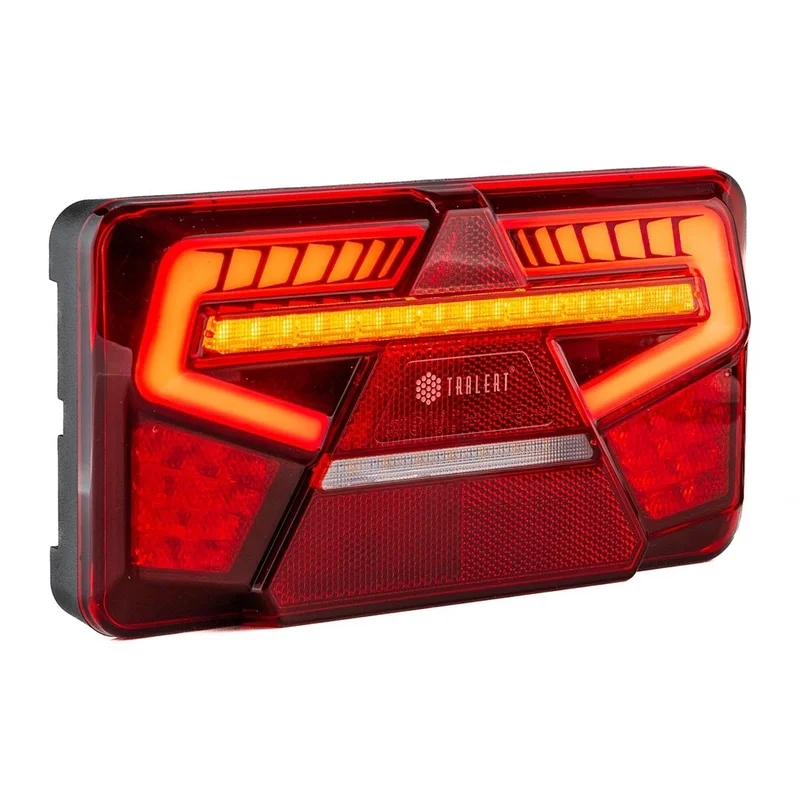

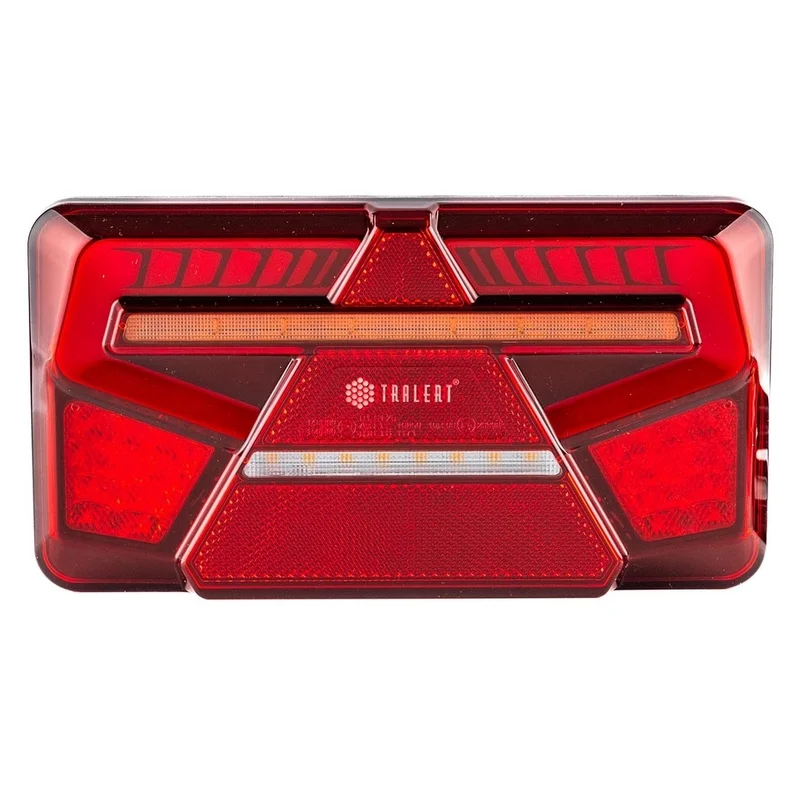

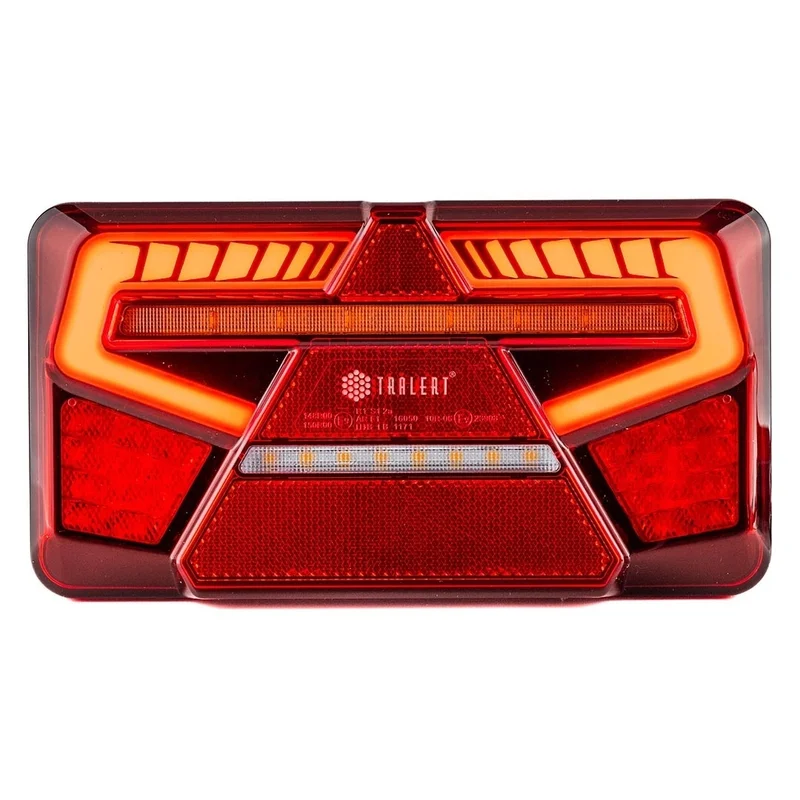

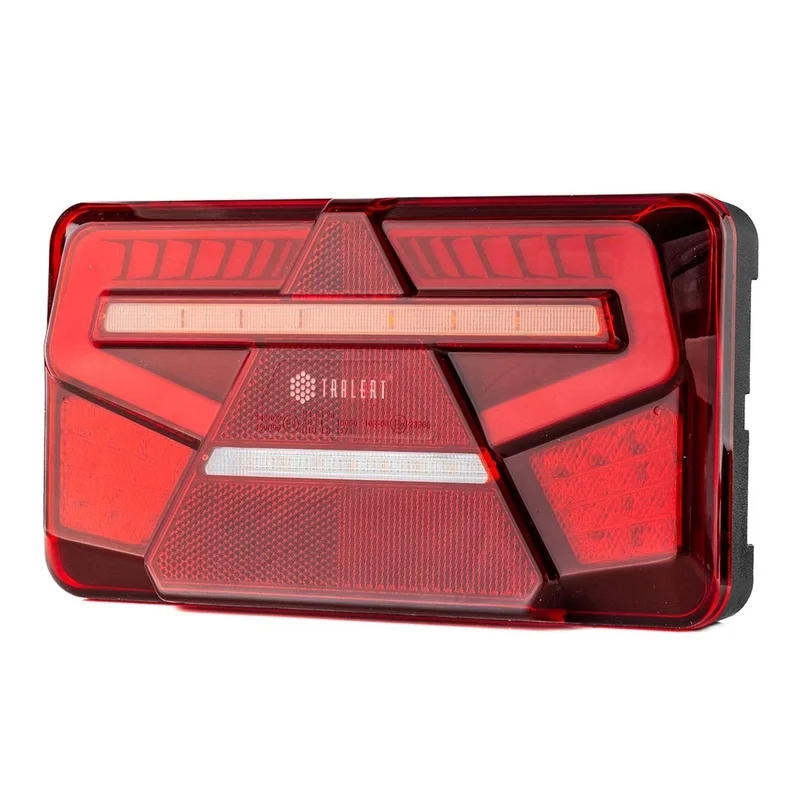

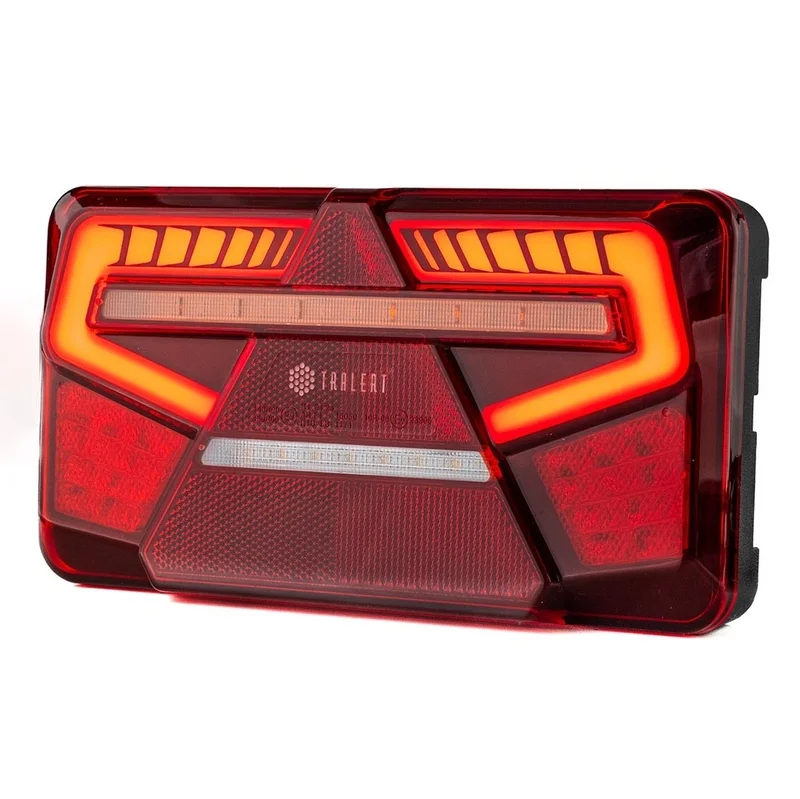

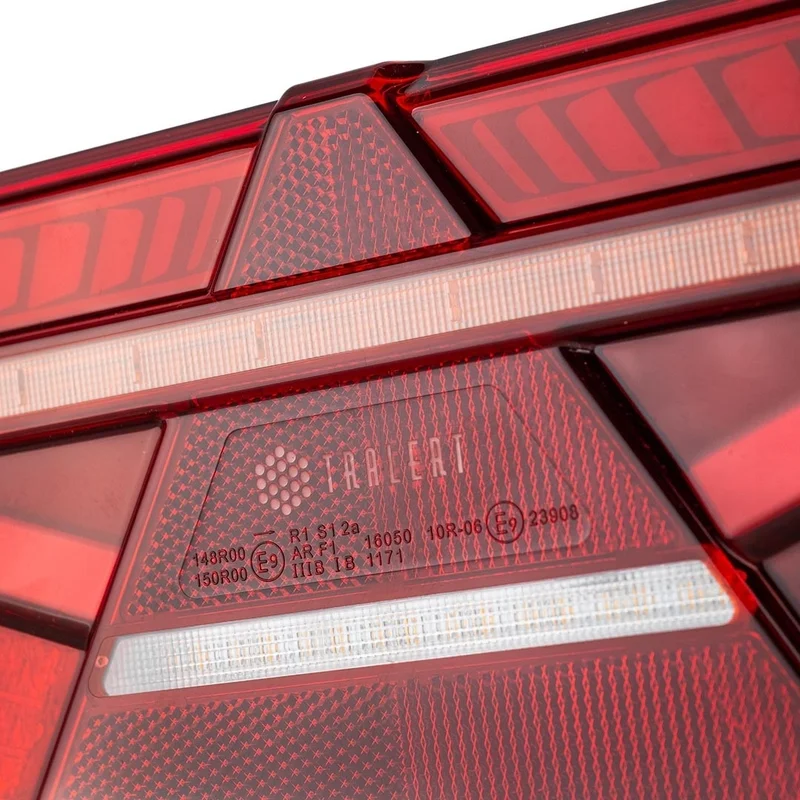

The TRALERT VC-6001 is part of the VC-6000 series and is an LED rear light designed for vehicles with a voltage range of 12-24V. Thanks to its surface-mounted design and sturdy polycarbonate housing, this LED rear light is suitable for various heavy-duty applications. The dimensions are 253 x 136 x 48 mm and the connection consists of an open wire end and two 2-pole SuperSeal connectors. This rear light combines the functions: tail light, brake light, indicator light, dynamic indicator light, fog light, and reversing light. The applied lens is made of polycarbonate and offers protection according to IP69K. This model is CE-marked and complies with ECE-R10, ECE-R148, and ECE-R150 directives. Plus points of this series: - Uniquely designed rear light - Equipped with 2x 2-pole SuperSeal outputs. One with rear light function and the other with co-flashing side marker lights. - Available with reflector and triangular reflector. - Available with cable, 7-PIN AMP, and the 8-PIN bayonet Aspöck connector.
General
Voltage: 12-24v
Certification: CE, ECE-R10, ECE-R148, ECE-R150
Warranties: 3 years
Brand: TRALERT®
Suitable for: Semi-Trailers, Semi-trailers
Dimensions

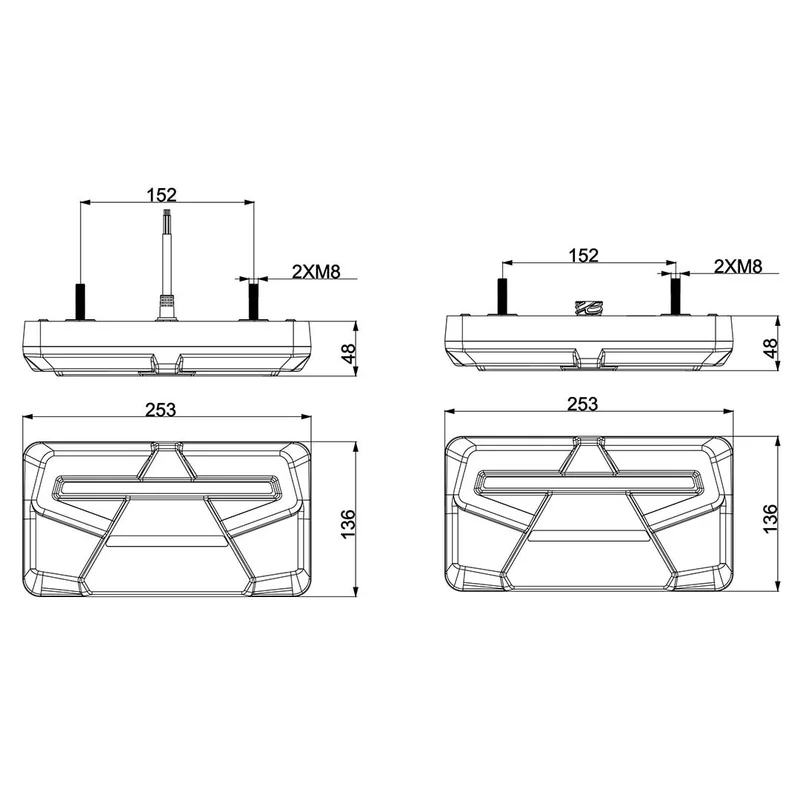

Dimensions: 253 x 136 x 48mm
Shape: Rectangular
Centre distance: 152mm
Side: Left
Light image
Indicator light: Yes
Rear lights: Yes
Fog lights: Yes
Reversing lights: Yes
Licence plate light: No
Brake lights: Yes
Dynamic indicator light: Yes
Reflectors: Triangular reflector
Materials
Housing material: Polycarbonate
Housing colour: Black
Lens material: Polycarbonate
Technical

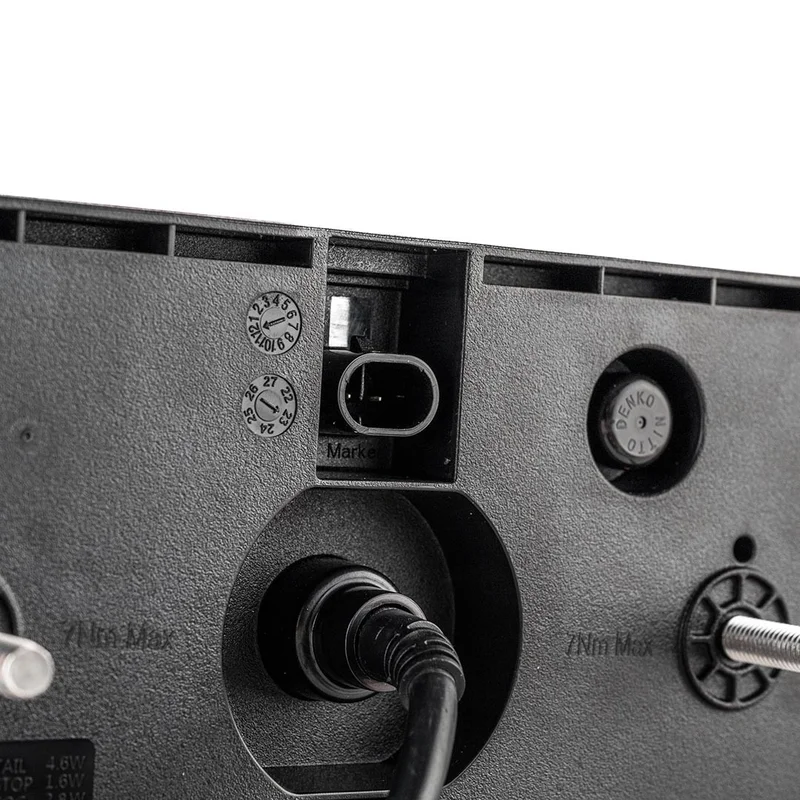

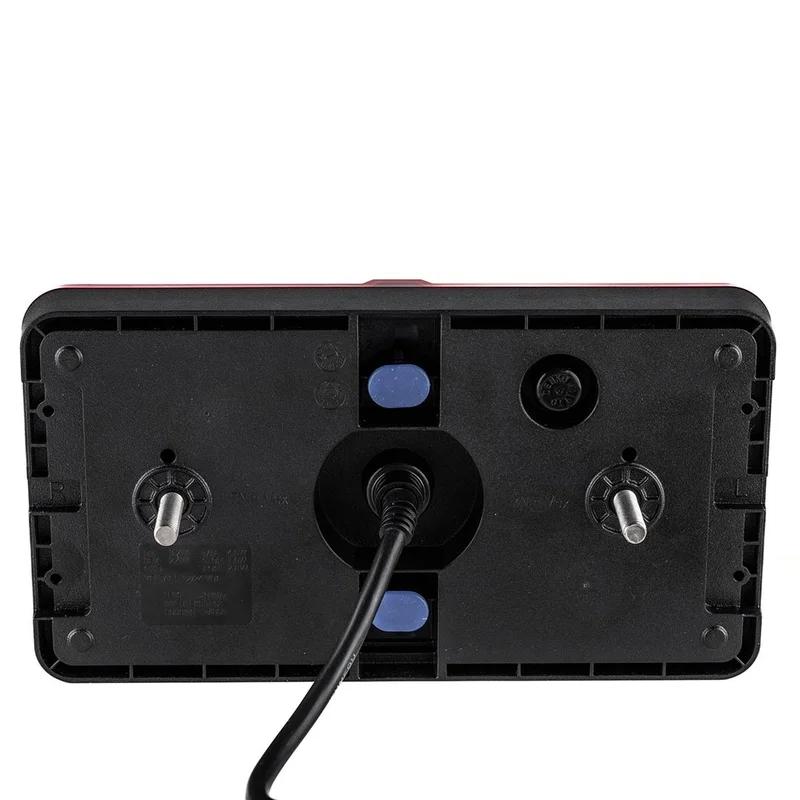

Connectors: Open wire end + 2x SuperSeal
Cable length: 200cm cable
Protection class: IP69K

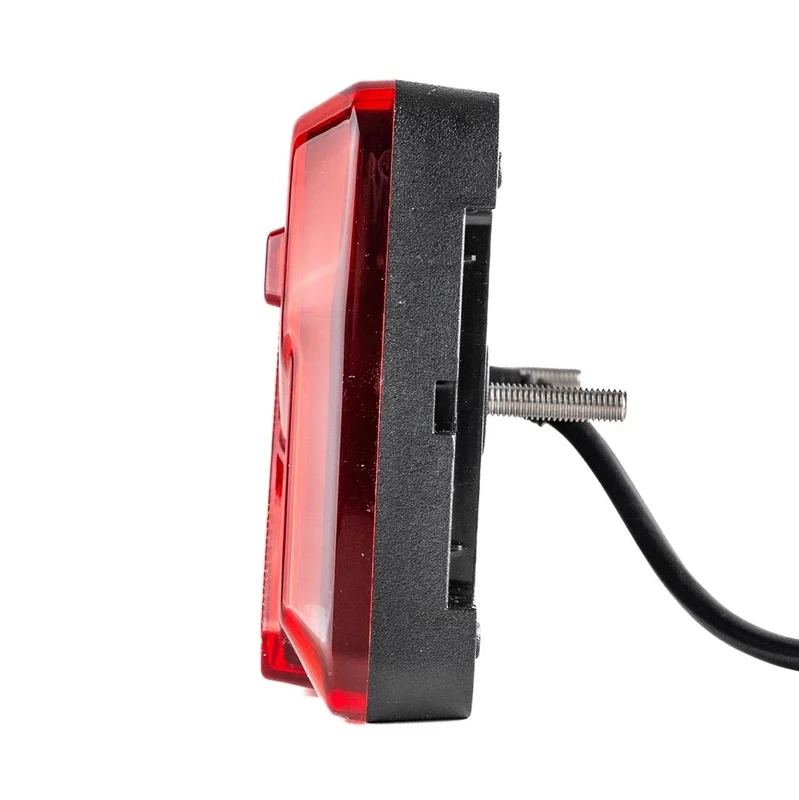

Mounting: Surface mounting
