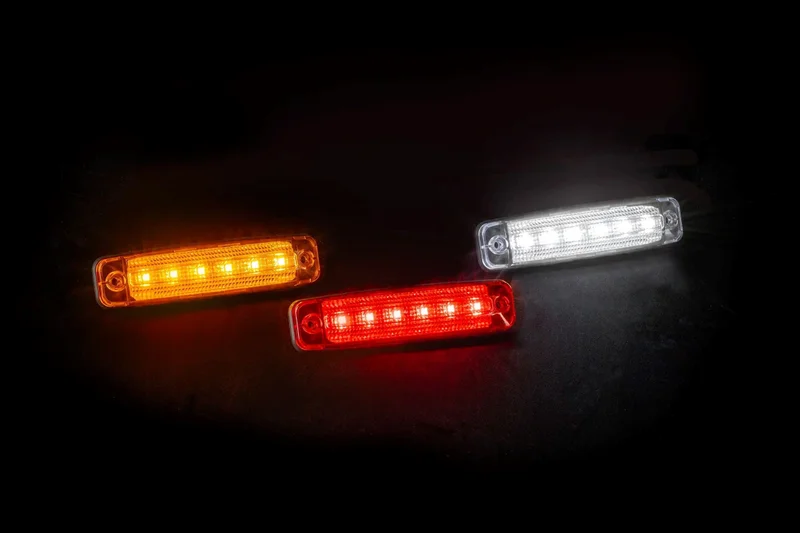

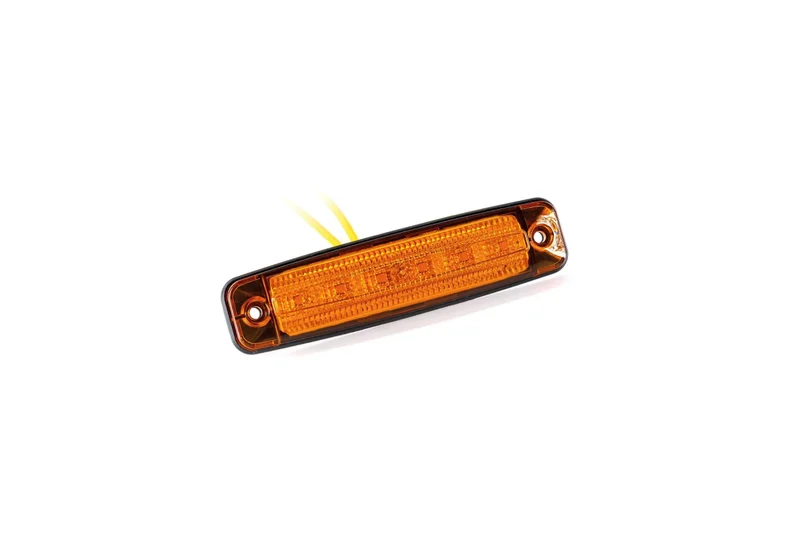

The Fristom MV-2500A model from the MV-2500 serie is an LED marker light with amber coloured light output. This marker light is suitable for vehicles with a 12-24V electrical system thanks to its multivoltage design. The housing and lens are made of polycarbonate, providing protection against external influences. The marker light is designed for surface mounting and features a 15cm cable with open wire end for easy connection. The compact dimensions of 102x25.6x12mm make this marker light applicable to various vehicle types. Thanks to its IP68 rating, the luminaire is fully dust- and waterproof. It also complies with CE and ECE-R10 directives for electromagnetic compatibility. This LED marker light is suitable as a side marker light. Plus points of this series: Available in amber, red and white for a uniform appearance all around. 12-24V multivoltage.
General
Voltage: 12-24v
Certification: CE, ECE-R10
Warranties: 2 years
Brand: Fristom
Suitable for: Semi-Trailers, Commercial vehicles, Semi-trailers, Trucks
Dimensions

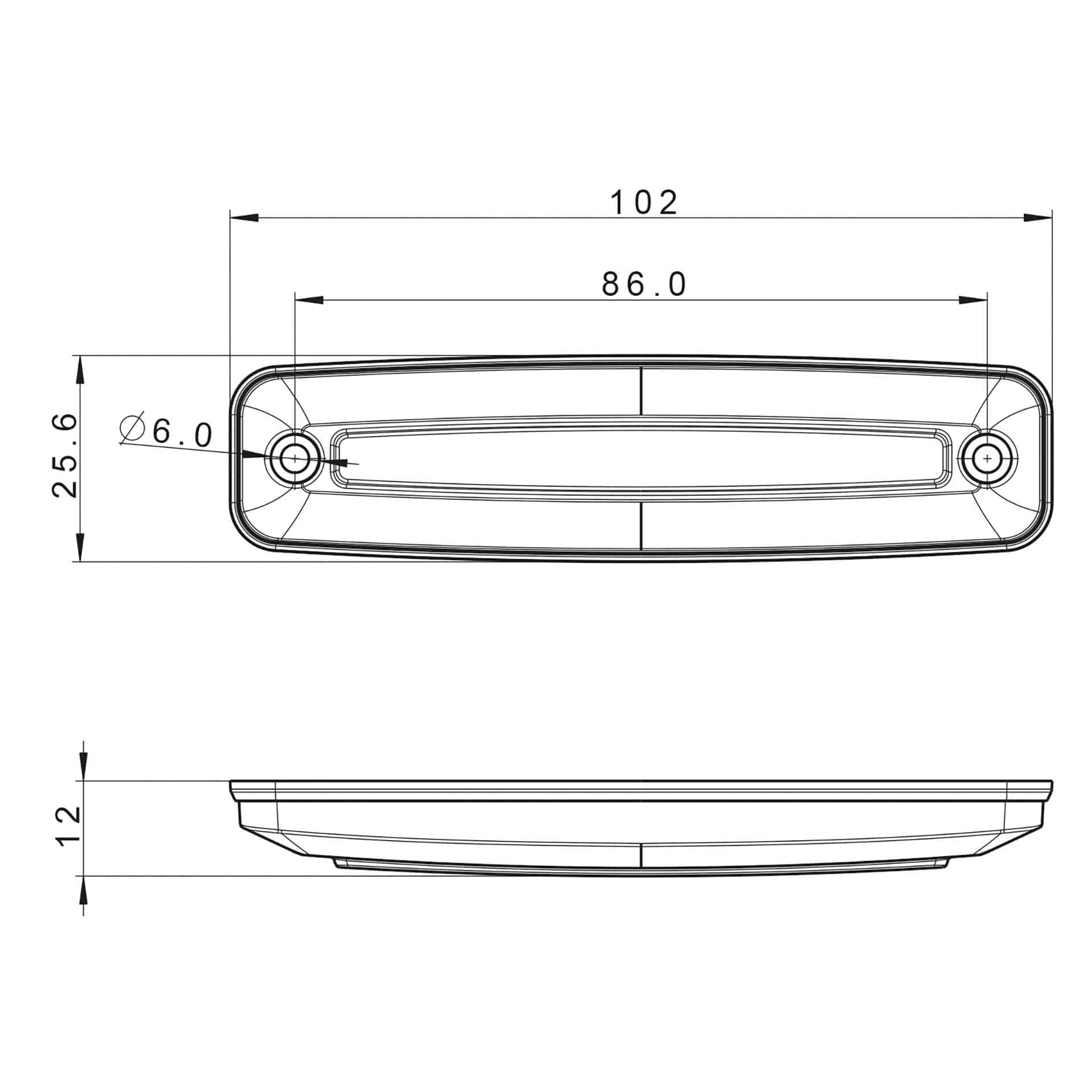

Dimensions: 102 x 25.6 x 12mm
Shape: Oval
Centre distance: 86mm
Light image
Light colour: Amber
Side marker lights: Yes
Rear marker lights: No
Front marker lights: No
Side indicators: No
Materials
Housing material: Polycarbonate
Housing colour: Black
Lens material: Polycarbonate
Lens colour: Transparent
Technical
Connectors: Open wire end
Cable length: 15cm cable
Protection class: IP68
Mounting: Surface mounting
