LED interior lighting white with switch 12/24V. 4000K
Modern LED interior lamp in a round version has been widely used in the energy-saving electrical installations and also in the commonly known automotive industry such as: cabin lighting, cargo beds, horse trailers and caravans.
The lamp is equipped with the switch light that allows the product to operate in two intensity modes: I = 25%; II = 100%. The major advantages of the lamp are the universal power supply voltage and low power consumption that come with its high light emission. Due to its compact size, shock resistance, easy installation and waterproofness, the lamp is highly appreciated in the boating industry.

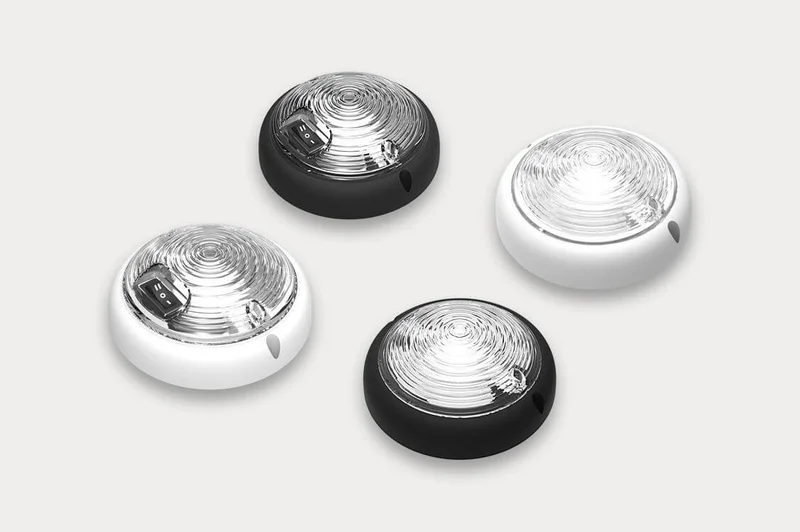

The lamps are available in two versions: black and white.
Technical specification:
- Supply voltage: 12-36V DC
- Polarization is not optional
- Current consumption: I-mode: 12V / 24V / 36V = 0.08A / 0.05A / 0.04A; II-mode: 12V / 24V / 36V = 0.4A / 0.2A / 0.14A
- Current consumption (rated power): I mode: 12V-36V = 1.2 watts; II mode: 12V-36V = 5 watts
- Effective (measured) light beam: I-mode: 110 lm; II-mode: 400 lm
- Operating temperature: -40°C to + 55°C
- Color temperature: white, neutral; 4000K
- PC lampshade made of a highly durable material
Specifications
EAN code
5907556003064

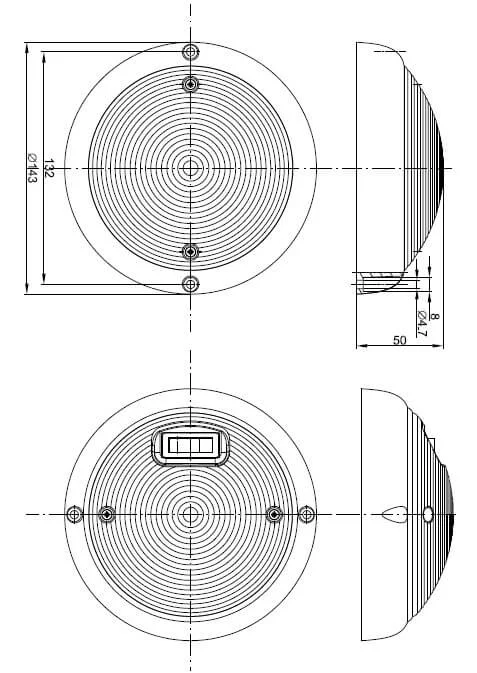

Dimensions
Measurement
ø143 x 50mm
Bolt distance
132mm
European type approval
Certification
ECE-R10
Technical properties
Housing material
Polycarbonate
Cable length
20cm cable
Connector
Open threaded rod
Housing color
White
Lens material
Polycarbonate
Lens color
Transparent
Class of protection
Waterproof
Voltage
12-24v
Type of switch
Aan/uit schakelaar
Lichtfuncties
Lumens
420 Lumens
Light colour
4000K (neutral white)
General characteristics
Shape
Round
Assembly
Construction
Brand
Fristom
Warranty
2 years
