LED LIGHT BARStediST-XSTEDI ST-X 21.5 E-Mark LED Light Bar
STEDI ST-X 21.5 E-Mark LED Light Bar
STEDI ST-X 21.5 E-Mark LED Light Bar
STEDI ST-X 21.5 E-Mark LED Light Bar - 2
STEDI ST-X 21.5 E-Mark LED Light Bar - 3

STEDI ST-X 21.5 E-Mark LED Light Bar

€361
Read more...

Delivery: ✅In stock, delivery time: 2-7 days

  • Your expert in vehicle lighting
  • Secure card payment
  • We have been online since 2006
  • BRANDStedi
  • CATEGORYLED Light Bar
  • MODELST-X
  • SIZE↔️20 - 29"

Description

Article no.: 151621

STEDI ST-X 21.5
ELECTRIFYING PERFORMANCE. At the core of the ST-X 21.5 Inch you will find world-class A grade 15W reverse facing emitters pushing out 4010 Lumens at a stunning 5000K colour temperature. The 30-degree horizontal beam pattern facilitates maximum illumination at the mid to long-range, all the way out to 1 lux @ 586m, with very little light within the first 80m. The 15-degree vertical spread means minimal light wasted and significantly reduces glare from road signs.
STEDI ST-X 21.5
A CUT ABOVE. The circuit of ST-X allows for max output (4010Lm) or reduced output (2310Lm) modes, the latter making it legal for road use in all European countries. The built-in amber (2700K) or white (6000K) DRL / Position Light function allows you to stay conspicuous day or night. The hidden placement of the separate positioning light LEDs offers stunning uniformity of light distribution within the light bar.
STEDI ST-X 21.5
NEAR INVISIBLE FRAME. The STEDI name has always been synonymous with cutting edge design. Now, we yet again raise the bar with our all-new edge to edge bonded lens design. If Apple were to design a light bar, this would be it. It's stunning from every angle.
STEDI ST-X 21.5 STEDI ST-X 21.5 STEDI ST-X 21.5

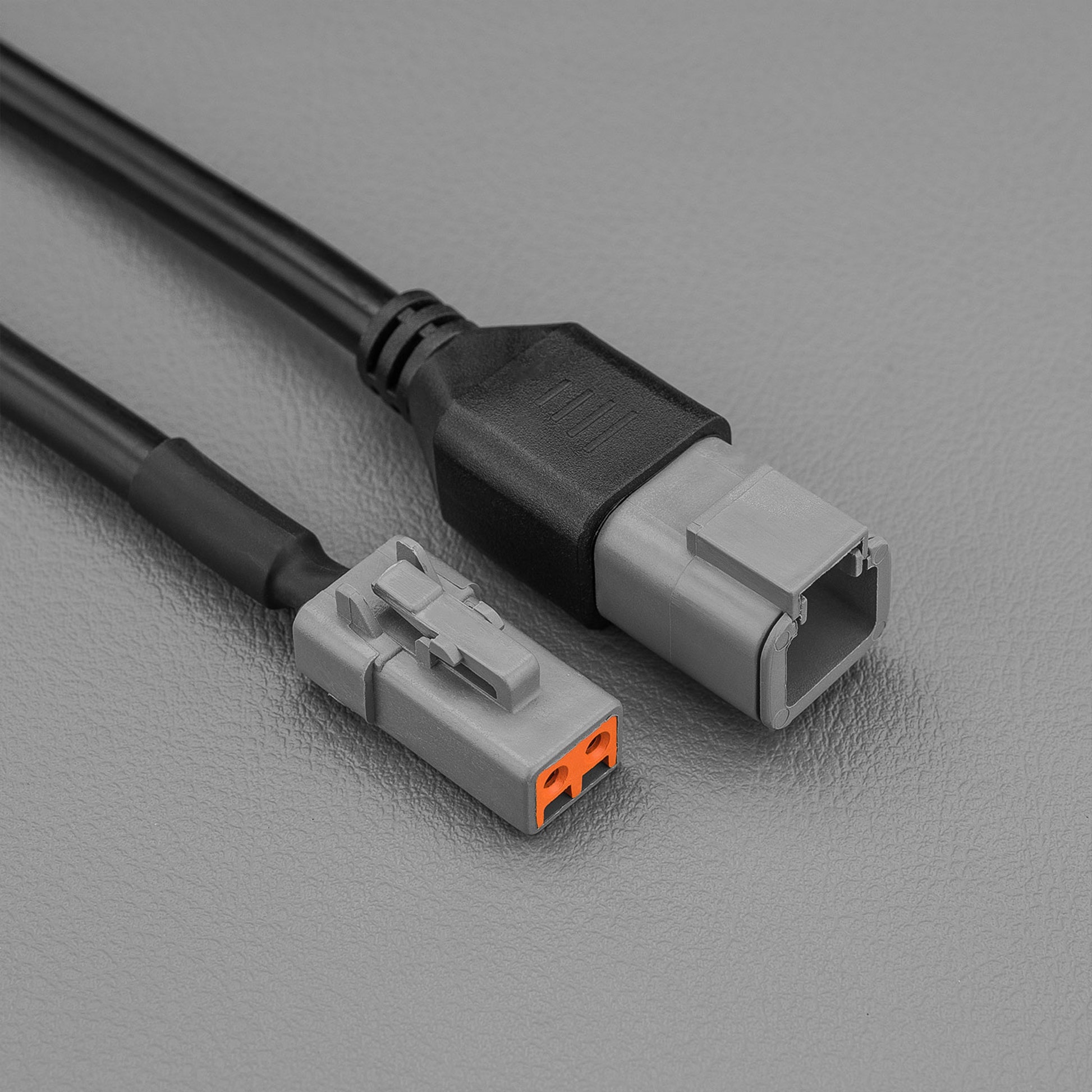

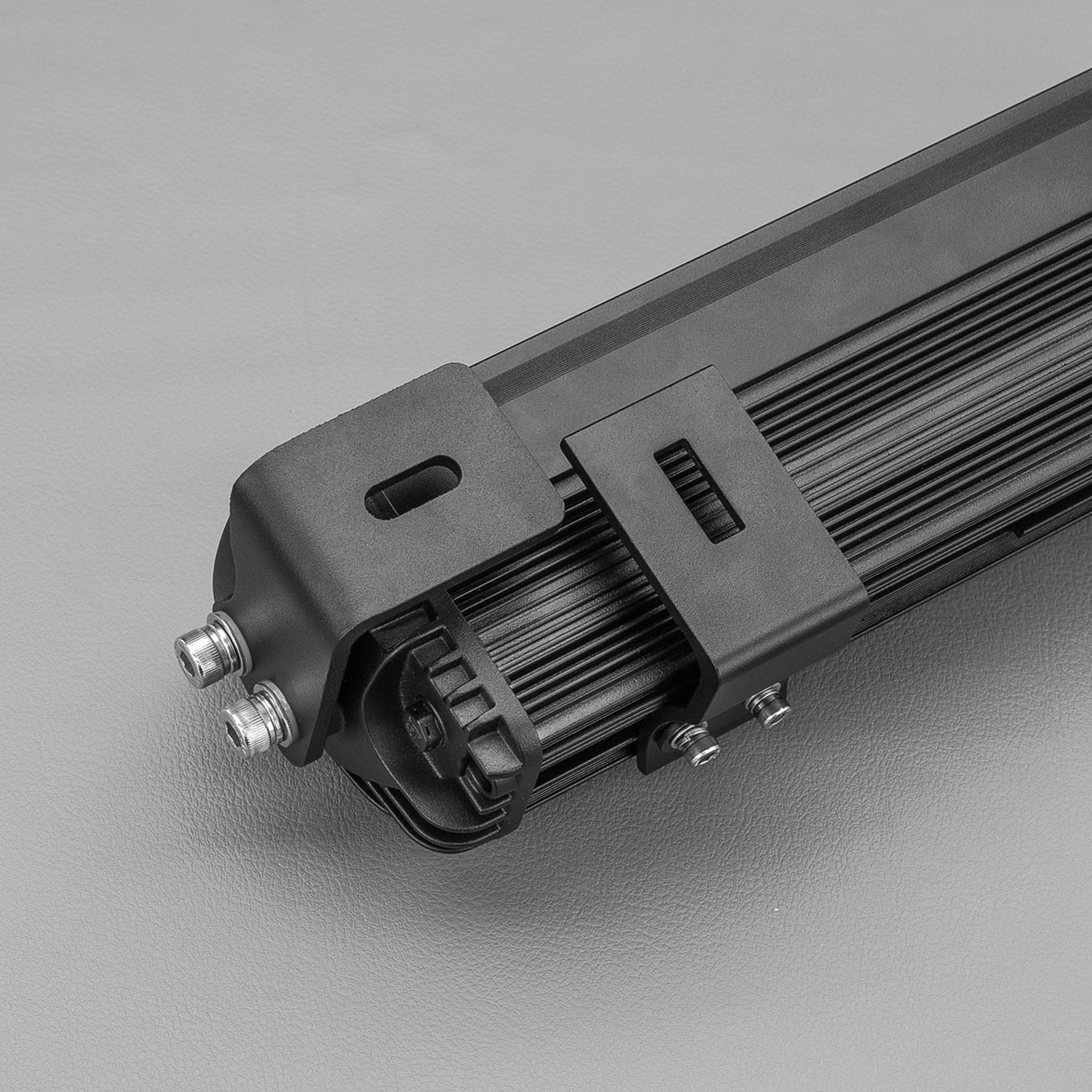

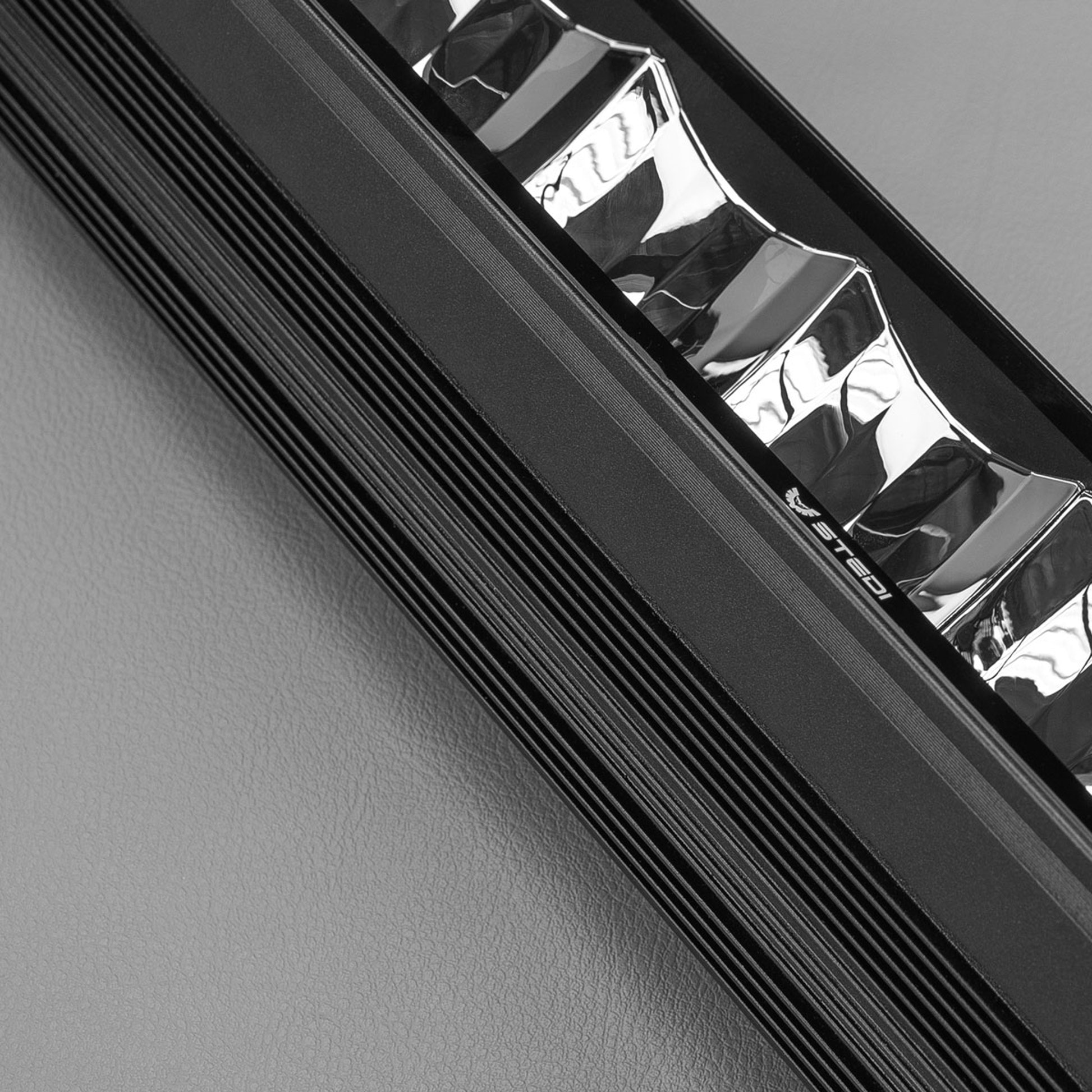

THE NITTY GRITTY. THE BEAM PATTERN If you're looking for a driving light that offers near-field spread, keep moving, this is not that. The optical properties of the hooded reflector design is best described as high-beam on steroids. The ST-X excels in the high-speed, high-way application when mid to long-range visibility is critical. Significantly minimises adverse reflection from road signs. Controlled vertical spread minimises reflections off of high-mounted road signs. KEY FEATURES 80x 15W LEDs LED Parking / Position Light Function (Amber or White built-in) Breather allows pressure equalisation when rapid heat up and cool down cycles occur Anodized Polyester Powder Coat Weatherproof Deutsch® DTP Connector Includes adjustable Side brackets & Sliding bottom brackets Includes our Easy-Fit Plug & Play High Beam Wiring Harness with HB3 & H4 adapter (Compatible with both negative and positive switched vehicles) Protected against reverse polarity Shockproof, IP68 waterproof, UV Shielded Protected Against RFI / EMC Interference Voltage & current surge protection Pulse Width Modulation Thermal Management
Tech Specs VOLTAGE 9-36V AMPERES 8.5A @ 12V (full power), 3.46A @ 12V (limit power) POWER 102W (full power), 41.52W (limit power) LUMENS 4010LM (full power), 2310LM (limit power) COLOUR TEMPERATURE 5000K PHOTOMETRIC DATA 1 lux @ 586m (full power). 1 lux @ 445m (limit power) LENS MATERIAL OPTICAL GRADE, HARD COATED LEXAN HOUSING MATERIAL 6063 EXTRUSION INGRESS PROTECTION IP68 CANDELAS 344017 @ full power, 189429 @ limit power CONNECTOR 60cm Cable with DTP 4-Pin OPERATING TEMP -40°C ~ +150°C CERTIFICATES R112, ref. 50 and R10 LIFESPAN 50, 000hrs (LM80) PRODUCT WEIGHT 2.6kg SHIPPING WEIGHT 3.1kg
STEDI ST-X 21.5
WHAT'S INCLUDED 1 x 21.5 Inch ST-X-20L LED Light Bar 2 x Steel Side Brackets 2 x Steel Sliding Brackets 2 x Brace Support Brackets Easy-Fit High Beam Wiring Kit | HB3 & H4 piggy-back included. Wiring Instructions Comprehensive 304 Stainless Steel fasteners
