LED LIGHT BARPackSTEDI ST3303 PRO 23 LED Bar Kit
- 7%
STEDI ST3303 PRO 23 LED Bar Kit
STEDI ST3303 PRO 23 LED Bar Kit
STEDI ST3303 PRO 23 LED Bar Kit - 2
STEDI ST3303 PRO 23 LED Bar Kit - 3

STEDI ST3303 PRO 23 LED Bar Kit

€693€643
Lowest price in the last 30 days€693
Read more...

Delivery: ✅In stock, delivery time: 2-7 days

  • Your expert in vehicle lighting
  • Secure card payment
  • We have been online since 2006
  • BRANDStedi
  • CATEGORYLED Light Bar LED Light Bar - Kit
  • MODELST3303
  • SIZE↔️20 - 29"

Description

Article no.: 110523

STEDI ST3303 PRO
THE ULTIMATE LIGHT BAR. For almost a decade, the name STEDI has stood for cutting-edge design and market-leading performance. The ST3303-PRO is an aggregation of all things that have made us the globally distributed, coveted brand born in Australia. Unquestionably, ST3303 PRO sits at the pinnacle of the STEDI offering. A pure expression of capability and design that converges with brutal performance, making the all-new ST3303 PRO unmistakably STEDI.
STEDI ST3303 PRO
A NEW REALM OF PERFORMANCE. Every good story starts with CREE LEDs. So, we commissioned CREE?s XPL HI emitter, which represents a +9% increase in lumen output at the same drive current over the already great (but now aging) CREE XM-L2 found in the previous model. 9% doesn?t sound like much, but the kicker is that the emitter die size drops down from 5 x 5mm to 3.5 x 3.5mm. Higher lumen density with tighter source improves the optic and emitter size relationship ? We?ve effectively increased the optic diameter by 40% without physically increasing it. The result is huge light volume and tremendous beam throw.
STEDI ST3303 PRO
NOW, ARE YOU SITTING DOWN? Where others stop, we get started. The current draw is enormous, and quite literally unlike anything else on the market. The 60 LED variant draws 36 amp at 13.6v & @ 12.5v 40 amp. Have we got your attention yet? Now, you must, without any exception, we repeat, you must use the heavy-duty, dual relay (yes dual relay!), dual fused wiring harness we supply. The current is so intense, the 40 LED and 60 LED bars have two separate power cables (yes two separate power cables!) on either side of the light bar, and two separate breathers (yep two!) to deal with the enormous current draw.
STEDI ST3303 PRO STEDI ST3303 PRO STEDI ST3303 PRO

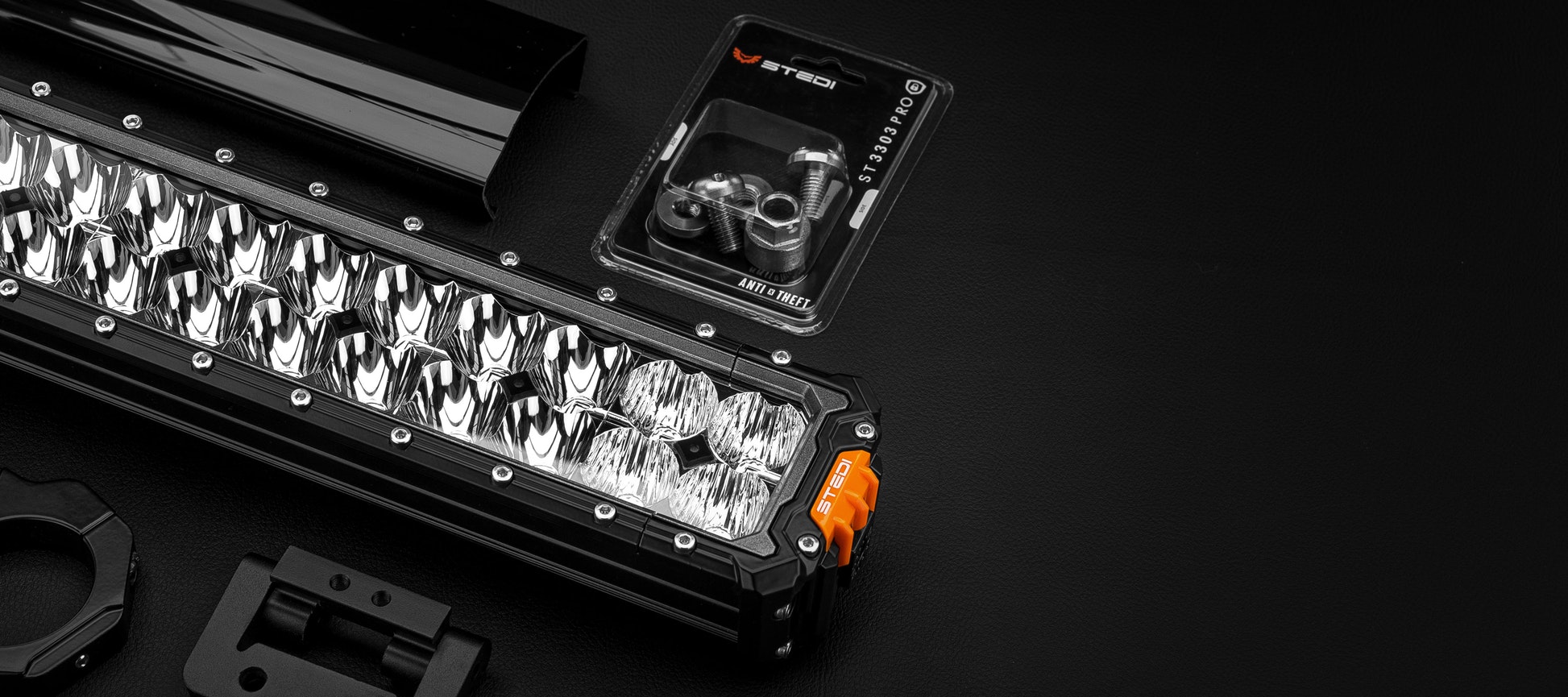

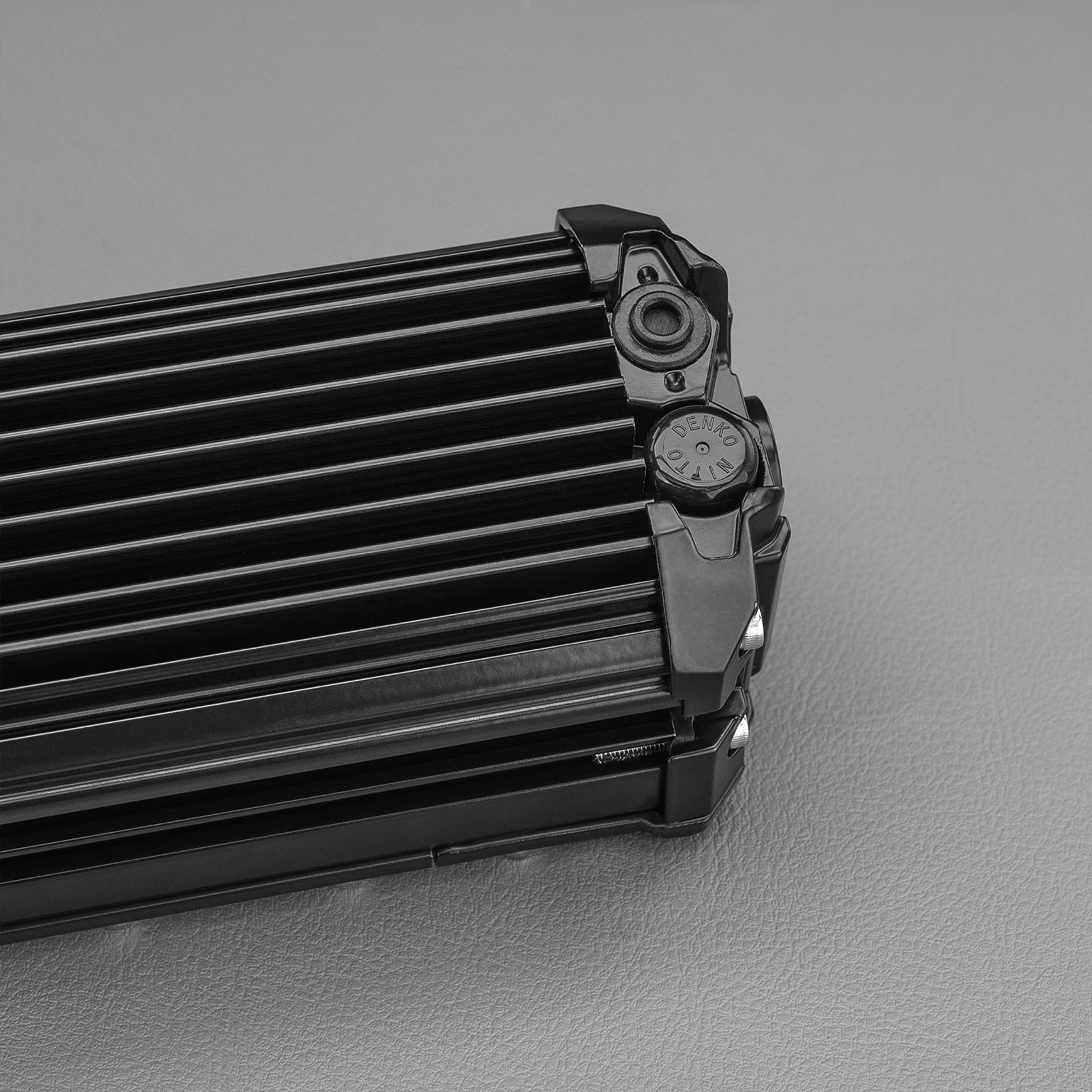

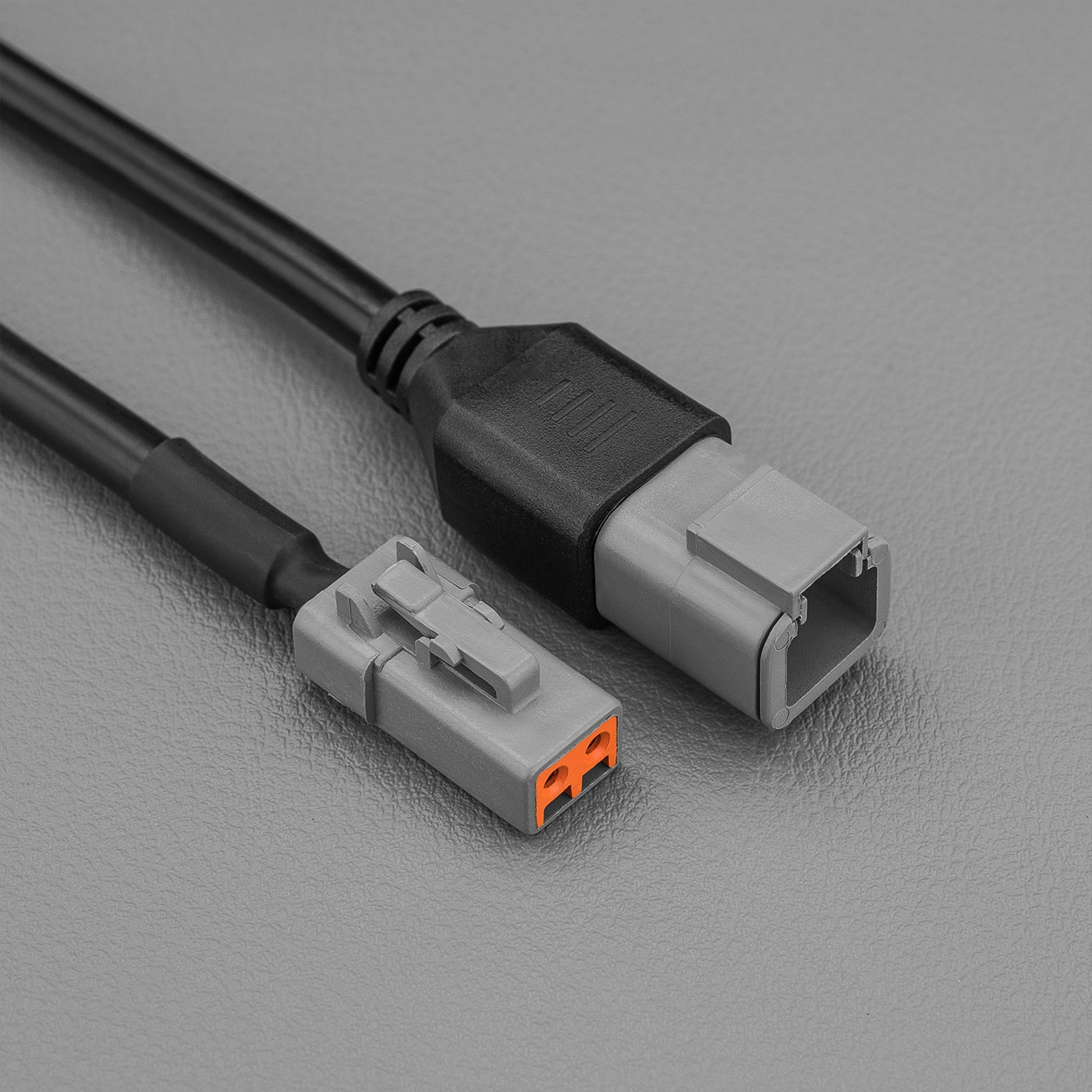

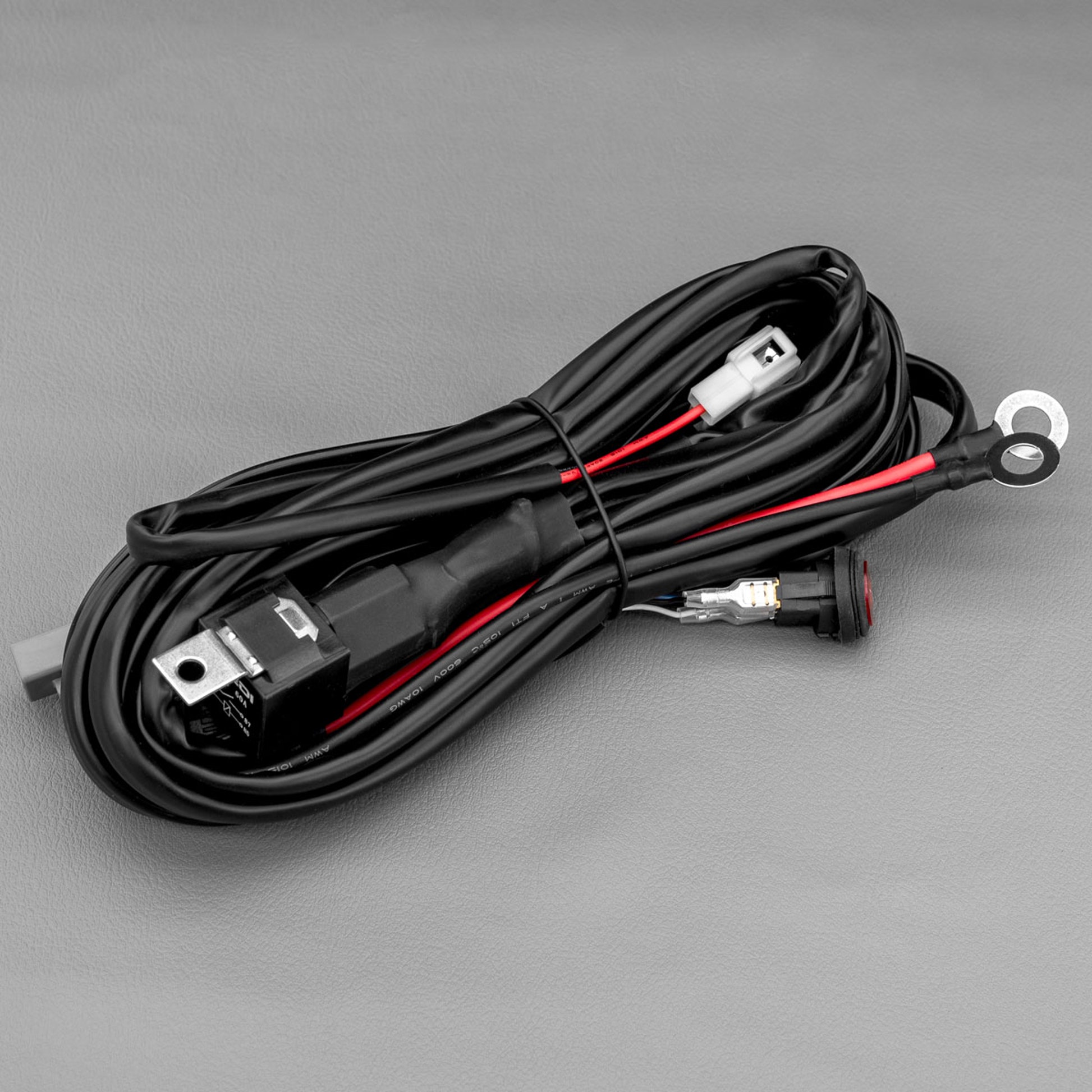

THE NITTY GRITTY. CREE® XLamp XP-L HI undomed LEDs using CREEs breakthrough SC5 Technology RFI and EMI suppression circuit. Guaranteed to not interfere with Radio or GPS Equipment IP68 - Submersible to 3m High Current Deutsch DTP-2 25A connectors 32mm diameter parabolic reflectors Spread and Spot beam pattern 4mm thick 304 stainless steel side brackets included. Cast Alloy adjustable sliding bracket included. Nitto Denko? Breather with PTFE microporous membrane Very heavy-duty Smart Plug & Play ADR compliant Wiring Harness. (Switch, Dual Fuse, Dual Relay and HB3 and H4 Piggyback Adaptors) include 5 YEAR WARRANTY

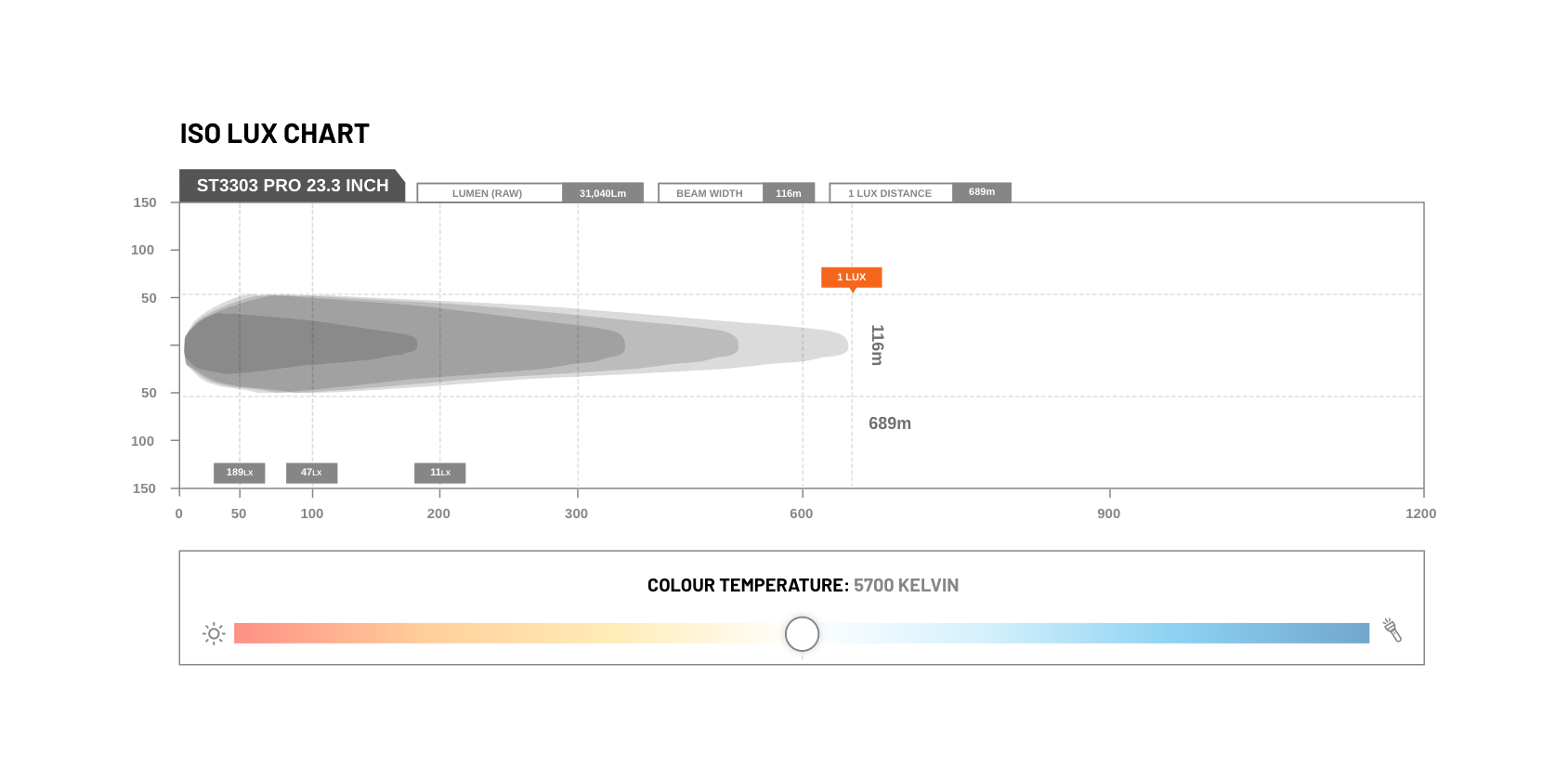

Tech Specs LED Manufacturer: CREE XP-L Hi LED COUNT: 32 VOLTAGE: 9V & 32V CURRENT DRAW (AMPERES): 16.4a @13.6v LENS MATERIAL: OPTICAL GRADE, HARD COATED LEXAN RAW LUMENS: 31,040Lm EFFECTIVE LUMENS: 17,920LM PEAK INTENSITY (CANDELA): 474721cd HOUSING MATERIAL: A360.0 Cast face plate, extruded Aluminum heat sink LIFESPAN: 50,000 FLOOD REFLECTORS: 50° SPOT REFLECTORS: 9° INGRESS PROTECTION: IP68 OPERATING TEMP: -40?C ~ +150?C WEIGHT: 2.490kg
STEDI ST3303 PRO

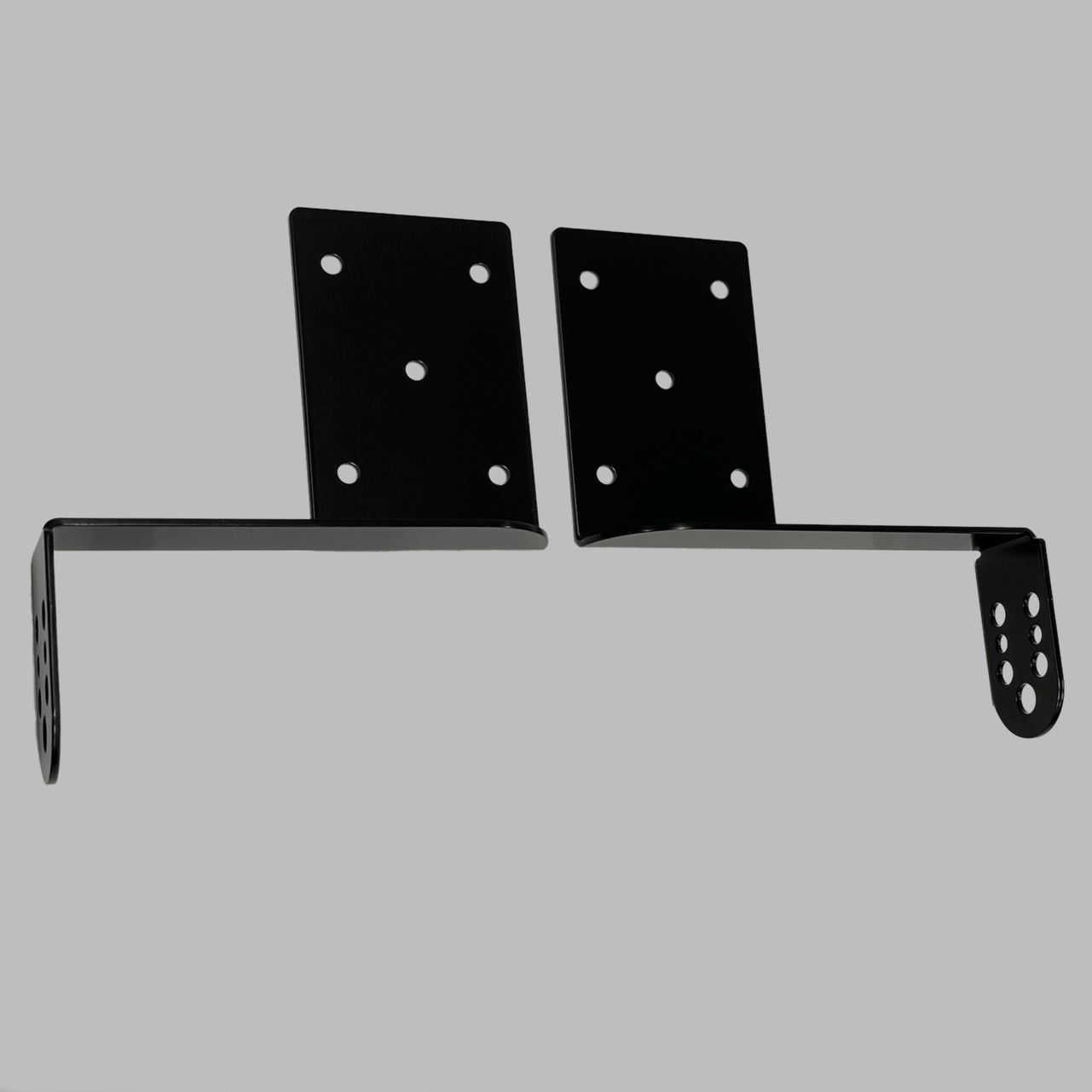

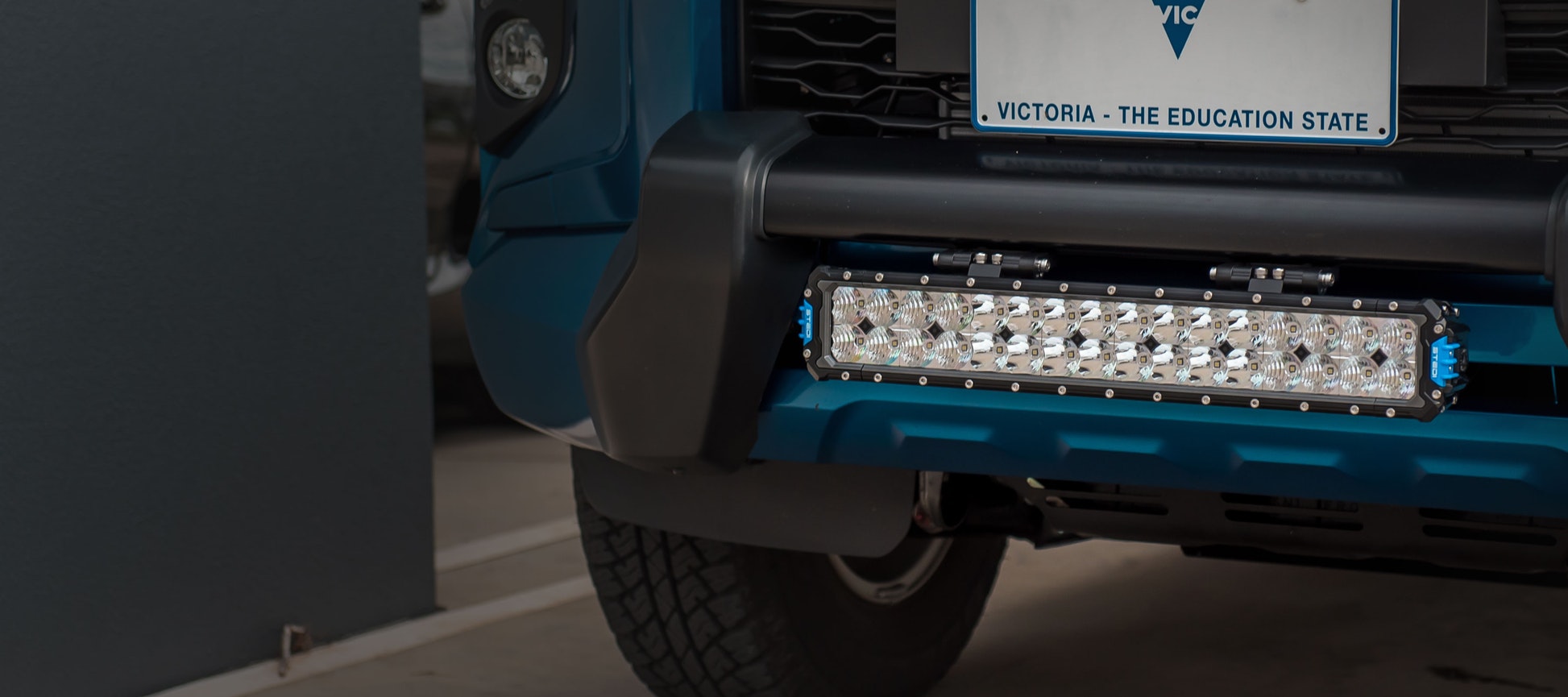

WHAT'S INCLUDED 1 x ST3303 PRO 23" 32 LED Light Bar 1 x LED Bar Bracket which is mounted behind the license plate 2 x Lower Mountings Brackets with Stainless Steel Fasteners 2 x 4mm thick Stainless Steel Brackets 2 x Orange End Caps 2 x Grey End Caps 1 x Easy Fit High Beam Wiring Harness with H4 & HB3 adapters to High Beam
