Lazer LED Triple-R 750 | Beacon

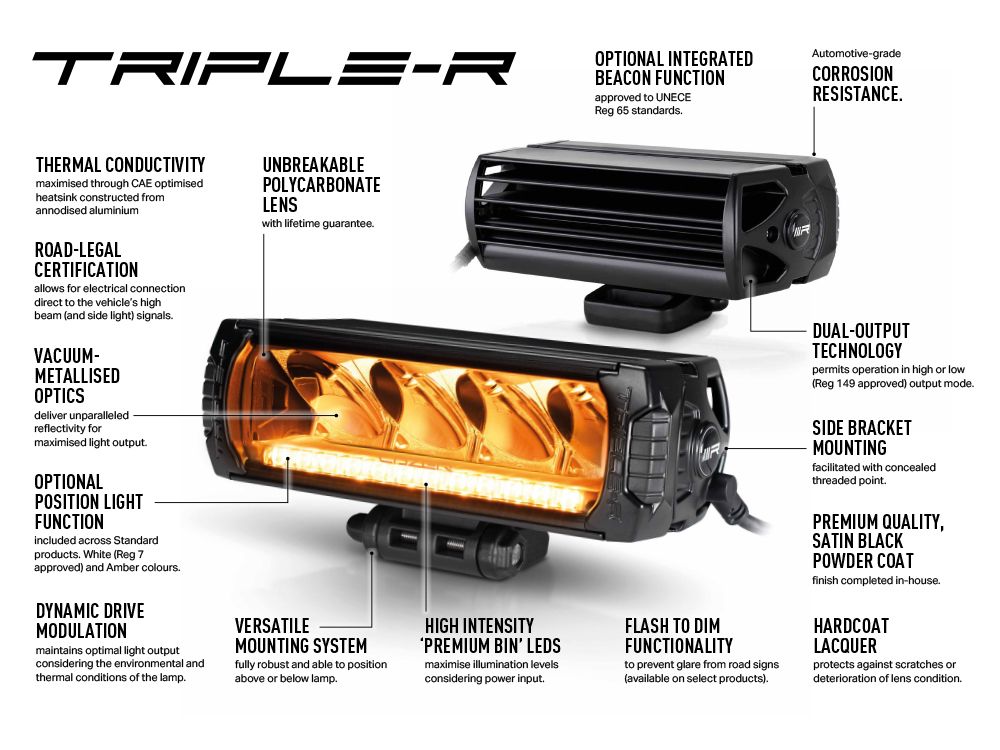

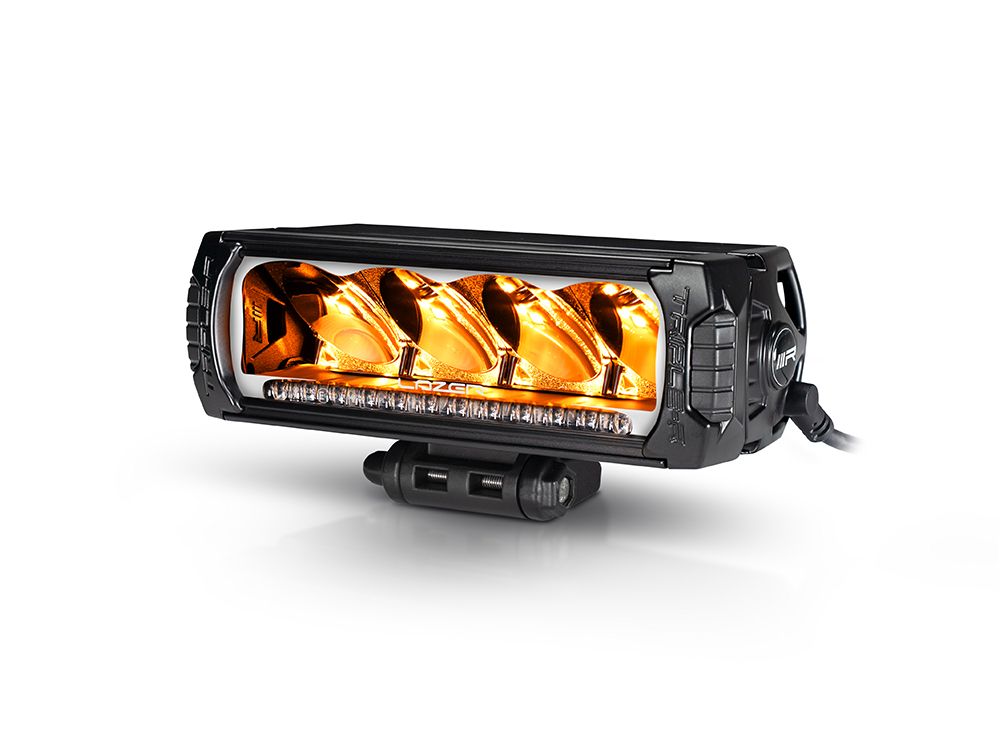

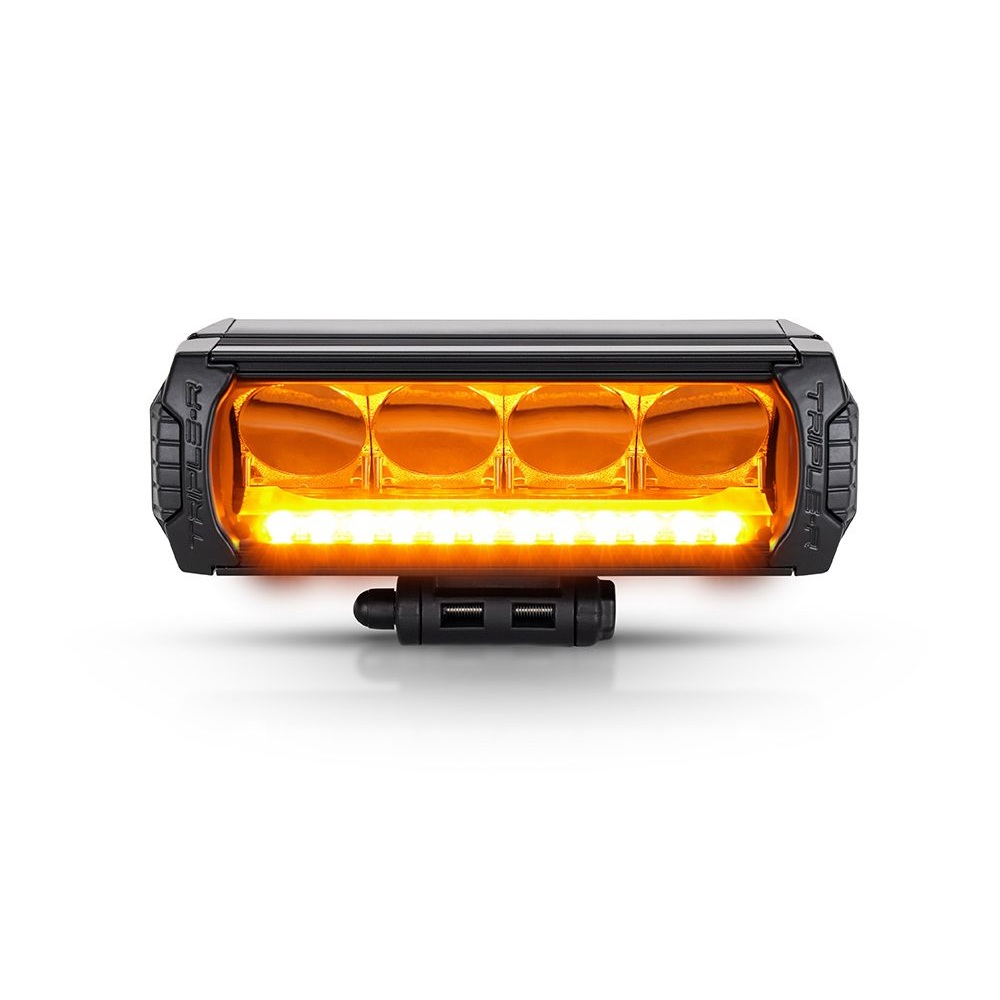

The hugely versatile Triple-R 750, a firm favourite across the passenger car/4x4, LCV, and heavy truck sectors, is now offered with integrated amber flashing beacon function. Incorporating 2 different UNECE Reg65 approved forward-facing flash patterns, the additional safety functionality within the lamp, combines with the possibility to connect a white or amber position/side light function, as well as the exceptional high beam driving light function to really set the Triple-R 750 apart from the competition. The Triple-R 750 delivers a spot beam pattern well suited to road use. The lamp itself has a clean contemporary design, with a more aggressive edge, to match the aesthetic design prevalent on modern vehicles. Boasting an impressive 5,400 lumen, and delivering 1 lux to 442m, the auxiliary LED driving light provides good left/right spread of light with a 28deg horizontal spread of light. The lamp is UNECE approved to Regulation 149 as a high beam driving light, through adoption of Lazer’s dual output E-Boost technology; controlled via quickly flashing the light off/on, the light can be quickly dimmed for avoiding glare when passing road-signs for example (flash-to-dim), or at any time programmed to always work in the high or low output modes, with the low output mode complying to the UNECE Reg149 as an on-road high beam driving light. Included within the lamp is the option to connect an integrated position/side light function, for when the requirement is for a light installation that gets noticed as much during the day as at night. There is the possibility to connect white or amber coloured position lights, simply by inserting the corresponding wire into the lamp connector at the point of installation, or leave both disconnected to have your Triple-R 750 act as a high beam driving light only. The position light function (white only) is approved to UNECE Reg148, to operate in parallel with your standard vehicle lights. The Beacon functions are UNECE Reg65 approved as a narrow-field, night-limits, (XA1) beacon light, with 2 different amber warning light patterns which can be selected and synchronised (between multiple lamps), at the point of installation, or using a momentary switch where the requirement is to change the flash pattern on demand. Like all Lazer products, the Triple-R 750 with Beacon function has been designed and engineered to deliver a powerful driving light with perfectly homogenous beam pattern. The colour temperature of the light, at 5000k, is carefully selected to maximise definition of any obstacles ahead, while ensuring a comfortable drive even over prolonged periods of time. Performance is complemented by a superior build quality, borne out of our in-house UK manufacture, and backed up by our comprehensive 5year warranty. Product Features High density, premium-bin 11W LED technology Integrated white or amber position lights function – UNECE Reg148 (White only) Integrated amber flashing beacon function – UNECE Reg65 (XA1) ECE approved for on-road high beam (dual-output technology) use – UNECE Reg149 Ultra-reflective vacuum-metallised optics deliver spot beam pattern Contemporary lamp design Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately) CAE optimised heatsink offers improved thermal dynamics Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection Electronic thermal management ‘Unbreakable’ and hardcoated polycarbonate lens IP68 watertight – 1.5m submersion (30mins) 5-year warranty Supplied with pre-wired male/female 6-pin Superseal connectors Designed & manufactured in UK

Technical Specifications	BOOST MODE	LOW OUTPUT / E-MARK MODE
Produkt	1x TRIPLE-R 750 BEACON
Voltage Range (DC)	10–32V	10–32V
LED Life	50,000 timmar	50,000 timmar
Weight	1 kg	1 kg
HIGH BEAM FUNCTION
Total Luminous Flux	5,400 Lm	3,078 Lm
Total Driver 'FOV' Flux †	1,242 Lm	707 Lm
Colour Temperature	5000K	5000K
Power Consumption	52 Watt	10 Watt
Peak Current Draw	5.14 A	0.88 A
Current Draw (14.4V)	3.7 A	0.7 A
Connector	6-Pin Superseal (+25 cm kabel)

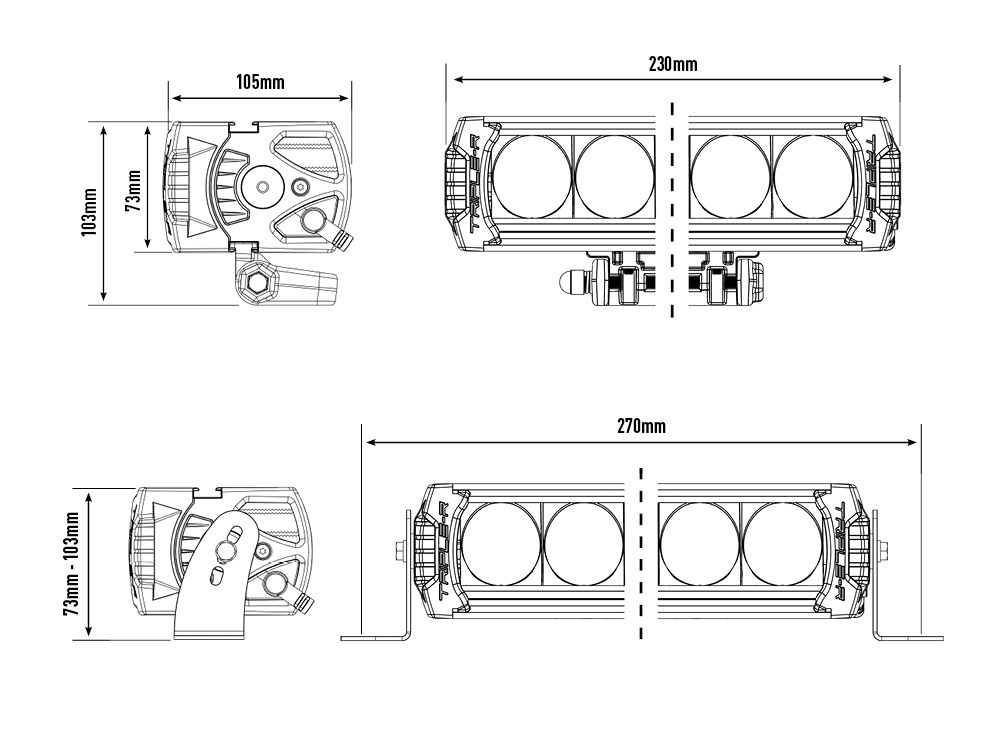

DIMENSIONS
Width	230 mm	230 mm
Depth	105 mm	105 mm
Height	73 mm	73 mm
CERTIFICATION
IP Rating #	IP68	IP68
High Beam (E9 approval)	–	ECE R149 - Ref: 10

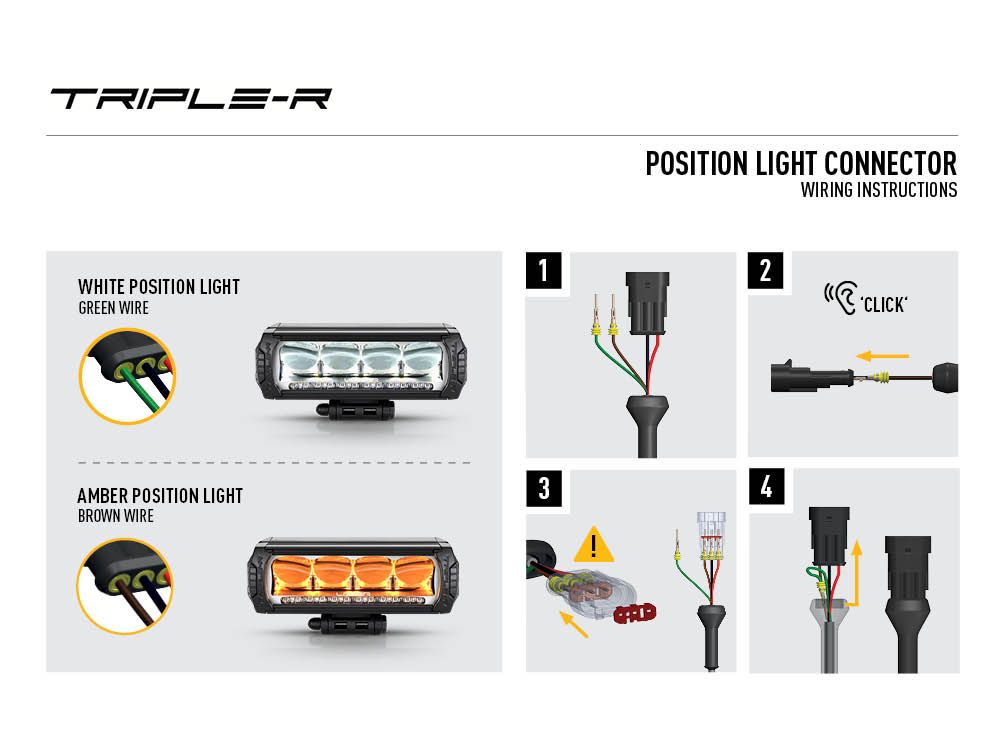

Position Light (white only)	ECE R148	ECE R148
Beacon Function	ECE R65 (XA1)	ECE R65 (XA1)
EMC Certification	ECE R10	ECE R10
Salt Spray Test	ISO 9227	ISO 9227
Dump Load Protection	ISO 7637-2	ISO 7637-2

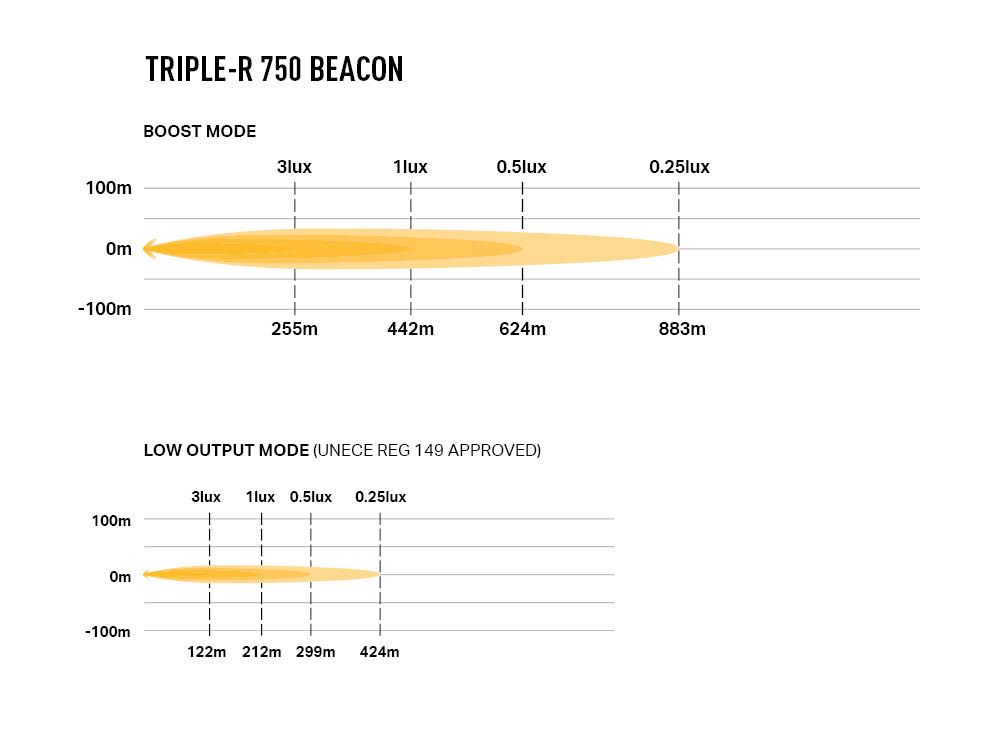

PHOTOMETRIC DATA

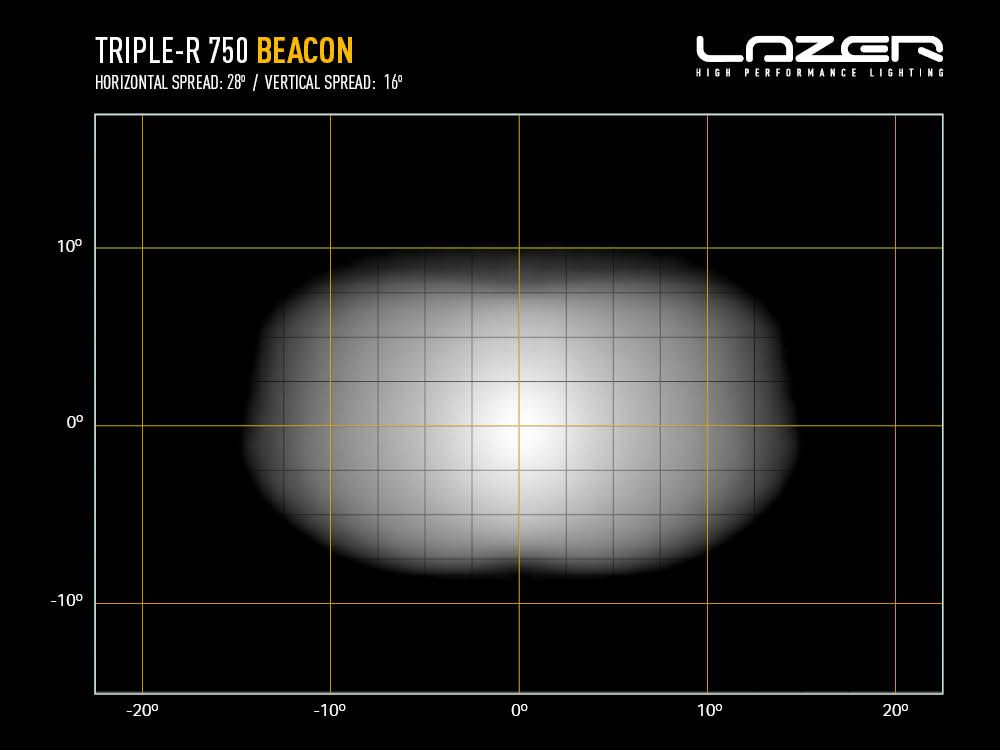

Horizontal / Vertical Beam Angle	28° / 16°	28° / 16°
0.25 Lux	883 m	424 m
0.5 Lux	624 m	299 m
1 Lux	442 m	212 m
3 Lux	255 m	122 m

What's included x1 Triple-R 750 with Beacon Function x1 Centre Mount (1114k) x1 Installation Instructions
