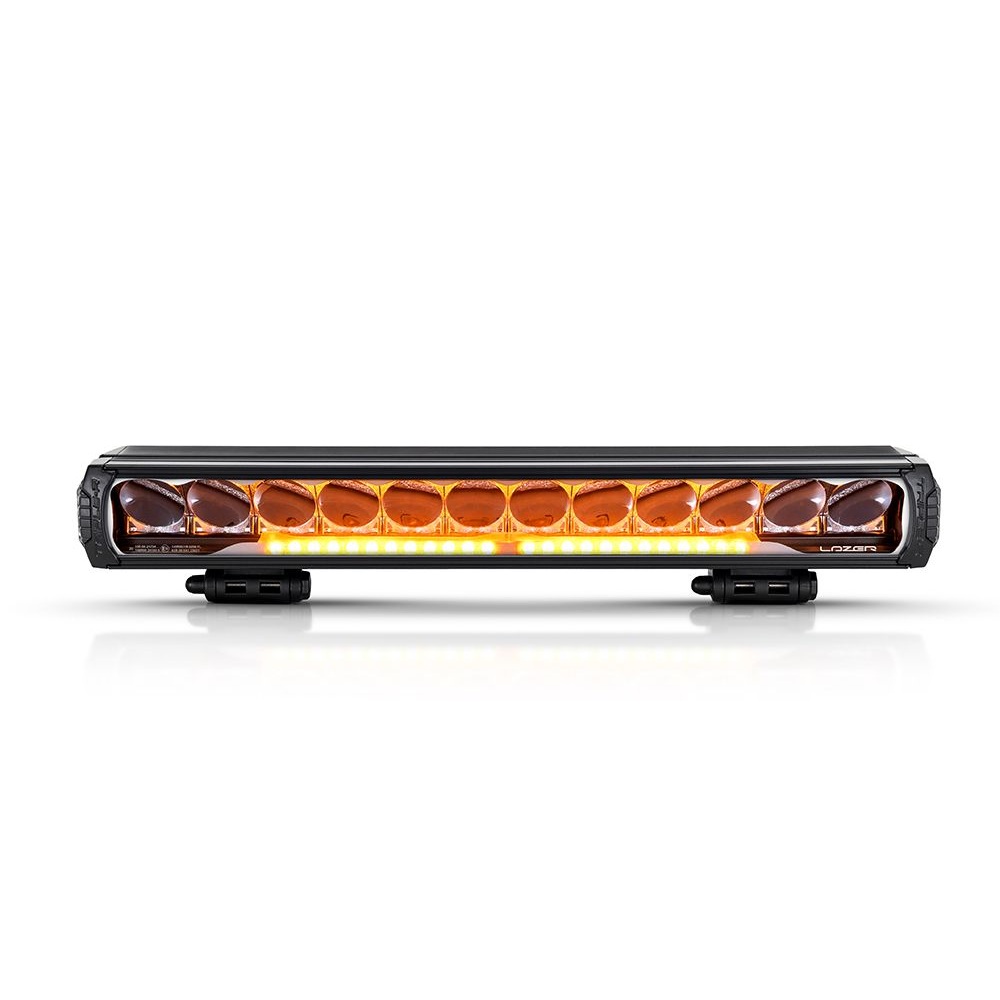

Lazer LED Triple-R 1250 | Beacon

The Triple-R Beacon is engineered for heavy trucks, LCVs, utility vehicles, and fleet operators requiring a consolidated high-performance lighting and signalling solution. Combining the long-range illumination capability of the Triple-R platform with integrated beacon and position light functionality, the lamp is designed for demanding operational environments where enhanced visibility and signalling integrity are essential. Each unit comprises high-efficiency 11W LEDs, operating at a 5000K colour temperature carefully selected for visual clarity, sharpness, and comfort (especially when used for prolonged periods of time). The optical system delivers a pleasant balance of focused long-range beam with good left/right spread of light, and a slightly increased vertical spread, ensuring the suitability of the lamps to both high and low mounting positions on your vehicle. The Beacon functions are UNECE Regulation 65 approved as a narrow-field, night-limits, (XA1) beacon light, with 16 different amber warning light patterns which can be selected and synchronised (between multiple lamps), at the point of installation, or using a momentary switch where the requirement is to change the flash pattern on demand. Incorporating integrated white and/or amber position light, this function is able to be selected at the point of installation (or switchable if wired accordingly), with the white position light fully UNECE approved to Regulation 148 for on-road use. It can also be configured with a dynamic start-up/welcome mode; either a gradual brightening, or smooth transition between white and amber (or vice versa), when the vehicle is started or the side lights are activated. The lamp is also UNECE approved to Regulation 149 as a high beam driving light, through adoption of Lazer’s dual output Boost technology; controlled via quickly flashing the light off/on, the light can be quickly dimmed for avoiding glare when passing road-signs for example (flash-to-dim), or at any time programmed to always work in the high or low output modes, with the low output mode complying to the UNECE Reg149 as an on-road high beam driving light. Like all Lazer high performance lights, the Triple-R range is designed, engineered, and built in-house, in our UK premises, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed up by our comprehensive 5-year warranty. Product Features High-efficiency 11W LEDs with a 5000K colour temperature and 80CRI deliver maximum sharpness, definition, and long-range visibility. Integrated amber flashing beacon function – 16 flash patterns (UNECE Reg65 (XA1 approved) Integrated white and amber position light function (UNECE Reg148 approved – white only) Gradual brightening and smooth colour transitions available via dynamic start-up/welcome mode. Ultra-reflective vacuum-metallised optics deliver spot beam pattern UNECE Reg 149 Class B Driving Light, approved for on-road high beam (Dual-output technology via flash-to-dim) Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately) Electronic thermal management system optimises light output to preserve longevity of the LEDs Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection CAE optimised heatsink offers improved thermal dynamics Over voltage and reverse polarity protected ‘Unbreakable’ polycarbonate lens with hardcoat lacquer UNECE approved Reg 10 IP68 watertight 5-year warranty Supplied with pre-wired male/female 6-pin Superseal connectors Designed & manufactured in the UK

	Boost Mode	Low Output / E-mark Mode
Total Luminous Flux	13,860 lm	2,772 lm
Total Driver 'FOV' Flux †	8,358 lm	1,672 lm
Colour Temperature	5000K	5000K
Power Consumption	125 Watts	25 Watts
Peak Current Draw	10 Amps	2 Amps
Current Draw (14.4V)	8.7 Amps	1.7 Amp
Connector	6-Pin Superseal (+20cm Cable)

	Boost Mode	Low Output / E-mark Mode

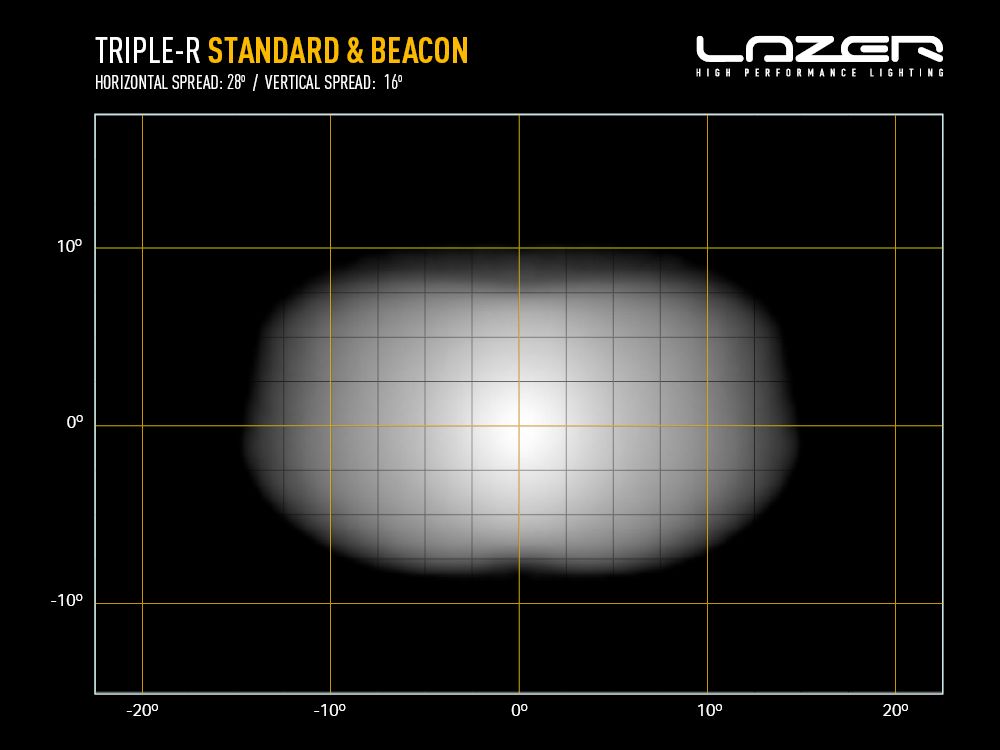

Horizontal / Vertical Beam Angle	28° / 16°

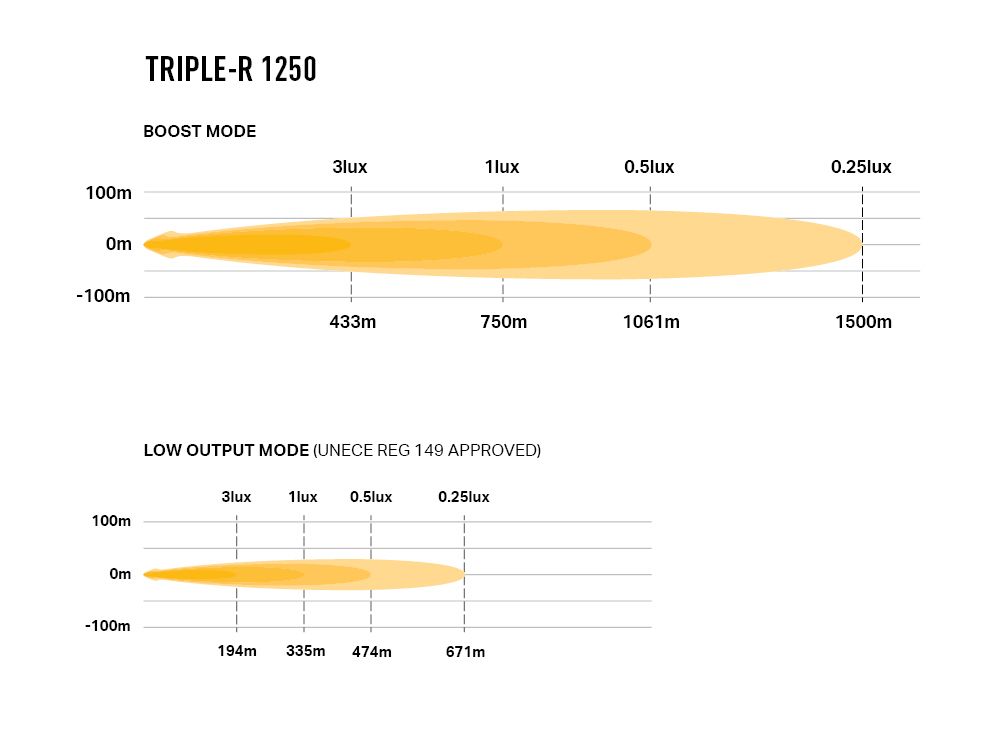

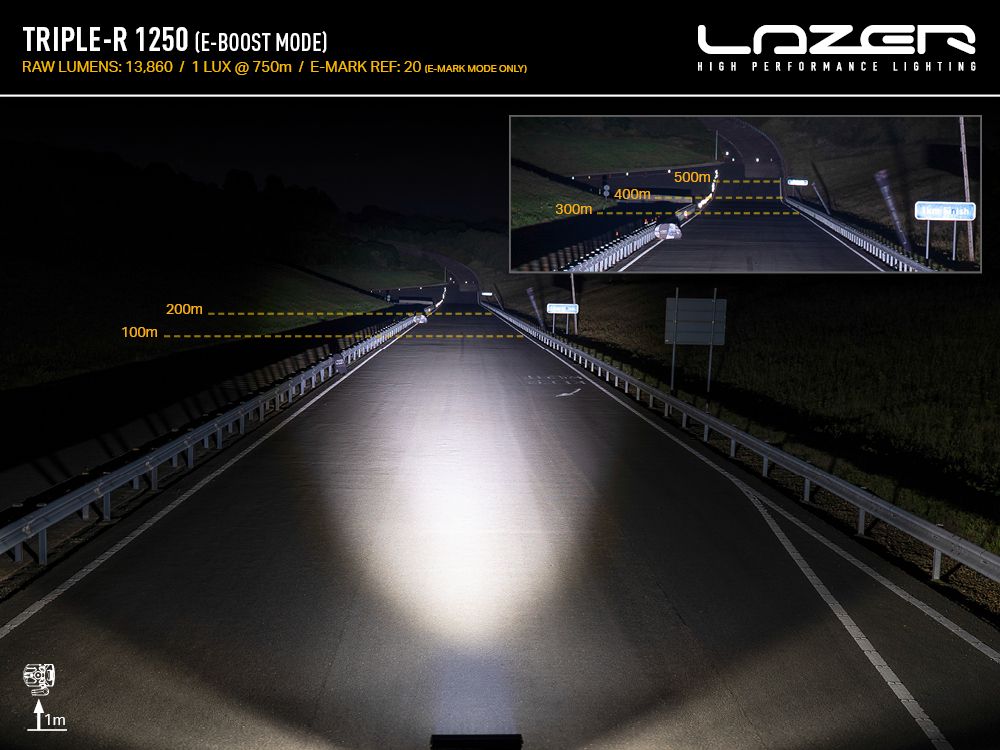

0.25 lx Line	1500 m	671 m
0.5 lx Line	1061 m	474 m
1 lx Line	750 m	335 m
3 lx Line	433 m	194 m

What's Included x1 Triple-R 1250 Beacon LED Lamp x2 Centre Mount (1114k) x1 Installation Instructions
