Lazer LED Triple-R 1000 | Beacon

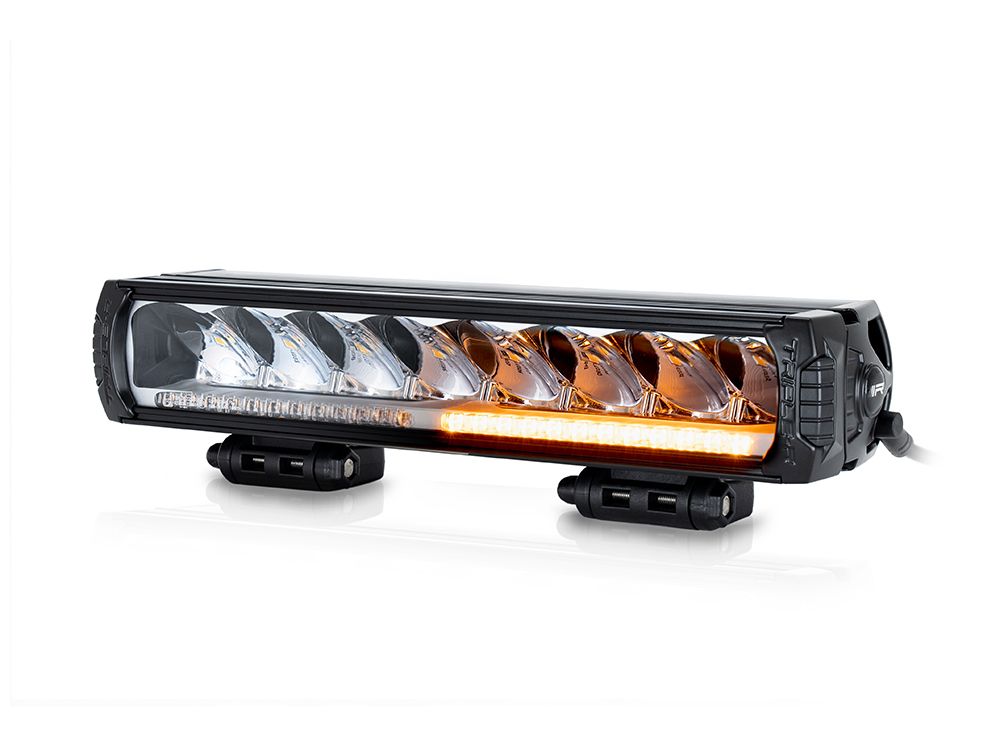

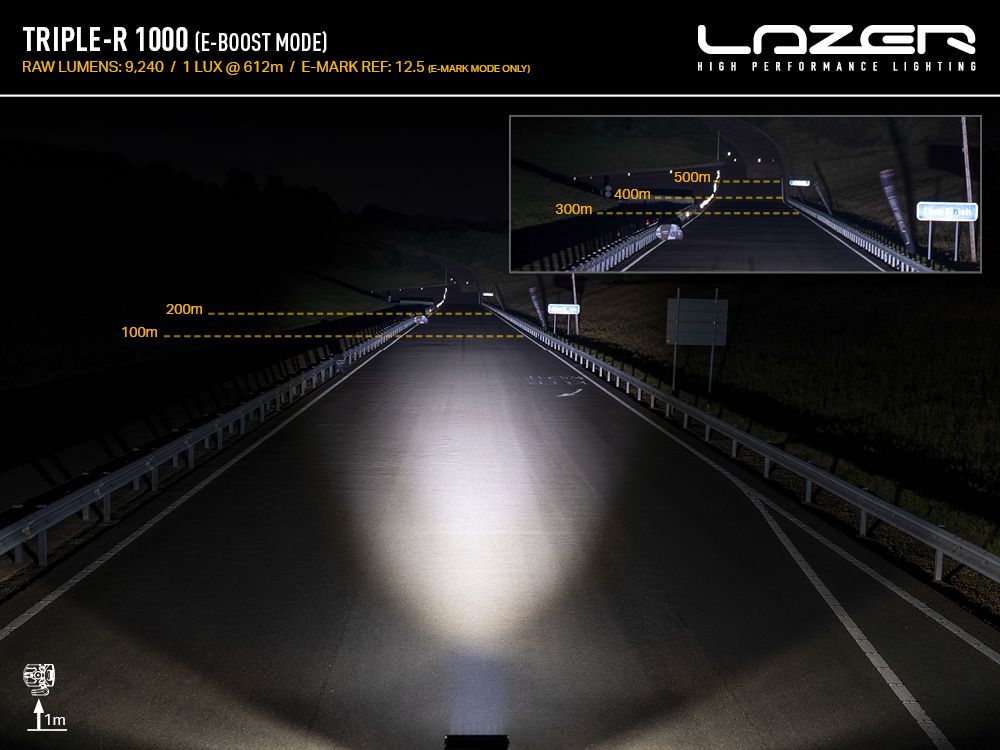

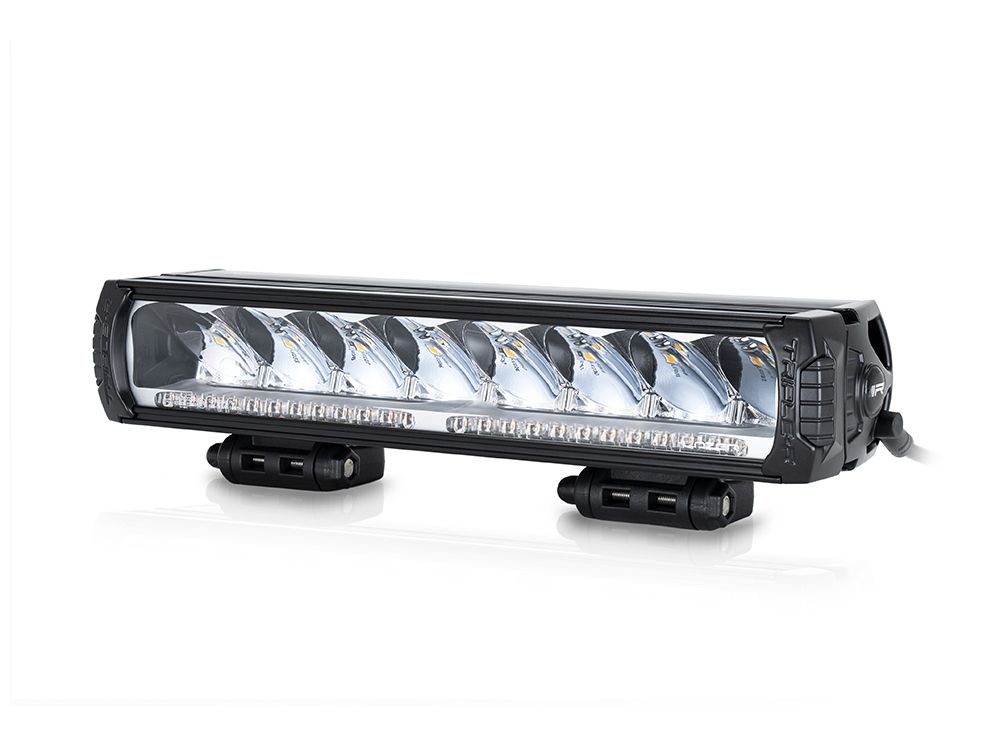

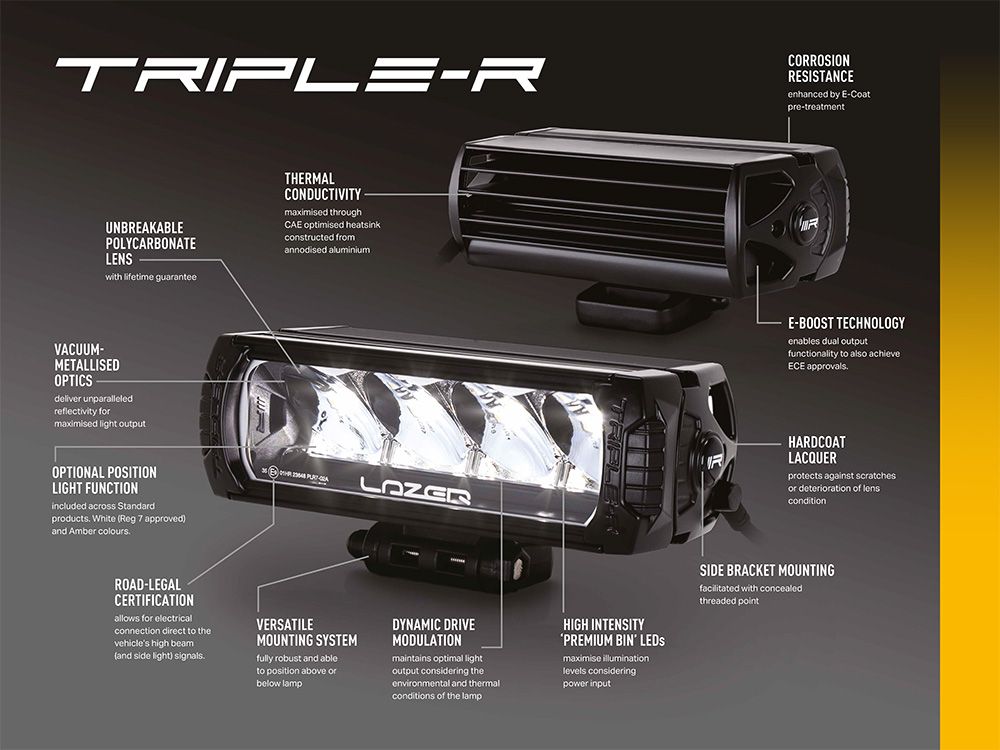

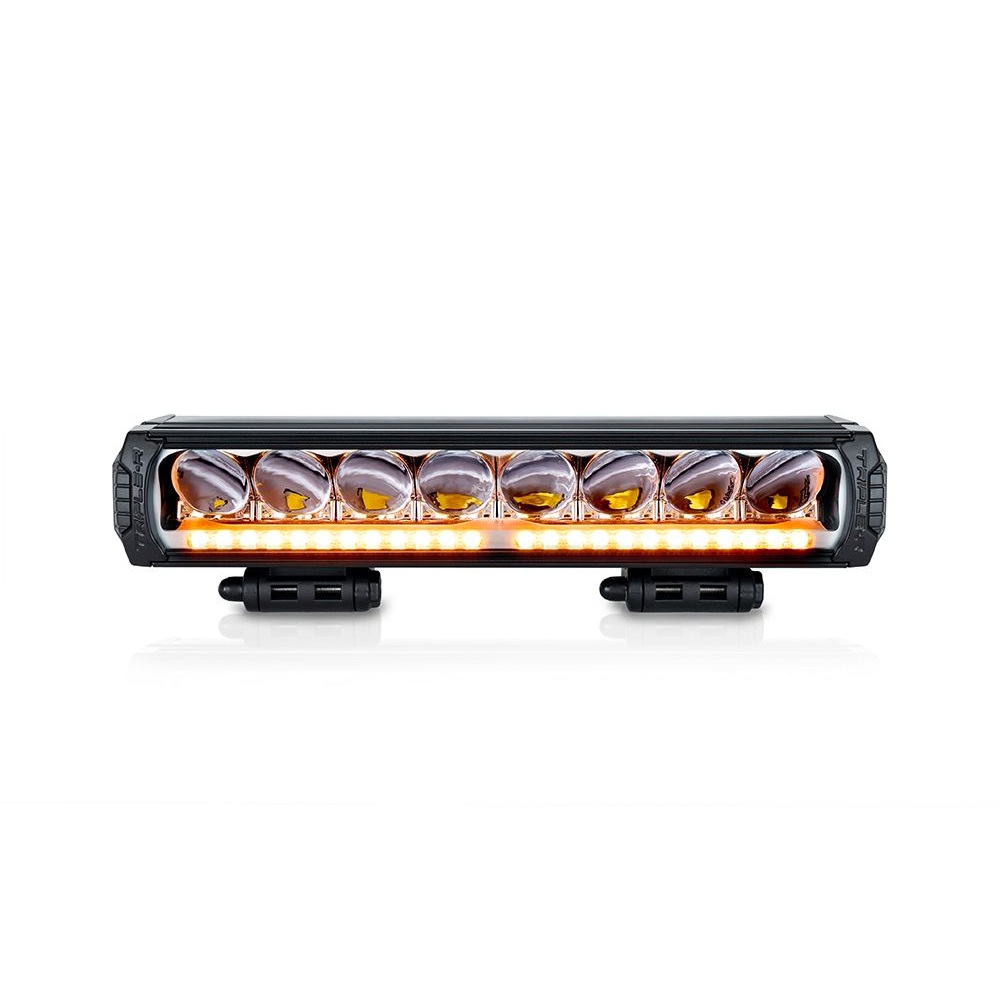

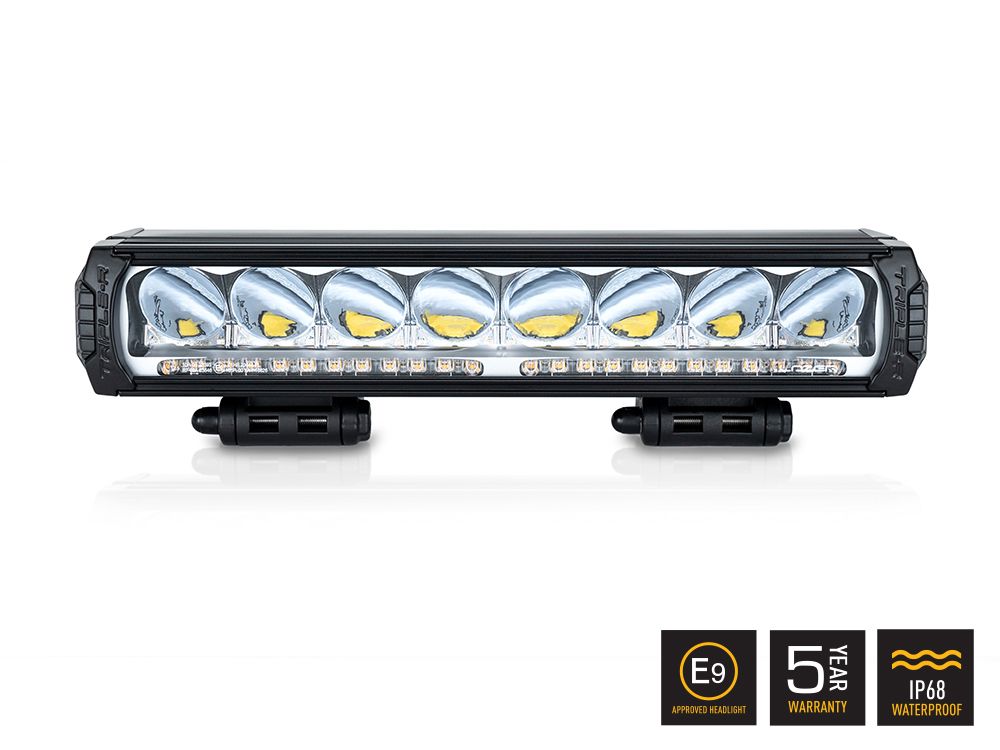

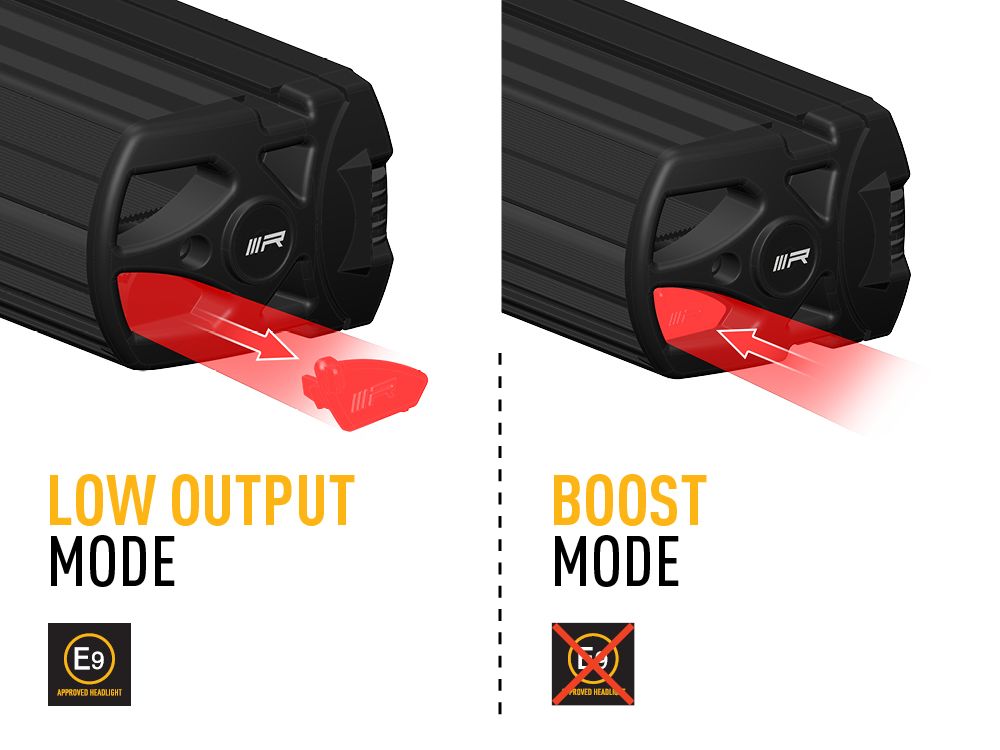

The iconic Triple-R 1000, a firm favourite amongst the heavy truck and LCV sectors, is now offered with integrated amber flashing beacon function. Incorporating 16 different forward-facing flash patterns, the additional safety functionality within the lamp, combines with the possibility to connect a white or amber position/side light function, as well as the exceptional high beam driving light function to really set the Triple-R 1000 apart from the competition. The Triple-R 1000 is a high-performance driving light that delivers a spot beam pattern well suited to road use. Recent styling updates to the Triple-R range have resulted in a clean contemporary design, with a more aggressive edge, to match the aesthetic design prevalent on modern vehicles. Boasting 9,240 lumen, and delivering 1 lux to 612m (E-Boost mode), the auxiliary LED driving light provides improved left/right spread of light without compromising the up/down spread which ensures suitability of the lights to a wide array of vehicles, including where the lights are mounted high on the vehicle. Dual-output ‘E-Boost’ technology allows for operation within ECE Regulation 112 parameters, when the supplied E-Boost cap is removed, and where country regulations demand for on-road use in parallel with your vehicle’s standard high beam driving lights. Included within the lamp is the option to connect an integrated position/side light function, for when the requirement is for a light installation that gets noticed as much during the day as at night. There is the possibility to connect white or amber coloured position lights, simply by inserting the corresponding wire into the lamp connector at the point of installation, or leave both disconnected to have your Triple-R 1000 act as a high beam driving light only. The position light function (white only) is approved to ECE regulation 7, to operate in parallel with your standard vehicle lights. Including flash patterns approved to ECE Regulation 65 as a warning light, there are 16 different amber warning light settings which can be selected and synchronised (between multiple lamps), at the point of installation, or using a momentary switch where the requirement is to change the flash pattern on demand. Examples of the different flash patterns can be seen in the Videos section below. Like all Lazer products, the Triple-R 1000 with Beacon function has been designed and engineered to deliver a powerful driving light with perfectly homogenous beam pattern. The colour temperature of the light, at 5000k, is carefully selected to maximise definition of any obstacles ahead, while ensuring a comfortable drive even over prolonged periods of time. Performance is complemented by a superior build quality, borne out of our in-house UK manufacture, and backed up by our comprehensive 5year warranty. Product Features Highly efficient 11W LED technology 5000K LED colour temperature and 80CRI maximises sharpness and definition Integrated amber flashing beacon function – 16 flash patterns (incl UNECE Reg65 option) Integrated white and amber position light function Ultra-reflective vacuum-metallised optics deliver spot beam pattern UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology) and Reg 7 position/side light function (white only) Contemporary lamp design – Black or White colour options Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately) Electronic thermal management system optimises light output to preserve longevity of the LEDs Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection CAE optimised heatsink offers improved thermal dynamics Over voltage protected Reverse polarity protected ‘Unbreakable’ polycarbonate lens with hardcoat lacquer UNECE approved Reg 10 IP68 watertight 5-year warranty Supplied with pre-wired male/female 6-pin Superseal connectors Designed & manufactured in UK

Technical Specifications	Boost Mode	Low Output Mode
Voltage Range (DC)	10-32V	10-32V
LED Life	50,000 hrs	50,000 hrs
Weight	1.7 kg	1.7 kg
Total Luminous Flux	9240 Lm	1848 Lm
Total Driver 'FOV' Flux †	5572 Lm	1114 Lm
Colour Temperature	5000k	5000k
Number of High Output LEDs	8	8
Power Consumption	88 Watts	17.6 Watts
Current Draw (at 14.4V)	6.1 Amps	1.2 Amps
IP Rating	IP68	IP68
Work Lamp	ECE R10	ECE R10
High Beam	N/A	ECE R112
E-Mark Ref	N/A	12.5
Position Light (White)	ECE R7	ECE R7
Beacon (Amber)	ECE R65	ECE R65
Salt Spray Test	ISO 9227 (2000H)	ISO 9227 (2000H)
Vibration (BS EN 60068)	10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz	10Hz > 1000Hz, 0.14>20 (m/s²)²/Hz
Operating Temperature	-40°C … +90°C	-40°C … +90°C

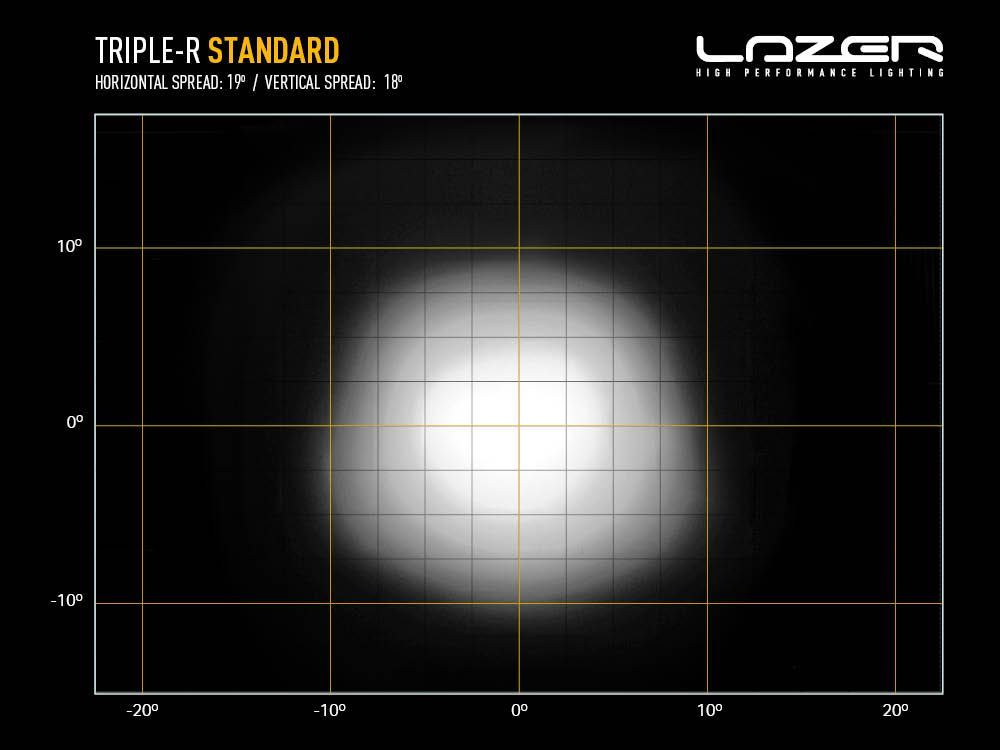

Horiz Beam Angle	19 Deg	19 Deg

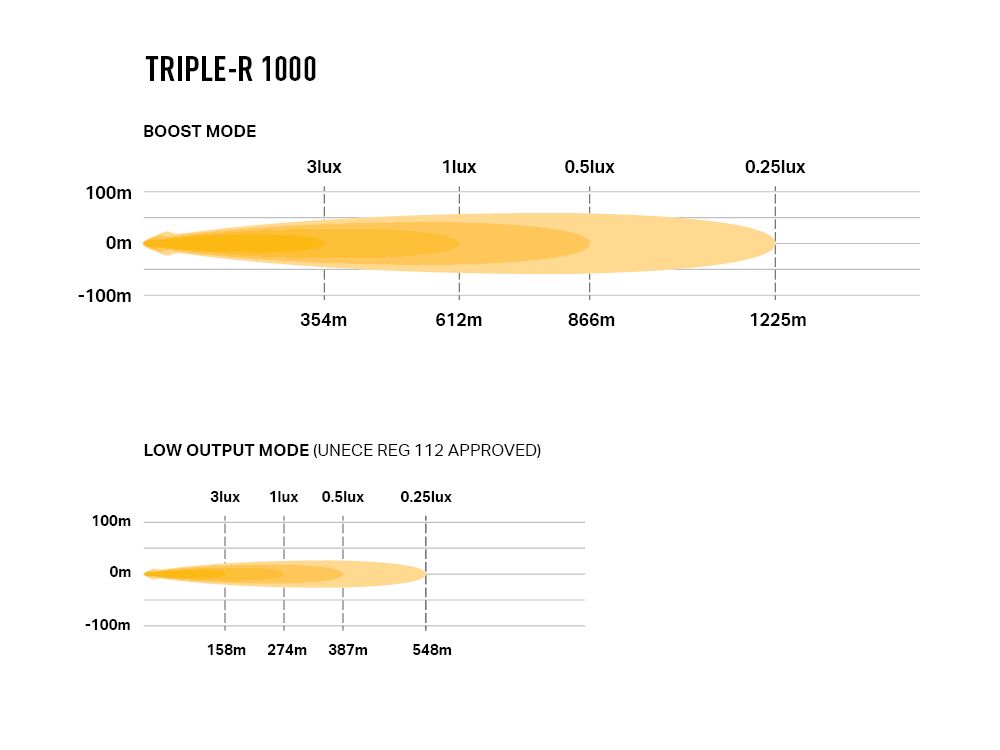

0.25 lx Line	1225 metres	548 metres
0.5 lx Line	866 metres	387 metres
1 lx Line	612 metres	274 metres
3 lx Line	354 metres	158 metres

What's Included x1 Triple-R 1000 LED Lamp with Beacon Function x2 Centre Mount (1114k) x1 Installation Instructions
