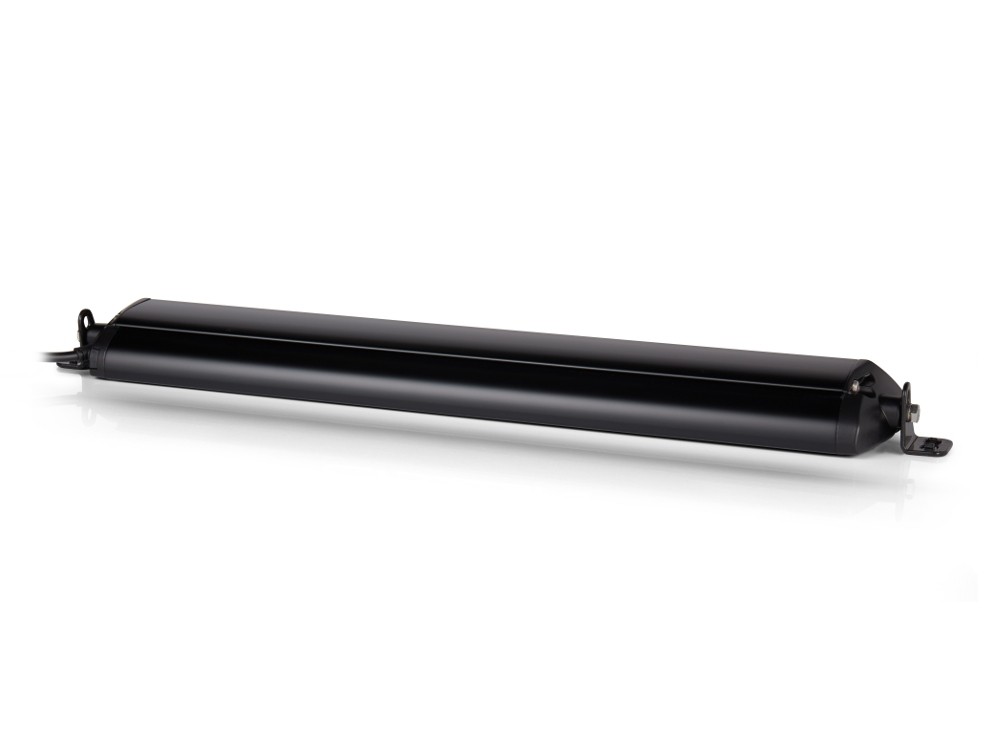

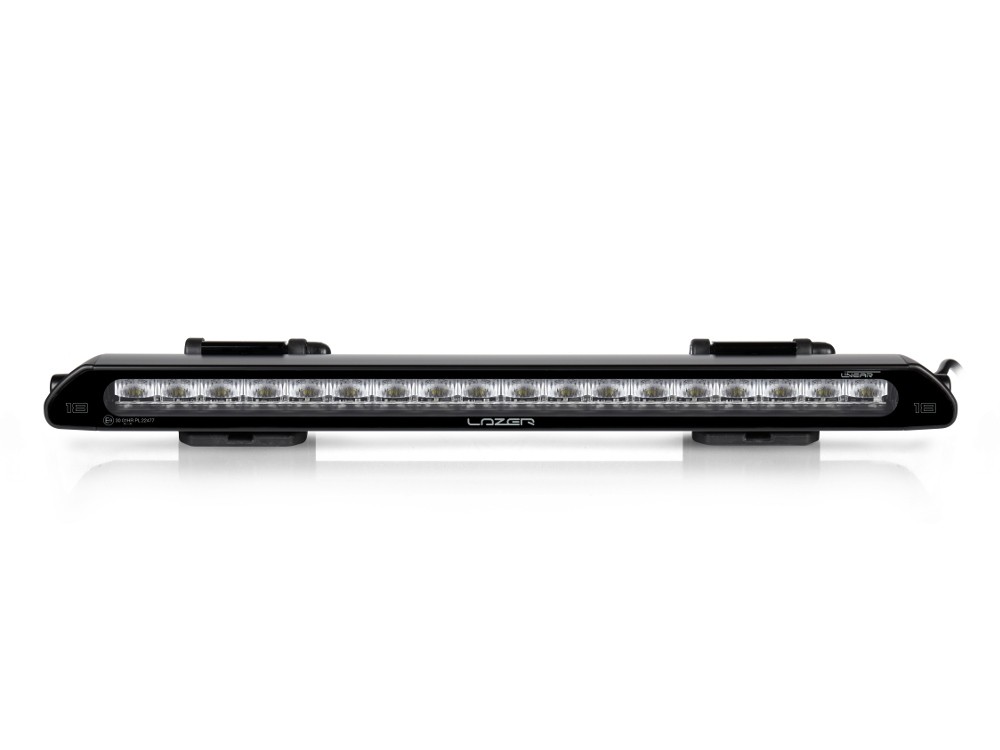

Lazer LED Light Bar Linear 18

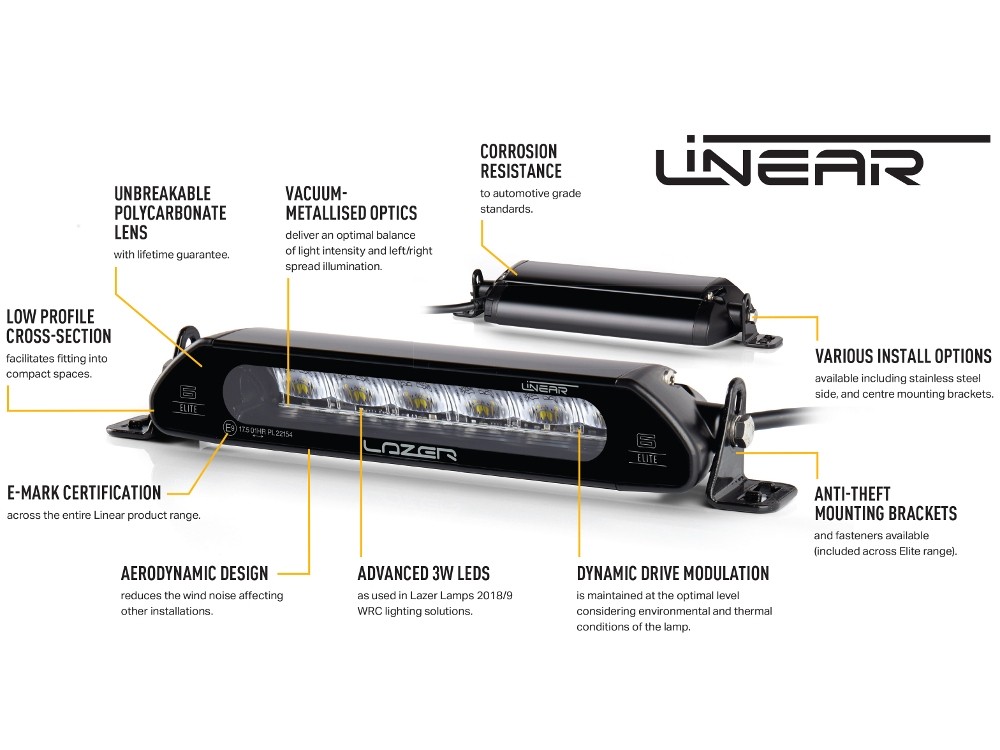

Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time. The Linear range is available in a variety of sizes from the 232mm (9”) Linear-6 to the 1282mm (51”) Linear-48. With the exception of the range topping Linear-48, all Linear products are fully UNECE certified to Regulation 112 as Class B Driving lights (for on-road use). Elite level products are also available across Linear-6/12/18 product lines with these products boasting twice the light output compared to the equivalent Standard version. The Linear-12 Elite and Linear-18 Elite lights are also available with the option for integrated position light function providing added safety and styling benefits. Despite the diminutive proportions of the Linear products, the LED light bars are packed full of advanced and innovative features to maximise performance and longevity. With the products designed, engineered and built in-house, at our UK facility, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed by our comprehensive 5-year warranty. Linear products are especially well-suited to roof mount installations where the sleek, aero design of the aluminium housing eliminates nearly all wind noise, and the comparatively low up/down spread of light ensures no glare off the vehicle bonnet. Product Features Highly efficient 3W LED technology 5000K LED colour temperature and 80CRI maximises sharpness and definition Vacuum-metallised optics deliver wide spread of light Reduced up/down spread of light suits even low mounting positions, or roof mounting Sleek, low profile design eases installation Aero design virtually eliminates wind noise on roof installations Includes low profile side mounting brackets (anti-theft solutions included on Linear-36/42/48) Electronic thermal management system optimises light output to preserve longevity of the LEDs Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection CAE optimised heatsink offers improved thermal dynamics Over voltage protected Reverse polarity protected ‘Unbreakable’ polycarbonate lens with hardcoat lacquer UNECE approved Reg 112 (Class B Driving Light) for on-road high beam function UNECE approved Reg 10 IP68 watertight 5 year warranty Supplied with pre-wired male/female 2-pin Superseal connectors Designed and manufactured in UK

Technical Specification	Value
Based on	1x Linear-18 LED Lamp
Voltage Range (DC)	10–32V
LED Life	50,000 hours
Weight	1090 gr
HIGH BEAM FUNCTION
Total Luminous Flux	6750 Lm
Total Driver 'FOV' Flux †	4806 Lm
Colour Temperature	5000K
Number of High Output LEDs	18
Power Consumption	63 Watts
Current Draw (at 14.4V)	4.4 Amps
CERTIFICATION
High Beam	ECE R112
ECE Reference	30

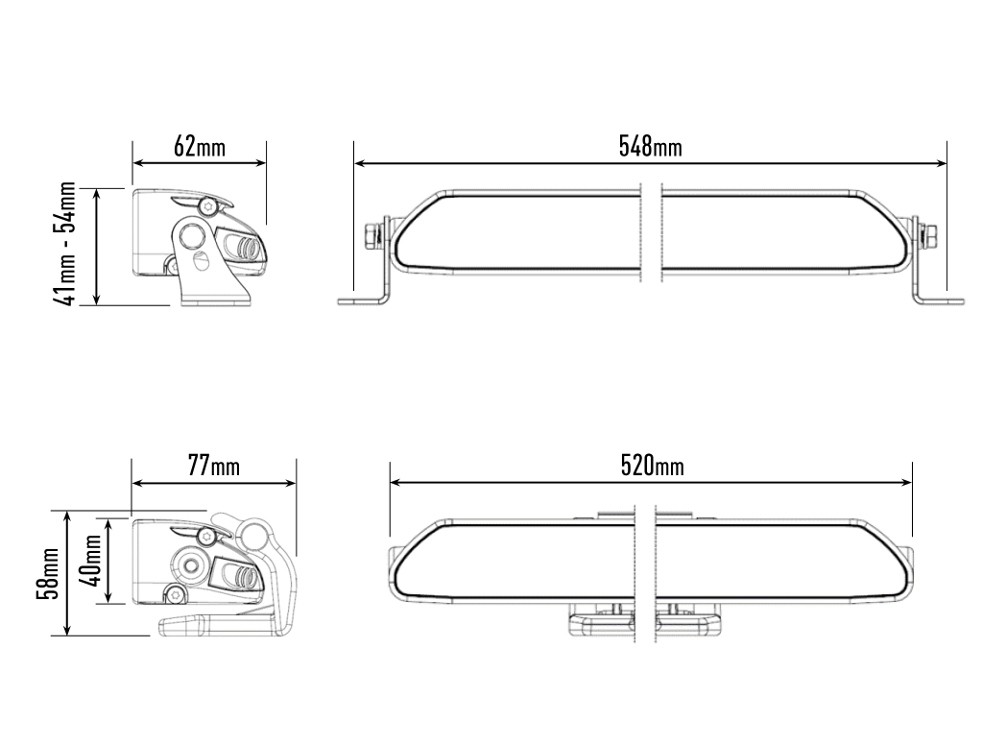

DIMENSIONS
Width	532 mm
Depth	62 mm
Height	40 mm
PHOTOMETRIC DATA
Horizontal Beam Angle	56°
0.25 lx Line	855 metres
0.5 lx Line	605 metres
1 lx Line	428 metres
3 lx Line	247 metres

What's Included x1 Linear-18 LED Lamp x1 Side Mount (1126k) x1 Installation Instructions
