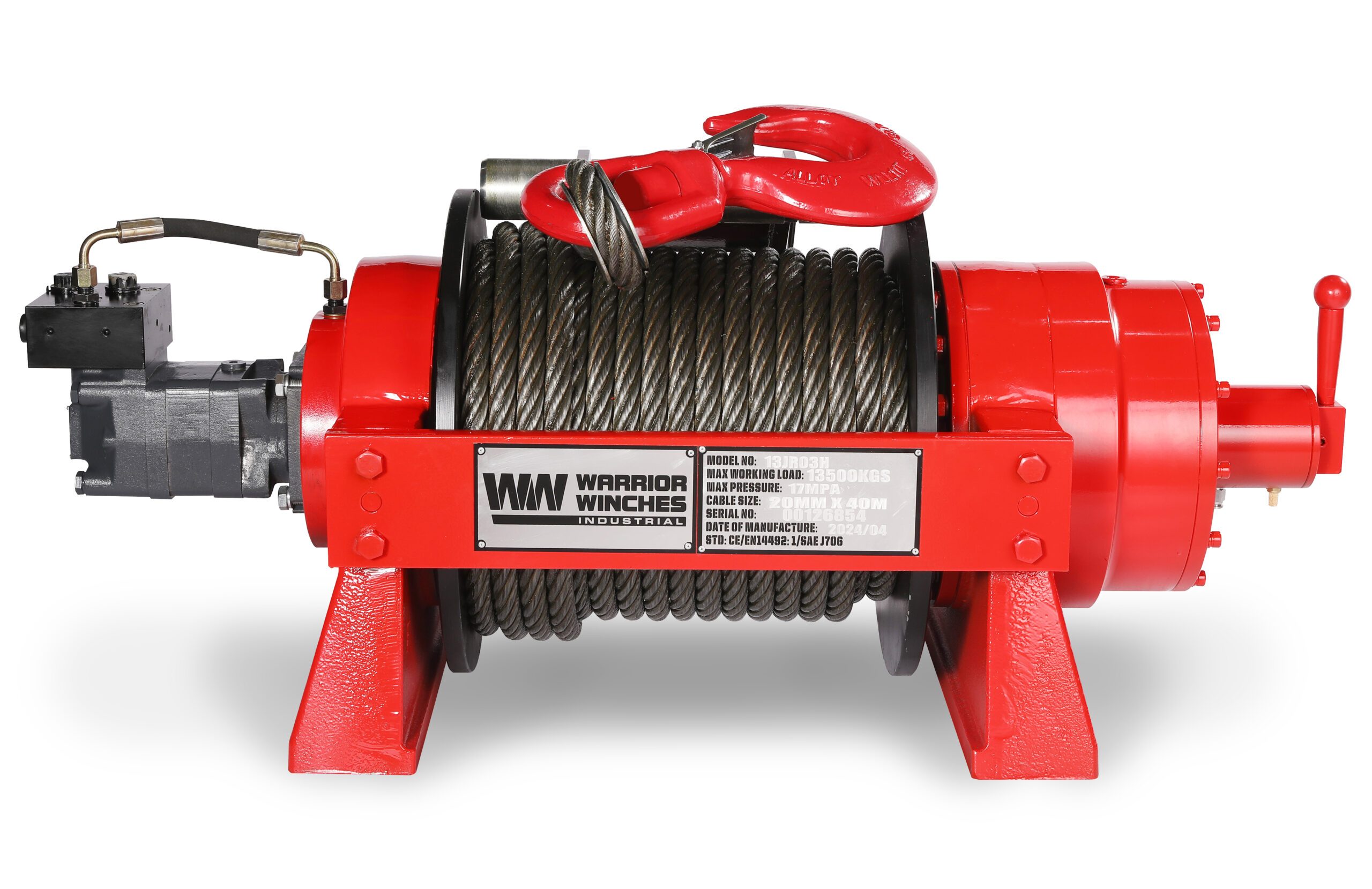

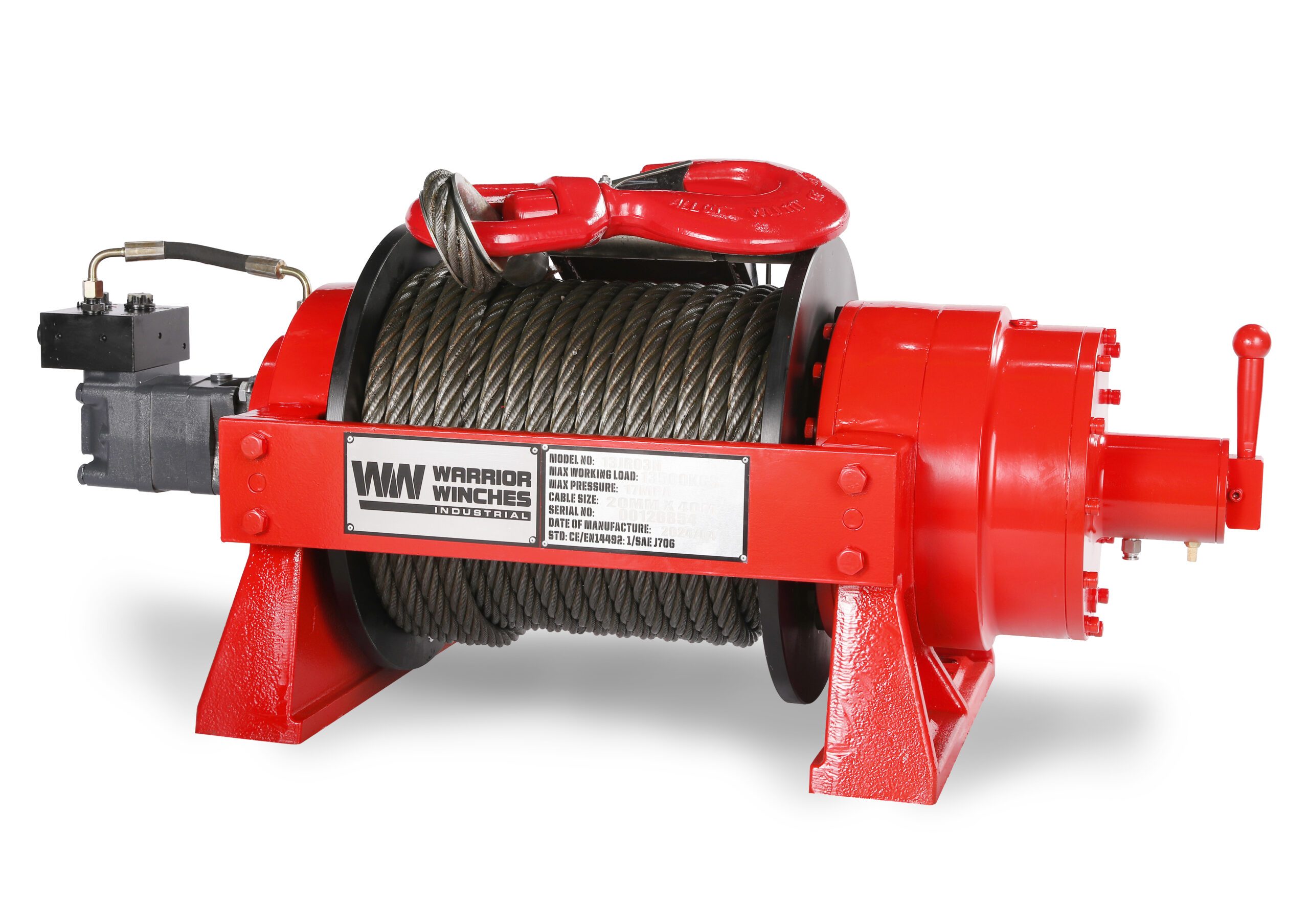

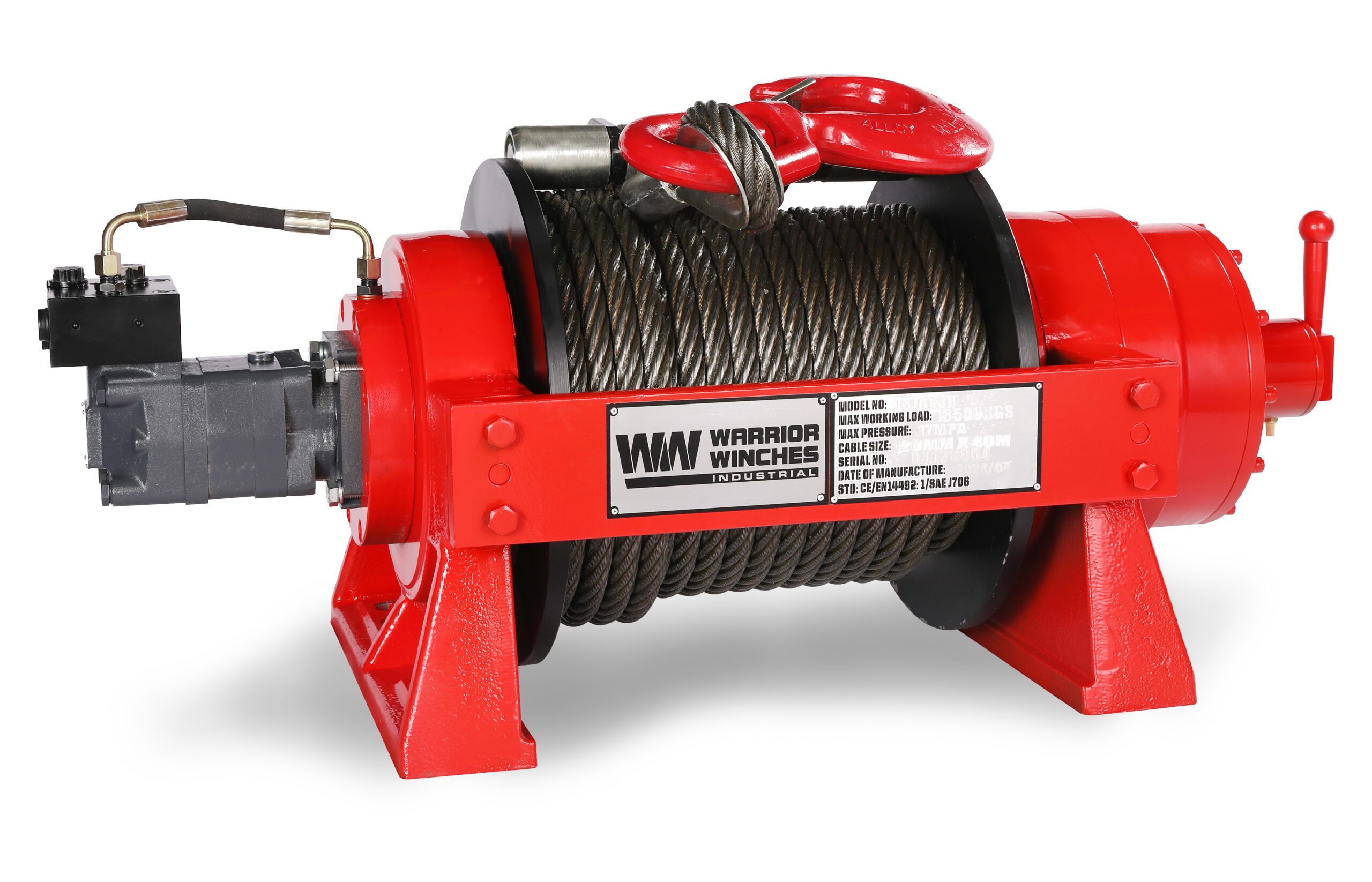

Warrior Winches JR 13 Industrial Hydraulic Winch

The JR Series is Warrior Winches’ latest hydraulic winch range—and the most advanced of their three series. This is a fantastic heavy-duty winch designed for the most demanding applications. The winch comes fully equipped with a pre-installed balance valve, air clutch, wire rope, and a heavy-duty wire rope tensioner to ensure the cable winds evenly. Inside the JR15, you’ll find a planetary gear system, a motor with incredible torque, and a multi-disc brake. When installed correctly, it meets all requirements of EN BS 14492-1:2006+A1:2009. Outstanding features: - Industrial motor with high torque - Multi-disc brake - Air and manual clutch - Heavy-duty cast steel construction - Supplied complete with balance valve Completely dustproof. Withstands temporary immersion in water up to 1 meter deep for 30 minutes. Industrial Winches Compact. Tough. Durable. Warrior Winches’ hydraulic winches are engineered for industrial and commercial applications. Value without compromise. Specifications - Wire Rope/Cable – Dia x L: Steel wire rope 20 mm x 40 m - Gear Ratio: 37.8:1 - Hydraulic Connection: M22x1.5 - Mounting Pattern: 522 mm × 180/280 mm - Maximum Load: 13,500 kg - Clutch: Air Clutch - Motor: Hydraulic Sauer Danfoss OMS 200 - Brake Type: Multi-disc brake - Drum Size – Dia x L: 189.5 x 340 mm - IP Rating: IP68 Warranty & Certifications - Warranty: 3 years for commercial use - Certification: CE, EN 14492-2:2019 Certified Product Dimensions - Dimensions (LxWxH): 1043 x 500 x 410 mm - Weight, kg: 340
