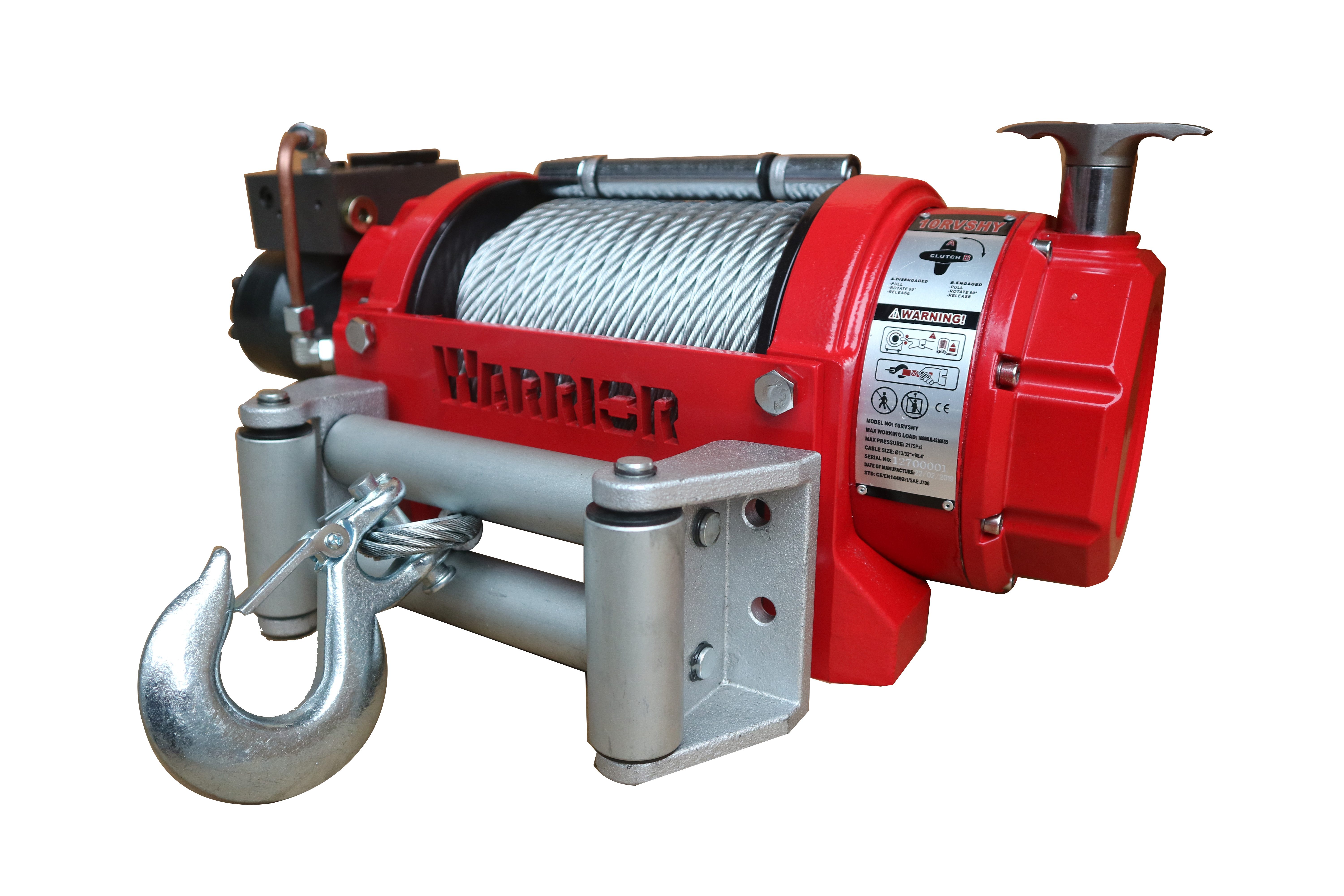

Warrior Winches Hydraulic Winch with Steel Cable

Warrior Winches’ hydraulic RV series is specially designed to meet BS EN 14492-1:2006+A1:2009 & SAEJ-706 standards. These models are developed for demanding commercial and industrial applications, and are available with capacities ranging from 8,000 lbs (3,629 kg) to 18,000 lbs (8,164 kg). The series also includes an 8,000 lbs model with a short drum. Safety is a top priority for us, which is why we have oversized the steel cable with a 2:1 safety factor, and the cable anchoring can withstand 2.5 times the winch’s rated pulling force, providing users with extra security and reliability. The RV series’ hydraulic brake is rated for the full pulling capacity, offering excellent control, increased safety, and reliability during winching operations. The ISTR18 mounting plate is available as an option and is also approved according to BS EN 14492-1:2006+A1:2009. Outstanding features: - Approved to EN14492-1 / Machinery Directive 2006/42/EC - Drum-to-cable ratio 10:1 - Steel cable with 2:1 safety factor - Hydraulic brake capable of holding the load - Cable anchor with a safety margin of 2.5 times the rated load - Reversible orientation: These winches can be mounted with the motor on the left or right, with the rope spooling from the top or bottom. Professional Winches Compact. Tough. Durable. Warrior Winches hydraulic winches are engineered for industrial and commercial applications. Value without compromise. Specifications - Max Flow L/min: 5–60 L/min - Cable/Rope – Dia x L: 13/32 in x 98.4 ft (10.2 mm x 30.0 m) - Max Pressure Mpa: 15 Mpa - Hydraulic connection: G1/2 - Mounting pattern: 10 x 4.5 in (254 x 114.3 mm), 10 x 6.5 in (254 x 165.1 mm), 8-M10 - Max load: 4,536 kg - Clutch: Manual - Motor: Hydraulic 100 ml/r - Brake type: Hydraulic - Drum size – Dia x L: 4.0 x 7.91 in (102 x 201 mm) Warranty & Certifications - Warranty: 1 year - Certification: CE Certified Product Dimensions - Dimensions (LxWxH): 594 x 237 x 241 mm - Weight, kg: 77 - Units per pallet: 12 Rope/Cable Layers - Layer 1: Rope on drum: 23.0 ft (7.0 m) - Layer 2: Rope on drum: 49.2 ft (15.0 m) - Layer 3: Rope on drum: 78.7 ft (24.0 m) - Layer 4: Rope on drum: 98.4 ft (30.0 m) Line Pull / Pressure - Line pull: 1,814 kg: Pressure: 6.8 (986.2) Mpa - Line pull: 2,722 kg: Pressure: 9.2 (1,334.3) Mpa - Line pull: 3,629 kg: Pressure: 12.0 (1,740.4) Mpa - Line pull: 4,536 kg: Pressure: 15.0 (2,175) Mpa
