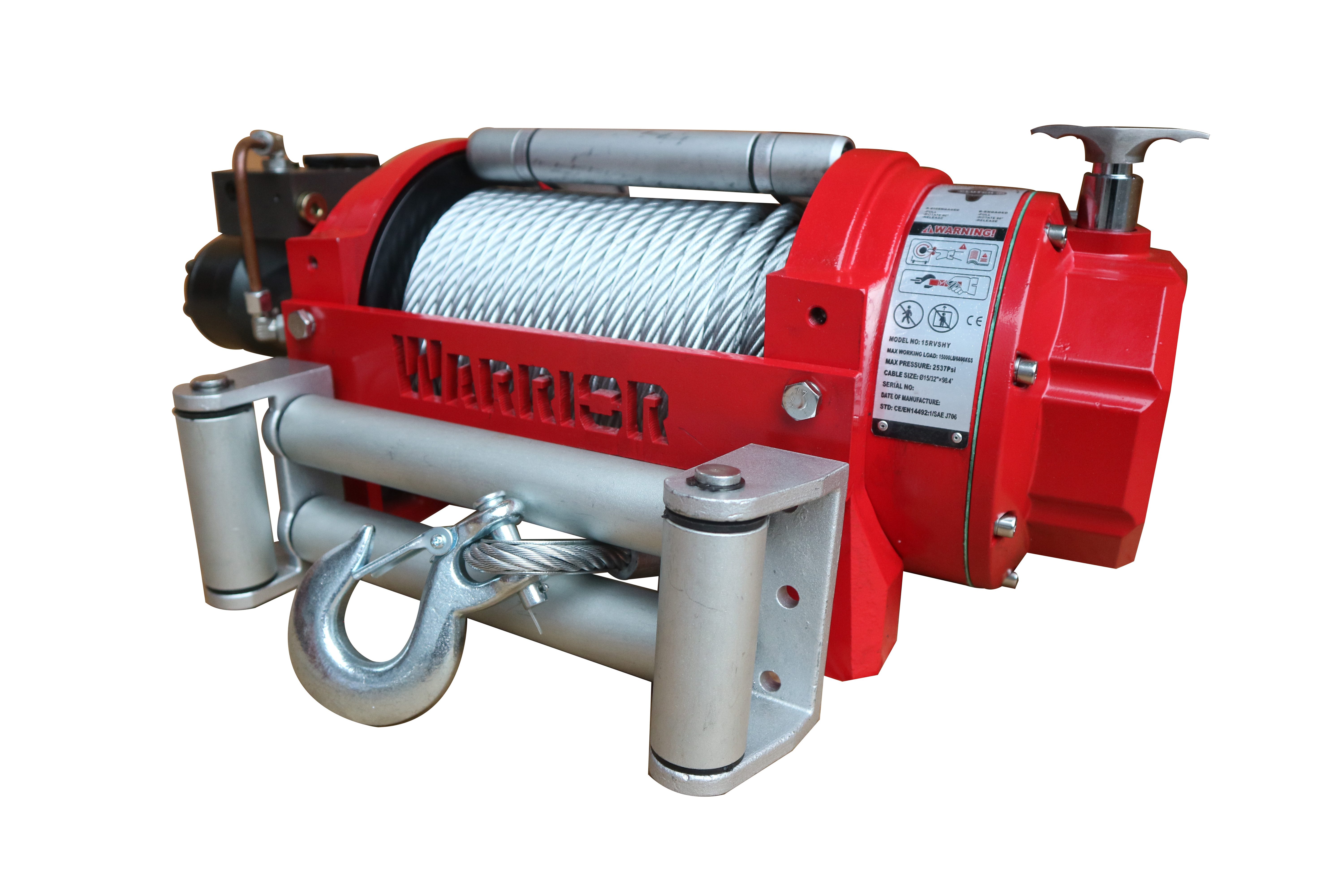

Warrior Winches Hydraulic Winch 15,000 lb EN – Steel Cable

Warrior Winches’ hydraulic RV series is specially designed to meet BS EN 14492-1:2006+A1:2009 & SAEJ-706 standards. These models are engineered for demanding commercial and industrial applications and are available in capacities from 8,000 lbs (3,629 kg) up to 18,000 lbs (8,164 kg). The series also includes an 8,000 lbs model with a short drum. Safety is a top priority for us, which is why we have oversized the steel wire rope with a 2:1 safety factor, and the rope anchoring can withstand 2.5 times the winch’s rated pulling force, providing users with added safety and reliability. The RV series’ hydraulic brake is rated for the full pulling capacity, delivering outstanding control, increased safety, and reliability during winching operations. The ISTR18 mounting plate is available as an option and is also certified according to BS EN 14492-1:2006+A1:2009. Outstanding Features: - Certified to EN14492-1 / Machinery Directive 2006/42/EC - Drum-to-rope ratio 10:1 - Steel wire rope with 2:1 safety factor - Hydraulic brake capable of holding the load - Rope anchor with a safety margin of 2.5 times the rated load - Reversible orientation: These winches can be mounted with the motor on the left or right, with the rope spooling from the top or bottom. Professional Winches Warrior’s EN-certified winches are developed, manufactured, and approved for professional users. The winches in this category are certified to the international standard EN 14492:1 as part of your application. Compact. Tough. Durable. Warrior Winches’ hydraulic winches are engineered for industrial and commercial applications. Value without compromise. Specifications - Max Flow L/min: 10–60 L/min - Wire Rope/Cable – Dia x L: 15/32 in x 98.4 ft (12 mm x 30.0 m) - Gear Ratio: 17.3:1 - Max Pressure Mpa: 17.5 Mpa - Hydraulic Connection: G1/2 - Mounting Pattern: 12.0 x 4.5 in (303.5 x 114.3 mm), 14.5 x 6.7 in (368.5 x 171.2 mm), 8-M12 - Max Load: 6,804 kg - Clutch: Manual - Motor: Hydraulic 160 ml/r - Brake Type: Hydraulic - Drum Size – Dia x L: 5.0 x 10.5 in (127 x 266 mm) Warranty & Certifications - Warranty: 1 year - Certification: CE Certified Product Dimensions - Dimensions (LxWxH): 735 x 300 x 277 mm - Weight, kg: 124 - Units per pallet: 4 Wire Rope/Cable Layers - Layer 1: Rope on drum: 29.5 ft (9.0 m) - Layer 2: Rope on drum: 65.6 ft (20.0 m) - Layer 3: Rope on drum: 98.4 ft (30.0 m) Pulling Force / Pressure - Rope pull: 3,629 kg: Pressure: 9.2 (1,337) Mpa - Rope pull: 5,444 kg: Pressure: 14.0 (2,030) Mpa - Rope pull: 6,804 kg: Pressure: 17.5 (2,537) Mpa - Rope pull: 4,536 kg: Pressure: 11.5 (1,627) Mpa
