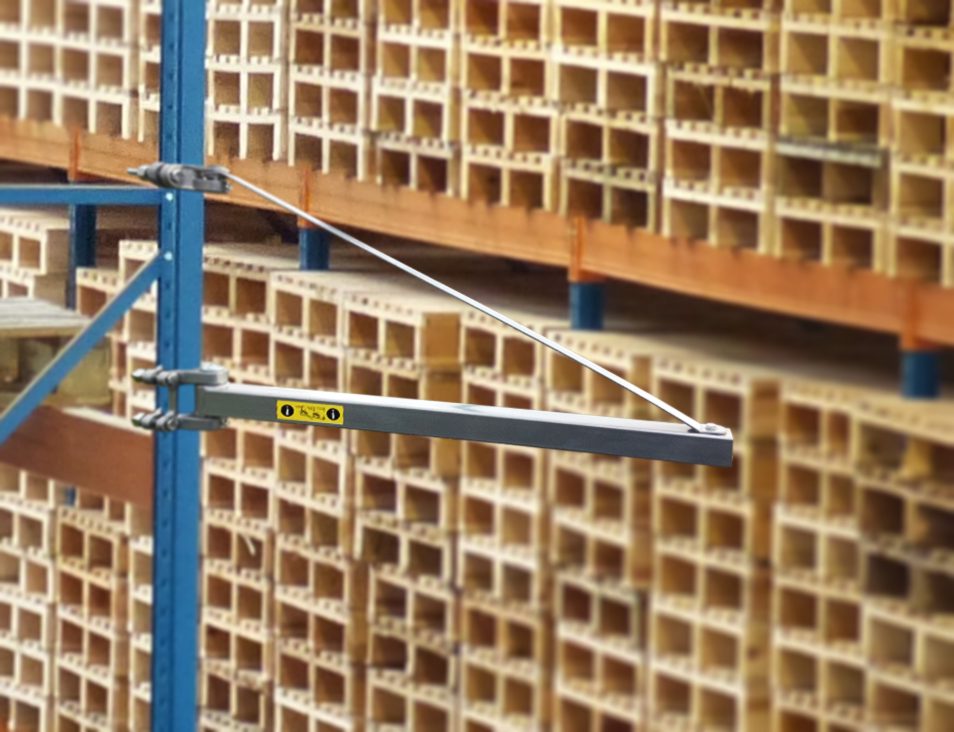

This compact and easy-to-install mounting arm is ideal for fitting most smaller hoists, such as the 220VEH250 or 220EHA500. Installation is straightforward, and the arm is made from a square tube, suitable for mounting most hoists with a capacity of up to 600 kg.
The vertical post is not included.
Specifications
- Max lift: 750 mm – (SWL) 600 kg (WLL) 850 kg 29.5" – (SWL) 1322 lb (WLL) 1873 lb
- Standard: Conforms to EN 14492
- Color: Silver
- Dimensions: 750 x 50 mm 29.5" x 1.9"
Product dimensions
- Weight, kg: 8
