STEDI Type-X Sport Plus 7 Silver Edition LED Driving Lights 2-pack
€624
- Your expert in vehicle lighting
- Secure card payment
- We have been online since 2006
- BRANDStedi
- CATEGORYDriving Light
- MODELType-X
Description
Article no.: 152197-2
REIMAGINED FOR THE OPEN ROAD.
Introducing the STEDI™ Type-X Sport Plus Silver Edition. One of STEDI’s most popular high-performance driving lights on the market, now presented in a stunning liquid-silver DuPont powder coat finish. Proven off the beaten track, reimagined for the open road – the Sports Plus Silver edition is designed specifically for truck and heavy vehicle industries, incorporating state-of-the-art technology and modern aesthetics to create a refined LED driving light that yet again sets a new standard.
SILVER. BULLET.
An evolution of the Type-X Sport Plus, the Silver Edition has been meticulously designed to blend fluidly into the reflective chrome bar-work of Australia’s most prestigious trucks and haulers. The DuPont powder coat finish has been uniquely customised to capture and reflect light, effortlessly integrating with your truck’s front-end design while providing all the protection benefits of powder coat finishing – guaranteeing optimal performance and extending the lifespan of your light. Engineered with a precision Cast aluminium body and a hardened polycarbonate lens, the Sport Plus Silver Edition achieves a robust IP68 rating against dust and water – which when combined with the liquid-silver DuPont powder coating delivers a light that stands up to the demands of the trucking community.
PLUS DISTANCE. PLUS FLOOD.
Type-X Sport Plus Silver Edition delivers next-gen performance in beam distance and flood output. Both the 7 and 8.5 inch size variants will throw light well over 1km down the road while providing more flood through the critical zones of the road. The integrated wide-beam optics ensure excellent near-field illumination, blending seamlessly to eliminate hot spots and provide a smooth driving beam.
THE NITTY GRITTY.

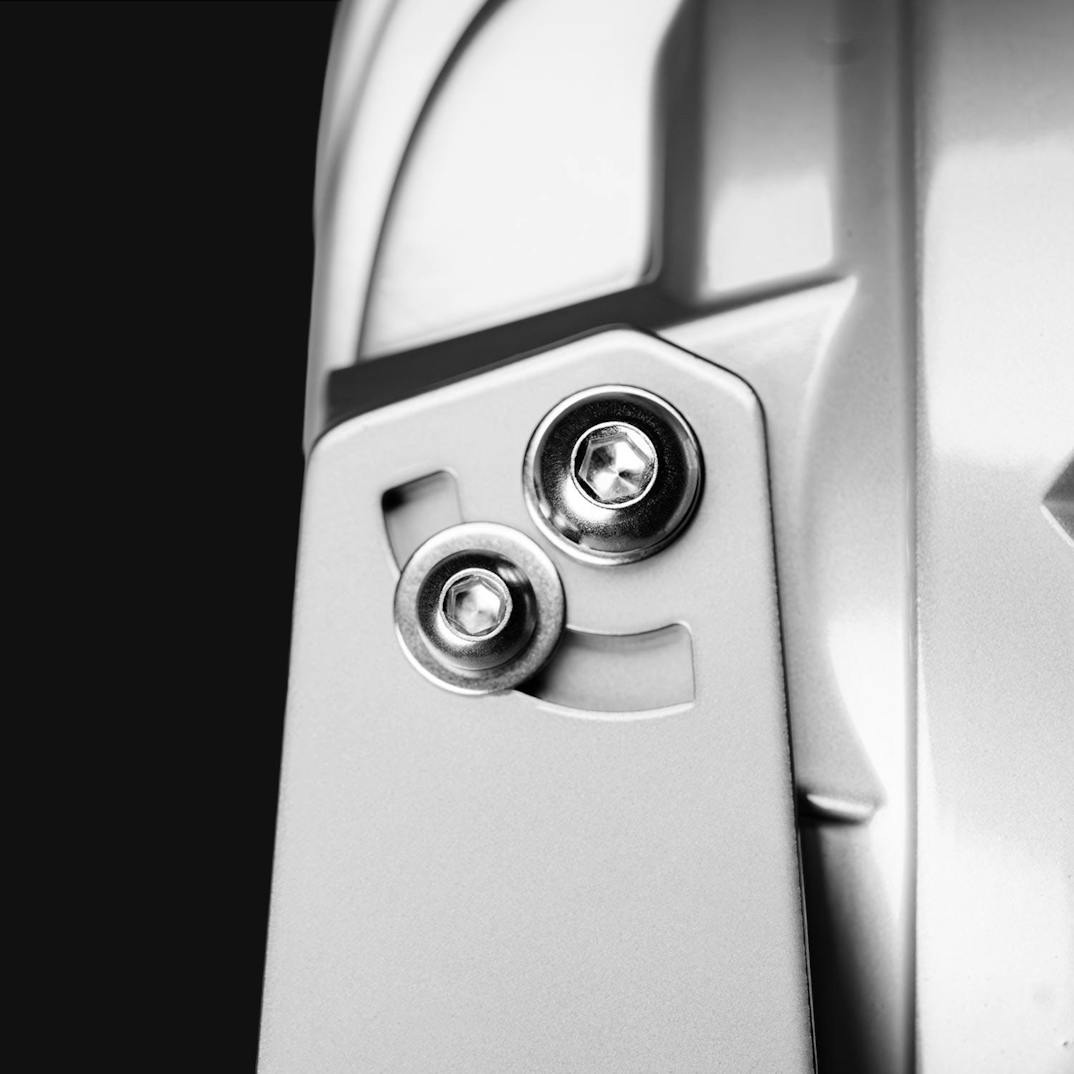

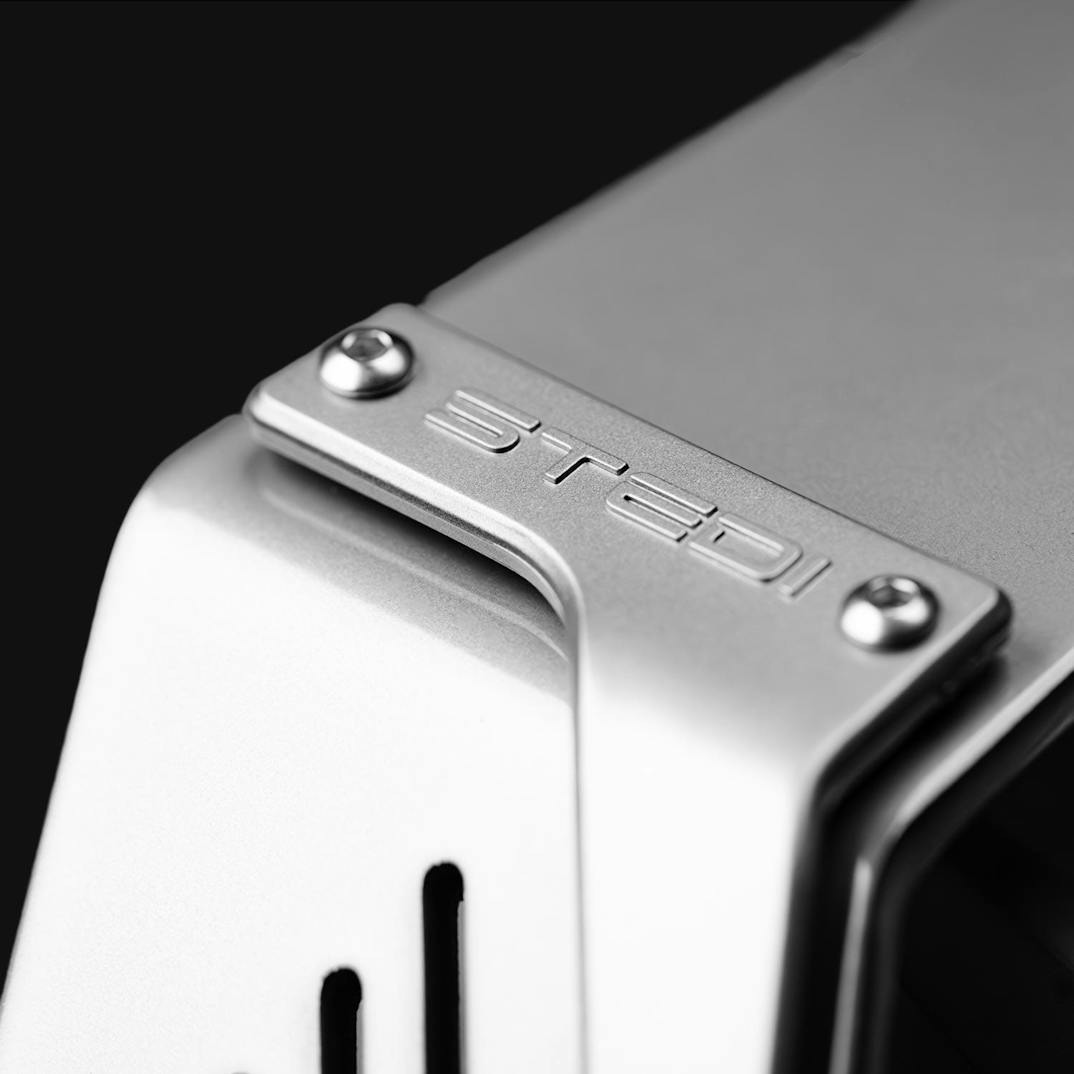

4mm thick 304 series stainless mounting bracket, which includes a rubber dampener.

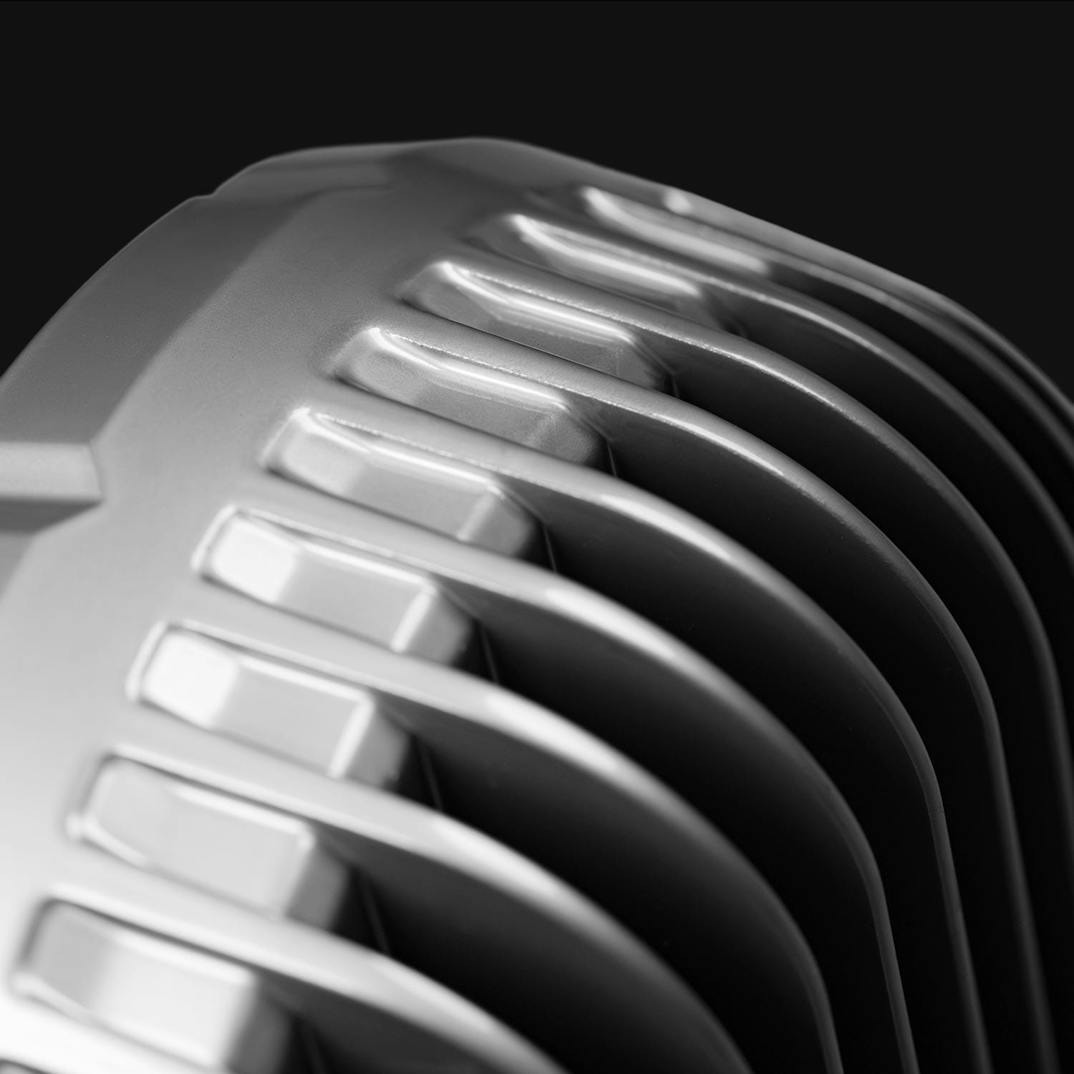

Cast aluminium housing for superior strength and corrosion resistance.
GE Lexan lens with hard coating for virtually unbreakable scratch resistance.
DuPont UV and abrasion-resistant powder coat.
IP68 rated – dust & particle tight, waterproof up to 3 meters.
Nitto Denko pressure equalisation vent with membrane to protect against water ingress, dust & contaminants.
Environmentally sealed Deutsch® DTP-2 connector.
EMI & RFI suppression circuitry.
Combination of OSRAM P8 & CREE XP20s LEDs for unprecedented clarity.

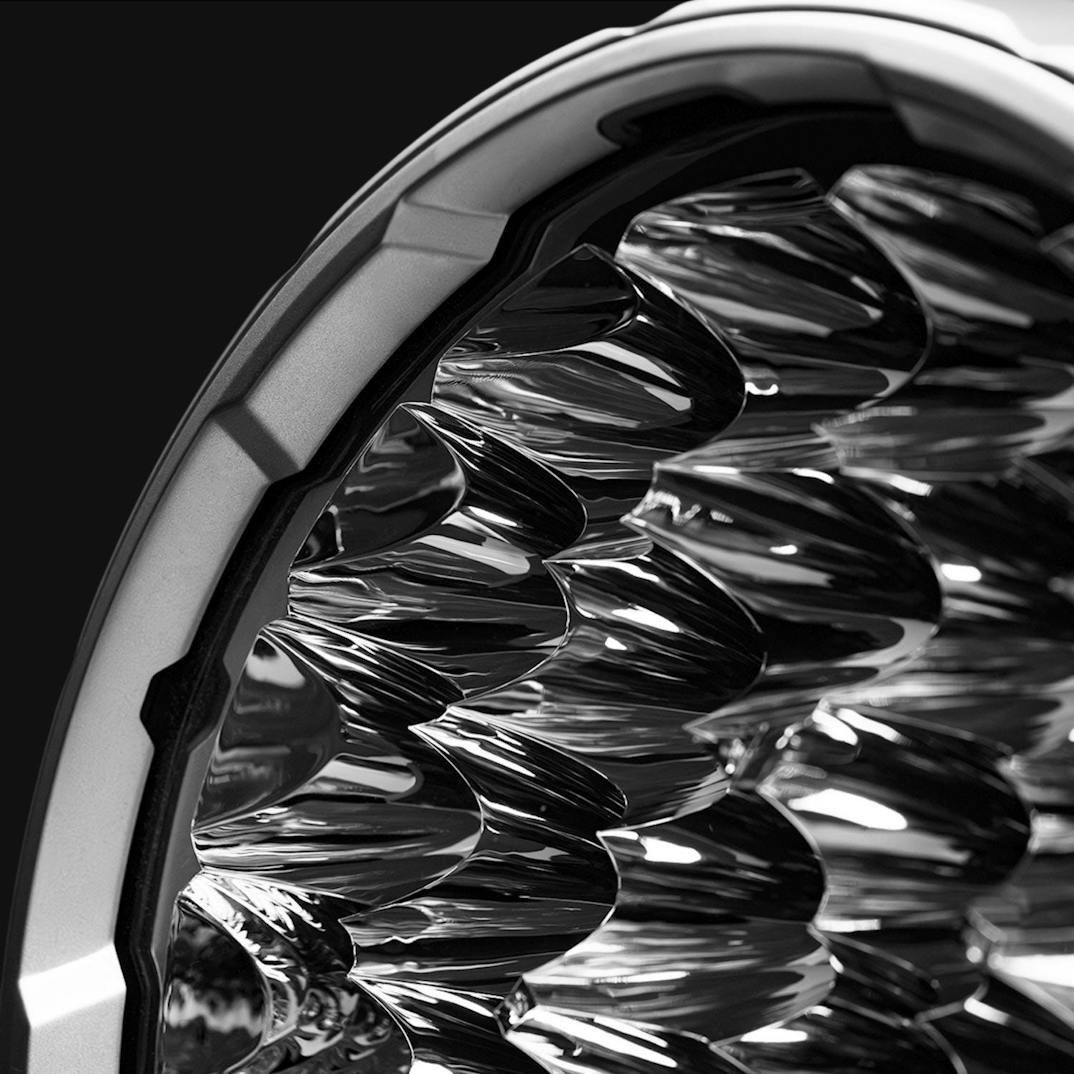

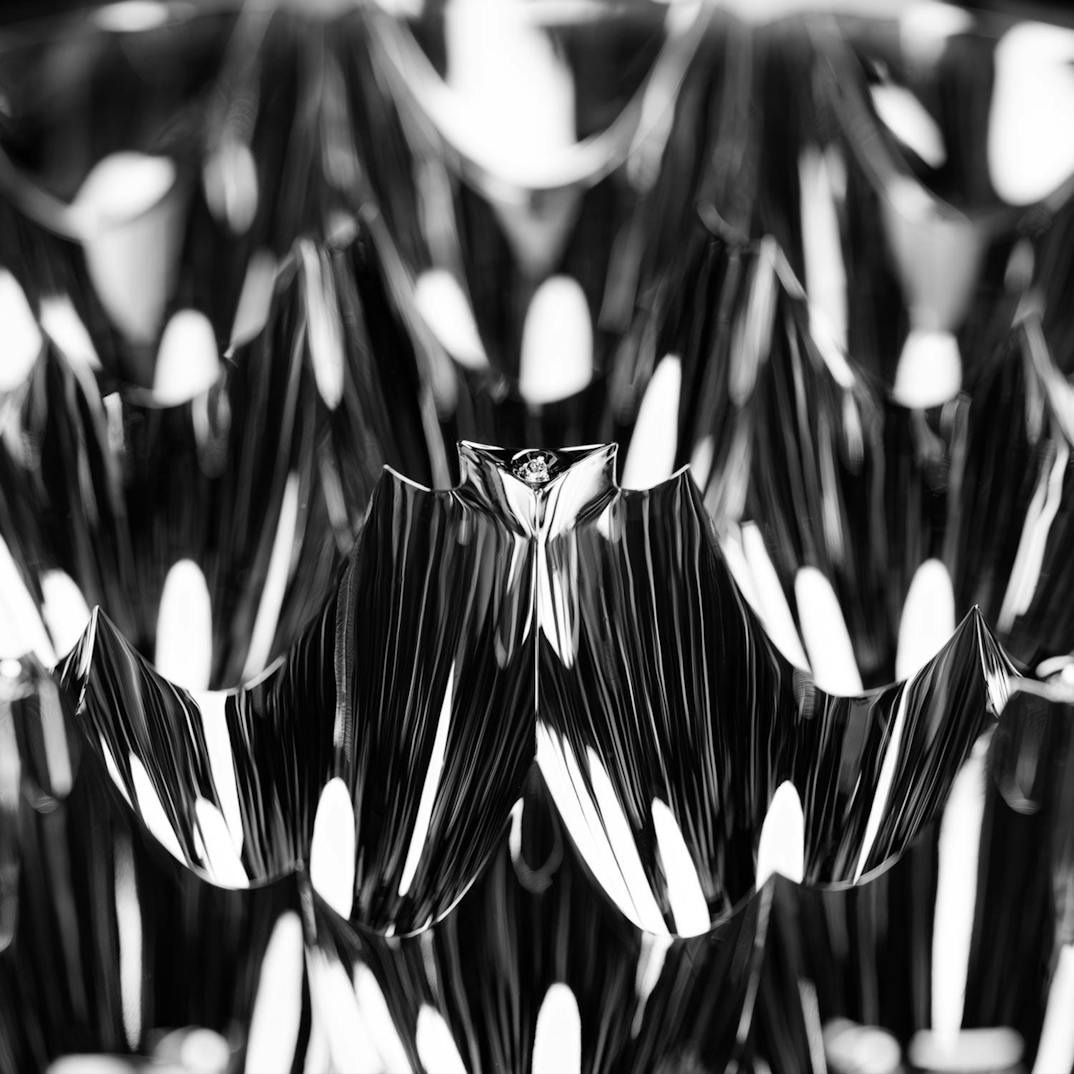

Four wide-beam reflectors for a lateral-shaped flood pattern.
5000K CCT offers stunning clarity and definition with an excellent Colour Rendering Index (CRI).
TECH SPECS
LED 30x OSRAM™ + 7x CREE LEDs
RAW LUMENS 28,000 Lm (Pair)
TESTED LUMENS 11,660 Lm (each) | 23,320 Lm (Pair)
AMP DRAW 9.0A @ 12v (each)
POWER DRAW 108W (each)
CANDELA 1,067,828cd (Pair)
BEAM PATTERN Combo (33 Spot + 4 Flood)
INGRESS PROTECTION IP68 | Submersible up to 3m
COLOUR TEMP (CCT) 5000K
VOLTAGE COMPATIBILITY 10v & 30v
LUMEN MAINTENANCE 50,000 LM-80
WEIGHT 2.24kg (each)
OPERATING TEMP -40°C - 60°C

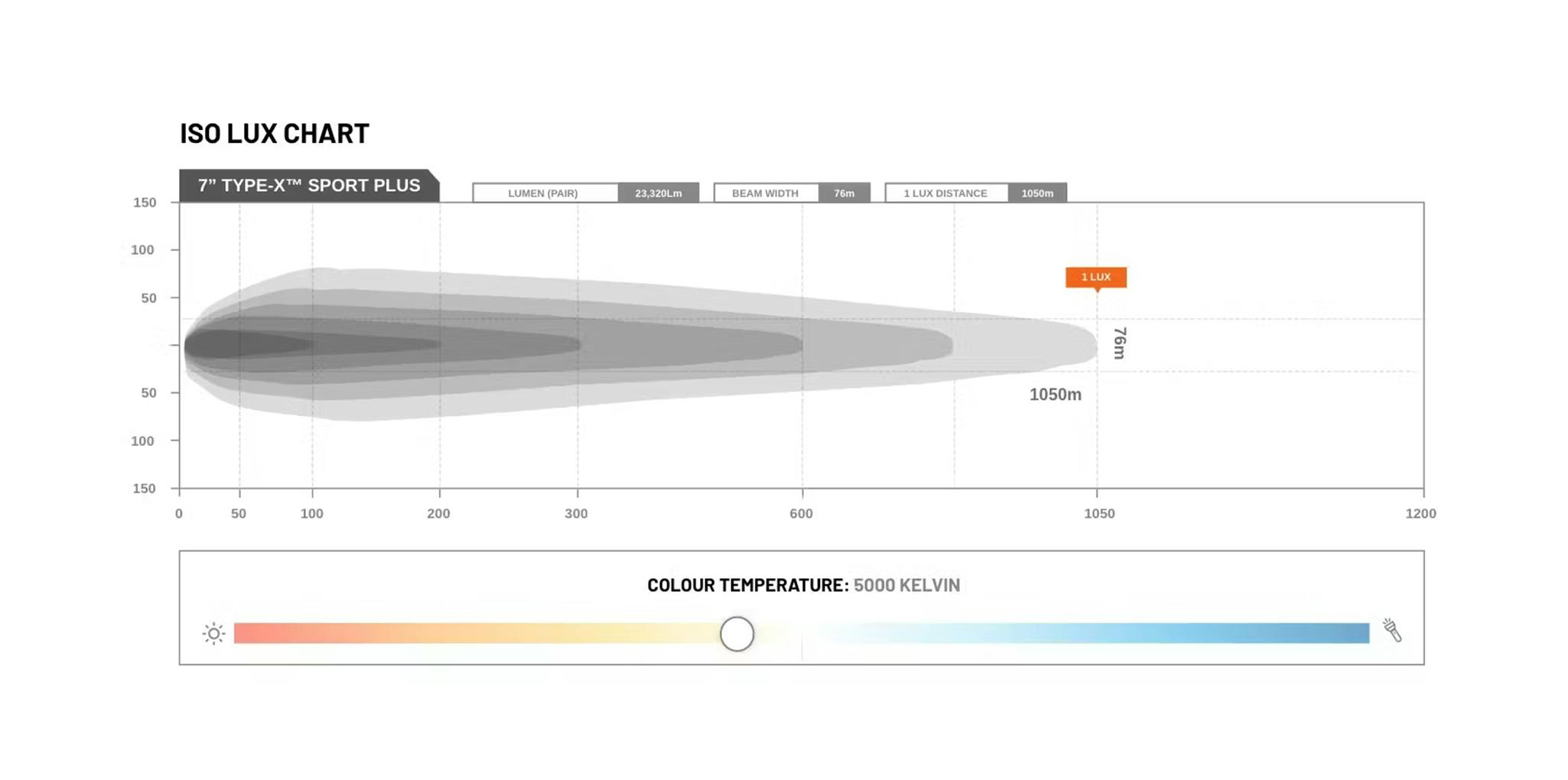

PHOTOMETRIC DATA
730 m 1 Lx (Single)
1,050 m 1 Lx (Pair)
WHAT'S INCLUDED
2 x STEDI™ 7" Type-X™ Sport Plus LED Silver Edition Driving Lights
2 x Protective STEDI™ Blackout Covers
2 x Orange Coloured Fascias
2 x Grey Coloured Fascias
2 x Orange Coloured Shoulder Trim
2 x Grey Coloured Shoulder Trim
1 x Fascia Key Tool
1 x STEDI™ Smart High Beam Wiring Harness
2 x Stainless Steel Mounting Brackets
2 x Mounting Hardware (Set)
2 x Bracket Shock Dampeners
1 x Wiring & Fitting Instructions
