AUXILIARY LIGHTStediType-X Sport 7STEDI Type-X Sport 7 LED Driving Lights 4-pack

STEDI Type-X Sport 7 LED Driving Lights 4-pack

Name: STEDI Type-X Sport 7 LED Driving Lights 4-pack
SKU: 152188-4
Availability: InStock

€1,139

Delivery: ❌ Temporarily out of stock. Can be ordered. Delivery time 2-3 weeks.

Quantity

Your expert in vehicle lighting
Secure card payment
We have been online since 2006

BRANDStedi
CATEGORYDriving Light
MODELType-X

Description

Article no.: 152188-4

HIGH PERFORMANCE - ACCESSIBLE PRICE. We welcome the all-new Type-X Sport - Our most affordable driving light yet. Our very existence as a brand is to offer high-performance, high-quality driving lights at accessible prices. Compare build quality, performance and list of inclusion with other offerings on the market and you will conclude that our Type-X Sport is peerless. (Registered Design Number 201914860 & Registered Trademark).

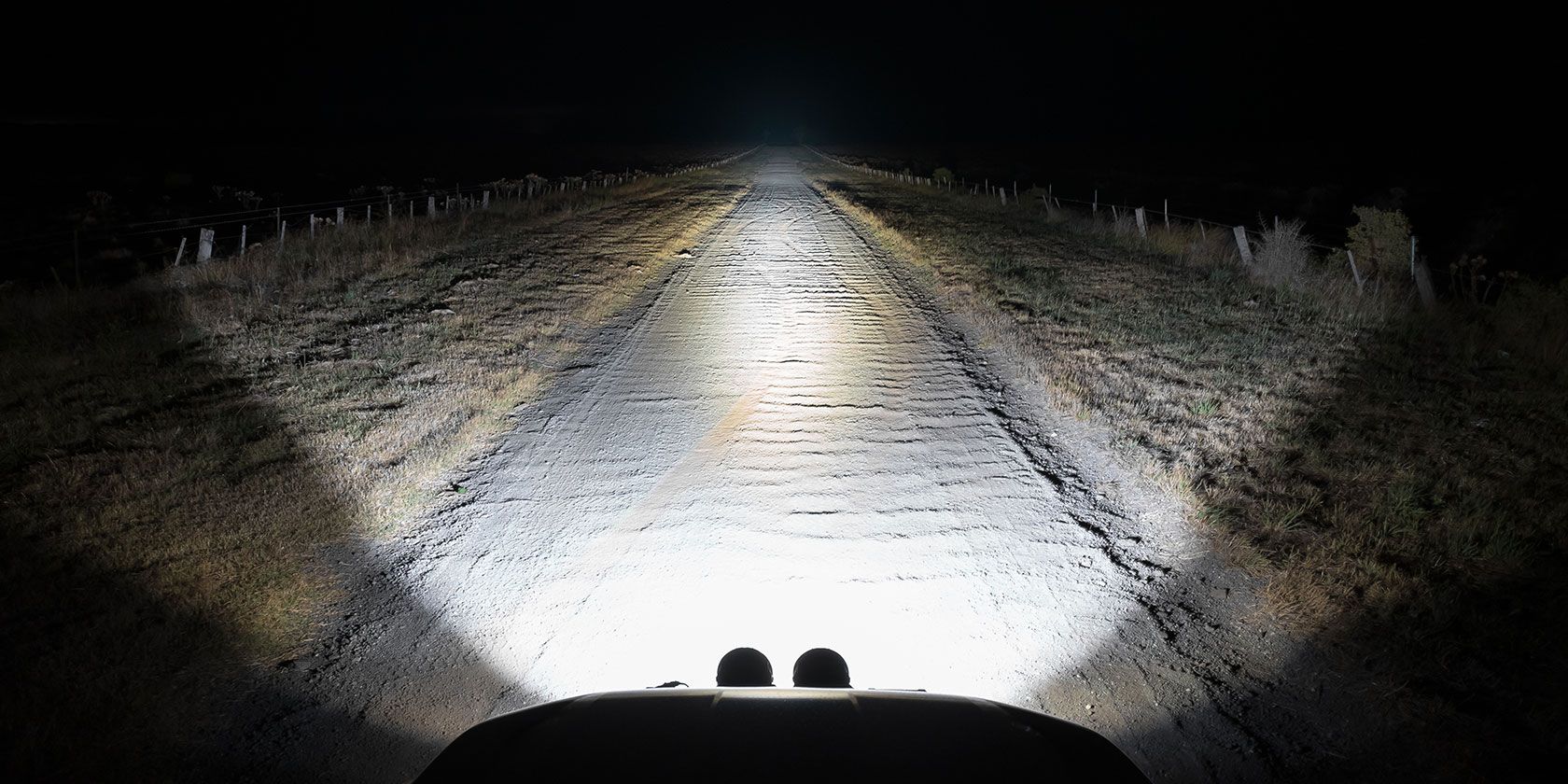

LEGENDARY TYPE-X DNA. Three years since the inception of original Type-X, we've taken an already proven platform and completely redesigned it from the ground up. All-new reflector geometry, all-new LEDs and all-new housing. We've increased the depth of the optics by 35% allowing for a perfectly collimated beam and the resultant increase in light intensity. The beam diameter strikes a sublime balance between width and throw and will send light right out to 895m. Four dedicated built-in wide-beam optics disperse light in the nearfield, and transition beautifully with the spot beam.

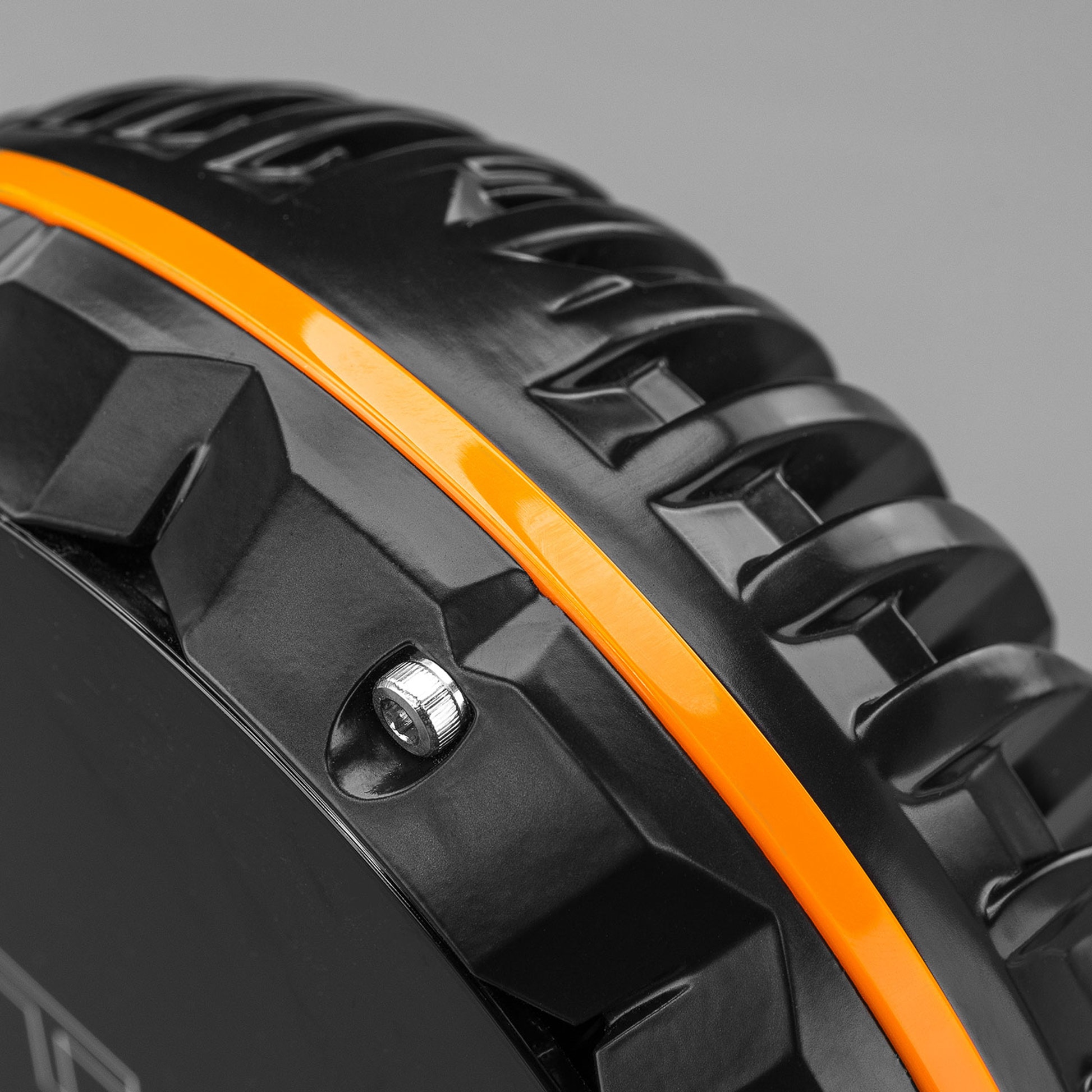

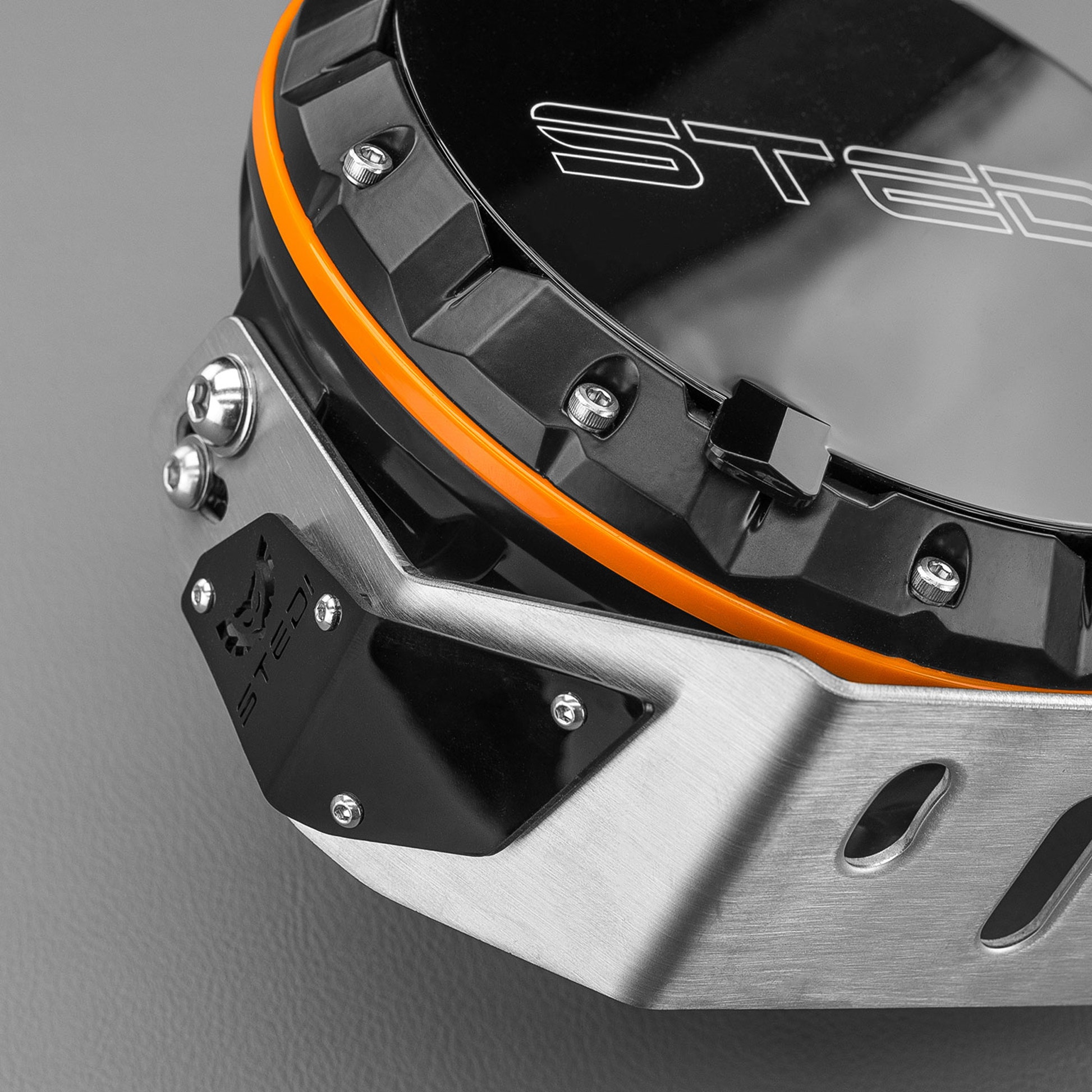

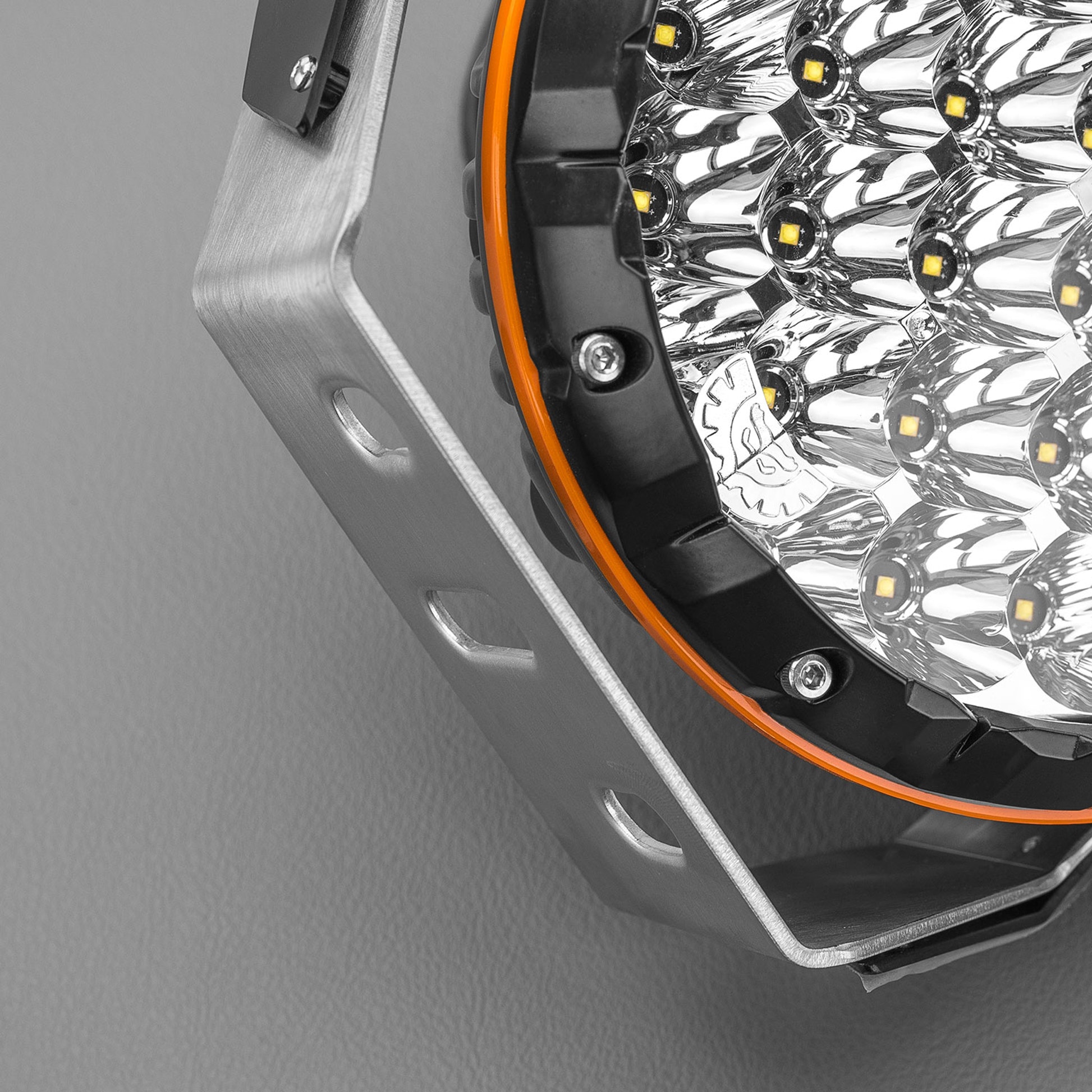

STEDI DESIGN LANGUAGE. Some people call it the little things, for us, it is literally everything. We obsessed over even the most trivial geometries and design elements to achieve a visually stunning luminaire. The 4mm 304 Stainless steel bracket features our signature shoulder armor with laser-cut STEDI branding. A carefully considered orange rim surrounding the housing offers just the right amount of visual impact while ensuring that the overall look and feel plays nice equally on a Sandy Taupe Landcruiser as it will on Magnetic Grey Ranger.

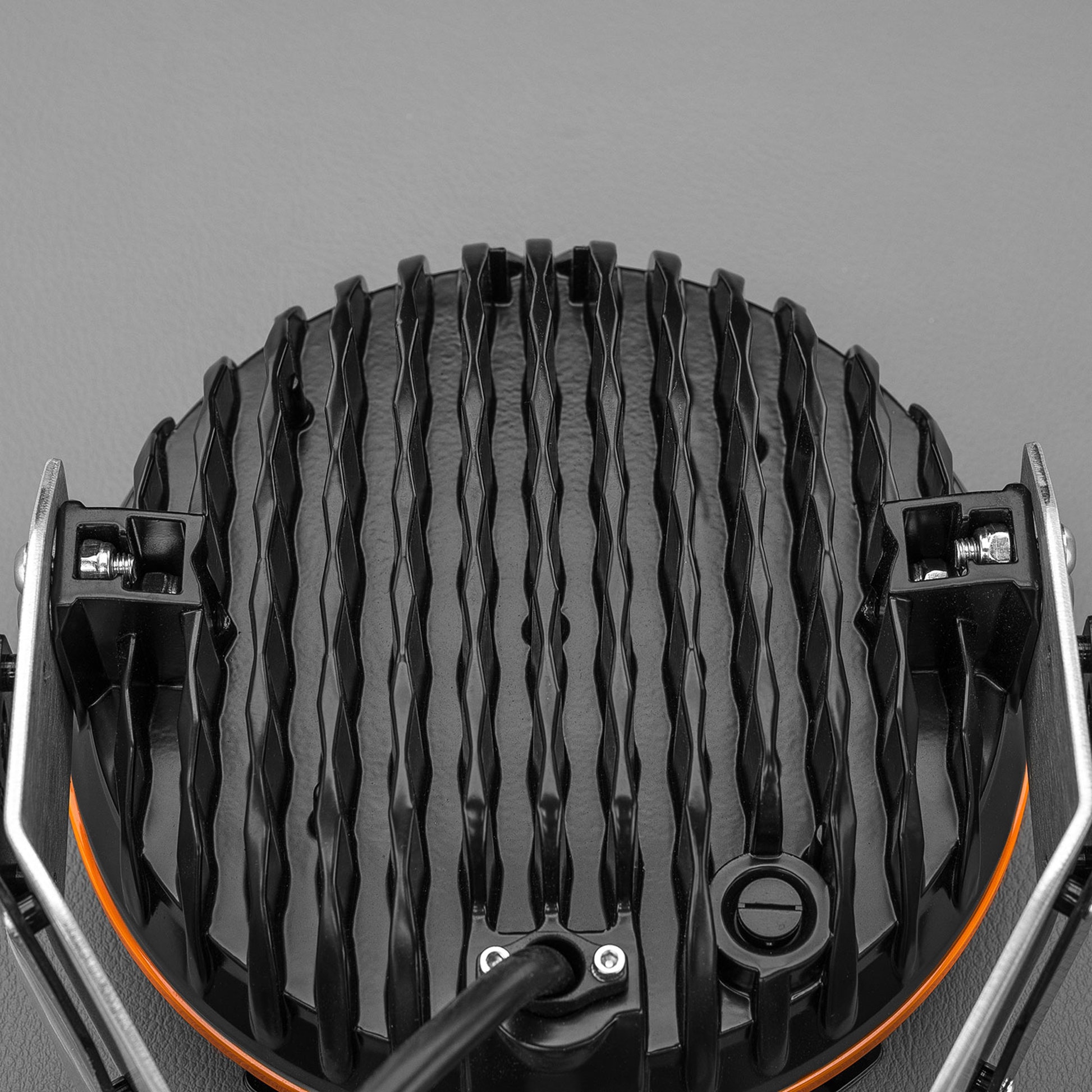

THE NITTY GRITTY. THE NERDY DETAILS 4mm thick 304 Series Stainless Mounting bracket, which includes rubber dampener and an additional 3mm upper plate. A360.0 Cast Housing | Boasting superior strength and corrosion resistance. 3mm Thick GE Lexan Lens with hard coating | Virtually unbreakable & scratch resistant 100% Polyester UV and abrasion resistant powder coat IP68 | Dust & Particle tight + Water-proof up to 3 meters Nitto Denko Pressure Equalization vent with membrane | Protects against water ingress, dust & contaminants. Environmentally Sealed Deutsch® DTP-2 connector EMI & RFI Suppression circuitry - We guarantee it. Each TYPE-X Sport 7" comprises 32 of OSRAM's® finest OSLON® LED, selected for its high luminous flux and perfectly matches optical properties. Four wide-beam reflectors built-in, which form a lateral shaped flood pattern designed to minimize valuable light wasted up to the sky. Also available separately are the snap-on wide-beam covers, for environments demanding an increased peripheral vision. 5700K CCT offers stunning clarity and definition with excellent Colour Rendering Index (CRI)

TECH SPECS LED: 32 x Osram Oslon SSL RAW LUMENS: 16,640 (Pair) TESTED LUMENS: 12,820 (Pair) AMP DRAW : 6.4A @ 13.2v (each) POWER DRAW: 85W (each) CANDELA: 819,200cd BEAM PATTERN: 4 x Spread 28 x Spot Beam INGRESS PROTECTION: IP68 | Submersible up to 3m COLOUR TEMP (CCT): 5700K VOLTAGE COMPATIBILITY: 12v & 24v LUMEN MAINTENANCE: 50,000 LM-80 WEIGHT: 2.250kg (each) PHOTOMETRIC DATA 10 m: 8,129 Lx 50 m: 327 Lx 200 m: 20 Lx 300 m: 9 Lx 400 m: 5 Lx 895 m: 1Lx

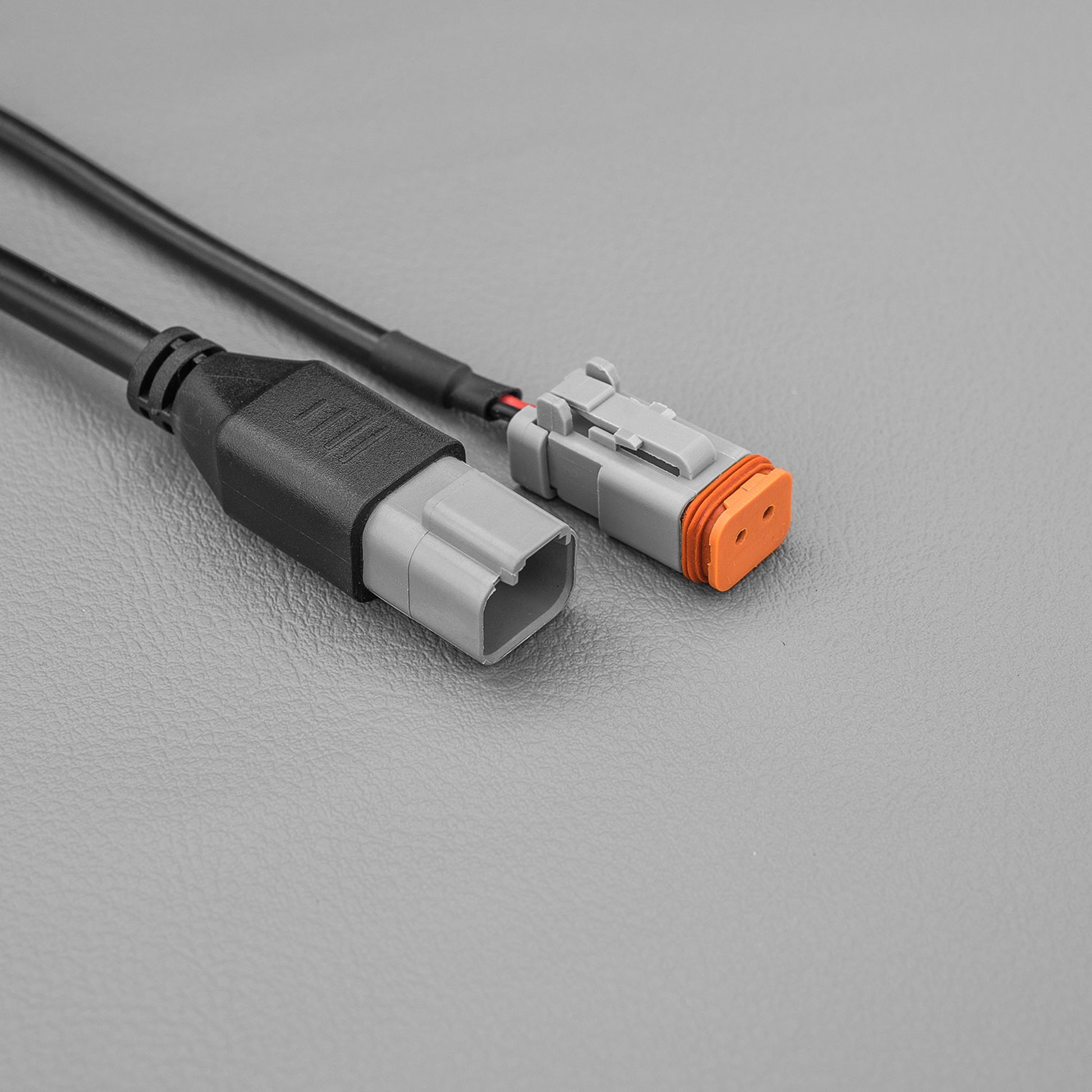

WHAT'S INCLUDED 4 x STEDI 7" TYPE-X Sport 4 x STEDI Black Out Covers 2 x Easy Fit High Beam Wiring with DT-2 Sealed Connectors, H4, HB3 Adapter plugs to high beam. 60A Relay, Fuse, Switch 3 Series Stainless Steel Nuts and Bolts Rubber Shock Dampener Wiring Instructions
