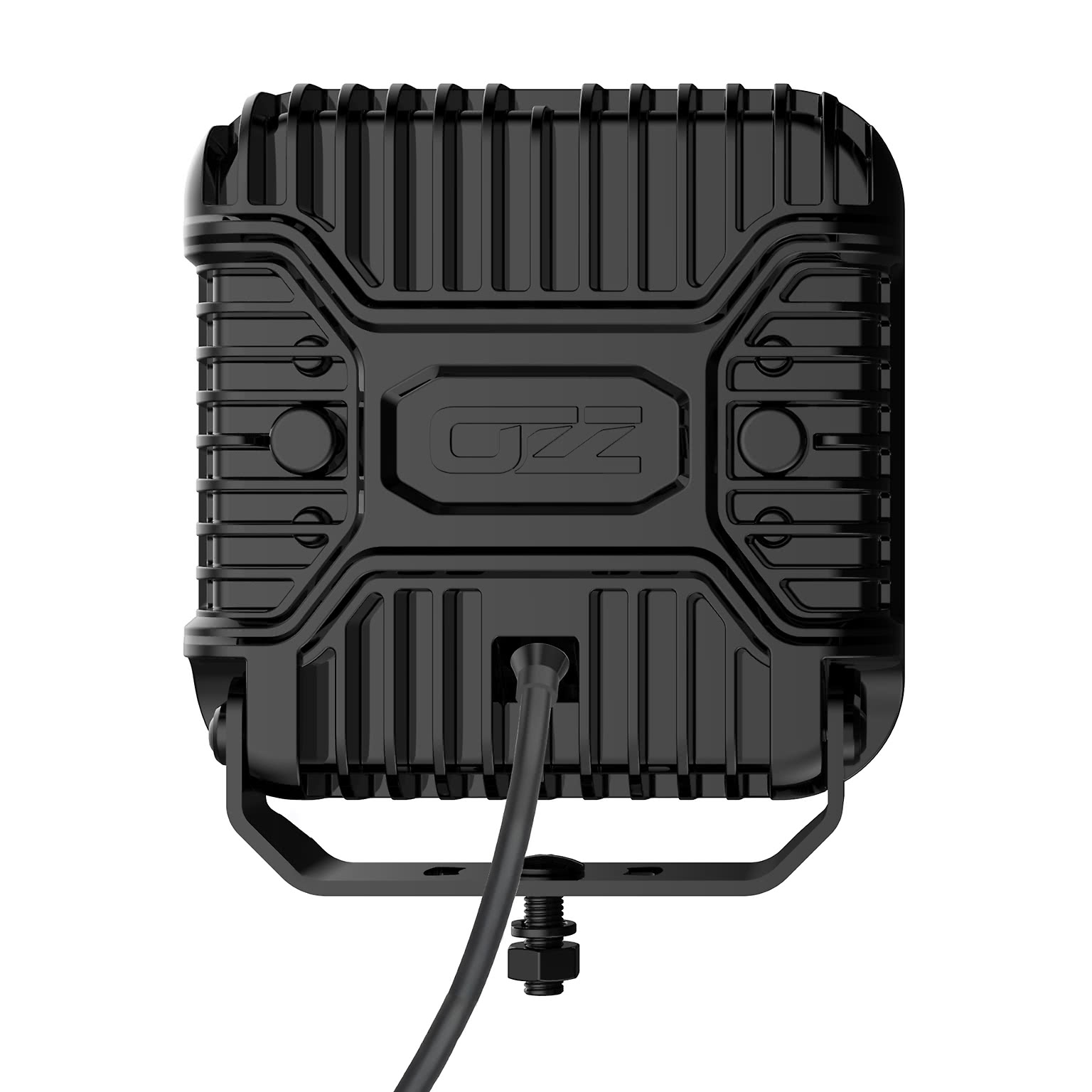

OZZ Square 9 LED Driving Light | Black
€432
- Your expert in vehicle lighting
- Secure card payment
- We have been online since 2006
- BRANDOZZ
- CATEGORYDriving Light
Description
Article no.: 588112
Quadratic innovation.
OZZ Lights takes auxiliary lighting to the next level and introduces the OZZ SQR series – a series that breaks with traditional round design and instead introduces a modern, square design language. Every detail is created with care: the slightly curved lens gives an exclusive expression, the dynamic position light creates elegant depth and the built-in strobe mode provides extra visibility when needed. The result is an auxiliary light that both blends into the lines of the vehicle and at the same time stands out with its clean, sharp appearance.
Power and precision.
The SQR series is available in two sizes – 7” and 9” – and in two designs: black and Arctic Edition, where all components are color-matched down to the smallest detail. The lights are fully E-approved and ready for road use throughout Europe. When you need maximum performance, activate the boost mode that unleashes the full light power: up to 1 lux at 950 meters for the 9” and 1 lux at 650 meters for the 7”. With its precise engineering and square design, the SQR series is created to mount tighter, shine longer and give a stylish impression regardless of the vehicle.
TECH SPECS
597 / 5 000
Lamp type: LED with position and warning light
Diodes (pcs): 24
Lm theoretical (lumen): 21000
Lm measured (lumen): 5000
Lm measured (Boost) (lumen): 12000
Number of flash patterns (pcs): 2
Volt (V): 9-32
Current at 12V (A): 5
Current at 24V (A): 2.5
Power at 12 V (W): 60
Power at 24 V (W): 60
Power at 12 V (Boost) (W): 160
Power at 24 V (Boost) (W): 160
Color temp. (K): 5000

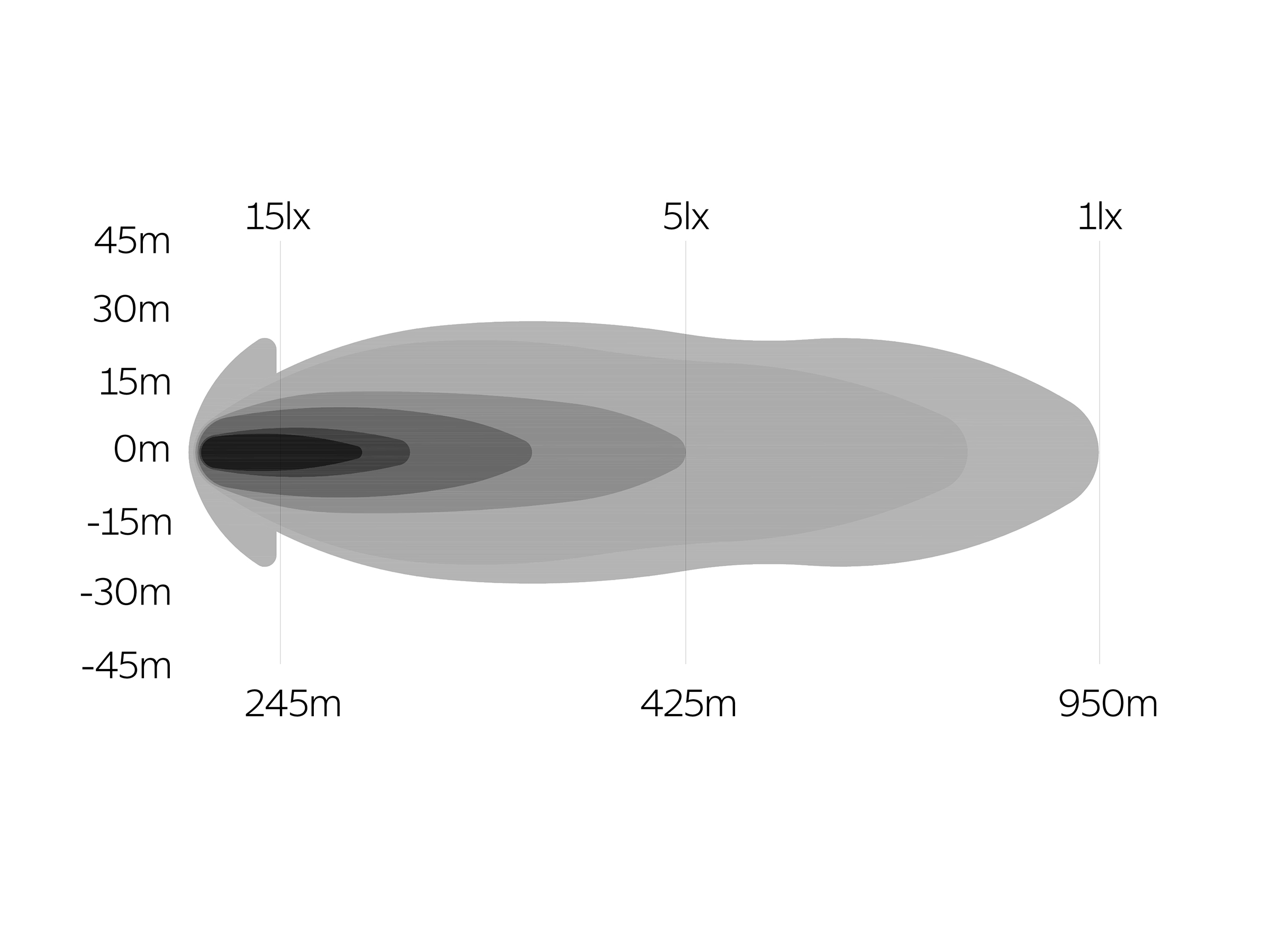

1 Lux at (m): 480
1 Lux at (boost) (m): 950

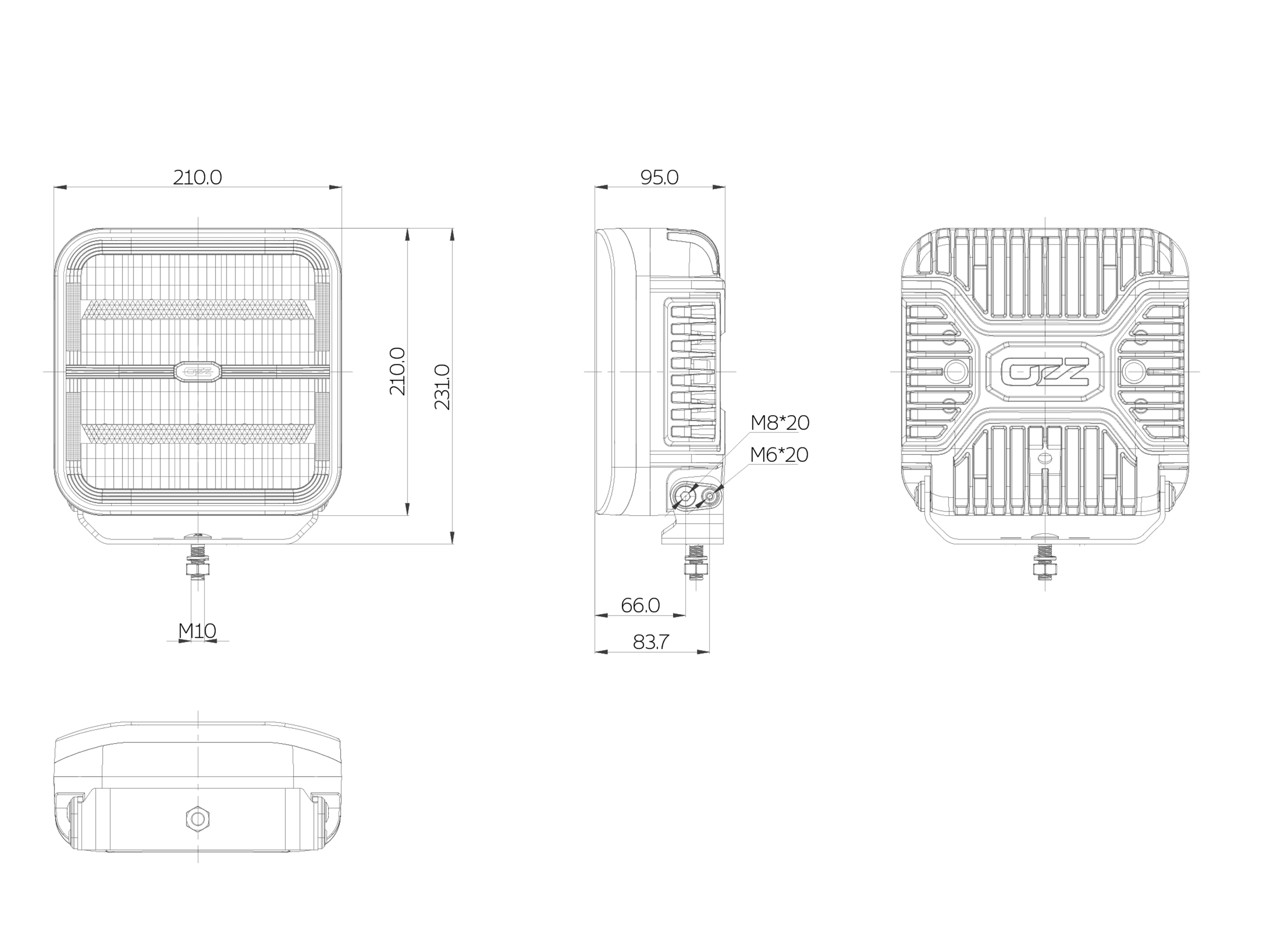

WxHxD (mm): 210x210x95
Connection: DT
IP: 68/69K
Lamp housing: Aluminum
Lens: PC
Temp. range: -40°C to +60°C
Light pattern: Driving Beam
Color: Black
ECE: R148, R149
EMC: R10, R65
Cable (m): 1
WHAT'S INCLUDED
1 x OZZ Square 9 LED Driving Light | Black
